Skapa cirkeldiagram med ledarlinjer med C++

Denna artikel förklarar hur man skapar ett cirkeldiagram med ledarlinjer från grunden med hjälp av Aspose.Cells for C++ API. I Excel är ‘Visa ledarlinjer’ alternativet aktiverat som standard, så när du skapar ett cirkeldiagram i Excel visas ledarlinjer. Men när du skapar ett liknande diagram med Aspose.Cells API, måste du explicit ställa in Series.GetHasLeaderLines()-egenskapen.

För att demonstrera användningen av Aspose.Cells for C++ API för att skapa ett cirkeldiagram med ledarlinjer, kommer vi först att skapa ett nytt Workbook och mata in data som kommer att fungera som serie datakälla. När datan är på plats, lägger vi till ett Chart av typen ChartType.Pie i diagramsamlingen och ställer in dess olika aspekter för att få önskad diagramvy.

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Output directory path
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    // Create an instance of Workbook in XLSX format
    Workbook workbook(FileFormatType::Xlsx);

    // Access the first worksheet
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Add two columns of data
    worksheet.GetCells().Get(u"A1").PutValue(u"Retail");
    worksheet.GetCells().Get(u"A2").PutValue(u"Services");
    worksheet.GetCells().Get(u"A3").PutValue(u"Info & Communication");
    worksheet.GetCells().Get(u"A4").PutValue(u"Transport Equip");
    worksheet.GetCells().Get(u"A5").PutValue(u"Construction");
    worksheet.GetCells().Get(u"A6").PutValue(u"Other Products");
    worksheet.GetCells().Get(u"A7").PutValue(u"Wholesale");
    worksheet.GetCells().Get(u"A8").PutValue(u"Land Transport");
    worksheet.GetCells().Get(u"A9").PutValue(u"Air Transport");
    worksheet.GetCells().Get(u"A10").PutValue(u"Electric Appliances");
    worksheet.GetCells().Get(u"A11").PutValue(u"Securities");
    worksheet.GetCells().Get(u"A12").PutValue(u"Textiles & Apparel");
    worksheet.GetCells().Get(u"A13").PutValue(u"Machinery");
    worksheet.GetCells().Get(u"A14").PutValue(u"Metal Products");
    worksheet.GetCells().Get(u"A15").PutValue(u"Cash");
    worksheet.GetCells().Get(u"A16").PutValue(u"Banks");

    worksheet.GetCells().Get(u"B1").PutValue(10.4);
    worksheet.GetCells().Get(u"B2").PutValue(5.2);
    worksheet.GetCells().Get(u"B3").PutValue(6.4);
    worksheet.GetCells().Get(u"B4").PutValue(10.4);
    worksheet.GetCells().Get(u"B5").PutValue(7.9);
    worksheet.GetCells().Get(u"B6").PutValue(4.1);
    worksheet.GetCells().Get(u"B7").PutValue(3.5);
    worksheet.GetCells().Get(u"B8").PutValue(5.7);
    worksheet.GetCells().Get(u"B9").PutValue(3);
    worksheet.GetCells().Get(u"B10").PutValue(14.7);
    worksheet.GetCells().Get(u"B11").PutValue(3.6);
    worksheet.GetCells().Get(u"B12").PutValue(2.8);
    worksheet.GetCells().Get(u"B13").PutValue(7.8);
    worksheet.GetCells().Get(u"B14").PutValue(2.4);
    worksheet.GetCells().Get(u"B15").PutValue(1.8);
    worksheet.GetCells().Get(u"B16").PutValue(10.1);

    // Create a pie chart and add it to the collection of charts
    int id = worksheet.GetCharts().Add(ChartType::Pie, 3, 3, 23, 13);

    // Access newly created Chart instance
    Chart chart = worksheet.GetCharts().Get(id);

    // Set series data range
    chart.GetNSeries().Add(u"B1:B16", true);

    // Set category data range
    chart.GetNSeries().SetCategoryData(u"A1:A16");

    // Turn off legend
    chart.SetShowLegend(false);

    // Access data labels
    DataLabels dataLabels = chart.GetNSeries().Get(0).GetDataLabels();

    // Turn on category names
    dataLabels.SetShowCategoryName(true);

    // Turn on percentage format
    dataLabels.SetShowPercentage(true);

    // Set position
    dataLabels.SetPosition(LabelPositionType::OutsideEnd);

    // Set separator
    dataLabels.SetSeparatorType(DataLabelsSeparatorType::Comma);

    // Save the workbook
    workbook.Save(outDir + u"PieChart_out.xlsx");

    std::cout << "Pie chart created successfully!" << std::endl;

    Aspose::Cells::Cleanup();
}

Hittills har vi skapat ett cirkeldiagram och ställt in dess olika aspekter. Nu kommer vi att slå på ledarlänkarna för diagrammet. Observera, för att visa ledarlänkar måste vi flytta dataetiketterna lite.

Följande kodsnutt slår på ledarlänkarna, uppdaterar diagrammet och beräknar sedan dataetiketternas positioner för att flytta dem på lämpligt sätt.

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
using namespace Aspose::Cells::Charts;

int main()
{
    Aspose::Cells::Startup();

    // Create an instance of Workbook in XLSX format
    Workbook workbook(FileFormatType::Xlsx);

    // Access the first worksheet
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Add two columns of data
    worksheet.GetCells().Get(u"A1").PutValue(u"Retail");
    worksheet.GetCells().Get(u"A2").PutValue(u"Services");
    worksheet.GetCells().Get(u"A3").PutValue(u"Info & Communication");
    worksheet.GetCells().Get(u"A4").PutValue(u"Transport Equip");
    worksheet.GetCells().Get(u"A5").PutValue(u"Construction");
    worksheet.GetCells().Get(u"A6").PutValue(u"Other Products");
    worksheet.GetCells().Get(u"A7").PutValue(u"Wholesale");
    worksheet.GetCells().Get(u"A8").PutValue(u"Land Transport");
    worksheet.GetCells().Get(u"A9").PutValue(u"Air Transport");
    worksheet.GetCells().Get(u"A10").PutValue(u"Electric Appliances");
    worksheet.GetCells().Get(u"A11").PutValue(u"Securities");
    worksheet.GetCells().Get(u"A12").PutValue(u"Textiles & Apparel");
    worksheet.GetCells().Get(u"A13").PutValue(u"Machinery");
    worksheet.GetCells().Get(u"A14").PutValue(u"Metal Products");
    worksheet.GetCells().Get(u"A15").PutValue(u"Cash");
    worksheet.GetCells().Get(u"A16").PutValue(u"Banks");

    worksheet.GetCells().Get(u"B1").PutValue(10.4);
    worksheet.GetCells().Get(u"B2").PutValue(5.2);
    worksheet.GetCells().Get(u"B3").PutValue(6.4);
    worksheet.GetCells().Get(u"B4").PutValue(10.4);
    worksheet.GetCells().Get(u"B5").PutValue(7.9);
    worksheet.GetCells().Get(u"B6").PutValue(4.1);
    worksheet.GetCells().Get(u"B7").PutValue(3.5);
    worksheet.GetCells().Get(u"B8").PutValue(5.7);
    worksheet.GetCells().Get(u"B9").PutValue(3);
    worksheet.GetCells().Get(u"B10").PutValue(14.7);
    worksheet.GetCells().Get(u"B11").PutValue(3.6);
    worksheet.GetCells().Get(u"B12").PutValue(2.8);
    worksheet.GetCells().Get(u"B13").PutValue(7.8);
    worksheet.GetCells().Get(u"B14").PutValue(2.4);
    worksheet.GetCells().Get(u"B15").PutValue(1.8);
    worksheet.GetCells().Get(u"B16").PutValue(10.1);

    // Create a pie chart and add it to the collection of charts
    int id = worksheet.GetCharts().Add(ChartType::Pie, 3, 3, 23, 13);

    // Access newly created Chart instance
    Chart chart = worksheet.GetCharts().Get(id);

    // Set series data range
    chart.GetNSeries().Add(u"B1:B16", true);

    // Set category data range
    chart.GetNSeries().SetCategoryData(u"A1:A16");

    // Turn off legend
    chart.SetShowLegend(false);

    // Access data labels
    DataLabels dataLabels = chart.GetNSeries().Get(0).GetDataLabels();

    // Turn on category names
    dataLabels.SetShowCategoryName(true);

    // Turn on percentage format
    dataLabels.SetShowPercentage(true);

    // Set position
    dataLabels.SetPosition(LabelPositionType::OutsideEnd);

    // Set separator
    dataLabels.SetSeparatorType(DataLabelsSeparatorType::Comma);

    // Turn on leader lines
    chart.GetNSeries().Get(0).SetHasLeaderLines(true);

    // Calculate chart
    chart.Calculate();

    // You need to move DataLabels a little leftward or rightward depending on their position to show leader lines
    int DELTA = 100;
    for (int i = 0; i < chart.GetNSeries().Get(0).GetPoints().GetCount(); i++)
    {
        int X = chart.GetNSeries().Get(0).GetPoints().Get(i).GetDataLabels().GetX();
        // If it is greater than 2000, then move the X position a little right otherwise move the X position a little left
        if (X > 2000)
            chart.GetNSeries().Get(0).GetPoints().Get(i).GetDataLabels().SetX(X + DELTA);
        else
            chart.GetNSeries().Get(0).GetPoints().Get(i).GetDataLabels().SetX(X - DELTA);
    }

    // Save the workbook
    workbook.Save(u"output.xlsx");

    Aspose::Cells::Cleanup();
}

Slutligen sparar följande kod diagrammet i bildformat och arbetsboken i XLSX-format.

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
using namespace Aspose::Cells::Charts;
using namespace Aspose::Cells::Drawing;

int main()
{
    Aspose::Cells::Startup();

    // Create an instance of Workbook in XLSX format
    Workbook workbook(FileFormatType::Xlsx);

    // Access the first worksheet
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Add two columns of data
    worksheet.GetCells().Get(u"A1").PutValue(u"Retail");
    worksheet.GetCells().Get(u"A2").PutValue(u"Services");
    worksheet.GetCells().Get(u"A3").PutValue(u"Info & Communication");
    worksheet.GetCells().Get(u"A4").PutValue(u"Transport Equip");
    worksheet.GetCells().Get(u"A5").PutValue(u"Construction");
    worksheet.GetCells().Get(u"A6").PutValue(u"Other Products");
    worksheet.GetCells().Get(u"A7").PutValue(u"Wholesale");
    worksheet.GetCells().Get(u"A8").PutValue(u"Land Transport");
    worksheet.GetCells().Get(u"A9").PutValue(u"Air Transport");
    worksheet.GetCells().Get(u"A10").PutValue(u"Electric Appliances");
    worksheet.GetCells().Get(u"A11").PutValue(u"Securities");
    worksheet.GetCells().Get(u"A12").PutValue(u"Textiles & Apparel");
    worksheet.GetCells().Get(u"A13").PutValue(u"Machinery");
    worksheet.GetCells().Get(u"A14").PutValue(u"Metal Products");
    worksheet.GetCells().Get(u"A15").PutValue(u"Cash");
    worksheet.GetCells().Get(u"A16").PutValue(u"Banks");

    worksheet.GetCells().Get(u"B1").PutValue(10.4);
    worksheet.GetCells().Get(u"B2").PutValue(5.2);
    worksheet.GetCells().Get(u"B3").PutValue(6.4);
    worksheet.GetCells().Get(u"B4").PutValue(10.4);
    worksheet.GetCells().Get(u"B5").PutValue(7.9);
    worksheet.GetCells().Get(u"B6").PutValue(4.1);
    worksheet.GetCells().Get(u"B7").PutValue(3.5);
    worksheet.GetCells().Get(u"B8").PutValue(5.7);
    worksheet.GetCells().Get(u"B9").PutValue(3);
    worksheet.GetCells().Get(u"B10").PutValue(14.7);
    worksheet.GetCells().Get(u"B11").PutValue(3.6);
    worksheet.GetCells().Get(u"B12").PutValue(2.8);
    worksheet.GetCells().Get(u"B13").PutValue(7.8);
    worksheet.GetCells().Get(u"B14").PutValue(2.4);
    worksheet.GetCells().Get(u"B15").PutValue(1.8);
    worksheet.GetCells().Get(u"B16").PutValue(10.1);

    // Create a pie chart and add it to the collection of charts
    int id = worksheet.GetCharts().Add(ChartType::Pie, 3, 3, 23, 13);

    // Access newly created Chart instance
    Chart chart = worksheet.GetCharts().Get(id);

    // Set series data range
    chart.GetNSeries().Add(u"B1:B16", true);

    // Set category data range
    chart.GetNSeries().SetCategoryData(u"A1:A16");

    // Turn off legend
    chart.SetShowLegend(false);

    // Access data labels
    DataLabels dataLabels = chart.GetNSeries().Get(0).GetDataLabels();

    // Turn on category names
    dataLabels.SetShowCategoryName(true);

    // Turn on percentage format
    dataLabels.SetShowPercentage(true);

    // Set position
    dataLabels.SetPosition(LabelPositionType::OutsideEnd);

    // Set separator
    dataLabels.SetSeparatorType(DataLabelsSeparatorType::Comma);

    // In order to save the chart image, create an instance of ImageOrPrintOptions
    ImageOrPrintOptions anOption;

    // Set image format
    anOption.SetImageType(ImageType::Png);

    // Set resolution
    anOption.SetHorizontalResolution(200);
    anOption.SetVerticalResolution(200);

    // Render chart to image
    chart.ToImage(u"output_out.png", anOption);

    // Save the workbook to see chart inside the Excel
    workbook.Save(u"output_out.xlsx");

    Aspose::Cells::Cleanup();
}

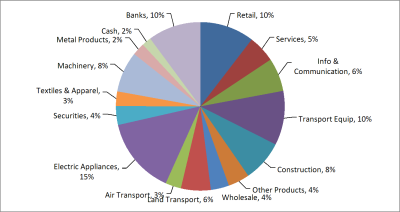

Resulterande Cirkeldiagram
