在复制行或区域时将图表数据源更改为目标工作表,使用C++

可能的使用场景

当你复制包含图表的行或区域到新工作表时,图表的数据源不会改变。例如,如果图表的数据源是=Sheet1!$A$1:$B$4,那么复制到新工作表后,数据源仍然是=Sheet1!$A$1:$B$4,仍指向旧的工作表Sheet1。这也是Microsoft Excel中的默认行为。但如果您想让它指向新的目标工作表,请使用CopyOptions.GetReferToDestinationSheet()属性,并在调用Cells.CopyRows()方法时设置为true。假如目标工作表是DestSheet,那么您的图表数据源将从=Sheet1!$A$1:$B$4变为=DestSheet!$A$1:$B$4。

复制行或区域时更改图表的数据源到目标工作表

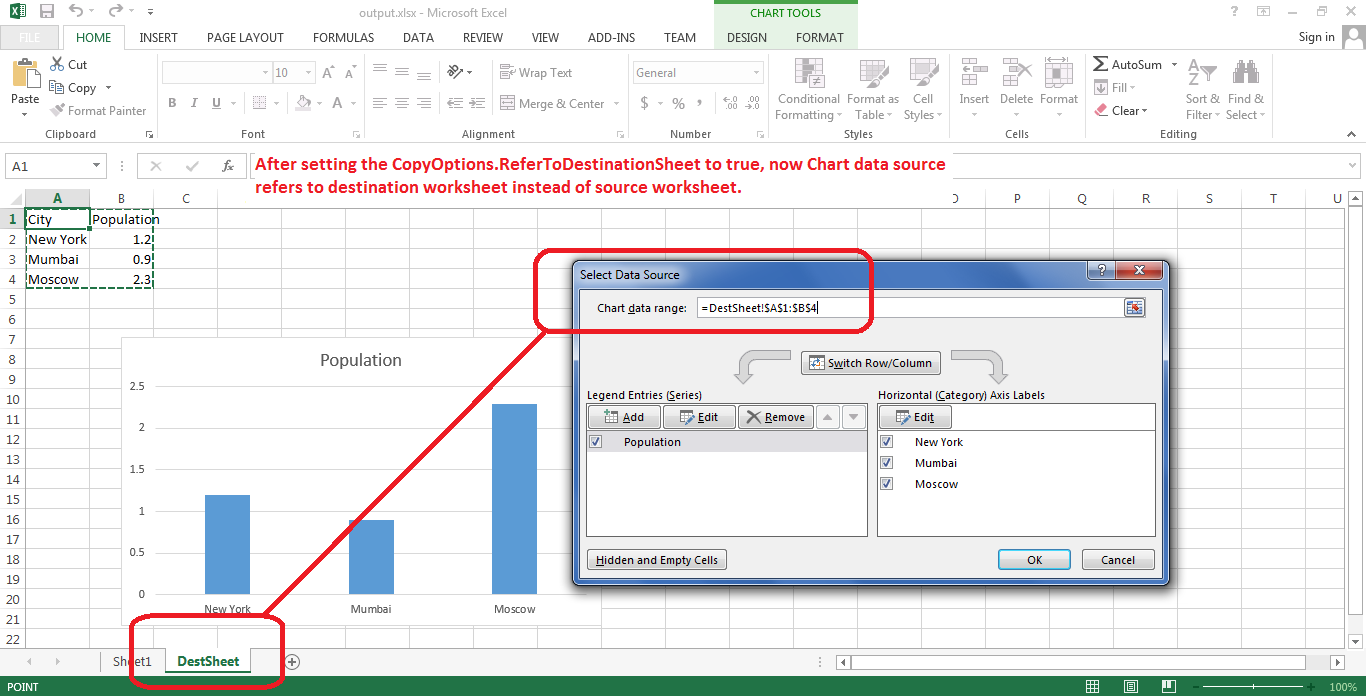

以下示例代码解释了在复制包含图表的行或区域到新工作表时使用CopyOptions.GetReferToDestinationSheet()属性的方法。代码使用示例Excel文件(5113699.xlsx),并生成输出Excel文件(5113697.xlsx)。

todo:image_alt_text

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // For complete examples and data files, please go to https://github.com/aspose-cells/Aspose.Cells-for-C

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Load sample Excel file
    Workbook wb(srcDir + u"sample.xlsx");

    // Access the first sheet which contains chart
    Worksheet source = wb.GetWorksheets().Get(0);

    // Add another sheet named DestSheet
    Worksheet destination = wb.GetWorksheets().Add(u"DestSheet");

    // Set CopyOptions.ReferToDestinationSheet to true
    CopyOptions options;
    options.SetReferToDestinationSheet(true);

    // Copy all the rows of source worksheet to destination worksheet which includes chart as well
    // The chart data source will now refer to DestSheet
    destination.GetCells().CopyRows(source.GetCells(), 0, 0, source.GetCells().GetMaxDisplayRange().GetRowCount(), options);

    // Save workbook in xlsx format
    wb.Save(srcDir + u"output_out.xlsx", SaveFormat::Xlsx);

    std::cout << "Workbook saved successfully!" << std::endl;

    Aspose::Cells::Cleanup();
}
