如何用C++创建组合图表

可能的使用场景

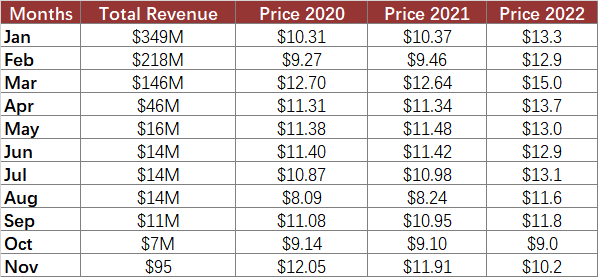

Excel中的组合图表让您能够利用此选项,因为您可以轻松地组合两种或更多种图表类型,以使您的数据易于理解。当您的数据包含多种值(包括价格和交易量)时,组合图表是有用的。此外,当您的数据数字在系列之间有明显变化时,组合图表是可行的。

todo:image_alt_text

组合图表

运行以下代码后,您将看到下面展示的组合图表。

todo:image_alt_text

示例代码

以下示例代码加载了示例Excel文件并生成了输出Excel文件

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Create the workbook
    Workbook workbook(u"combo.xlsx");

    // Access the first worksheet
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Add a stock volume (VHLC) chart
    int32_t pieIdx = worksheet.GetCharts().Add(ChartType::StockVolumeHighLowClose, 15, 0, 34, 12);

    // Retrieve the Chart object
    Chart chart = worksheet.GetCharts().Get(pieIdx);

    // Set the legend to be shown
    chart.SetShowLegend(true);

    // Set the chart title
    chart.GetTitle().SetText(u"Combo Chart");

    // Set the Legend position to bottom of the chart area
    chart.GetLegend().SetPosition(LegendPositionType::Bottom);

    // Set data range
    chart.SetChartDataRange(u"A1:E12", true);

    // Set category data
    chart.GetNSeries().GetCategoryData() = u"A2:A12";

    // Set the Series[1], Series[2], and Series[3] to different Marker Styles
    for (int32_t j = 0; j < chart.GetNSeries().GetCount(); j++)
    {
        switch (j)
        {
            case 1:
                chart.GetNSeries().Get(j).GetMarker().SetMarkerStyle(ChartMarkerType::Circle);
                chart.GetNSeries().Get(j).GetMarker().SetMarkerSize(15);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetFormatting(FormattingType::Custom);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetForegroundColor(Color::Pink());
                chart.GetNSeries().Get(j).GetBorder().SetIsVisible(false);
                break;
            case 2:
                chart.GetNSeries().Get(j).GetMarker().SetMarkerStyle(ChartMarkerType::Dash);
                chart.GetNSeries().Get(j).GetMarker().SetMarkerSize(15);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetFormatting(FormattingType::Custom);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetForegroundColor(Color::Orange());
                chart.GetNSeries().Get(j).GetBorder().SetIsVisible(false);
                break;
            case 3:
                chart.GetNSeries().Get(j).GetMarker().SetMarkerStyle(ChartMarkerType::Square);
                chart.GetNSeries().Get(j).GetMarker().SetMarkerSize(15);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetFormatting(FormattingType::Custom);
                chart.GetNSeries().Get(j).GetMarker().GetArea().SetForegroundColor(Color::LightBlue());
                chart.GetNSeries().Get(j).GetBorder().SetIsVisible(false);
                break;
        }
    }

    // Set the chart type for Series[0]
    chart.GetNSeries().Get(0).SetType(ChartType::Line);

    // Set style for the border of the first series
    chart.GetNSeries().Get(0).GetBorder().SetStyle(LineType::Solid);

    // Set color for the first series
    chart.GetNSeries().Get(0).GetBorder().SetColor(Color::DarkBlue());

    // Fill the PlotArea area with nothing
    chart.GetPlotArea().GetArea().SetFormatting(FormattingType::None);

    // Save the Excel file
    workbook.Save(u"out.xlsx");

    Aspose::Cells::Cleanup();
}
