将PdfSaveOptions和ImageOrPrintOptions的DefaultFont属性设置为优先,使用C++
可能的使用场景
在设置 PdfSaveOptions 和 ImageOrPrintOptions 的 DefaultFont 属性时,您可能希望保存为 PDF 或图像时将该 DefaultFont 设置为工作簿中所有没有安装的字体的文本。
通常,在保存为PDF或图像时,Aspose.Cells会优先尝试设置工作簿的默认字体(即Workbook.DefaultStyle.Font)。如果工作簿的默认字体仍无法正确显示/渲染文本,则Aspose.Cells将尝试使用PdfSaveOptions/ImageOrPrintOptions中的DefaultFont属性中提到的字体进行渲染。
为了符合您的预期,我们在{0}/{1}}中添加了布尔属性“CheckWorkbookDefaultFont”。您可以将其设置为false,以禁用尝试使用工作簿的默认字体,或让{2}/{3}中的DefaultFont设置优先执行。
设置PdfSaveOptions/ImageOrPrintOptions的DefaultFont属性
以下示例代码打开一个Excel文件。第一个工作表的A1单元格内设置了一段文本“Christmas Time Font text”。字体名为“Christmas Time Personal Use”,该字体未安装在机器上。我们将PdfSaveOptions/ImageOrPrintOptions的DefaultFont属性设置为“Times New Roman”。同时将布尔属性CheckWorkbookDefaultFont设置为“false”,确保A1单元格的文本使用“Times New Roman”字体渲染,而不是使用默认字体(此处为“Calibri”)。该代码将第一个工作表渲染为PNG和TIFF图像格式,最后输出为PDF文件。

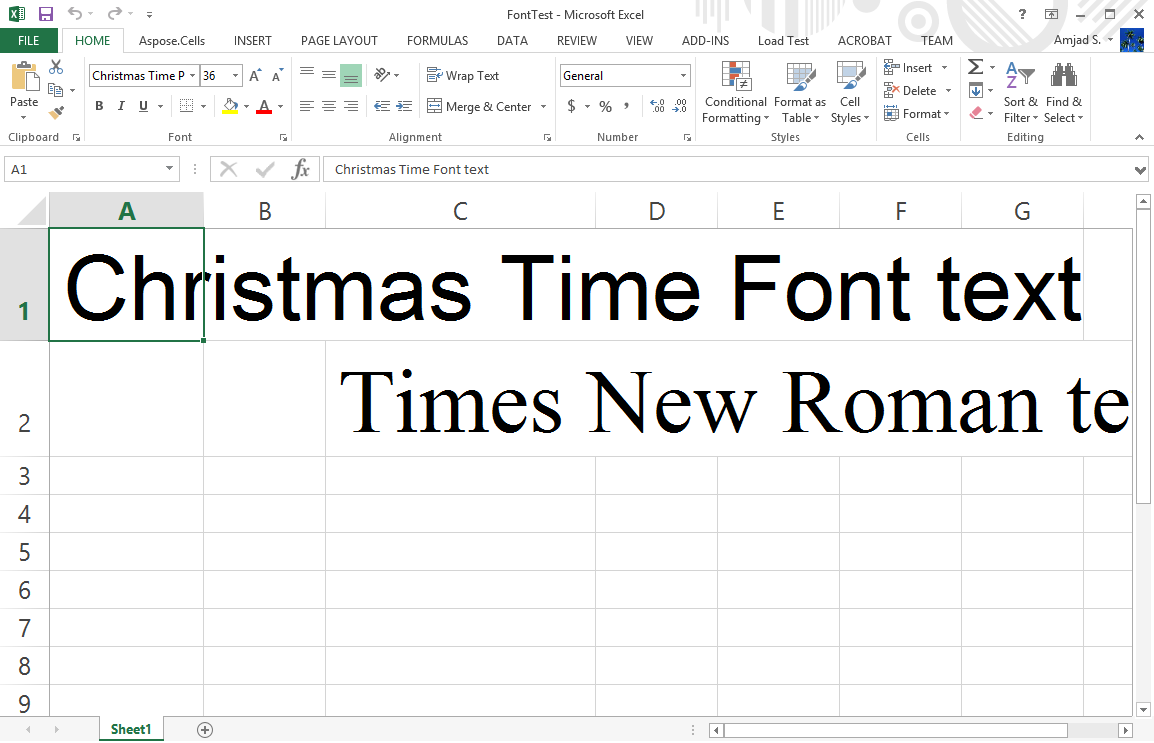

这是示例代码中使用的模板文件的屏幕截图。

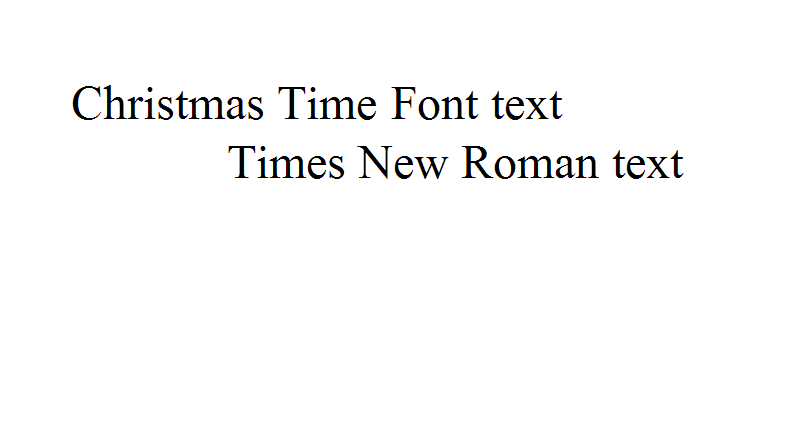

设置ImageOrPrintOptions.GetDefaultFont()属性为“Times New Roman”后生成的PNG图像示意。
设置ImageOrPrintOptions.GetDefaultFont()属性为“Times New Roman”后,输出的TIF图像。
设置PdfSaveOptions.PaginatedSaveOptions(PaginatedSaveOptions_Impl impl)*属性为“Times New Roman”后,输出的PDF文件。
示例代码
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
// For complete examples and data files, please go to https://github.com/aspose-cells/Aspose.Cells-for-C
// Input and output directory path
U16String sourceDir(u"..\\Data\\01_SourceDirectory\\");
U16String outputDir(u"..\\Data\\02_OutputDirectory\\");
// Open an Excel file
Workbook workbook(sourceDir + u"sampleSetDefaultFontPropertyOfPdfSaveOptionsAndImageOrPrintOptions.xlsx");
// Rendering to PNG file format while setting the CheckWorkbookDefaultFont attribute to false.
// So, "Times New Roman" font would be used for any missing (not installed) font in the workbook.
ImageOrPrintOptions imgOpt;
imgOpt.SetImageType(ImageType::Png);
imgOpt.SetCheckWorkbookDefaultFont(false);
imgOpt.SetDefaultFont(u"Times New Roman");
// Create a SheetRender instance for the first worksheet and render to PNG.
SheetRender sr(workbook.GetWorksheets().Get(0), imgOpt);
sr.ToImage(0, outputDir + u"out1_imagePNG.png");
// Rendering to TIFF file format while setting the CheckWorkbookDefaultFont attribute to false.
imgOpt.SetImageType(ImageType::Tiff);
WorkbookRender wr(workbook, imgOpt);
wr.ToImage(outputDir + u"out1_imageTIFF.tiff");
// Rendering to PDF file format while setting the CheckWorkbookDefaultFont attribute to false.
PdfSaveOptions saveOptions;
saveOptions.SetDefaultFont(u"Times New Roman");
saveOptions.SetCheckWorkbookDefaultFont(false);
// Save the workbook as PDF
workbook.Save(outputDir + u"out1_pdf.pdf", saveOptions);
std::cout << "Files exported successfully!" << std::endl;
Aspose::Cells::Cleanup();
}
