用Node.js通过C++创建开盘 最高 最低 收盘(OHLC)股票图表
Contents
[
Hide
]
可能的使用场景

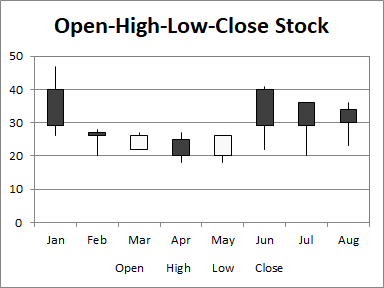

开-高-低-收(OHLC)图表使用五列数据,分别是类别、开盘、最高、最低和收盘。每个类别的价格范围再次通过垂直线表示,开盘价格和收盘价格之间的范围由一个更宽的浮动条表示;如果该类别的价格上升(收盘价高于开盘价),则该条将填充一种颜色,而如果价格下降,则用另一种颜色填充。这种图表通常被称为蜡烛图。
图表的可见性改进

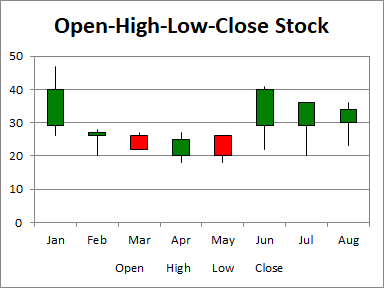

我们通常用颜色而非黑白来表示价格的上涨与下降。在下面第一组蜡烛图中,红色表示上涨,绿色表示下降。
示例代码
以下示例代码加载了示例Excel文件,并生成了输出Excel文件。
const AsposeCells = require("aspose.cells.node");
const path = require("path");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Open-High-Low-Close.xlsx");
// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Open-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:E9", true);
// Set category data
chart.getNSeries().getCategoryData("A2:A9");
// Set the DownBars and UpBars with different color
chart.getNSeries().get(0).getDownBars().getArea().setForegroundColor(AsposeCells.Color.Green);
chart.getNSeries().get(0).getUpBars().getArea().setForegroundColor(AsposeCells.Color.Red);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
