用Node.js通过C++创建成交量 最高 最低 收盘(VHLC)股票图表

可能的使用场景

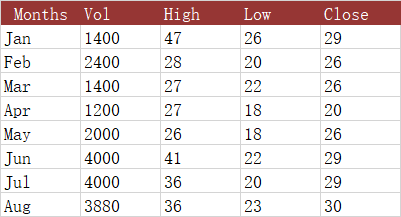

我们要看的第三个股票图表是成交量最高-最低-收盘图。再次强调,必须确保数据的顺序正确。如果需要重新排列数据表,应该在设置图表之前完成。 此图表在第一个(类别)列之后立即包含一列成交量,图表包括在主轴上的一列显示成交量,而价格数据移至次轴。

todo:image_alt_text

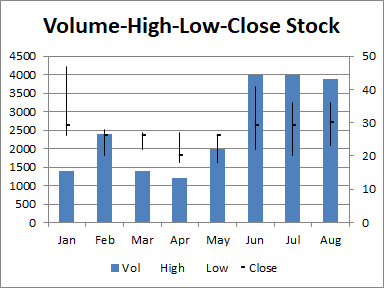

成交量高低收(VHLC)股票图表

todo:image_alt_text

示例代码

以下示例代码加载了 样本Excel文件 并生成了 输出Excel文件

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Volume-High-Low-Close.xlsx");

// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);

// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockVolumeHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Volume-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:E9", true);
// Set category data
chart.getNSeries().setCategoryData("A2:A9");
// Set Color for the first series(Volume) data
chart.getNSeries().get(0).getArea().setForegroundColor(new AsposeCells.Color(79, 129, 189));
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
