如何通过C++在Node.js中创建Sunburst图表
Contents
[
Hide
]
可能的使用场景
树状图非常适合比较层级内的比例;然而,树状图不擅长显示最大类别与每个数据点之间的层级关系。太阳放射图是更好的视觉图表,用于显示这些关系。太阳放射图理想于显示层级数据。每一层由一个环或圆圈表示,最内层代表层级顶部。没有层级数据(只有一层类别)的太阳放射图类似于甜甜圈图,但具有多个层级的太阳放射图展示了外环与内环的关系。太阳放射图最有效的用途是展示一环如何分解为其贡献部分,而另一种层级图表,树状图,则适合比较相对大小。
旭日图表

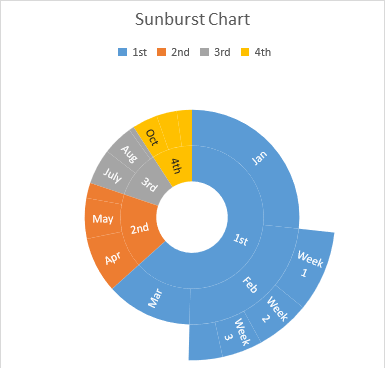

运行下面的代码后,您将会看到如下所示的旭日图表。
示例代码

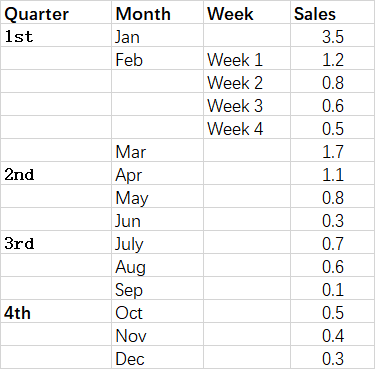

以下示例代码加载 样本 Excel 文件 并生成 输出 Excel 文件。
const path = require("path");
const AsposeCells = require("aspose.cells.node");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sunburst.xlsx");
// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet
const worksheet = workbook.getWorksheets().get(0);
// Add a Treemap chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.Sunburst, 5, 6, 25, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Sunburst Chart");
// Add series data range
chart.getNSeries().add("D2:D16", true);
// Set category data (A2:A16 is incorrect, as hierarchical category)
chart.getNSeries().setCategoryData("A2:C16");
// Show the DataLabels with category names
chart.getNSeries().get(0).getDataLabels().setShowCategoryName(true);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
