如何通过 C++ 使用 Node.js 创建甘特图
什么是甘特图
甘特图是一种条形图,显示项目时间表。它显示项目各个元素的开始和结束日期。每个任务或活动由一条条形表示,其长度对应持续时间。甘特图还显示任务之间的依赖关系,使项目管理者可以直观地看到任务的执行顺序。它在项目管理中广泛用于规划、排程和跟踪项目。
如何在Excel中创建甘特图
你可以按照以下步骤在Excel中创建甘特图:
-

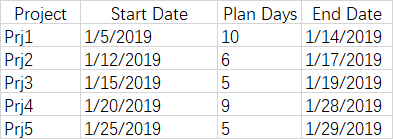

添加一些用于甘特图的数据。
-

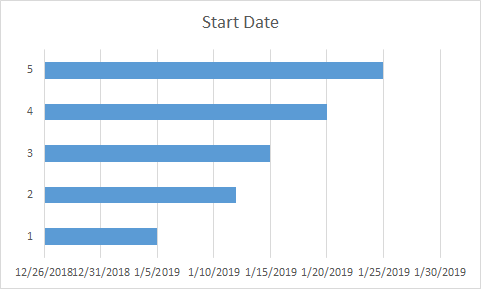

选择数据,依次点击插入 –> 图表 –> 插入柱状图或条形图 –> 堆积条形图。在示例中,是B1:B7,然后插入堆积条图表。
-

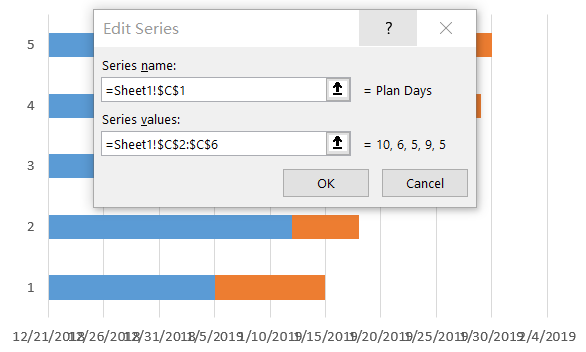

选择图表,选择数据 -> 添加,设置 系列名称 和 系列值 如下。
-

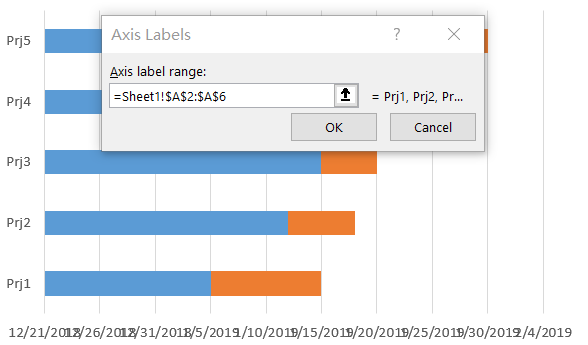

选择图表,编辑横(类别)轴标签。
-
格式轴,选择类别逆序以格式化Y轴。
-
选择 蓝色系列 并设置 填充 -> 无填充。
-
格式化轴 设置 X 轴,设置 最小值和最大值(2019/1/5:43470,2019/1/30:43494)。
-

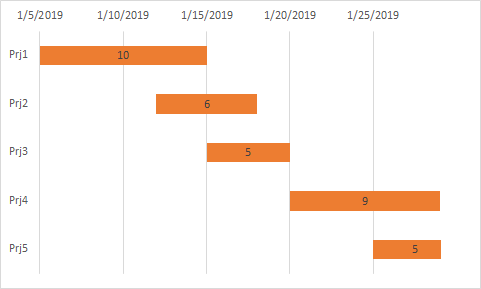

为图表添加数据标签,现在你将获得一个甘特图。
在Aspose.Cells中添加甘特图的方法。

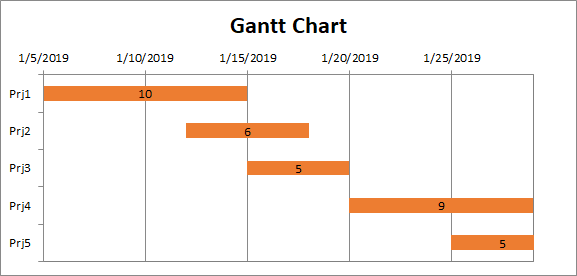

请查看以下示例代码。它加载包含一些示例数据的示例Excel文件,然后基于初始数据创建堆积柱状图,并设置相关属性。最后将工作簿保存为输出XLSX。下方截图显示了由Aspose.Cells在输出Excel文件中创建的甘特图。
示例代码
const path = require("path");
const AsposeCells = require("aspose.cells.node");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet
const worksheet = workbook.getWorksheets().get(0);
// Create BarStacked Chart
const i = worksheet.getCharts().add(AsposeCells.ChartType.BarStacked, 5, 6, 20, 15);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(i);
// Set the chart title name
chart.getTitle().setText("Gantt Chart");
// Set the chart title is Visible
chart.getTitle().setIsVisible(true);
// Set data range
chart.setChartDataRange("B1:B6", true);
// Add series data range
chart.getNSeries().add("C2:C6", true);
// No fill for one serie
chart.getNSeries().get(0).getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Set the Horizontal(Category) Axis
chart.getNSeries().setCategoryData("A2:A6");
// Reverse the Horizontal(Category) Axis
chart.getCategoryAxis().setIsPlotOrderReversed(true);
// Set the value axis's MinValue and MaxValue
const minValue = parseFloat(worksheet.getCells().get("B2").getValue());
const maxValue = parseFloat(worksheet.getCells().get("D6").getValue());
chart.getValueAxis().setMinValue(isNaN(minValue) ? 0 : minValue);
chart.getValueAxis().setMaxValue(isNaN(maxValue) ? 0 : maxValue);
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Show the DataLabels
chart.getNSeries().get(1).getDataLabels().setShowValue(true);
// Disable the Legend
chart.setShowLegend(false);
// Save the result
workbook.save("result.xlsx");
