إدارة عناوين الرسوم البيانية في إكسل باستخدام C++

خيارات العنوان

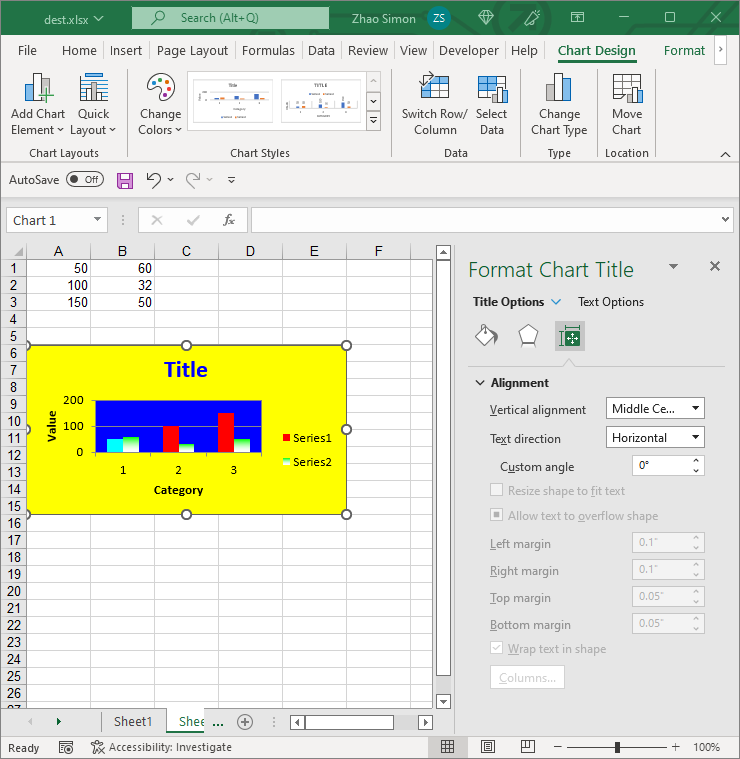

كما يسمح Aspose.Cells أيضًا بإدارة عناوين الرسوم البيانية في وقت التشغيل. مع كائن Title، يمكنك تغيير النص، الخط، وتنسيق التعبئة للعناوين.

|todo:image_alt_text|

ضبط عناوين الرسوم البيانية أو المحاور

يمكنك استخدام مايكرسوفت إكسل لتعيين عناوين رسم بياني ومحاورها في بيئة WYSIWYG. كما تسمح Aspose.Cells للمطورين بضبط عناوين رسوماتهم ومحاورها أثناء التشغيل. تحتوي كل الرسوم البيانية ومحاورها على خاصية Title التي يمكن استخدامها لتعيين عناوينها، كما هو موضح في المثال أدناه.

يعرض مقطع الكود التالي كيفية تعيين عناوين للمخططات والمحاور.

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
using namespace Aspose::Cells::Charts;
using namespace Aspose::Cells::Drawing;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Output directory path
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    // Instantiating a Workbook object
    Workbook workbook;

    // Adding a new worksheet to the Workbook object
    int sheetIndex = workbook.GetWorksheets().Add();

    // Obtaining the reference of the newly added worksheet by passing its sheet index
    Worksheet worksheet = workbook.GetWorksheets().Get(sheetIndex);

    // Adding sample values to cells
    worksheet.GetCells().Get(u"A1").PutValue(50);
    worksheet.GetCells().Get(u"A2").PutValue(100);
    worksheet.GetCells().Get(u"A3").PutValue(150);
    worksheet.GetCells().Get(u"B1").PutValue(60);
    worksheet.GetCells().Get(u"B2").PutValue(32);
    worksheet.GetCells().Get(u"B3").PutValue(50);

    // Adding a chart to the worksheet
    int chartIndex = worksheet.GetCharts().Add(ChartType::Column, 5, 0, 15, 5);

    // Accessing the instance of the newly added chart
    Chart chart = worksheet.GetCharts().Get(chartIndex);

    // Adding SeriesCollection (chart data source) to the chart ranging from "A1" cell to "B3"
    chart.GetNSeries().Add(u"A1:B3", true);

    // Setting the foreground color of the plot area
    chart.GetPlotArea().GetArea().SetForegroundColor(Color::Blue());

    // Setting the foreground color of the chart area
    chart.GetChartArea().GetArea().SetForegroundColor(Color::Yellow());

    // Setting the foreground color of the 1st SeriesCollection area
    chart.GetNSeries().Get(0).GetArea().SetForegroundColor(Color::Red());

    // Setting the foreground color of the area of the 1st SeriesCollection point
    chart.GetNSeries().Get(0).GetPoints().Get(0).GetArea().SetForegroundColor(Color::Cyan());

    // Filling the area of the 2nd SeriesCollection with a gradient
    chart.GetNSeries().Get(1).GetArea().GetFillFormat().SetOneColorGradient(Color::Lime(), 1, GradientStyleType::Horizontal, 1);

    // Setting the title of a chart
    chart.GetTitle().SetText(u"Title");

    // Setting the font color of the chart title to blue
    chart.GetTitle().GetFont().SetColor(Color::Blue());

    // Setting the title of category axis of the chart
    chart.GetCategoryAxis().GetTitle().SetText(u"Category");

    // Setting the title of value axis of the chart
    chart.GetValueAxis().GetTitle().SetText(u"Value");

    // Saving the Excel file
    workbook.Save(outDir + u"book1.out.xls");

    std::cout << "Chart created successfully!" << std::endl;

    Aspose::Cells::Cleanup();
}
