Filter Objects while loading Workbook or Worksheet with C++

Possible Usage Scenarios

Please use LoadOptions.GetLoadFilter() property while filtering data from the workbook. But if you want to filter data from individual worksheets, then you will have to override the LoadFilter.StartSheet method. Please provide appropriate value from the LoadDataFilterOptions enumeration while creating or working with LoadFilter.

The LoadDataFilterOptions enumeration has the following possible values.

• All
• BookSettings
• CellBlank
• CellBool
• CellData
• CellError
• CellNumeric
• CellString
• CellValue
• Chart
• ConditionalFormatting
• DataValidation
• DefinedNames
• DocumentProperties
• Formula
• Hyperlinks
• MergedArea
• PivotTable
• Settings
• Shape
• SheetData
• SheetSettings
• Structure
• Style
• Table
• VBA
• XmlMap

Filter Objects while loading Workbook

The following sample code illustrates how to filter charts from the workbook. Please check the sample excel file used in this code and the output PDF generated by it. As you can see in the output PDF, all charts have been filtered out of the workbook.

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Output directory path
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    // Filter charts from the workbook
    LoadOptions lOptions;
    lOptions.SetLoadFilter(new LoadFilter(LoadDataFilterOptions::All & ~LoadDataFilterOptions::Chart));

    // Load the workbook with the above filter
    U16String inputFilePath = srcDir + u"sampleFilterCharts.xlsx";
    Workbook workbook(inputFilePath, lOptions);

    // Save worksheet to a single PDF page
    PdfSaveOptions pOptions;
    pOptions.SetOnePagePerSheet(true);

    // Save the workbook in PDF format
    U16String outputFilePath = outDir + u"sampleFilterCharts.pdf";
    workbook.Save(outputFilePath, pOptions);

    std::cout << "Workbook saved successfully with filtered charts!" << std::endl;

    Aspose::Cells::Cleanup();
}

Filter Objects while loading Worksheet

The following sample code loads the source excel file and filters the following data from its worksheets using a custom filter.

• It filters Charts from worksheet named NoCharts.
• It filters Shapes from worksheet named NoShapes.
• It filters Conditional Formatting from worksheet named NoConditionalFormatting.

Once, it loads the source excel file with a custom filter, it takes the images of all worksheets one by one. Here are the output images for your reference. As you can see, the first image does not have charts, the second image does not have shapes and the third image does not have conditional formatting.

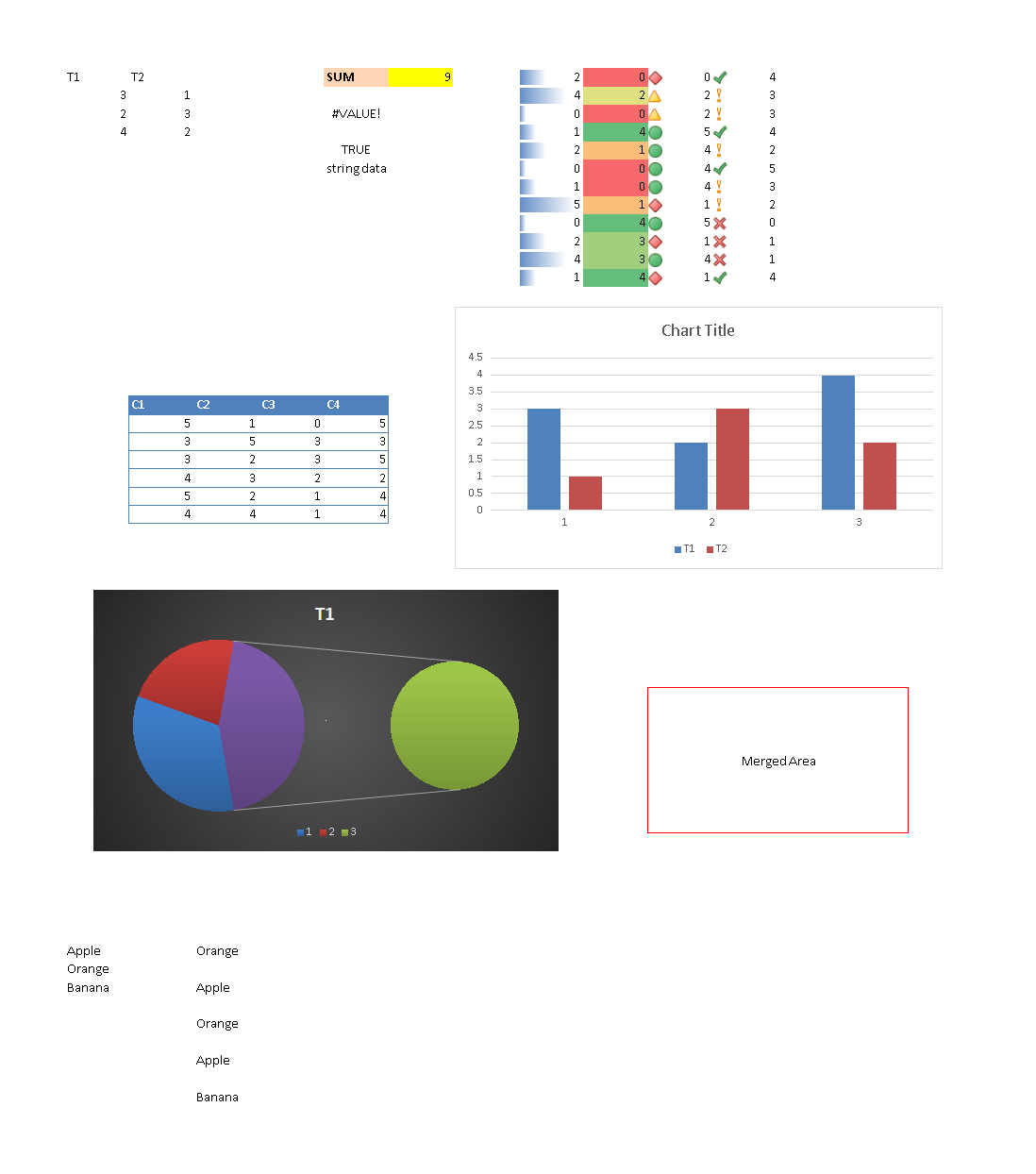

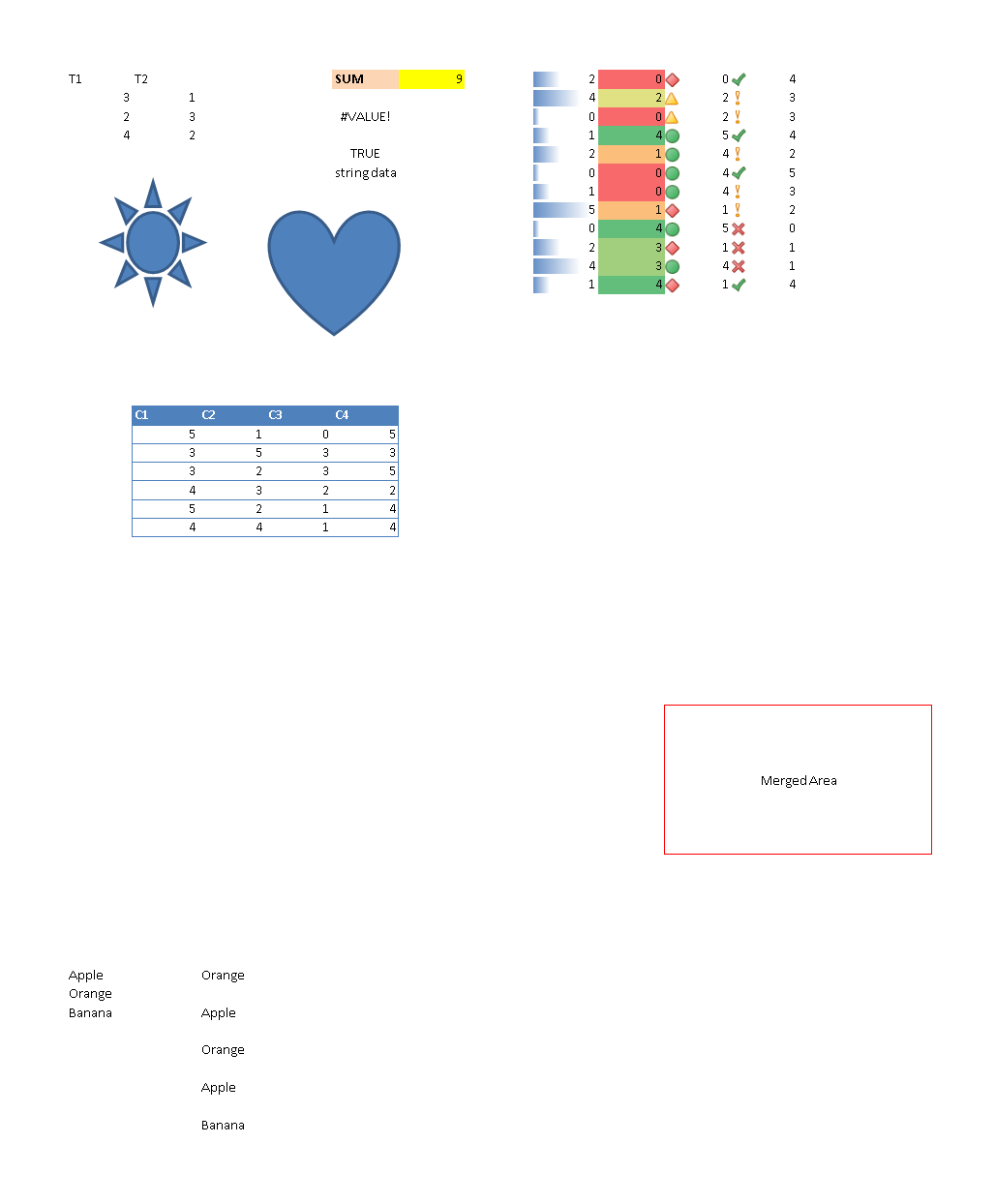

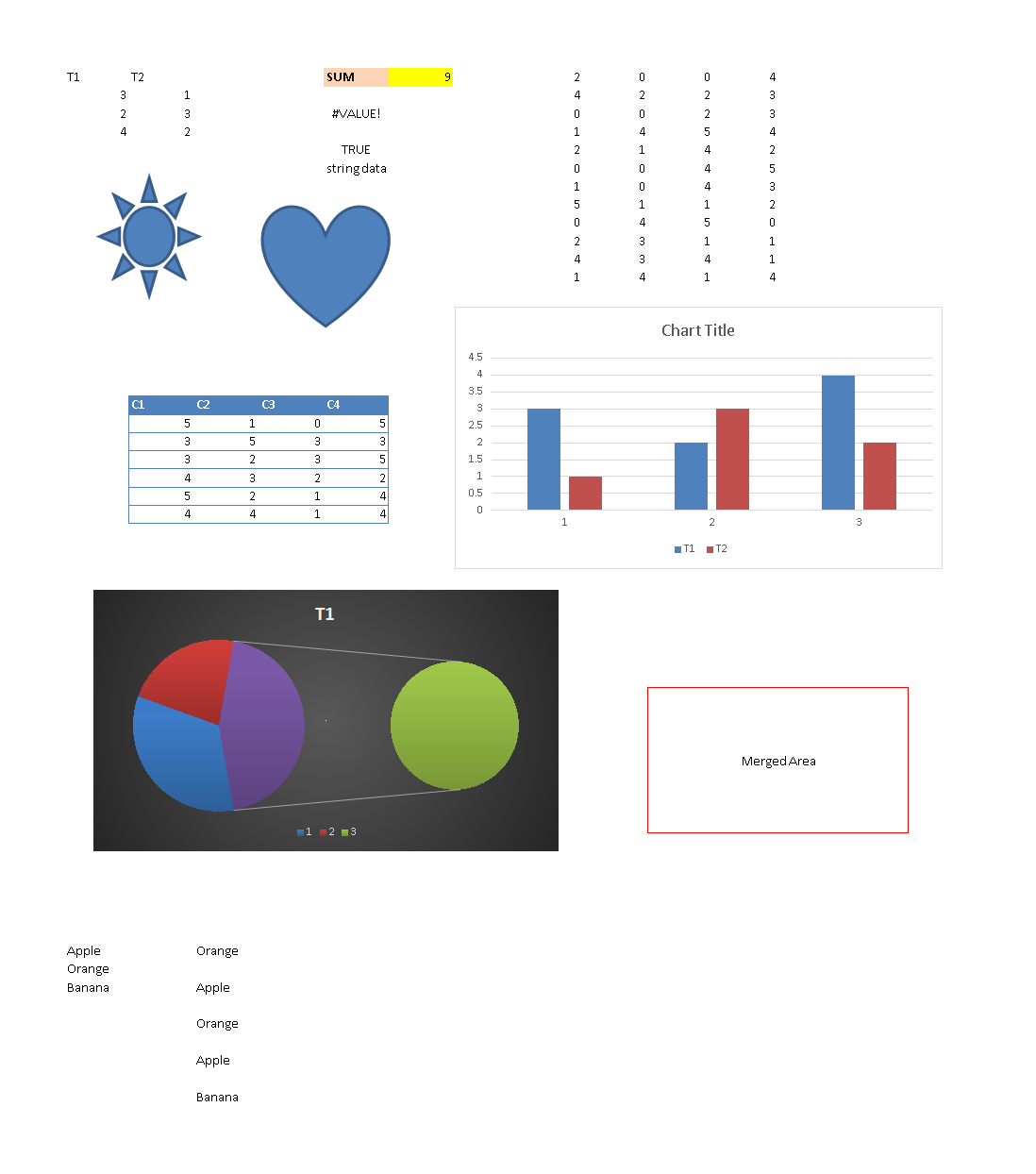

• NoCharts.png
• NoShapes.png
• NoConditionalFormatting.png

#include "Aspose.Cells.h"
using namespace Aspose::Cells;

class CustomLoadFilter : public LoadFilter
{
public:
    void StartSheet(Worksheet& sheet) override
    {
        U16String sheetName = sheet.GetName();

        if (sheetName == u"NoCharts")
        {
            // Load everything and filter charts
            SetLoadDataFilterOptions(static_cast<LoadDataFilterOptions>(static_cast<int>(LoadDataFilterOptions::All) & ~static_cast<int>(LoadDataFilterOptions::Chart)));
        }

        if (sheetName == u"NoShapes")
        {
            // Load everything and filter shapes
            SetLoadDataFilterOptions(static_cast<LoadDataFilterOptions>(static_cast<int>(LoadDataFilterOptions::All) & ~static_cast<int>(LoadDataFilterOptions::Drawing)));
        }

        if (sheetName == u"NoConditionalFormatting")
        {
            // Load everything and filter conditional formatting
            SetLoadDataFilterOptions(static_cast<LoadDataFilterOptions>(static_cast<int>(LoadDataFilterOptions::All) & ~static_cast<int>(LoadDataFilterOptions::ConditionalFormatting)));
        }
    }
};

// Add main function to serve as entry point
int main() {
    Aspose::Cells::Startup();
    Aspose::Cells::Cleanup();
    return 0;

}

This is how to use the CustomLoadFilter class as per worksheet names.

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

class CustomLoadFilter : public LoadFilter
{
public:
    CustomLoadFilter() : LoadFilter(LoadDataFilterOptions::All) {}
};

int main()
{
    Aspose::Cells::Startup();

    // Source directory
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Output directory
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    // Filter worksheets using CustomLoadFilter class
    LoadOptions loadOpts;
    CustomLoadFilter customLoadFilter;
    loadOpts.SetLoadFilter(&customLoadFilter);

    // Load the workbook with filter defined in CustomLoadFilter class
    Workbook workbook(srcDir + u"sampleCustomFilteringPerWorksheet.xlsx", loadOpts);

    // Take the image of all worksheets one by one
    WorksheetCollection sheets = workbook.GetWorksheets();
    for (int i = 0; i < sheets.GetCount(); i++)
    {
        // Access worksheet at index i
        Worksheet worksheet = sheets.Get(i);

        // Create an instance of ImageOrPrintOptions
        // Render entire worksheet to image
        ImageOrPrintOptions imageOpts;
        imageOpts.SetOnePagePerSheet(true);
        imageOpts.SetImageType(Aspose::Cells::Drawing::ImageType::Png);

        // Convert worksheet to image
        SheetRender render(worksheet, imageOpts);
        render.ToImage(0, outDir + u"outputCustomFilteringPerWorksheet_" + worksheet.GetName() + u".png");
    }

    Aspose::Cells::Cleanup();
    return 0;
}
