Add Icons to Worksheet with C++

Add Icons to a Worksheet in Aspose.Cells

If you need to use Aspose.Cells to add icons to an Excel file, this document can help you.

The Excel interface corresponding to the insert‑icon operation is as follows:

• Select the position of the icon to be inserted in the worksheet.
• Click Insert → Icons.
• In the window that opens, select the icon inside the red rectangle shown in the figure above.
• Click Insert; the icon will be inserted into the Excel file.

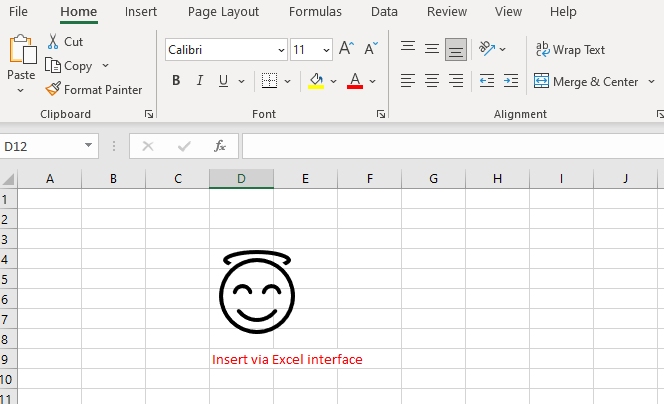

The effect is as follows:

Here we have prepared sample code to help you insert icons using Aspose.Cells. There is also a required sample file ([sample.xlsx]) and an icon resource file ([icon.zip]). We used the Excel interface to insert an icon that has the same display effect as the resource file in the sample file.

C++

#include <iostream>
#include <fstream>
#include <vector>
#include <memory>
#include "Aspose.Cells.h"

using namespace Aspose::Cells;

int main() {
    Aspose::Cells::Startup();

    U16String fileName = u"icon.svg";
    std::ifstream fsSource(fileName.ToUtf8(), std::ios::binary);
    if (!fsSource) {
        std::cerr << "Failed to open file: " << fileName.ToUtf8() << std::endl;
        return -1;
    }

    fsSource.seekg(0, std::ios::end);
    size_t fileSize = fsSource.tellg();
    fsSource.seekg(0, std::ios::beg);

    std::vector<uint8_t> bytes(fileSize);
    fsSource.read(reinterpret_cast<char*>(bytes.data()), fileSize);
    fsSource.close();

    Aspose::Cells::Vector<uint8_t> asposeBytes(bytes.size());
    if (!bytes.empty()) {
        memcpy(asposeBytes.GetData(), bytes.data(), bytes.size());
    }

    Workbook workbook(u"sample.xlsx");
    Worksheet sheet = workbook.GetWorksheets().Get(0);

    sheet.GetShapes().AddIcons(3, 0, 7, 0, 100, 100, asposeBytes, Aspose::Cells::Vector<uint8_t>());

    Cell c = sheet.GetCells().Get(8, 7);
    c.PutValue(u"Insert via Aspose.Cells");
    Style s = c.GetStyle();
    s.GetFont().SetColor(Color::Blue());
    c.SetStyle(s);

    workbook.Save(u"sample2.xlsx", SaveFormat::Xlsx);

    Aspose::Cells::Cleanup();
    return 0;
}

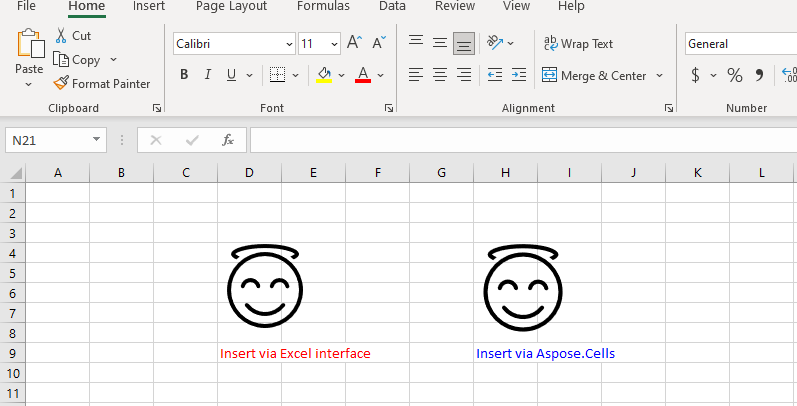

When you execute the above code in your project, you will get the following result:
