Update ActiveX ComboBox Control with C++

Possible Usage Scenarios

You can read or write the values of ActiveX ComboBox Control using Aspose.Cells. Please access the ActiveX Control via Shape.ActiveXControl property and check its type via ActiveXControl.GetType() property. It should return ControlType.ComboBox value, and then typecast it into ComboBoxActiveXControl object to read or modify its various properties.

Please download the sample excel file used in the following sample code.

Update ActiveX ComboBox Control

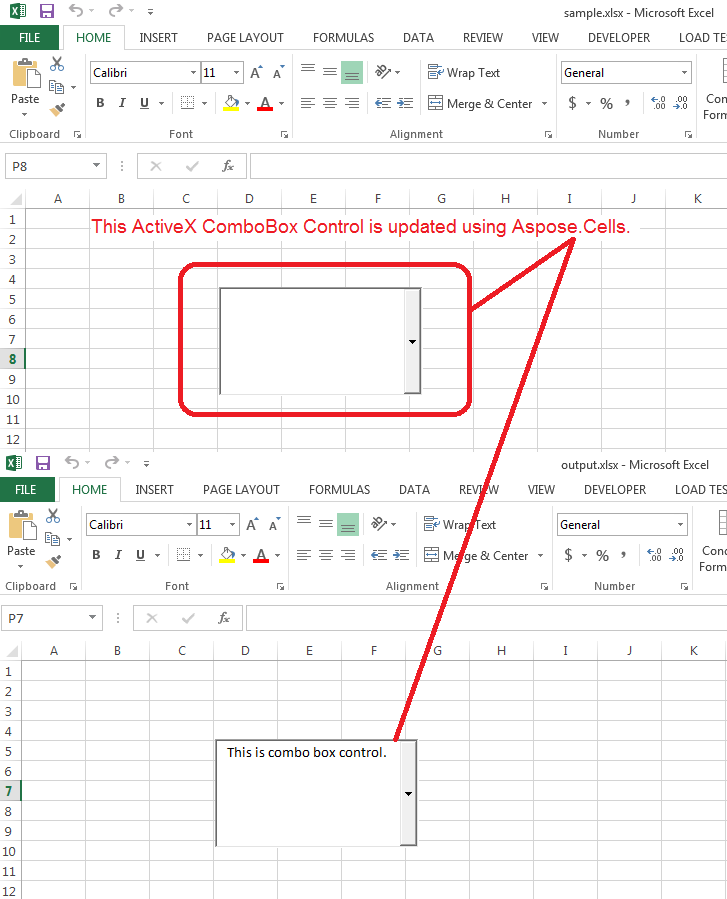

The following screenshot shows the effect of the sample code on the sample excel file. As you can see, the ActiveX ComboBox value has been updated to “This is combo box control”.

Sample Code

The following sample code updates the value of ActiveX ComboBox Control present inside the sample excel file.

#include <iostream>
#include "Aspose.Cells.h"

using namespace Aspose::Cells;
using namespace Aspose::Cells::Drawing;
using namespace Aspose::Cells::Drawing::ActiveXControls;

int main()
{
    Aspose::Cells::Startup();

    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    Workbook wb(srcDir + u"SourceFile.xlsx");

    Shape shape = wb.GetWorksheets().Get(0).GetShapes().Get(0);

    ActiveXControl c = shape.GetActiveXControl();

    if (c.GetType() == ControlType::ComboBox)
    {
        ComboBoxActiveXControl comboBoxActiveX = static_cast<ComboBoxActiveXControl>(c);
        comboBoxActiveX.SetValue(u"This is combo box control with updated value.");
    }

    wb.Save(outDir + u"OutputFile_out.xlsx");

    std::cout << "Workbook saved successfully with updated ComboBox value!" << std::endl;

    Aspose::Cells::Cleanup();
}
