ExcelチャートのDataLabelsをC++で管理する
Contents
[
Hide
]
DataLabelsはチャートの重要な部分です。各系列の値や割合などを簡単に知ることができます。

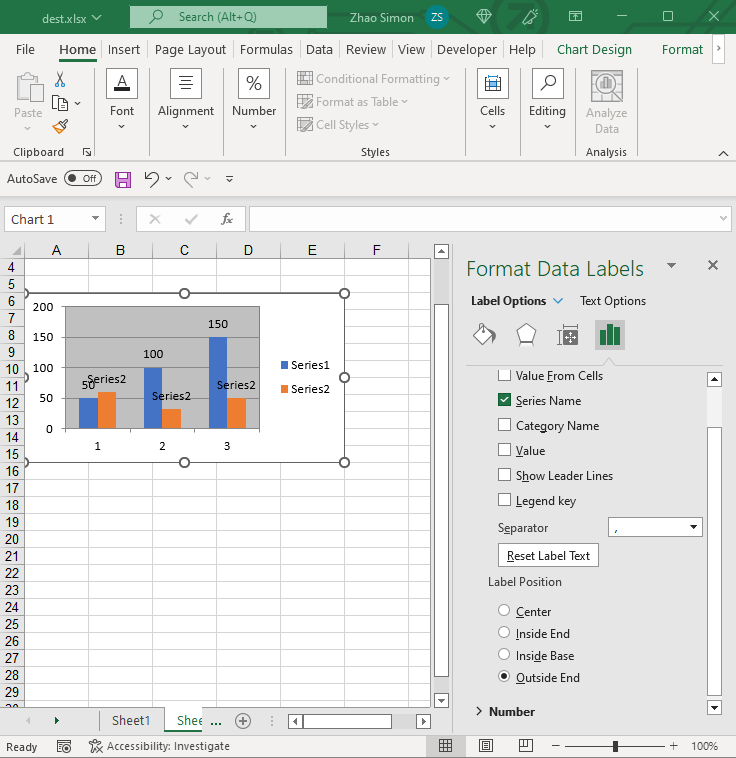

データラベルオプション
Aspose.Cellsでは、Runtime時にDataLabelsオブジェクトを使用して、チャートのデータラベルを管理することも可能です。ラベルの移動、更新、フォーマットも簡単に行えます。
||
データラベルの管理
Aspose.CellsのDataLabelsを使えば、チャートのデータラベルを簡単に管理できます。
DataLabelsの管理方法例は次の通りです。
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
using namespace Aspose::Cells::Charts;
int main()
{
Aspose::Cells::Startup();
// Instantiating a Workbook object
Workbook workbook;
// Adding a new worksheet to the Workbook object
int sheetIndex = workbook.GetWorksheets().Add();
// Obtaining the reference of the newly added worksheet by passing its sheet index
Worksheet worksheet = workbook.GetWorksheets().Get(sheetIndex);
// Adding sample values to cells
worksheet.GetCells().Get(u"A1").PutValue(50);
worksheet.GetCells().Get(u"A2").PutValue(100);
worksheet.GetCells().Get(u"A3").PutValue(150);
worksheet.GetCells().Get(u"B1").PutValue(60);
worksheet.GetCells().Get(u"B2").PutValue(32);
worksheet.GetCells().Get(u"B3").PutValue(50);
// Adding a chart to the worksheet
int chartIndex = worksheet.GetCharts().Add(ChartType::Column, 5, 0, 15, 5);
// Accessing the instance of the newly added chart
Chart chart = worksheet.GetCharts().Get(chartIndex);
// Adding SeriesCollection (chart data source) to the chart ranging from "A1" cell to "B3"
chart.GetNSeries().Add(u"A1:B3", true);
// Show value labels
chart.GetNSeries().Get(0).GetDataLabels().SetShowValue(true);
// Show series name labels
chart.GetNSeries().Get(1).GetDataLabels().SetShowSeriesName(true);
// Move labels to center
chart.GetNSeries().Get(1).GetDataLabels().SetPosition(LabelPositionType::Center);
// Save the file
workbook.Save(u"chart_datalabels.xlsx");
Aspose::Cells::Cleanup();
}
