PdfSaveOptionsとImageOrPrintOptionsのDefaultFontプロパティをC++で優先的に設定する方法
可能な使用シナリオ
PdfSaveOptions および ImageOrPrintOptions の DefaultFont プロパティを設定する際には、フォントが見つからない(インストールされていない)場合に、ワークブック全体のテキストにそのDefaultFontを設定すると期待されるかもしれません。
一般に、PDFまたは画像に保存する場合、Aspose.CellsはまずWorkbookのデフォルトフォント(つまりWorkbook.DefaultStyle.Font)を設定しようとします。Workbookのデフォルトフォントが適切に表示/レンダリングできない場合、Aspose.CellsはPdfSaveOptions/ImageOrPrintOptions内のDefaultFont属性に記載されているフォントでレンダリングしようとします。
あなたの期待に応えるために、PdfSaveOptions/ImageOrPrintOptionsには"CheckWorkbookDefaultFont“というブール型のプロパティがあり、これをfalseに設定すればWorkbookのデフォルトフォントを試みる動作を無効にできます。また、PdfSaveOptions/ImageOrPrintOptionsのDefaultFont設定に優先順位を付けることも可能です。
PdfSaveOptions/ImageOrPrintOptionsのDefaultFontプロパティを設定します
次のサンプルコードはExcelファイルを開きます。最初のシートのセルA1には"Christmas Time Font text"というテキストが設定されており、フォント名は"Christmas Time Personal Use"ですが、これはインストールされていません。PdfSaveOptions/ImageOrPrintOptionsのDefaultFont属性を"Times New Roman"に設定し、CheckWorkbookDefaultFontブール型プロパティを**“false”**に設定することで、A1セルのテキストを"Times New Roman"フォントでレンダリングし、Workbookのデフォルトフォント(“Calibri”)を使用しないようにします。このコードは最初のシートをPNGとTIFF画像フォーマットにレンダリングし、最後にPDFに出力します。

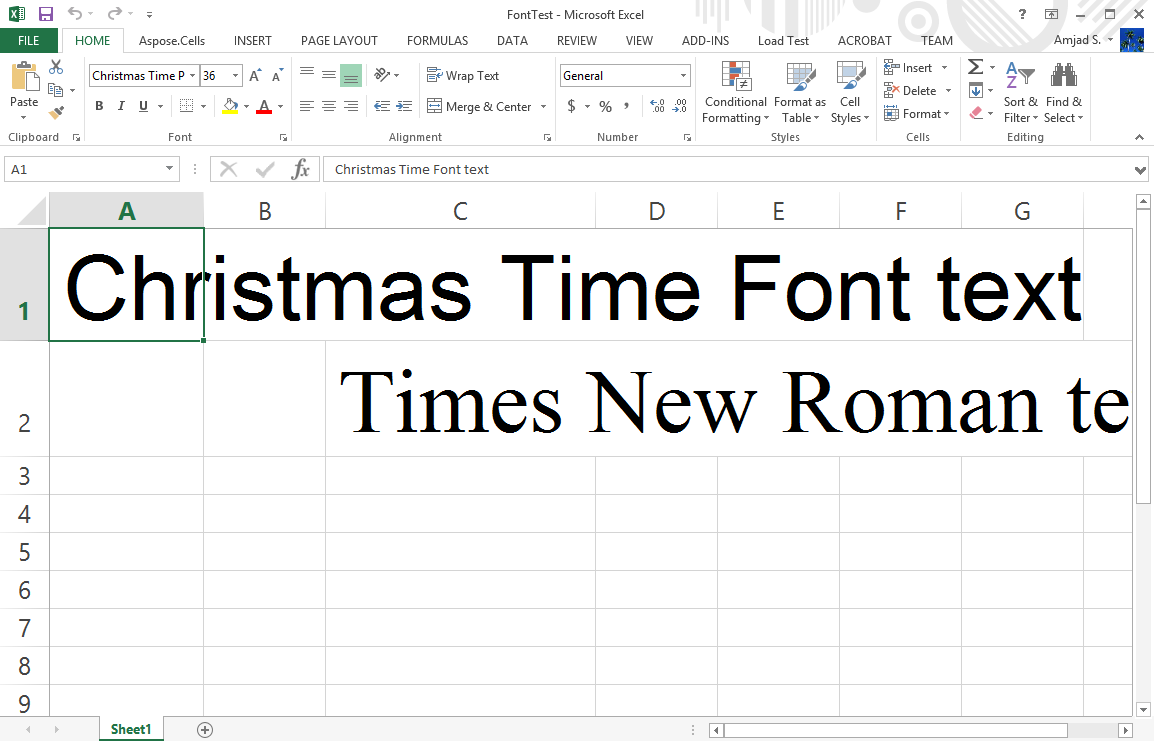

これは、例コードで使用されている テンプレートファイルのスクリーンショットです。

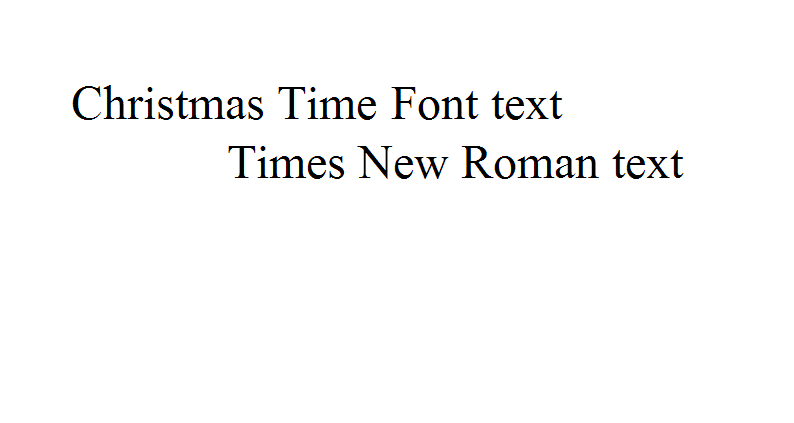

ImageOrPrintOptions.GetDefaultFont()プロパティを"Times New Roman"に設定した後の出力PNG画像例です。
ImageOrPrintOptions.GetDefaultFont()プロパティを"Times New Roman"に設定した後の出力TIF画像を確認してください。
{0}プロパティを"Times New Roman"“に設定した後の出力PFDを確認してください。
サンプルコード
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
// For complete examples and data files, please go to https://github.com/aspose-cells/Aspose.Cells-for-C
// Input and output directory path
U16String sourceDir(u"..\\Data\\01_SourceDirectory\\");
U16String outputDir(u"..\\Data\\02_OutputDirectory\\");
// Open an Excel file
Workbook workbook(sourceDir + u"sampleSetDefaultFontPropertyOfPdfSaveOptionsAndImageOrPrintOptions.xlsx");
// Rendering to PNG file format while setting the CheckWorkbookDefaultFont attribute to false.
// So, "Times New Roman" font would be used for any missing (not installed) font in the workbook.
ImageOrPrintOptions imgOpt;
imgOpt.SetImageType(ImageType::Png);
imgOpt.SetCheckWorkbookDefaultFont(false);
imgOpt.SetDefaultFont(u"Times New Roman");
// Create a SheetRender instance for the first worksheet and render to PNG.
SheetRender sr(workbook.GetWorksheets().Get(0), imgOpt);
sr.ToImage(0, outputDir + u"out1_imagePNG.png");
// Rendering to TIFF file format while setting the CheckWorkbookDefaultFont attribute to false.
imgOpt.SetImageType(ImageType::Tiff);
WorkbookRender wr(workbook, imgOpt);
wr.ToImage(outputDir + u"out1_imageTIFF.tiff");
// Rendering to PDF file format while setting the CheckWorkbookDefaultFont attribute to false.
PdfSaveOptions saveOptions;
saveOptions.SetDefaultFont(u"Times New Roman");
saveOptions.SetCheckWorkbookDefaultFont(false);
// Save the workbook as PDF
workbook.Save(outputDir + u"out1_pdf.pdf", saveOptions);
std::cout << "Files exported successfully!" << std::endl;
Aspose::Cells::Cleanup();
}
