how to customize menus and toolbars in GridJs

about customize menus and toolbar buttons

we don’t provide useful APIs directly . however we can write some js function based on the dom structure to achieve it.

customize menubar

for example:to keep File menu only,assume the div id of GridJs is “gridjs-divid”

   //get menubar parent dom
   const menubar=document.querySelector("#gridjs-divid > div > div:nth-child(1) > div > div.x-spreadsheet-banner-info-s > div.x-spreadsheet-toolbar.x-spreadsheet-menubar");
   var childs = menubar.childNodes;


   for (var i = childs.length - 1; i >= 0; i--)
   {
     // keep File menu  only
     if(childs[i].childNodes[0].childNodes[0].textContent!=="File")
       {
         menubar.removeChild(childs[i]);
       }
   }

After call this function

customize items in menubar

for example:to keep “Download As XLSX” menu item in File menu only,assume the div id of GridJs is “gridjs-divid”

   //get menubar parent dom
   const menubar=document.querySelector("#gridjs-divid > div > div:nth-child(1) > div > div.x-spreadsheet-banner-info-s > div.x-spreadsheet-toolbar.x-spreadsheet-menubar");
   var childs = menubar.childNodes;

   // keep the first one ->File menu  only
   for (var i = childs.length - 1; i >= 0; i--)
   {  //find the File menu
     if(childs[i].childNodes[0].childNodes[0].textContent==="File")
       {
            var dropdownparent = childs[i].childNodes[0].childNodes[1];
            var menuitems = dropdownparent.childNodes;
            for (var ii = menuitems.length - 1; ii >=0; ii--)
            {
	        //remove other menu item that is not "Download As XLSX"
                if (menuitems[ii].textContent !== 'Download As XLSX')
                {
                    dropdownparent.removeChild(menuitems[ii]);
                }
            }
       }
   }

After call this function

customize toolbar items

for example:to keep zoom button only,assume the div id of GridJs is “gridjs-divid”

   //get toolbar parent dom
   const toolbar=document.querySelector("#gridjs-divid > div > div.x-spreadsheet-toolbar > div.x-spreadsheet-toolbar-btns");
   var childs = toolbar.childNodes;


   for (var i = childs.length - 1; i >= 0; i--)
   {
     // keep File menu  only
     if(childs[i].getAttribute("data-tooltip")!=="Zoom")
       {
         toolbar.removeChild(childs[i]);
       }
   }

After call this function

customize toolbar hover effect

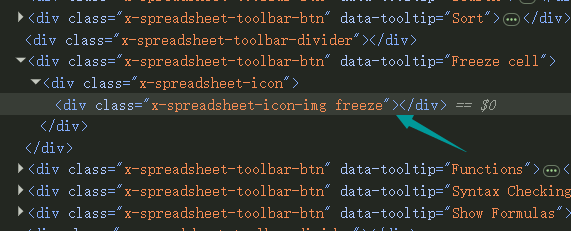

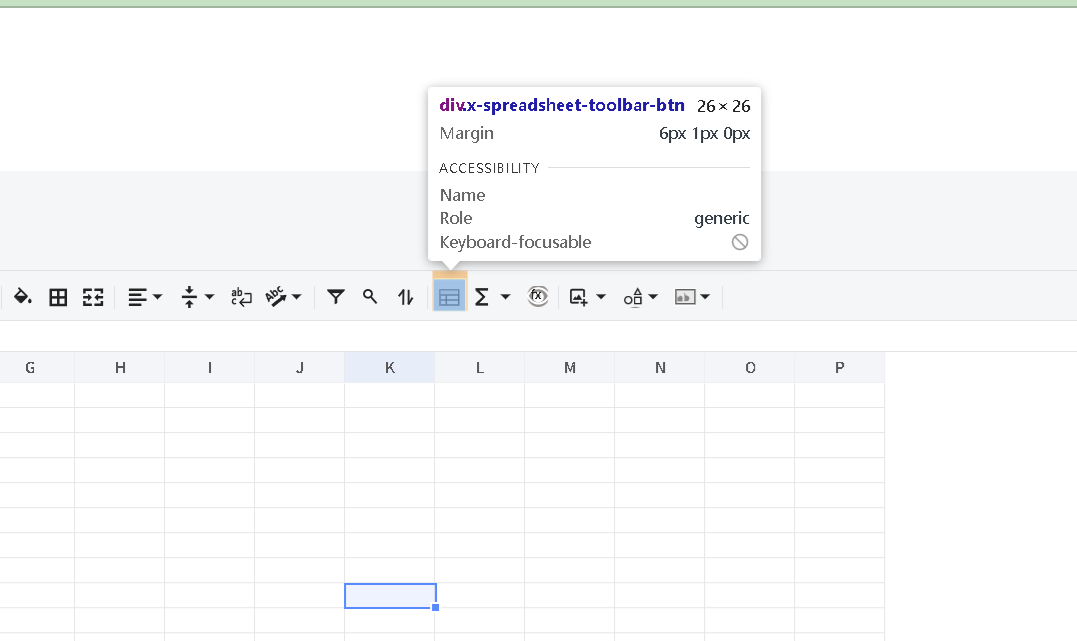

open browser insepection window ,select the toolbar button,

then we can find the related css key for this button is:freeze

add the below css rule:

.x-spreadsheet-toolbar .x-spreadsheet-toolbar-btn:hover .x-spreadsheet-icon-img.freeze,
.x-spreadsheet-toolbar .x-spreadsheet-toolbar-btn.active .x-spreadsheet-icon-img.freeze {
  background: rgba(4, 71, 33, 0.08);
  filter: brightness(0) saturate(100%) invert(27%) sepia(51%) saturate(2878%) hue-rotate(346deg) brightness(104%) contrast(97%);
}

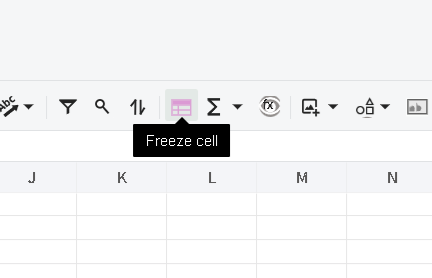

the result will be :
