Step‑by‑Step Guide to Load a Spreadsheet with Aspose.Cells.GridJs

Load a Spreadsheet with GridJs

Introduction

This article demonstrates how to load an Excel workbook into a web page using the Aspose.Cells.GridJs library on the server side and the gridjs‑spreadsheet JavaScript library on the client side.
You will create a .NET 6 MVC application, configure the Aspose.Cells.GridJs service, implement a controller that returns the workbook JSON, and write the client‑side HTML/JavaScript that renders the spreadsheet and enables server‑side updates.

This guide assumes you have a working .NET 6 SDK and Node.js installed.
All code snippets are self‑contained and can be compiled and run without modification (except for the file‑system paths that you may want to adjust).

Prerequisites

Item	Version	How to obtain
.NET SDK	6.0 or later	https://dotnet.microsoft.com/download
Aspose.Cells	25.* (NuGet)	`dotnet add package Aspose.Cells --version 25.*`
Aspose.Cells.GridJs	25.* (NuGet)	`dotnet add package Aspose.Cells.GridJs --version 25.*`
Newtonsoft.Json	13.0.1 (NuGet)	`dotnet add package Newtonsoft.Json --version 13.0.1`
jQuery, jQuery‑UI, JSZip	specific versions listed in the requirement	CDN links are used in the HTML sample

Create a .NET 6 MVC Project

Open a terminal and run:

dotnet new mvc -n GridJsDemo
cd GridJsDemo

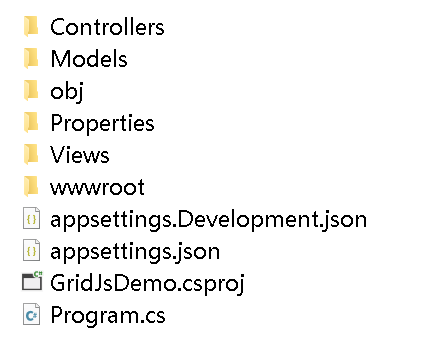

The generated folder structure looks like this:

MVC Project Structure

Ensure the project targets net6.0 (the default for the template).
You can verify this in the <TargetFramework> element of GridJsDemo.csproj.

Server‑Side Setup

1. Add Required Packages

dotnet add package Aspose.Cells --version 25.*
dotnet add package Aspose.Cells.GridJs --version 25.*
dotnet add package Newtonsoft.Json --version 13.0.1

2. Register GridJs Services

Edit Program.cs (or Startup.cs if you prefer the classic style) and add the following code inside the builder.Services section:

// Program.cs
using Aspose.Cells.GridJs;
using Aspose.Cells.GridJs.Configuration;

var builder = WebApplication.CreateBuilder(args);

// Add MVC services
builder.Services.AddControllersWithViews();

// ---------------------------------------------------------------------
// GridJs service registration
// ---------------------------------------------------------------------
builder.Services.AddScoped<IGridJsService, GridJsService>();

builder.Services.Configure<GridJsOptions>(options =>
{
    // • Directory where GridJs caches converted files.
    //   Make sure the folder exists and the application has write permission.
    options.FileCacheDirectory = @"D:\storage\Aspose.Cells.GridJs\";

    // • Base route name for all GridJs actions (e.g. /GridJs/LoadSpreadsheet)
    options.BaseRouteName = "/GridJs";
});

var app = builder.Build();

// ---------------------------------------------------------------------
// Middleware pipeline
// ---------------------------------------------------------------------
if (!app.Environment.IsDevelopment())
{
    app.UseExceptionHandler("/Home/Error");
    app.UseHsts();
}
app.UseHttpsRedirection();
app.UseStaticFiles();

app.UseRouting();

app.UseAuthorization();

// Map default MVC route
app.MapControllerRoute(
    name: "default",
    pattern: "{controller=Home}/{action=Index}/{id?}");

app.Run();

Important – The folder D:\storage\Aspose.Cells.GridJs\ must exist before you run the application, otherwise GridJs will throw a DirectoryNotFoundException.

3. Implement the GridJs Controller

Create a new folder Controllers (if not present) and add GridJsController.cs:

// Controllers/GridJsController.cs
using System.Text;
using Aspose.Cells.GridJs;
using Aspose.Cells.GridJs.Controllers;
using Microsoft.AspNetCore.Mvc;

namespace GridJsDemo.Controllers
{
    // Route prefix matches the BaseRouteName configured earlier.
    [Route("GridJs/[action]")]
    public class GridJsController : GridJsControllerBase
    {
        private readonly IGridJsService _gridJsService;

        public GridJsController(IGridJsService gridJsService) : base(gridJsService)
        {
            _gridJsService = gridJsService;
        }

        // -------------------------------------------------------------
        // Returns the default view that hosts the client‑side UI.
        // -------------------------------------------------------------
        public IActionResult Index()
        {
            return View("Index");
        }

        // -------------------------------------------------------------
        // Loads a workbook, converts it to JSON and returns it.
        // -------------------------------------------------------------
        [HttpGet]
        public ActionResult LoadSpreadsheet(string filename, string uid)
        {
            // Resolve the physical path of the file (e.g. from wwwroot/files)
            string fullFilePath = GetFullFilePath(filename);

            // Generate JSON that includes workbook data, active sheet, etc.
            StringBuilder json = _gridJsService.DetailFileJsonWithUid(fullFilePath, uid);

            // Return plain text (JSON) with UTF‑8 encoding.
            return Content(json.ToString(), "text/plain", Encoding.UTF8);
        }

        // -------------------------------------------------------------
        // Helper: builds the absolute file path.
        // -------------------------------------------------------------
        private string GetFullFilePath(string filename)
        {
            // Example: files are stored under wwwroot/files
            string basePath = Path.Combine(Directory.GetCurrentDirectory(), "wwwroot", "files");
            return Path.Combine(basePath, filename);
        }
    }
}

The GridJsControllerBase already implements actions for cell updates, image handling, OLE download, etc. You only need to add the LoadSpreadsheet action (and optionally Index if you want a custom view).
All URLs used by the client are automatically resolved relative to the BaseRouteName.

4. Add a Sample Workbook

Create the folder wwwroot/files and place an Excel file, for example Sample.xlsx. The file will be used by the demo.

5. Create the MVC View

Add a new folder Views/GridJs and create Index.cshtml:

@{
    Layout = null;   // Simple page without the default layout
}
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
    <title>GridJs Spreadsheet Demo</title>

    <!-- jQuery & jQuery UI -->
    <script src="https://code.jquery.com/jquery-2.1.1.min.js"></script>
    <script src="https://code.jquery.com/ui/1.12.1/jquery-ui.min.js"></script>
    <link rel="stylesheet" href="https://code.jquery.com/ui/1.12.1/themes/base/jquery-ui.css" />

    <!-- JSZip (required by gridjs‑spreadsheet for export) -->
    <script src="https://cdnjs.cloudflare.com/ajax/libs/jszip/3.6.0/jszip.min.js"></script>

    <!-- GridJs Spreadsheet UI -->
    <link rel="stylesheet" href="https://unpkg.com/gridjs-spreadsheet/xspreadsheet.css" />
    <script src="https://unpkg.com/gridjs-spreadsheet/xspreadsheet.js"></script>

    <!-- Custom demo script -->
    <script src="~/js/gridjs-demo.js"></script>

    <style>
        /* Full‑screen container */
        #gridjs-demo-uid {
            width: 100%;
            height: 95vh;
        }
    </style>
</head>
<body>
    <!-- GridJs UI placeholder -->
    <div id="gridjs-demo-uid"></div>
</body>
</html>

The view uses Layout = null to keep the page minimal. If you prefer to use the default layout, remove the line and place the <div id="gridjs-demo-uid"></div> inside a section.

6. Client‑Side JavaScript (gridjs‑demo.js)

Create the folder wwwroot/js and add gridjs-demo.js:

/* wwwroot/js/gridjs-demo.js
   --------------------------------------------------------------
   Step‑by‑step script that:
   1. Generates a UUID for the session.
   2. Requests workbook JSON from the server.
   3. Loads the JSON into GridJs Spreadsheet.
   4. Configures server‑side update mode and image handling URLs.
   -------------------------------------------------------------- */

// Utility: generate a RFC4122 version‑4 UUID
function generateUUID() {
    // Simplified but sufficient for demo purposes
    return 'xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx'.replace(/[xy]/g, function (c) {
        const r = Math.random() * 16 | 0,
              v = c === 'x' ? r : (r & 0x3 | 0x8);
        return v.toString(16);
    });
}

// ----------------------------------------------------------------
// Configuration constants – match the routes defined in GridJsController
// ----------------------------------------------------------------
const queryJsonUrl   = "/GridJs/LoadSpreadsheet";
const updateUrl      = "/GridJs/UpdateCell";
const fileDownloadUrl = "/GridJs/Download";
const oleDownloadUrl  = "/GridJs/Ole";
const imageUrl        = "/GridJs/ImageUrl";
const imageUploadUrl1 = "/GridJs/AddImage";
const imageUploadUrl2 = "/GridJs/AddImageByURL";
const imageCopyUrl    = "/GridJs/CopyImage";

// Global GridJs instance
let xs = null;

// ----------------------------------------------------------------
// Main entry point – called when the page finishes loading
// ----------------------------------------------------------------
$(function () {
    const uid = generateUUID();               // Unique session identifier
    const filename = "Sample.xlsx";           // Change if you use a different file

    // Build the request URL with query string parameters
    const requestUrl = `${queryJsonUrl}?filename=${encodeURIComponent(filename)}&uid=${uid}`;

    // ----------------------------------------------------------------
    // 1️⃣ AJAX request: obtain workbook JSON from the server
    // ----------------------------------------------------------------
    $.ajax({
        url: requestUrl,
        method: "GET",
        dataType: "text",          // Server returns plain text (JSON string)
        success: function (responseJsonString) {
            const jsonData = JSON.parse(responseJsonString);
            loadWithOption(jsonData);
        },
        error: function (xhr, status, err) {
            console.error("Failed to load workbook JSON:", err);
        }
    });
});

/**
 * Loads the JSON data into the GridJs UI and applies the required options.
 * @param {Object} jsondata – The deserialized JSON object returned by the server.
 */
function loadWithOption(jsondata) {
    // ----------------------------------------------------------------
    // 2️⃣ Define GridJs load options
    // ----------------------------------------------------------------
    const option = {
        // Server‑side update mode – each cell edit will be POSTed to UpdateCell
        updateMode: 'server',
        updateUrl: updateUrl,
        // UI language (change as needed)
        local: 'en'
    };

    // Clean any previous instance
    $('#gridjs-demo-uid').empty();

    // Extract worksheet array and filename from the server payload
    const sheets = jsondata.data;
    const filename = jsondata.filename;

    // ----------------------------------------------------------------
    // 3️⃣ Initialise GridJs and bind it to the placeholder div
    // ----------------------------------------------------------------
    xs = x_spreadsheet('#gridjs-demo-uid', option)
        .loadData(sheets)
        .updateCellError(function (msg) {
            console.error("Cell update error:", msg);
        });

    // Optional UI tweaks
    if (!jsondata.showtabs) {
        xs.bottombar.hide();               // Hide sheet tabs if not required
    }

    // Store unique identifier and original filename (used by the server)
    xs.setUniqueId(jsondata.uniqueid);
    xs.setFileName(filename);

    // ----------------------------------------------------------------
    // 4️⃣ Set the active sheet and cell (fallback to first sheet if needed)
    // ----------------------------------------------------------------
    let activeSheetName = jsondata.actname;
    if (xs.bottombar.dataNames.indexOf(activeSheetName) >= 0) {
        xs.setActiveSheetByName(activeSheetName)
          .setActiveCell(jsondata.actrow, jsondata.actcol);
    } else {
        // Fallback – first visible worksheet
        activeSheetName = xs.bottombar.dataNames[0];
        xs.setActiveSheetByName(activeSheetName).setActiveCell(0, 0);
    }

    // ----------------------------------------------------------------
    // 5️⃣ Register image‑related and download URLs
    // ----------------------------------------------------------------
    xs.setImageInfo(imageUrl, imageUploadUrl1, imageUploadUrl2, imageCopyUrl, 1000,"/image/loading.gif");
    xs.setFileDownloadInfo(fileDownloadUrl);
    xs.setOleDownloadInfo(oleDownloadUrl);
    xs.setOpenFileUrl("/GridJs/Index"); // URL to reopen the demo page
}

The script uses jQuery for the AJAX call and DOM ready handling. All URLs correspond to the actions provided by GridJsControllerBase; you do not need to implement them yourself.

Running the Demo

Restore NuGet packages
```
dotnet restore
```
Build and run
```
dotnet run
```
Open a browser and navigate to https://localhost:5001/GridJs/Index (or the URL displayed in the console).

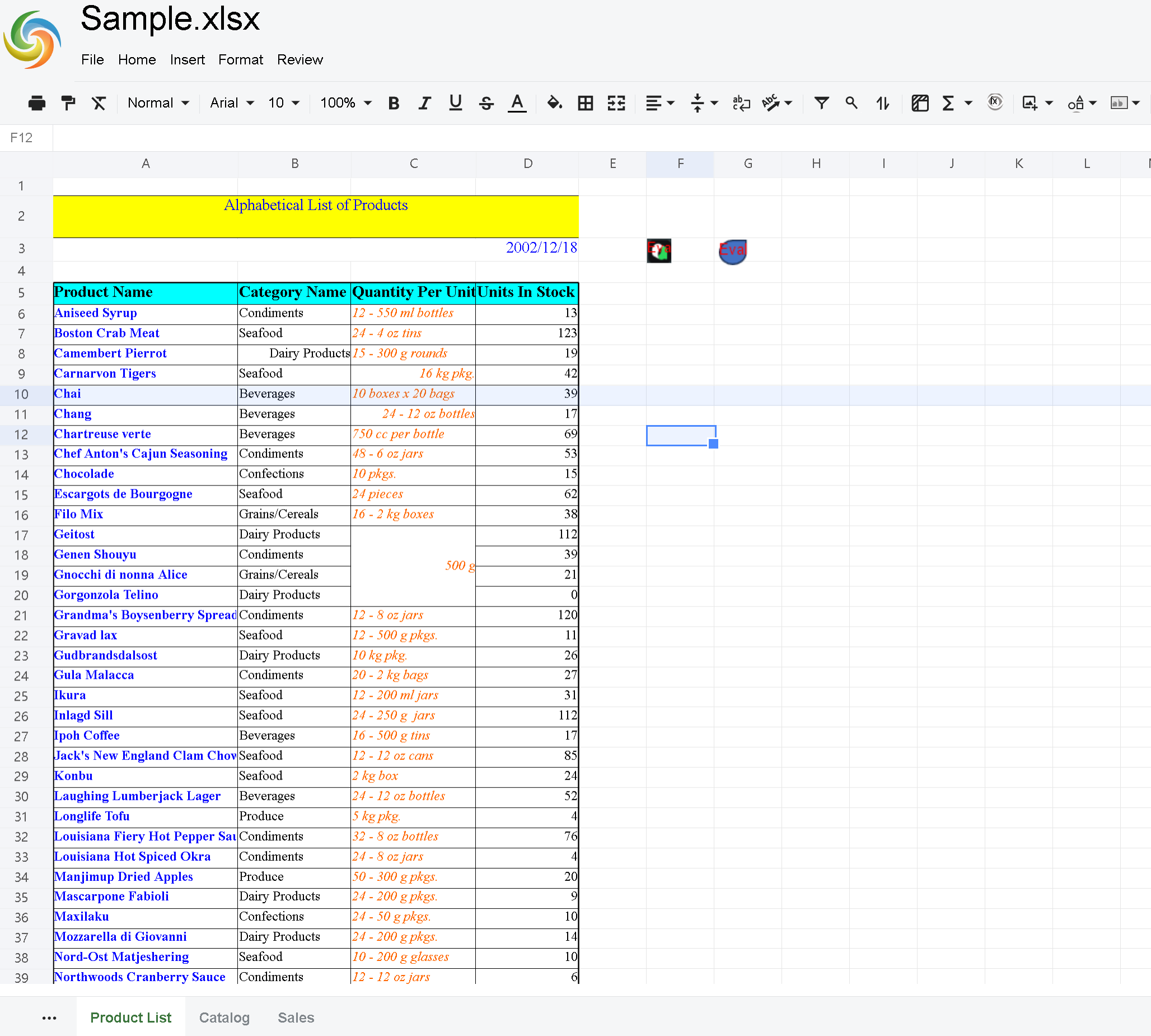

You should see the spreadsheet UI loaded with the content of Sample.xlsx.

Running Spreadsheet UI

Common Issues & Tips

Cache directory missing – Ensure the path set in GridJsOptions.FileCacheDirectory exists and the app pool identity can write to it.
CORS errors – When hosting the client and server on different origins, enable CORS in Program.cs.
Large files – GridJs converts the workbook to JSON in memory; for very large files consider increasing the server memory limit or using pagination features of the library.

Demo and Source Code

The complete source code for this tutorial is available in the official Aspose.Cells.GridJs GitHub repository:

https://github.com/aspose-cells/Aspose.Cells.Grid-for-.NET/tree/main/Examples_GridJs.Simple

Additional Resources

GridJs Server API – https://reference.aspose.com/cells/net/aspose.cells.gridjs
GridJs Client API – https://docs.aspose.com/cells/net/aspose-cells-gridjs/how-to-use-gridjs-client-api/
GridJs‑spreadsheet NPM package – https://www.npmjs.com/package/gridjs-spreadsheet

Working with GridJs storage
