Как сделать серию невидимой с помощью C++

Как сделать серию невидимой в диаграмме Excel

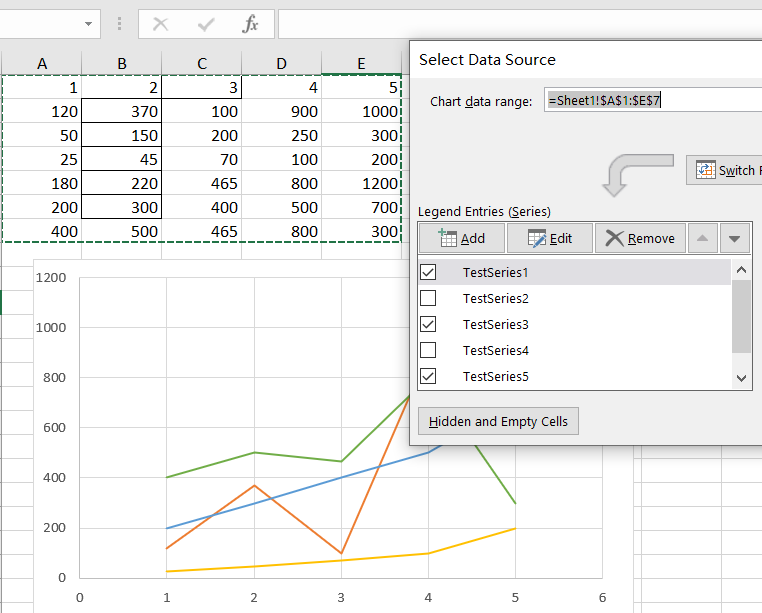

В Excel можно щёлкнуть правой кнопкой по диаграмме, выбрать “Выбрать данные”, и в появившемся окне проверить или снять выделение с серии, чтобы сделать её невидимой. Вы можете скачать пример файла и работать с ним в Excel, как показано на рисунке, чтобы реализовать эту функцию. Далее мы расскажем, как достичь этого с помощью библиотеки Aspose.Cells.

todo:image_alt_text

Как сделать серию невидимой с помощью Aspose.Cells

Мы используем следующий код, чтобы сделать серию невидимой с помощью Aspose.Cells:

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // File path for the input and output Excel files
    U16String filePath(u"..\\Data\\01_SourceDirectory\\");

    // Open an existing Excel file
    Workbook workbook(filePath + u"SeriesFiltered.xlsx");

    // Access the charts collection of the first worksheet
    ChartCollection charts = workbook.GetWorksheets().Get(0).GetCharts();

    // Access a specific chart by name
    Chart chart = charts.Get(u"Chart 1");

    // Access filtered and non-filtered series collections
    SeriesCollection nSeriesFiltered = chart.GetFilteredNSeries();
    SeriesCollection nSeries = chart.GetNSeries();

    // Set the visibility of the first two series to be filtered
    nSeries.Get(1).SetIsFiltered(true);
    nSeries.Get(0).SetIsFiltered(true);

    // Save the modified Excel file
    workbook.Save(filePath + u"output.xlsx");

    std::cout << "Series filtered successfully!" << std::endl;

    Aspose::Cells::Cleanup();
}

Вы можете получить следующий входной файл и выходной файл.

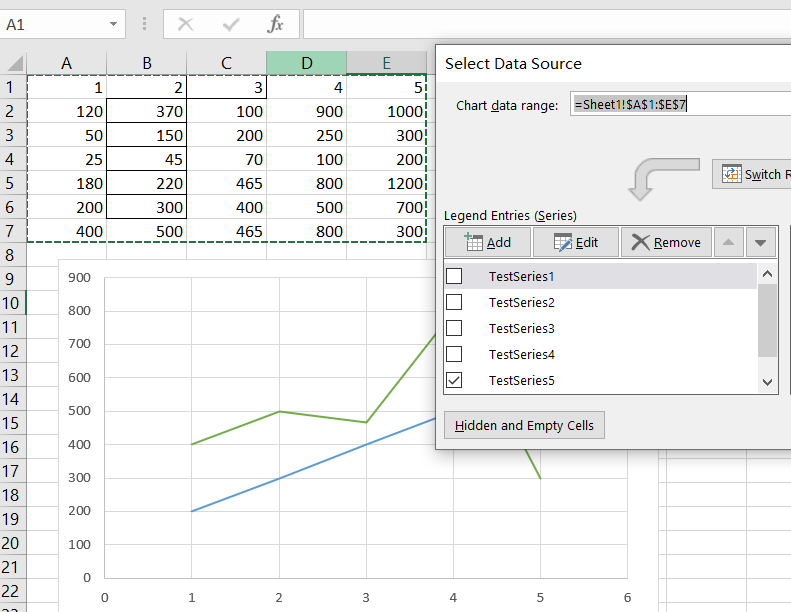

Как показано на рисунке ниже, первые две серии, которые изначально были видимы, стали невидимыми в выходном файле.
todo:image_alt_text
