Convert PowerPoint Presentations to HTML on Android

Overview

Aspose.Slides for Android via Java can save PowerPoint presentations as HTML without Microsoft PowerPoint. The basic conversion is a single Presentation load and a save call with SaveFormat. Use HtmlOptions when you need to control the exported layout, fonts, images, notes, comments, SVG output, or linked resources.

This guide focuses on practical HTML export scenarios:

• Export a whole presentation or selected slides.
• Generate fixed-layout, responsive, or SVG-based HTML.
• Include speaker notes and comments.
• Control image quality and cropped image data.
• Embed fonts or save font files separately.
• Choose how external resources and media files are written and referenced.

By default, HTML export produces a self-contained HTML document where most resources are embedded. This is convenient for sharing one file, but it can increase output size. For web publishing, consider external resources, lower image DPI, and only embedding fonts that are not reliably available in the target environment.

Convert a Presentation to HTML

To export a presentation to HTML, load it with Presentation and save it with SaveFormat.Html.

import com.aspose.slides.*;

Presentation presentation = new Presentation("presentation.pptx");
try {
    presentation.save("presentation.html", SaveFormat.Html);
} finally {
    presentation.dispose();
}

This example writes one HTML file. The presentation object is disposed in the finally block, which releases file handles and rendering resources after export.

Use HtmlOptions

HtmlOptions is the main configuration class for HTML export. Common settings include:

• SlidesLayoutOptions: adds notes, comments, handouts, or other layout information.
• HtmlFormatter: changes the HTML document structure or delegates formatting to a controller.
• SlideImageFormat: changes how slides are represented, for example as SVG.
• PicturesCompression: controls image DPI and output size.
• DeletePicturesCroppedAreas: keeps or removes cropped image data.
• SvgResponsiveLayout: makes exported SVG content adapt to its container.
• ShowHiddenSlides: includes hidden slides when required.

The following sections show the most common options separately so you can combine only the ones your workflow needs.

Convert Selected Slides to HTML

The Presentation.save overload that accepts slide numbers uses 1-based slide positions. The loop below saves every slide to a separate HTML file.

import com.aspose.slides.*;

Presentation presentation = new Presentation("presentation.pptx");
try {
    int slideCount = presentation.getSlides().size();

    for (int slideIndex = 0; slideIndex < slideCount; slideIndex++) {
        int slideNumber = slideIndex + 1;
        int[] slideNumbers = { slideNumber };
        String htmlFileName = "slide-" + slideNumber + ".html";

        presentation.save(htmlFileName, slideNumbers, SaveFormat.Html);
    }
} finally {
    presentation.dispose();
}

Use this pattern when a website or application needs one HTML page per slide. If each slide should have the same layout, create one HtmlOptions instance and pass it to each save call.

Create Responsive HTML

ResponsiveHtmlController provides responsive HTML output through HtmlFormatter. Use it when the exported page should adapt better to browser width.

import com.aspose.slides.*;

Presentation presentation = new Presentation("presentation.pptx");
try {
    ResponsiveHtmlController controller = new ResponsiveHtmlController();
    HtmlFormatter formatter = HtmlFormatter.createCustomFormatter(controller);

    HtmlOptions htmlOptions = new HtmlOptions();
    htmlOptions.setHtmlFormatter(formatter);

    presentation.save("presentation-responsive.html", SaveFormat.Html, htmlOptions);
} finally {
    presentation.dispose();
}

For SVG-based responsive layout, set SvgResponsiveLayout on HtmlOptions. This is useful when the slide content is exported as scalable SVG markup.

import com.aspose.slides.*;

Presentation presentation = new Presentation("presentation.pptx");
try {
    HtmlOptions htmlOptions = new HtmlOptions();
    htmlOptions.setSvgResponsiveLayout(true);

    presentation.save("presentation-svg-responsive.html", SaveFormat.Html, htmlOptions);
} finally {
    presentation.dispose();
}

Include Speaker Notes and Comments

Use NotesCommentsLayoutingOptions through HtmlOptions.SlidesLayoutOptions to include speaker notes or comments. Notes and comments are hidden by default unless you choose their positions.

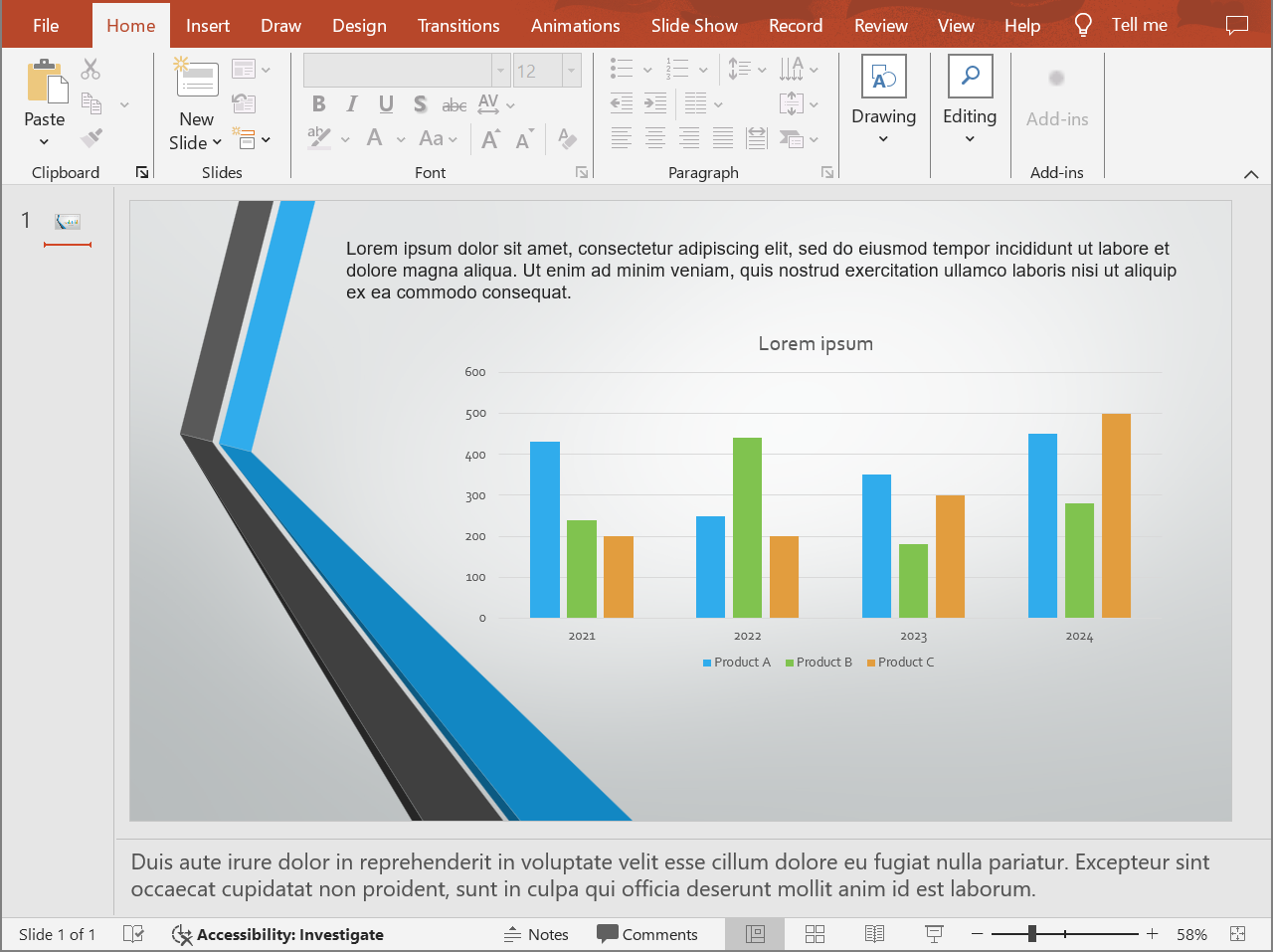

Suppose the source presentation contains speaker notes:

The following code exports the slide content with speaker notes below the slide.

import com.aspose.slides.*;

Presentation presentation = new Presentation("presentation.pptx");
try {
    NotesCommentsLayoutingOptions layoutOptions = new NotesCommentsLayoutingOptions();
    layoutOptions.setNotesPosition(NotesPositions.BottomFull);

    HtmlOptions htmlOptions = new HtmlOptions();
    htmlOptions.setSlidesLayoutOptions(layoutOptions);

    presentation.save("presentation-with-notes.html", SaveFormat.Html, htmlOptions);
} finally {
    presentation.dispose();
}

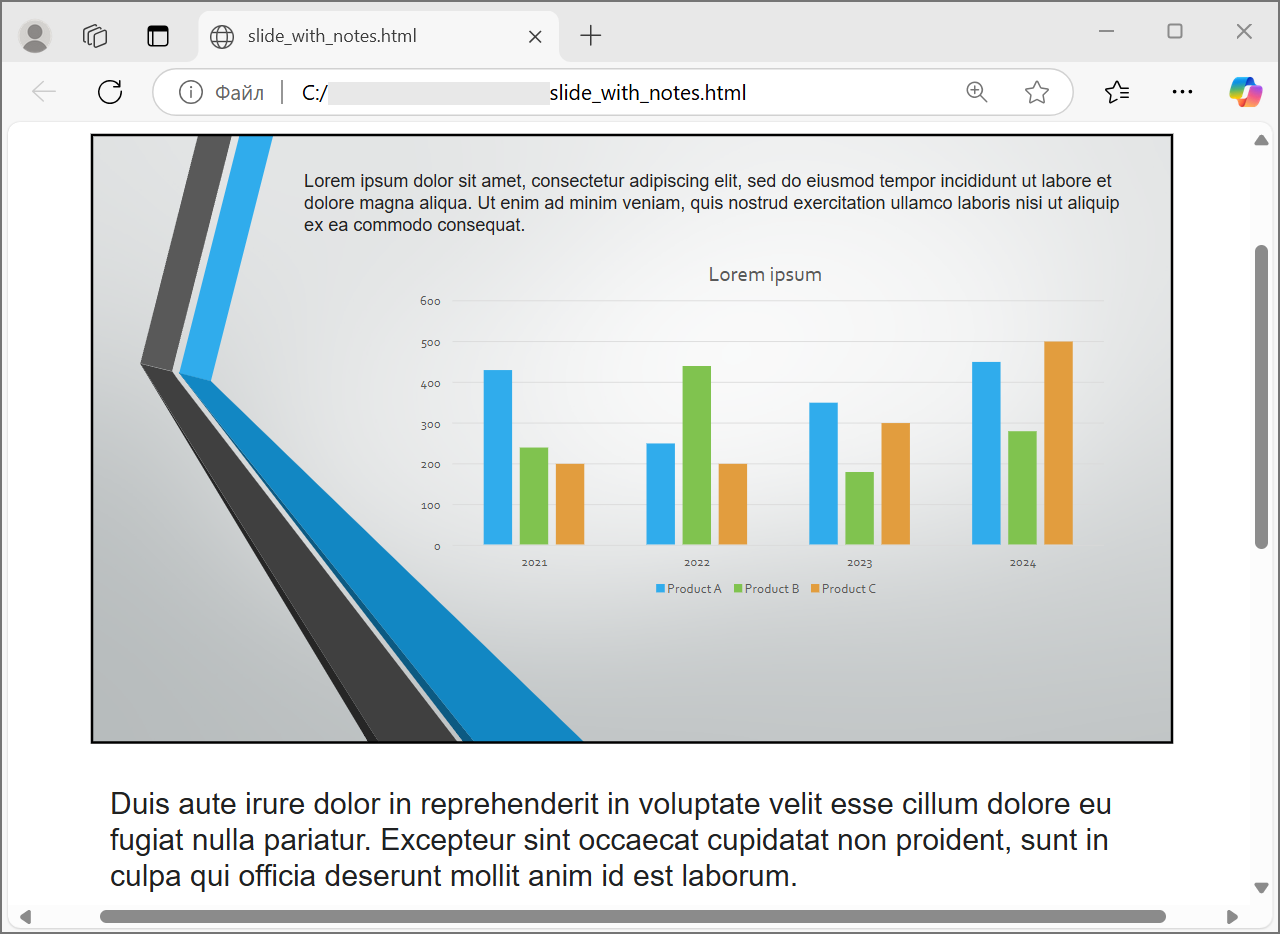

The exported HTML includes the notes area:

To export comments, set CommentsPosition, for example to CommentsPositions.Right or CommentsPositions.Bottom. If you need only comments, omit NotesPosition. If you need both notes and comments, set both properties.

Control Image Quality and Cropped Areas

HTML export can compress slide images to reduce output size. Set PicturesCompression to a value from PicturesCompression when you need higher image quality.

import com.aspose.slides.*;

Presentation presentation = new Presentation("presentation.pptx");
try {
    HtmlOptions htmlOptions = new HtmlOptions();
    htmlOptions.setPicturesCompression(PicturesCompression.Dpi150);

    presentation.save("presentation-dpi-150.html", SaveFormat.Html, htmlOptions);
} finally {
    presentation.dispose();
}

By default, cropped areas of images may be removed from the exported output. Keep cropped data only when users must be able to recover or inspect those hidden image parts. Keeping it can increase the HTML size.

import com.aspose.slides.*;

Presentation presentation = new Presentation("presentation.pptx");
try {
    HtmlOptions htmlOptions = new HtmlOptions();
    htmlOptions.setDeletePicturesCroppedAreas(false);

    presentation.save("presentation-with-cropped-areas.html", SaveFormat.Html, htmlOptions);
} finally {
    presentation.dispose();
}

Add CSS

For simple styling, pass a CSS string to HtmlFormatter.createDocumentFormatter. This changes the surrounding HTML document while Aspose.Slides continues to render the slide content.

import com.aspose.slides.*;

Presentation presentation = new Presentation("presentation.pptx");
try {
    String cssRules = "body { margin: 0; background: #f7f7f7; } .slide { margin: 24px auto; }";
    HtmlFormatter formatter = HtmlFormatter.createDocumentFormatter(cssRules, true);

    HtmlOptions htmlOptions = new HtmlOptions();
    htmlOptions.setHtmlFormatter(formatter);

    presentation.save("presentation-styled.html", SaveFormat.Html, htmlOptions);
} finally {
    presentation.dispose();
}

For a custom document header, a linked CSS file, or custom markup around slides and shapes, implement IHtmlFormattingController and pass it to HtmlFormatter with createCustomFormatter.

Embed Fonts

If the target environment may not have the presentation fonts installed, embed fonts in the HTML with EmbedAllFontsHtmlController. Embedding improves visual fidelity but increases output size.

import com.aspose.slides.*;

Presentation presentation = new Presentation("presentation.pptx");
try {
    String[] fontNamesToExclude = { "Arial", "Calibri" };
    EmbedAllFontsHtmlController fontController = new EmbedAllFontsHtmlController(fontNamesToExclude);
    HtmlFormatter formatter = HtmlFormatter.createCustomFormatter(fontController);

    HtmlOptions htmlOptions = new HtmlOptions();
    htmlOptions.setHtmlFormatter(formatter);

    presentation.save("presentation-embedded-fonts.html", SaveFormat.Html, htmlOptions);
} finally {
    presentation.dispose();
}

Exclude fonts only when you are confident that the target browsers or systems already provide them. For brand fonts or less common fonts, embedding is usually safer.

Link Font Files Instead of Embedding Them

To reduce the HTML file size, you can write font data to separate WOFF files and add @font-face rules to the HTML. The helper below extends EmbedAllFontsHtmlController and overrides writeFont.

import com.aspose.slides.*;
import java.io.File;
import java.io.FileOutputStream;

class LinkedFontsHtmlController extends EmbedAllFontsHtmlController {
    private final String fontOutputDirectory;
    private final String fontUrlPrefix;

    LinkedFontsHtmlController(
            String fontOutputDirectory,
            String fontUrlPrefix) throws java.io.IOException {
        super(new String[0]);
        this.fontOutputDirectory = fontOutputDirectory;
        this.fontUrlPrefix = fontUrlPrefix.endsWith("/") ? fontUrlPrefix : fontUrlPrefix + "/";

        File dirs = new File(fontOutputDirectory);
        dirs.mkdirs();
    }

    @Override
    public void writeFont(
            IHtmlGenerator generator,
            IFontData originalFont,
            IFontData substitutedFont,
            String fontStyle,
            String fontWeight,
            byte[] fontData) {
        try {
            IFontData font = substitutedFont == null ? originalFont : substitutedFont;
            String safeFontName = makeSafeFileName(font.getFontName());
            String safeFontStyle = fontStyle == null || fontStyle.trim().isEmpty() ? "normal" : fontStyle;
            String safeFontWeight = fontWeight == null || fontWeight.trim().isEmpty() ? "normal" : fontWeight;
            String fontFileName = safeFontName + "-" + safeFontStyle + "-" + safeFontWeight + ".woff";
            String fontFilePath = fontOutputDirectory + "/" + fontFileName;

            FileOutputStream fos = new FileOutputStream(fontFilePath);
            fos.write(fontData);
            fos.close();

            String encodedFontFileName = java.net.URLEncoder.encode(fontFileName, "UTF-8");
            String fontUrl = fontUrlPrefix + encodedFontFileName.replace("+", "%20");
            String escapedBackslashes = font.getFontName().replace("\\", "\\\\");
            String fontFamily = escapedBackslashes.replace("'", "\\'");

            generator.addHtml("<style>");
            generator.addHtml("@font-face {");
            generator.addHtml("font-family: '" + fontFamily + "';");
            generator.addHtml("font-style: " + safeFontStyle + ";");
            generator.addHtml("font-weight: " + safeFontWeight + ";");
            generator.addHtml("src: url('" + fontUrl + "') format('woff');");
            generator.addHtml("}");
            generator.addHtml("</style>");
        } catch (java.io.IOException exception) {
            throw new RuntimeException("Unable to write an exported font.", exception);
        }
    }

    private String makeSafeFileName(String fileName) {
        String invalidCharacters = "\\/:*?\"<>|";
        char[] safeCharacters = fileName.toCharArray();

        for (int characterIndex = 0; characterIndex < safeCharacters.length; characterIndex++) {
            if (invalidCharacters.indexOf(safeCharacters[characterIndex]) >= 0) {
                safeCharacters[characterIndex] = '_';
            }
        }

        return new String(safeCharacters);
    }
}

String outputDirectory = System.getProperty("user.dir") + "/html-output";
String fontsDirectory = outputDirectory + "/fonts";

Presentation presentation = new Presentation("presentation.pptx");
try {
    LinkedFontsHtmlController fontController = new LinkedFontsHtmlController(fontsDirectory, "fonts");
    HtmlFormatter formatter = HtmlFormatter.createCustomFormatter(fontController);

    HtmlOptions htmlOptions = new HtmlOptions();
    htmlOptions.setHtmlFormatter(formatter);

    String htmlFilePath = outputDirectory + "/presentation.html";
    presentation.save(htmlFilePath, SaveFormat.Html, htmlOptions);
} finally {
    presentation.dispose();
}

In this example, font files are saved to html-output/fonts, and the HTML references them with URLs such as fonts/BrandFont-normal-400.woff. If the HTML file and fonts are deployed to another location, choose fontUrlPrefix so that it matches the deployed URL path.

Save Resources Externally

Self-contained HTML is easy to move around, but embedded Base64 resources can make the file large. If your application needs external image files, implement ILinkEmbedController and pass it to the HtmlOptions constructor.

When you externalize resources, choose two paths deliberately:

• The file system output path, where your application writes generated images, fonts, audio, or video.
• The URL path, which is what the browser uses from the HTML document to load those files.

Export Media Files

VideoPlayerHtmlController exports video and audio files and writes HTML that can play them in a browser. Its constructor takes:

• path: the directory where generated media files will be written.
• fileName: the HTML file name being generated.
• baseUri: an absolute URI for the media directory. It must parse as a URI, so pass a file:/// or http(s):// string, not a plain file system path.

Exported media files are referenced in the generated HTML by file name only, relative to the HTML document. So path must be the directory that also holds the HTML file, otherwise the browser cannot resolve the links. For local preview, build the file:/// URI with Paths.get(mediaDirectory).toUri().toString(). For a deployed application, use the absolute URL of the published media directory.

import com.aspose.slides.*;
import java.io.File;
import java.nio.file.Files;
import java.nio.file.Paths;

String outputDirectory = System.getProperty("user.dir") + "/html-output";
File outDir = new File(outputDirectory);
outDir.mkdir();

String htmlFileName = "presentation.html";

// Media files are linked by name relative to the HTML document, so write them next to it.
String mediaDirectory = outputDirectory;
String mediaBaseUri = Paths.get(mediaDirectory).toUri().toString();

Presentation presentation = new Presentation();
try {
    byte[] videoData = Files.readAllBytes(Paths.get("intro.mp4"));

    IVideo video = presentation.getVideos().addVideo(videoData);
    ISlide slide = presentation.getSlides().get_Item(0);
    slide.getShapes().addVideoFrame(20, 20, 480, 270, video);

    String mediaDirectoryPath = mediaDirectory;
    VideoPlayerHtmlController controller = new VideoPlayerHtmlController(mediaDirectoryPath, htmlFileName, mediaBaseUri);
    HtmlFormatter formatter = HtmlFormatter.createCustomFormatter(controller);
    SVGOptions svgOptions = new SVGOptions(controller);
    SlideImageFormat slideImageFormat = SlideImageFormat.svg(svgOptions);

    HtmlOptions htmlOptions = new HtmlOptions(controller);
    htmlOptions.setHtmlFormatter(formatter);
    htmlOptions.setSlideImageFormat(slideImageFormat);

    String htmlFilePath = outputDirectory + "/" + htmlFileName;
    presentation.save(htmlFilePath, SaveFormat.Html, htmlOptions);
} finally {
    presentation.dispose();
}

Use output directories that are unique per export job, especially in server applications. Shared output paths can cause files from different conversions to overwrite each other.

Performance and Resource Management

HTML conversion is a rendering operation, so processing time and memory use depend on slide count, image resolution, fonts, effects, charts, and embedded media. Higher PicturesCompression DPI values, embedded fonts, SVG output, and retained cropped image areas can improve fidelity but usually increase output size.

For batch conversion:

• Dispose every Presentation instance promptly.
• Use separate output directories for separate jobs.
• Avoid embedding common fonts unless fidelity requires it.
• Lower image DPI when the HTML is for preview or thumbnails.
• Keep the source presentation, generated HTML, and external resources together until deployment paths are final.

FAQ

Are hyperlinks preserved in HTML output?

Yes. Presentation hyperlinks are exported to HTML and remain clickable when the target URL is valid.

Can I convert presentations to HTML in parallel?

Yes, but do not share one Presentation instance across threads. Process different files with separate presentation instances, separate streams, and separate output directories. See the multithreading guidance for details.

Is a Presentation object thread-safe?

No. A single Presentation instance should be loaded, modified, saved, and disposed on one thread. For parallel work, create an independent instance per thread or process.

Why is the generated HTML file large?

The default export can embed resources directly in the HTML. Embedded fonts, high-DPI images, media, SVG content, and retained cropped image areas also increase size. Use external resources, exclude common fonts from embedding, and lower PicturesCompression when smaller output is more important than maximum fidelity.

Why does a PowerPoint font size such as 24 pt appear as 17.999819 pt in HTML?

This can happen because PowerPoint and HTML use different DPI models. PowerPoint stores text sizes in typographic points based on 72 DPI, while HTML layout is based on CSS pixels in a 96 DPI model. When Aspose.Slides exports a presentation to HTML, the font size is translated between these systems, and the conversion may introduce small rounding differences.

These values do not indicate a real visual font-size change. They are only a mathematical side effect of converting text metrics between PowerPoint and HTML.

How should I choose baseUri for media export?

Pass baseUri as an absolute URI. A plain file system path or a relative path raises a URI format error in the VideoPlayerHtmlController constructor. For local preview, derive it from the output directory with Paths.get(mediaDirectory).toUri().toString(). For deployment, use the absolute URL of the published media directory. Note that the generated <video> and <img> elements reference exported media by file name relative to the HTML document, so the file system path still has to be the directory that holds the HTML file.

Can I include hidden slides?

Yes. Set ShowHiddenSlides to true on HtmlOptions when hidden slides must be exported.
