Text Formatting

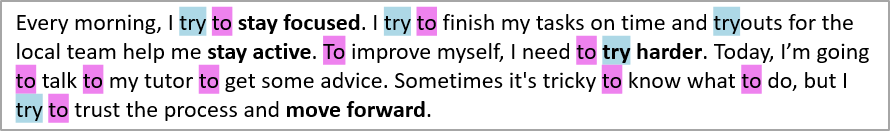

Highlight Text

Method highlightText has been added to ITextFrame interface and TextFrame class.

It allows to highlight text part with background color using text sample, similar to Text Highlight Color tool in PowerPoint 2019.

The code snippet below shows how to use this feature:

Presentation pres = new Presentation("Presentation.pptx");
try {
    TextHighlightingOptions textHighlightingOptions = new TextHighlightingOptions();
    textHighlightingOptions.setWholeWordsOnly(true);

    ((AutoShape)pres.getSlides().get_Item(0).getShapes().get_Item(0)).getTextFrame().highlightText("title", Color.BLUE); // highlighting all words 'important'
    ((AutoShape)pres.getSlides().get_Item(0).getShapes().get_Item(0)).getTextFrame().highlightText("to", Color.MAGENTA, textHighlightingOptions);// highlighting all separate 'the' occurrences

    pres.save("OutputPresentation-highlight.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Aspose provides a simple, free online PowerPoint editing service

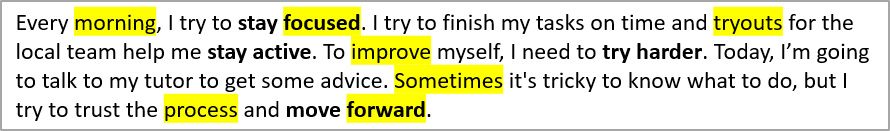

Highlight Text using Regular Expression

Method highlightRegex has been added to ITextFrame interface and TextFrame class.

It allows to highlight text part with background color using regex, similar to Text Highlight Color tool in PowerPoint 2019.

The code snippet below shows how to use this feature:

Presentation pres = new Presentation("Presentation.pptx");
try {
    TextHighlightingOptions options = new TextHighlightingOptions();

    ((AutoShape) pres.getSlides().get_Item(0).getShapes().get_Item(0)).getTextFrame().highlightRegex("\\b[^\\s]{4}\\b", java.awt.Color.YELLOW, options); // highlighting all words with 10 symbols or longer

    pres.save("OutputPresentation-highlight.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

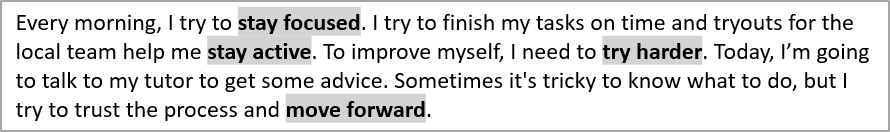

Set Text Background Color

Aspose.Slides allows you to specify your preferred color for the background of a text.

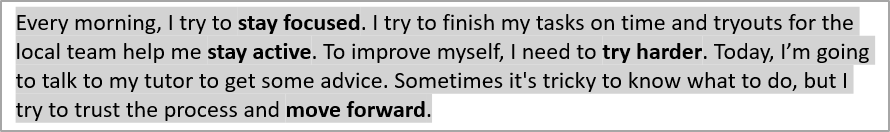

This Java code shows you how to set the background color for an entire text:

Presentation pres = new Presentation();
try {
    IAutoShape autoShape = pres.getSlides().get_Item(0).getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 200, 100);
    autoShape.getTextFrame().getParagraphs().clear();

    Paragraph para = new Paragraph();

    Portion portion1 = new Portion("Black");
    portion1.getPortionFormat().setFontBold(NullableBool.True);

    Portion portion2 = new Portion(" Red ");

    Portion portion3 = new Portion("Black");
    portion3.getPortionFormat().setFontBold(NullableBool.True);

    para.getPortions().add(portion1);
    para.getPortions().add(portion2);
    para.getPortions().add(portion3);
    autoShape.getTextFrame().getParagraphs().add(para);

    pres.save("text.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Presentation presentation = new Presentation("text.pptx");
try {
    IAutoShape autoShape = (IAutoShape)presentation.getSlides().get_Item(0).getShapes().get_Item(0);

    StreamSupport.stream(autoShape.getTextFrame().getParagraphs().spliterator(), false)
            .map(p -> p.getPortions())
            .forEach(c -> c.forEach(ic -> ic.getPortionFormat().getHighlightColor().setColor(Color.BLUE)));

    presentation.save("text-red.pptx", SaveFormat.Pptx);
} finally {
    if (presentation != null) presentation.dispose();
}

This Java code shows you how to set the background color for only a portion of a text:

Presentation pres = new Presentation();
try {
    IAutoShape autoShape = pres.getSlides().get_Item(0).getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 200, 100);
    autoShape.getTextFrame().getParagraphs().clear();

    Paragraph para = new Paragraph();

    Portion portion1 = new Portion("Black");
    portion1.getPortionFormat().setFontBold(NullableBool.True);

    Portion portion2 = new Portion(" Red ");

    Portion portion3 = new Portion("Black");
    portion3.getPortionFormat().setFontBold(NullableBool.True);

    para.getPortions().add(portion1);
    para.getPortions().add(portion2);
    para.getPortions().add(portion3);
    autoShape.getTextFrame().getParagraphs().add(para);

    pres.save("text.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Presentation presentation = new Presentation("text.pptx");
try {
    IAutoShape autoShape = (IAutoShape)presentation.getSlides().get_Item(0).getShapes().get_Item(0);

    Optional<IPortion> redPortion = StreamSupport.stream(autoShape.getTextFrame().getParagraphs().get_Item(0).getPortions().spliterator(), false)
            .filter(p -> p.getText().contains("Red"))
            .findFirst();

    if(redPortion.isPresent())
        redPortion.get().getPortionFormat().getHighlightColor().setColor(Color.RED);

    presentation.save("text-red.pptx", SaveFormat.Pptx);
} finally {
    if (presentation != null) presentation.dispose();
}

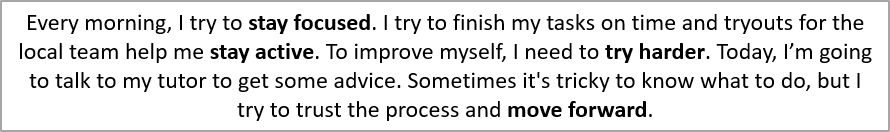

Align Text Paragraphs

Text formatting is one of the key elements while creating any kind of documents or presentations. We know that Aspose.Slides for Android via Java supports adding text to slides but in this topic, we will see that how can we control the alignment of the text paragraphs in a slide. Please follow the steps below to align text paragraphs using Aspose.Slides for Android via Java:

1. Create an instance of Presentation class.
2. Obtain the reference of a slide by using its Index.
3. Access the Placeholder shapes present in the slide and typecast them as a AutoShape.
4. Get the Paragraph (that needs to be aligned) from the TextFrame exposed by AutoShape.
5. Align the Paragraph. A paragraph can be aligned to Right, Left, Center & Justify.
6. Write the modified presentation as a PPTX file.

The implementation of the above steps is given below.

// Instantiate a Presentation object that represents a PPTX file
Presentation pres = new Presentation("ParagraphsAlignment.pptx");
try {
    // Accessing first slide
    ISlide slide = pres.getSlides().get_Item(0);

    // Accessing the first and second placeholder in the slide and typecasting it as AutoShape
    ITextFrame tf1 = ((IAutoShape)slide.getShapes().get_Item(0)).getTextFrame();
    ITextFrame tf2 = ((IAutoShape)slide.getShapes().get_Item(1)).getTextFrame();

    // Change the text in both placeholders
    tf1.setText("Center Align by Aspose");
    tf2.setText("Center Align by Aspose");

    // Getting the first paragraph of the placeholders
    IParagraph para1 = tf1.getParagraphs().get_Item(0);
    IParagraph para2 = tf2.getParagraphs().get_Item(0);

    // Aligning the text paragraph to center
    para1.getParagraphFormat().setAlignment(TextAlignment.Center);
    para2.getParagraphFormat().setAlignment(TextAlignment.Center);

    //Writing the presentation as a PPTX file
    pres.save("Centeralign_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

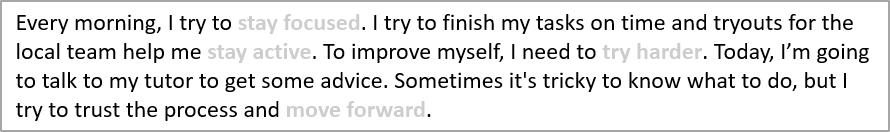

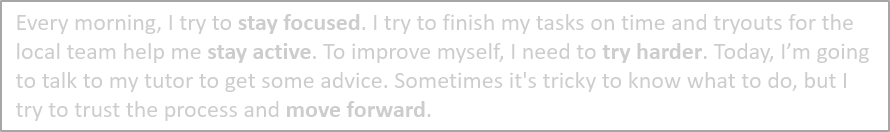

Set Transparency for Text

This article demonstrates how to set transparency property to any text shape using Aspose.Slides for Android via Java. In order to set the transparency to text. Please follow the steps below:

1. Create an instance of Presentation class.
2. Get the reference of a slide.
3. Set shadow color
4. Write the presentation as a PPTX file.

The implementation of the above steps is given below.

Presentation pres = new Presentation("transparency.pptx");
try {
    IAutoShape shape = (IAutoShape)pres.getSlides().get_Item(0).getShapes().get_Item(0);
    IEffectFormat effects = shape.getTextFrame().getParagraphs().get_Item(0).getPortions().get_Item(0).getPortionFormat().getEffectFormat();

    IOuterShadow outerShadowEffect = effects.getOuterShadowEffect();

    Color shadowColor = outerShadowEffect.getShadowColor().getColor();
    System.out.println(shadowColor.toString() + " - transparency is: "+ (shadowColor.getAlpha() / 255f) * 100);

    // set transparency to zero percent
    outerShadowEffect.getShadowColor().setColor(new Color(shadowColor.getRed(), shadowColor.getGreen(), shadowColor.getBlue(), 255));

    pres.save("transparency-2.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

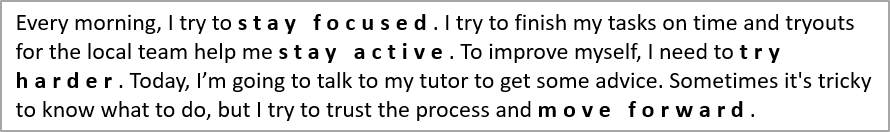

Set Character Spacing for Text

Aspose.Slides allows you to set the space between letters in a textbox. This way, you get to adjust the visual density of a line or block of text by expanding or condensing the spacing between characters.

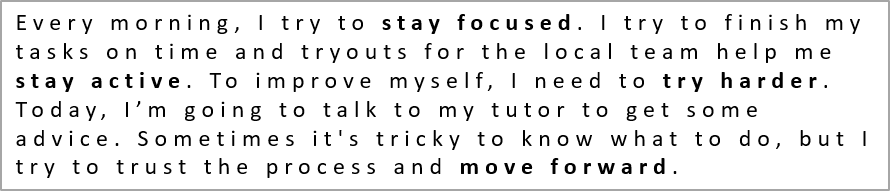

This Java code shows you how to expand the spacing for one line of text and condense the spacing for another line:

Presentation presentation = new Presentation("in.pptx");

IAutoShape textBox1 = (IAutoShape) presentation.getSlides().get_Item(0).getShapes().get_Item(0);
IAutoShape textBox2 = (IAutoShape) presentation.getSlides().get_Item(0).getShapes().get_Item(1);

textBox1.getTextFrame().getParagraphs().get_Item(0).getParagraphFormat().getDefaultPortionFormat().setSpacing(20); // expand
textBox2.getTextFrame().getParagraphs().get_Item(0).getParagraphFormat().getDefaultPortionFormat().setSpacing(-2); // condense

presentation.save("out.pptx", SaveFormat.Pptx);

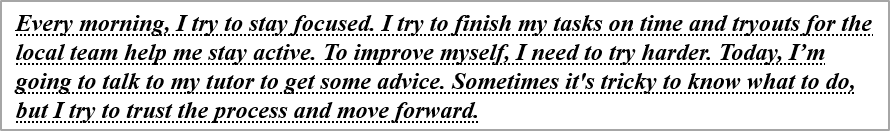

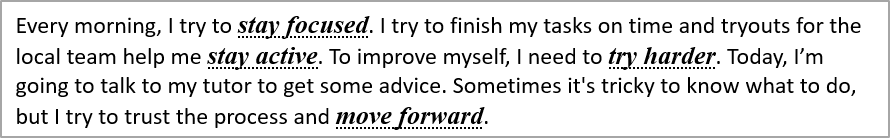

Manage Paragraph’s Font Properties

Presentations usually contain both text and images. The text can be formatted in a various ways, either to highlight specific sections and words, or to conform with corporate styles. Text formatting helps users vary the look and feel of the presentation content. This article shows how to use Aspose.Slides for Android via Java to configure the font properties of paragraphs of text on slides. To manage font properties of a paragraph using Aspose.Slides for Android via Java:

1. Create an instance of the Presentation class.
2. Obtain a slide’s reference by using its index.
3. Access the Placeholder shapes in the slide and typecast them to IAutoShape.
4. Get the Paragraph from the ITextFrame exposed by IAutoShape.
5. Justify the paragraph.
6. Access a Paragraph’s text Portion.
7. Define the font using FontData and set the Font of the text Portion accordingly.
   1. Set the font to bold.
   2. Set the font to italic.
8. Set the font color using the getFillFormat exposed by the Portion object.
9. Write the modified presentation to a PPTX file.

The implementation of the above steps is given below. It takes an unadorned presentation and formats the fonts on one of the slides.

// Instantiate a Presentation object that represents a PPTX file
Presentation pres = new Presentation("FontProperties.pptx");
try {
    // Accessing a slide using its slide position
    ISlide slide = pres.getSlides().get_Item(0);

    // Accessing the first and second placeholder in the slide and typecasting it as AutoShape
    ITextFrame tf1 = ((IAutoShape)slide.getShapes().get_Item(0)).getTextFrame();
    ITextFrame tf2 = ((IAutoShape)slide.getShapes().get_Item(1)).getTextFrame();

    // Accessing the first Paragraph
    IParagraph para1 = tf1.getParagraphs().get_Item(0);
    IParagraph para2 = tf2.getParagraphs().get_Item(0);

    // Accessing the first portion
    IPortion port1 = para1.getPortions().get_Item(0);
    IPortion port2 = para2.getPortions().get_Item(0);

    // Define new fonts
    FontData fd1 = new FontData("Elephant");
    FontData fd2 = new FontData("Castellar");

    // Assign new fonts to portion
    port1.getPortionFormat().setLatinFont(fd1);
    port2.getPortionFormat().setLatinFont(fd2);

    // Set font to Bold
    port1.getPortionFormat().setFontBold(NullableBool.True);
    port2.getPortionFormat().setFontBold(NullableBool.True);

    // Set font to Italic
    port1.getPortionFormat().setFontItalic(NullableBool.True);
    port2.getPortionFormat().setFontItalic(NullableBool.True);

    // Set font color
    port1.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
    port1.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.MAGENTA);
    port2.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
    port2.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.ORANGE);

    //Write the PPTX to disk
    pres.save("WelcomeFont_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Manage Font Family of Text

A portion is used to hold text with similar formatting style in a paragraph. This article shows how to use Aspose.Slides for Android via Java to create a textbox with some text and then define a particular font, and various other properties of the font family category. To create a textbox and set font properties of the text in it:

1. Create an instance of the Presentation class.
2. Obtain the reference of a slide by using its index.
3. Add an IAutoShape of the type Rectangle to the slide.
4. Remove the fill style associated with the IAutoShape.
5. Access the AutoShape’s TextFrame.
6. Add some text to the TextFrame.
7. Access the Portion object associated with the ITextFrame.
8. Define the font to be used for the Portion.
9. Set other font properties like bold, italic, underline, color and height using the relevant properties as exposed by the Portion object.
10. Write the modified presentation as a PPTX file.

The implementation of the above steps is given below.

// Instantiate Presentation
Presentation pres = new Presentation();
try {

    // Get first slide
    ISlide sld = pres.getSlides().get_Item(0);

    // Add an AutoShape of Rectangle type
    IAutoShape ashp = sld.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 200, 50);

    // Remove any fill style associated with the AutoShape
    ashp.getFillFormat().setFillType(FillType.NoFill);

    // Access the TextFrame associated with the AutoShape
    ITextFrame tf = ashp.getTextFrame();
    tf.setText("Aspose TextBox");

    // Access the Portion associated with the TextFrame
    IPortion port = tf.getParagraphs().get_Item(0).getPortions().get_Item(0);

    // Set the Font for the Portion
    port.getPortionFormat().setLatinFont(new FontData("Times New Roman"));

    // Set Bold property of the Font
    port.getPortionFormat().setFontBold(NullableBool.True);

    // Set Italic property of the Font
    port.getPortionFormat().setFontItalic(NullableBool.True);

    // Set Underline property of the Font
    port.getPortionFormat().setFontUnderline(TextUnderlineType.Single);

    // Set the Height of the Font
    port.getPortionFormat().setFontHeight(25);

    // Set the color of the Font
    port.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
    port.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLUE);

    // Write the PPTX to disk
    pres.save("SetTextFontProperties_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Set Font Size for Text

Aspose.Slides allows you to choose your preferred font size for existing text in a paragraph and other texts that may be added to the paragraph later.

This Java code shows you how to set the font size for texts contained in a paragraph:

Presentation presentation = new Presentation("example.pptx");
try {
    // Gets the first shape, for example.
    IShape shape = presentation.getSlides().get_Item(0).getShapes().get_Item(0);

    if (shape instanceof IAutoShape )
    {
        IAutoShape autoShape = (AutoShape) shape;
        // Gets the first paragraph, for example.
        IParagraph paragraph = autoShape.getTextFrame().getParagraphs().get_Item(0);

        // Sets the default font size to 20 pt for all text portions in the paragraph.
        paragraph.getParagraphFormat().getDefaultPortionFormat().setFontHeight(20);

        // Sets the font size to 20 pt for current text portions in the paragraph.
        for(IPortion portion : paragraph.getPortions())
        {
            portion.getPortionFormat().setFontHeight(20);
        }
    }
} finally {
    if (presentation != null) presentation.dispose();
}

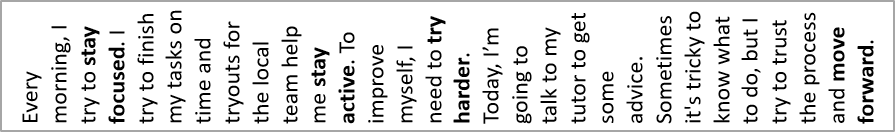

Set Text Rotation

Aspose.Slides for Android via Java allows developers to rotate the text. Text could be set to appear as Horizontal, Vertical, Vertical270, WordArtVertical, EastAsianVertical, MongolianVertical or WordArtVerticalRightToLeft. To rotate the text of any TextFrame, please follow the steps below:

1. Create an instance of Presentation class.
2. Access the first slide.
3. Add any Shape to the slide.
4. Access the ITextFrame.
5. Rotate the text.
6. Save file to disk.

// Create an instance of Presentation class
Presentation pres = new Presentation();
try {
    // Get the first slide
    ISlide slide = pres.getSlides().get_Item(0);

    // Add an AutoShape of Rectangle type
    IAutoShape ashp = slide.getShapes().addAutoShape(ShapeType.Rectangle, 150, 75, 350, 350);

    // Add TextFrame to the Rectangle
    ashp.addTextFrame("");
    ashp.getFillFormat().setFillType(FillType.NoFill);

    // Accessing the text frame
    ITextFrame txtFrame = ashp.getTextFrame();
    txtFrame.getTextFrameFormat().setTextVerticalType(TextVerticalType.Vertical270);

    // Create the Paragraph object for text frame
    IParagraph para = txtFrame.getParagraphs().get_Item(0);

    // Create Portion object for paragraph
    IPortion portion = para.getPortions().get_Item(0);
    portion.setText("A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog.");
    portion.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
    portion.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);

    // Save Presentation
    pres.save("RotateText_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

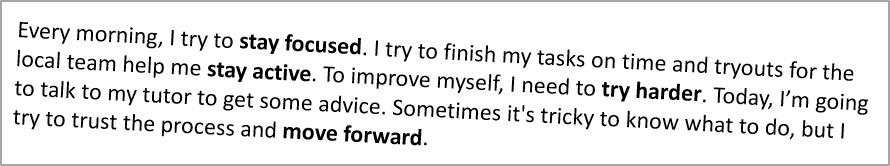

Set Custom Rotation Angle for TextFrame

Aspose.Slides for Android via Java now supports, Setting custom rotation angle for textframe. In this topic, we will see with example how to set the RotationAngle property in Aspose.Slides. The new methods setRotationAngle and getRotationAngle have been added to IChartTextBlockFormat and ITextFrameFormat interfaces, allows to set the custom rotation angle for textframe. In order to set the RotationAngle, Please follow the steps below:

1. Create an instance of Presentation class.
2. Add a chart on slide.
3. Set RotationAngle property.
4. Write the presentation as a PPTX file.

In the example given below, we set the RotationAngle property.

// Create an instance of Presentation class
Presentation pres = new Presentation();
try {
    // Get the first slide
    ISlide slide = pres.getSlides().get_Item(0);

    // Add an AutoShape of Rectangle type
    IAutoShape ashp = slide.getShapes().addAutoShape(ShapeType.Rectangle, 150, 75, 350, 350);

    // Add TextFrame to the Rectangle
    ashp.addTextFrame("");
    ashp.getFillFormat().setFillType(FillType.NoFill);

    // Accessing the text frame
    ITextFrame txtFrame = ashp.getTextFrame();
    txtFrame.getTextFrameFormat().setRotationAngle(25);

    // Create the Paragraph object for text frame
    IParagraph para = txtFrame.getParagraphs().get_Item(0);

    // Create Portion object for paragraph
    IPortion portion = para.getPortions().get_Item(0);
    portion.setText("Text rotation example.");
    portion.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
    portion.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);

    // Save Presentation
    pres.save(resourcesOutputPath+"RotateText_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

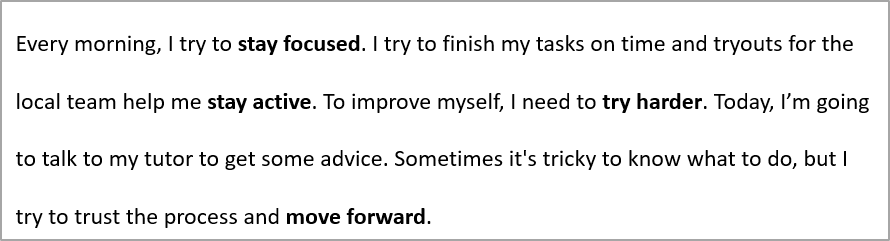

Line Spacing of Paragraph

Aspose.Slides provides properties under ParagraphFormat—SpaceAfter, SpaceBefore and SpaceWithin—that allow you to manage the line spacing for a paragraph. The three properties are used this way:

• To specify the line spacing for a paragraph in percentage, use a positive value.
• To specify the line spacing for a paragraph in points, use a negative value.

For example, you can apply a 16pt line spacing for a paragraph by setting the SpaceBefore property to -16.

This is how you specify the line spacing for a specific paragraph:

1. Load a presentation containing an AutoShape with some text in it.
2. Get a slide’s reference through its index.
3. Access the TextFrame.
4. Access the Paragraph.
5. Set the Paragraph properties.
6. Save the presentation.

This Java code shows you how to specify the line spacing for a paragraph:

// Create an instance of Presentation class
Presentation pres = new Presentation("Fonts.pptx");
try {
    // Obtain a slide's reference by its index
    ISlide sld = pres.getSlides().get_Item(0);

    // Access the TextFrame
    ITextFrame tf1 = ((IAutoShape)sld.getShapes().get_Item(0)).getTextFrame();

    // Access the Paragraph
    IParagraph para = tf1.getParagraphs().get_Item(0);

    // Set properties of Paragraph
    para.getParagraphFormat().setSpaceWithin(80);
    para.getParagraphFormat().setSpaceBefore(40);
    para.getParagraphFormat().setSpaceAfter(40);

    // Save Presentation
    pres.save("LineSpacing_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Set the AutofitType Property for TextFrame

In this topic, we will explore the different formatting properties of text frame. This article covers how to Set the AutofitType property of text frame, anchor of text and rotating the text in presentation. Aspose.Slides for Android via Java allows developers to set AutofitType property of any text frame. AutofitType could be set to Normal or Shape. If set to Normal then shape will remain the same whereas the text will be adjusted without causing the shape to change itself whereas If AutofitType is set to Shape, then shape will be modified such that only required text is contained in it. To set the AutofitType property of a text frame, please follow the steps below:

1. Create an instance of Presentation class.
2. Access the first slide.
3. Add any shape to the slide.
4. Access the ITextFrame.
5. Set the AutofitType of the TextFrame.
6. Save file to disk.

// Create an instance of Presentation class
Presentation pres = new Presentation();
try {
    // Access the first slide
    ISlide slide = pres.getSlides().get_Item(0);

    // Add an AutoShape of Rectangle type
    IAutoShape ashp = slide.getShapes().addAutoShape(ShapeType.Rectangle, 150, 75, 350, 150);

    // Add TextFrame to the Rectangle
    ashp.addTextFrame("");
    ashp.getFillFormat().setFillType(FillType.NoFill);

    // Accessing the text frame
    ITextFrame txtFrame = ashp.getTextFrame();
    txtFrame.getTextFrameFormat().setAutofitType(TextAutofitType.Shape);

    // Create the Paragraph object for text frame
    IParagraph para = txtFrame.getParagraphs().get_Item(0);

    // Create Portion object for paragraph
    IPortion portion = para.getPortions().get_Item(0);
    portion.setText("A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog.");
    portion.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
    portion.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);

    // Save Presentation
    pres.save(resourcesOutputPath + "formatText_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Set Anchor of TextFrame

Aspose.Slides for Android via Java allows developers to Anchor of any TextFrame. TextAnchorType specifies that where is that text placed in the shape. AnchorType could be set to Top, Center, Bottom, Justified or Distributed. To set Anchor of any TextFrame, please follow the steps below:

1. Create an instance of Presentation class.
2. Access the first slide.
3. Add any shape to the slide.
4. Access the ITextFrame.
5. Set TextAnchorType of the TextFrame.
6. Save file to disk.

// Create an instance of Presentation class
Presentation pres = new Presentation();
try {
    // Get the first slide
    ISlide slide = pres.getSlides().get_Item(0);

    // Add an AutoShape of Rectangle type
    IAutoShape ashp = slide.getShapes().addAutoShape(ShapeType.Rectangle, 150, 75, 350, 350);

    // Add TextFrame to the Rectangle
    ashp.addTextFrame("");
    ashp.getFillFormat().setFillType(FillType.NoFill);

    // Accessing the text frame
    ITextFrame txtFrame = ashp.getTextFrame();
    txtFrame.getTextFrameFormat().setAnchoringType(TextAnchorType.Bottom);

    // Create the Paragraph object for text frame
    IParagraph para = txtFrame.getParagraphs().get_Item(0);

    // Create Portion object for paragraph
    IPortion portion = para.getPortions().get_Item(0);
    portion.setText("A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog.");
    portion.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
    portion.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);

    // Save Presentation
    pres.save("AnchorText_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

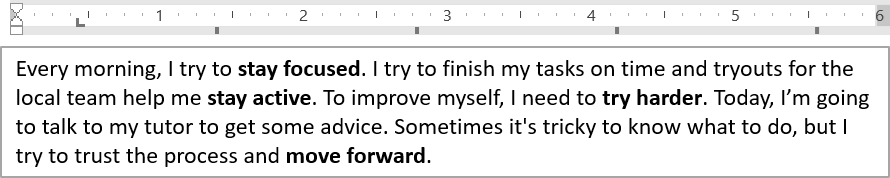

Tabs and EffectiveTabs in Presentation

All text tabulations are given in pixels.

Figure: 2 Explicit Tabs and 2 Default Tabs

• EffectiveTabs.ExplicitTabCount (2 in our case) property is equal to Tabs.Count.
• EffectiveTabs collection includes all tabs (from Tabs collection and default tabs).
• EffectiveTabs.ExplicitTabCount (2 in our case) property is equal to Tabs.Count.
• EffectiveTabs.DefaultTabSize (294) property shows distance between default tabs (3 and 4 in our example).
• EffectiveTabs.GetTabByIndex(index) with index = 0 will return first explicit tab (Position = 731), index = 1 - second tab (Position = 1241). If you try to get next tab with index = 2 it will return first default tab (Position = 1470) and etc.
• EffectiveTabs.GetTabAfterPosition(pos) used for getting next tabulation after some text. For example you have text: “Hello World!”. To render such text you should know where to start draw “world!”. At first, you should calculate length of “Hello” in pixels and call GetTabAfterPosition with this value. You will get next tab position to draw “world!”.

Set Default Text Style

If you need to apply the same default text formatting to all text elements of a presentation at once, then you can use the getDefaultTextStyle method from the IPresentation interface and set the preferred formatting. The code example below shows how to set the default bold font (14 pt) for the text on all slides in a new presentation.

Presentation presentation = new Presentation();
try {
    // Get the top level paragraph format.
    IParagraphFormat paragraphFormat = presentation.getDefaultTextStyle().getLevel(0);

    if (paragraphFormat != null) {
        paragraphFormat.getDefaultPortionFormat().setFontHeight(14);
        paragraphFormat.getDefaultPortionFormat().setFontBold(NullableBool.True);
    }

    presentation.save("DefaultTextStyle.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}
