Manage Chart Workbooks in Presentations with Python

What this page is about

Discover Aspose.Slides for Python via .NET: effortlessly manage chart workbooks in PowerPoint and OpenDocument formats to streamline your presentation data.

Overview

This article explains how to work with chart workbooks in Aspose.Slides. It shows how to read and write chart data through workbook streams, use workbook cells as chart data labels, access worksheet collections, and specify the data source type for chart values.

It also covers working with external workbooks as chart data sources. The examples demonstrate how to create and assign an external workbook, retrieve the path of an external workbook linked to a chart, and edit chart data when the workbook is available.

For workbook cells that represent missing data, see Control the Display of Empty Cells for the difference between an empty cell and zero, and a line-chart comparison of the available display modes.

Include Data from Hidden Rows and Columns

Use Chart.plot_visible_cells_only to control whether a chart plots data from hidden worksheet rows and columns. Set it to True to plot only visible cells, or False to include both visible and hidden cells. This setting controls chart plotting; it does not hide or unhide worksheet rows or columns.

The sample presentation contains a column chart as the first shape on its first slide. The embedded worksheet, Sheet1, contains the following source range, A1:C4. Row 3 and column C are hidden, but their cells still contain values.

Worksheet row	A: Month	B: Retail	C: Wholesale (hidden column)
2	January	10	30
3 (hidden row)	February	40	60
4	March	20	50

Access source cells through ChartData.chart_data_workbook and read ChartDataCell.is_hidden to inspect their hidden status. This property is read-only. In this file, B2 is visible, B3 belongs to the hidden row, and C2 belongs to the hidden column; the example prints False, True, and True, respectively.

For this example, refresh the chart data after changing the plotting setting: retain the embedded workbook with read_workbook_stream and reload it with write_workbook_stream. When including all cells, also use set_range to restore the complete range, including the hidden February category. Simply changing the flag is insufficient to refresh this sample’s cached chart data and category labels.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation("hidden-source-data.pptx") as presentation:
    slide = presentation.slides[0]

    if len(slide.shapes) > 0 and isinstance(slide.shapes[0], charts.Chart):
        chart = slide.shapes[0]
        workbook = chart.chart_data.chart_data_workbook
        print(f"B2 hidden: {workbook.get_cell(0, 'B2').is_hidden}")
        print(f"B3 hidden: {workbook.get_cell(0, 'B3').is_hidden}")
        print(f"C2 hidden: {workbook.get_cell(0, 'C2').is_hidden}")

        workbook_stream = chart.chart_data.read_workbook_stream()
        for visible_only in [True, False]:
            chart.plot_visible_cells_only = visible_only

            # Refresh the chart data from the embedded workbook.
            workbook_stream.seek(0)
            chart.chart_data.write_workbook_stream(workbook_stream)
            if not visible_only:
                # Restore the complete source range, including hidden categories.
                chart.chart_data.set_range("Sheet1!$A$1:$C$4")

            presentation.save(f"hidden_cells_{visible_only}.pptx", slides.export.SaveFormat.PPTX)
    else:
        print("The first shape is not a chart.")

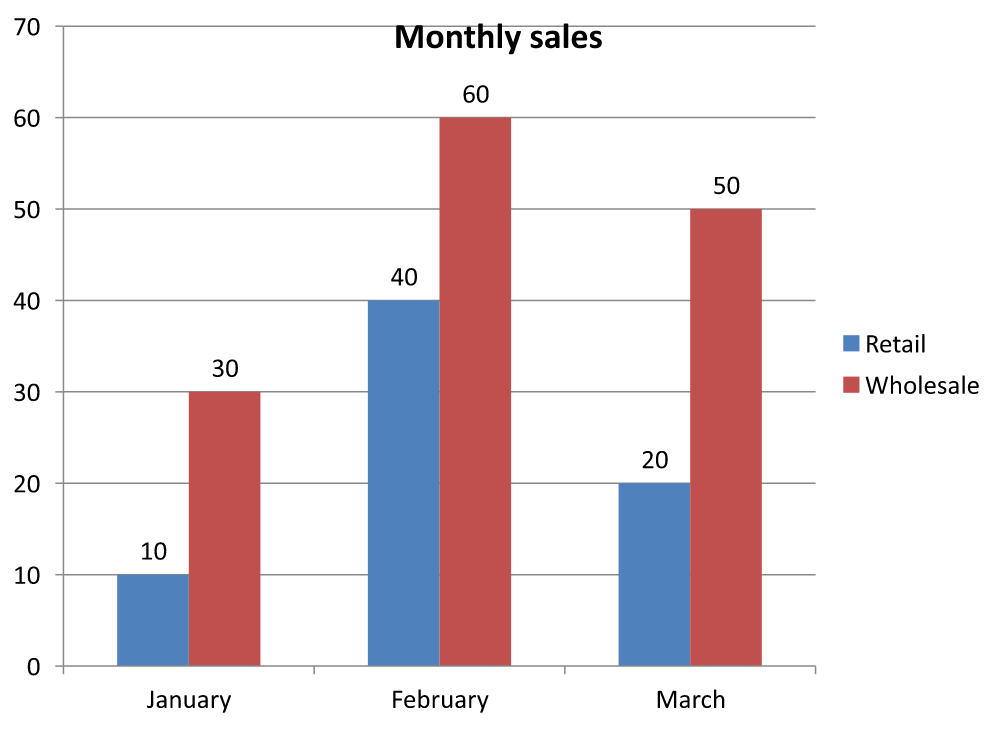

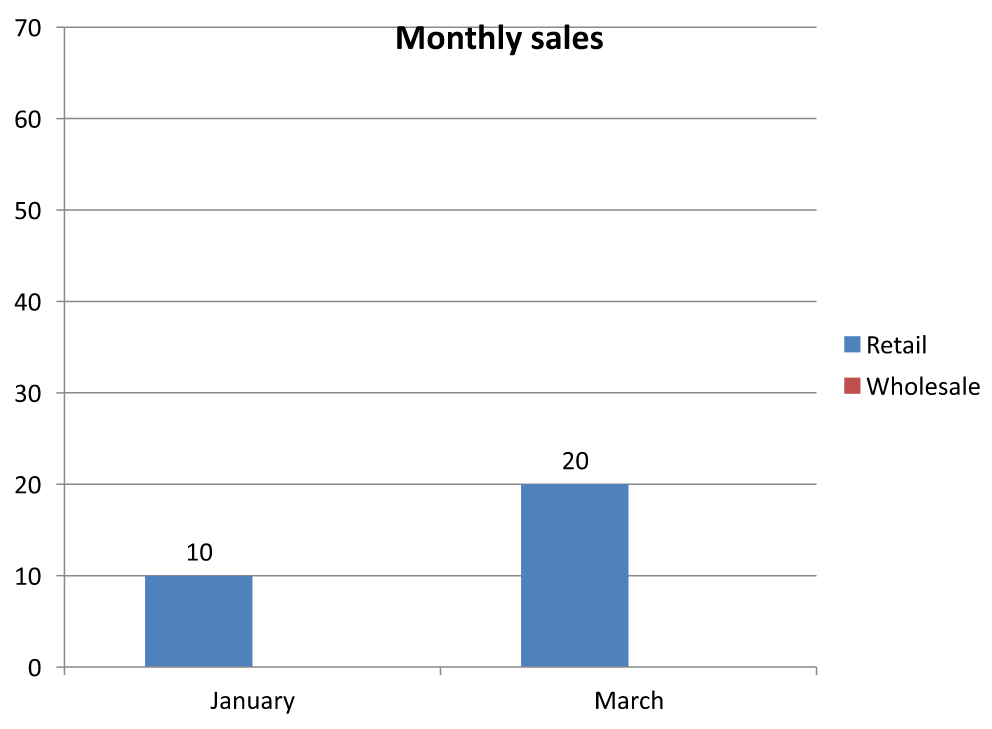

The example saves two versions of the presentation: one with only the visible Retail values (10 and 20), and another with all six values. The images below were rendered from the saved presentations after reopening them; both files preserve their assigned plotting setting. Row 3 and column C remain hidden in both embedded workbooks.

Only visible cells (True)	All cells (False)

A hidden cell containing a value is different from an empty cell. Chart.display_blanks_as controls how missing values are displayed; it does not include or exclude hidden source data. See Control the Display of Empty Cells for an example.

Retrieve a Chart’s Data Range

Before updating workbook data in an existing presentation, inspect the source ranges to identify which worksheet cells each chart uses. The ChartData.get_range method returns the current data range as a worksheet-qualified formula, such as Sheet1!$A$1:$D$5. Here, Sheet1 is the worksheet name, ! separates it from the cell range, and $A$1:$D$5 identifies cells A1 through D5, inclusive. The dollar signs indicate absolute row and column references.

The method reads the current range without changing the chart or its workbook. If the chart does not use a workbook as its data source, it raises an exception. For more information, see the ChartData API Reference.

This example opens a presentation and checks the shapes directly on each slide for charts. It prints each chart’s name and source range. If the range cannot be retrieved, it prints a diagnostic message and continues to the next chart.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation("presentation.pptx") as presentation:
    for slide in presentation.slides:
        for shape in slide.shapes:
            if isinstance(shape, charts.Chart):
                try:
                    data_range = shape.chart_data.get_range()
                    print(f"{shape.name}: {data_range}")
                except RuntimeError as error:
                    print(f"{shape.name}: Unable to retrieve the chart data range. {error}")

Read and Write Chart Data from a Workbook

Aspose.Slides for Python via .NET provides the read_workbook_stream and write_workbook_stream methods that allow you to read and write chart data workbooks (containing chart data edited with Aspose.Cells). Note that the chart data has to be organized in the same manner or must have a structure similar to the source.

This example uses a presentation with a chart as the first shape on its first slide. It reads the embedded workbook into a stream, clears the existing series and categories, and writes the same workbook back. The changes remain in memory; the example does not save the presentation.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation("chart.pptx") as presentation:
    slide = presentation.slides[0]

    if len(slide.shapes) > 0 and isinstance(slide.shapes[0], charts.Chart):
        chart = slide.shapes[0]
        chart_data = chart.chart_data
        workbook_stream = chart_data.read_workbook_stream()

        chart_data.series.clear()
        chart_data.categories.clear()

        workbook_stream.seek(0)
        chart_data.write_workbook_stream(workbook_stream)
    else:
        print("The first shape is not a chart.")

Validate Chart Layout After Workbook Modification

When you replace an embedded workbook with a modified one, the chart retains its original series and category collections. This mismatch can cause Chart.validate_chart_layout to fail with an index-out-of-range error. Clear the existing series and categories before writing the updated workbook back to the chart. This example uses a chart that is the first shape on the first slide. The comment marks where workbook editing would occur; the runnable example writes the original workbook back and validates the layout in memory.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation("chart.pptx") as presentation:
    slide = presentation.slides[0]

    if len(slide.shapes) > 0 and isinstance(slide.shapes[0], charts.Chart):
        chart = slide.shapes[0]
        chart_data = chart.chart_data
        workbook_stream = chart_data.read_workbook_stream()

        # Modify the workbook stream here, for example, using Aspose.Cells.

        chart_data.series.clear()
        chart_data.categories.clear()

        workbook_stream.seek(0)
        chart_data.write_workbook_stream(workbook_stream)
        chart.validate_chart_layout()
    else:
        print("The first shape is not a chart.")

Clearing the collections removes stale data references before the workbook is written back. Rebuild any required series and category mappings for the updated workbook before using the chart.

Set Custom Number Formats for Workbook Cells

Use ChartDataCell.custom_number_format to control how numeric values appear in a chart’s embedded workbook. For example, a report may need a conversion rate displayed as a percentage with four decimal places and a coefficient displayed with five decimal places. Keep both values numeric so they remain available for calculations and chart plotting.

A number format changes the display, not the stored value. The format 0.0000% displays 0.125 as 12.5000%; it does not replace the stored number with 12.5. Similarly, 0.00000 displays 0.1234567 as 0.12346 without rounding the stored value. If the custom format is an empty string (""), preset_number_format is used instead.

The following example creates a column chart and accesses its cells through ChartData.chart_data_workbook. On worksheet 0, B2 contains the conversion rate and C2 contains the coefficient. Both cells supply chart values. The example also enables value labels linked to the source formats.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation() as presentation:
    presentation.slide_size.set_size(720, 270, slides.SlideSizeScaleType.DO_NOT_SCALE)
    slide = presentation.slides[0]

    chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 50, 20, 620, 210)
    chart.has_title = False

    chart.axes.vertical_axis.is_number_format_linked_to_source = False
    chart.axes.vertical_axis.number_format = "0.00"
    chart.axes.vertical_axis.is_automatic_min_value = False
    chart.axes.vertical_axis.min_value = 0

    chart.chart_data.series.clear()
    chart.chart_data.categories.clear()

    workbook = chart.chart_data.chart_data_workbook
    workbook.clear(0)

    category_cell = workbook.get_cell(0, "A2", "Sample")
    chart.chart_data.categories.add(category_cell)

    percentage_cell = workbook.get_cell(0, "B2", 0.125)
    percentage_cell.custom_number_format = "0.0000%"
    percentage_name = workbook.get_cell(0, "B1", "Conversion rate")
    percentage_series = chart.chart_data.series.add(percentage_name, chart.type)
    percentage_series.data_points.add_data_point_for_bar_series(percentage_cell)

    precision_cell = workbook.get_cell(0, "C2", 0.1234567)
    precision_cell.custom_number_format = "0.00000"
    precision_name = workbook.get_cell(0, "C1", "Coefficient")
    precision_series = chart.chart_data.series.add(precision_name, chart.type)
    precision_series.data_points.add_data_point_for_bar_series(precision_cell)

    for series in chart.chart_data.series:
        label_format = series.data_points[0].label.data_label_format
        label_format.show_value = True
        label_format.is_number_format_linked_to_source = True

    presentation.save("CustomCellFormats.pptx", slides.export.SaveFormat.PPTX)

Workbook cell formats are separate from formats set directly on chart axes or data labels. In this example, each label displays its source cell’s value because show_value is enabled, and follows the source number format because is_number_format_linked_to_source is True. After saving and reopening the presentation, the labels display 12.5000% and 0.12346, as shown below. The vertical axis uses its own number_format of 0.00, with is_number_format_linked_to_source set to False.

To format a data label independently, set its source-link flag to False and assign its number_format. This does not change the workbook cell’s format. For example, an independent label format of 0.00 displays the first value as 0.13, while B2 still displays 12.5000%. See Chart Data Labels for direct label formatting.

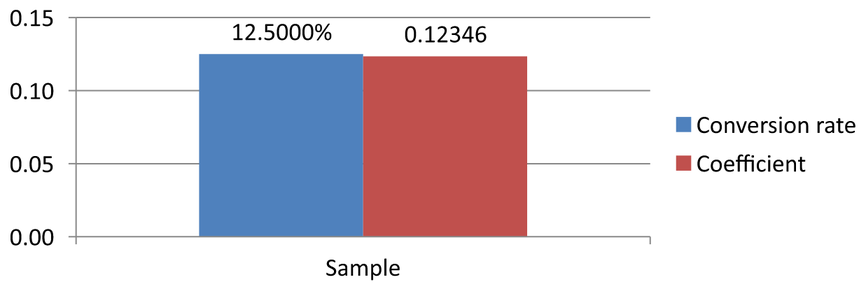

The image below was rendered from the saved presentation after reopening it:

Set a Workbook Cell as a Chart Data Label

You can use text from workbook cells as chart data labels.

This example adds a bubble chart with default data to the first slide of an existing presentation. It uses cells A10:A12 on worksheet 0 for the first three labels in the first series, enables labels from cells, and saves the updated presentation.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation("chart2.pptx") as presentation:
    slide = presentation.slides[0]

    chart = slide.shapes.add_chart(charts.ChartType.BUBBLE, 50, 50, 600, 400, True)
    series = chart.chart_data.series[0]
    workbook = chart.chart_data.chart_data_workbook

    series.labels.default_data_label_format.show_label_value_from_cell = True
    series.labels[0].value_from_cell = workbook.get_cell(0, "A10", "Label 0 cell value")
    series.labels[1].value_from_cell = workbook.get_cell(0, "A11", "Label 1 cell value")
    series.labels[2].value_from_cell = workbook.get_cell(0, "A12", "Label 2 cell value")

    presentation.save("resultchart.pptx", slides.export.SaveFormat.PPTX)

Manage Worksheets

The ChartDataWorkbook.worksheets property provides access to the worksheets in a chart workbook. This example creates a pie chart with default data and prints each worksheet name to the console.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation() as presentation:
    slide = presentation.slides[0]

    chart = slide.shapes.add_chart(charts.ChartType.PIE, 50, 50, 400, 500)
    workbook = chart.chart_data.chart_data_workbook

    for worksheet in workbook.worksheets:
        print(worksheet.name)

Specify the Data Source Type

Series point values can also be stored directly as numeric literals. See Set Series Values Using Numeric Literals for a complete example that saves and reads them. The source type of point values is separate from the chart’s internal or external workbook configuration; using numeric literals does not, by itself, remove the embedded workbook.

This example creates a 3D column chart with default data and sets two series names using different data sources. The first name uses a string literal; the second uses cell C1 on worksheet 0. The DataSourceType enumeration selects the source for each name. The example saves the presentation with the updated series names.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation() as presentation:
    slide = presentation.slides[0]

    chart = slide.shapes.add_chart(charts.ChartType.COLUMN_3D, 50, 50, 600, 400, True)
    literal_name = chart.chart_data.series[0].name

    literal_name.data_source_type = charts.DataSourceType.STRING_LITERALS
    literal_name.data = "LiteralString"

    cell_name = chart.chart_data.series[1].name
    name_cell = chart.chart_data.chart_data_workbook.get_cell(0, "C1", "NewCell")
    cell_name.data_source_type = charts.DataSourceType.WORKSHEET
    cell_name.data = name_cell

    presentation.save("pres.pptx", slides.export.SaveFormat.PPTX)

Detect Unsupported Embedded Workbook Formats

Aspose.Slides does not support the Excel binary workbook (.xlsb) format that can be embedded in some charts. You can use the embedded_workbook_type property on ChartData together with the WorkbookType enumeration to detect unsupported formats and skip those charts. This example inspects the shapes on the first slide of an existing presentation, skips non-chart shapes, and prints a diagnostic message for each chart with an embedded .xlsb workbook.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation("sample.pptx") as presentation:
    slide = presentation.slides[0]

    for shape in slide.shapes:
        if not isinstance(shape, charts.Chart):
            continue

        chart_data = shape.chart_data
        is_internal_workbook = chart_data.data_source_type == charts.ChartDataSourceType.INTERNAL_WORKBOOK
        is_binary_macro = chart_data.embedded_workbook_type == charts.WorkbookType.WORKBOOK_BINARY_MACRO

        if is_internal_workbook and is_binary_macro:
            print("Skipping a chart with an unsupported .xlsb workbook.")
            continue

        # Read or modify supported chart workbook data here.

External Workbook

Aspose.Slides supports using external workbooks as a data source for charts.

Create an External Workbook

Use read_workbook_stream and set_external_workbook to export an embedded chart workbook to a file and link the chart to that external workbook.

This example creates a pie chart with default data and exports its workbook. It closes the output stream before assigning the external workbook as the chart data source, then saves the linked presentation.

from pathlib import Path
import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation() as presentation:
    slide = presentation.slides[0]

    chart = slide.shapes.add_chart(charts.ChartType.PIE, 50, 50, 400, 600)
    workbook_path = str(Path("externalWorkbook1.xlsx").resolve())

    workbook_stream = chart.chart_data.read_workbook_stream()
    workbook_data = workbook_stream.read()
    with open(workbook_path, "wb") as file_stream:
        file_stream.write(workbook_data)

    chart.chart_data.set_external_workbook(workbook_path)

    presentation.save("externalWorkbook.pptx", slides.export.SaveFormat.PPTX)

Set an External Workbook

Using the set_external_workbook method, you can assign an external workbook to a chart as its data source. This method can also be used to update a path to the external workbook (if the latter has been moved).

While you cannot edit the data in workbooks stored in remote locations or resources, you can still use such workbooks as an external data source. If the relative path for an external workbook is provided, it gets converted to a full path automatically.

This example uses an external workbook whose worksheet named Sheet1 contains a series name in B1, category names in A2:A4, and numeric values in B2:B4. The example creates a pie chart, links the workbook, and uses set_range to map A1:B4 to one series and three categories. It saves the presentation with the linked chart.

from pathlib import Path
import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation() as presentation:
    slide = presentation.slides[0]

    chart = slide.shapes.add_chart(charts.ChartType.PIE, 50, 50, 400, 600, True)
    chart_data = chart.chart_data
    workbook_path = str(Path("externalWorkbook.xlsx").resolve())

    chart_data.set_external_workbook(workbook_path)
    chart_data.set_range("Sheet1!$A$1:$B$4")

    presentation.save("Presentation_with_externalWorkbook.pptx", slides.export.SaveFormat.PPTX)

The update_chart_data parameter of set_external_workbook controls whether the workbook is loaded.

• When update_chart_data is False, only the workbook path is updated. The chart data is not loaded or updated from the target workbook, so the workbook can be unavailable.
• When update_chart_data is True, the chart data is updated from the target workbook.

The following example assigns a placeholder URL with update_chart_data set to False. It retains the pie chart’s default data and saves the presentation without loading the unavailable workbook.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation() as presentation:
    slide = presentation.slides[0]

    chart = slide.shapes.add_chart(charts.ChartType.PIE, 50, 50, 400, 600, True)
    chart.chart_data.set_external_workbook("https://example.com/unavailable-workbook.xlsx", False)

    presentation.save("SetExternalWorkbookWithUpdateChartData.pptx", slides.export.SaveFormat.PPTX)

Get the External Data Source Workbook Path of a Chart

To identify the workbook linked to a chart, check whether the chart uses an external data source and retrieve its workbook path.

This example inspects the first shape on the first slide of a presentation with a linked external workbook. If it is a chart linked to an external workbook, the example prints external_workbook_path to the console. It then saves a copy of the presentation.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation("externalWorkbook.pptx") as presentation:
    slide = presentation.slides[0]

    if len(slide.shapes) > 0 and isinstance(slide.shapes[0], charts.Chart):
        chart = slide.shapes[0]
        chart_data = chart.chart_data
        if chart_data.data_source_type == charts.ChartDataSourceType.EXTERNAL_WORKBOOK:
            print(chart_data.external_workbook_path)
        else:
            print("The chart does not use an external workbook.")
    else:
        print("The first shape is not a chart.")

    presentation.save("Result.pptx", slides.export.SaveFormat.PPTX)

Edit Chart Data

You can edit the data in external workbooks the same way you make changes to the contents of internal workbooks. When an external workbook cannot be loaded, an exception is thrown.

This example uses a chart that is the first shape on the first slide and is linked to an accessible external workbook. It sets the cell-backed value of the first data point in the first series to 100 and saves the updated presentation. Editing cell values can update the linked external XLSX file, so use a copy if you need to preserve the original workbook.

import aspose.slides as slides
import aspose.slides.charts as charts

with slides.Presentation("presentation.pptx") as presentation:
    slide = presentation.slides[0]

    if len(slide.shapes) > 0 and isinstance(slide.shapes[0], charts.Chart):
        chart = slide.shapes[0]
        series = chart.chart_data.series
        if len(series) > 0 and len(series[0].data_points) > 0:
            value_cell = series[0].data_points[0].value.as_cell
            if value_cell is not None:
                value_cell.value = 100
                presentation.save("presentation_out.pptx", slides.export.SaveFormat.PPTX)
            else:
                print("The first data point is not linked to a workbook cell.")
        else:
            print("The chart has no data points to edit.")
    else:
        print("The first shape is not a chart.")

Recover a Workbook from the Chart Cache

If a chart uses an external workbook that is missing or unavailable, Aspose.Slides can reconstruct the chart workbook from the data cached in the presentation. Create LoadOptions, configure its spreadsheet_options, and set SpreadsheetOptions.recover_workbook_from_chart_cache to True before opening the presentation.

The following Python example recovers workbook data for a chart that is the first shape on the first slide and references an unavailable external workbook. It accesses the recovered data through Chart.chart_data and ChartData.chart_data_workbook:

import aspose.slides as slides
import aspose.slides.charts as charts

load_options = slides.LoadOptions()
load_options.spreadsheet_options.recover_workbook_from_chart_cache = True

with slides.Presentation("presentation.pptx", load_options) as presentation:
    slide = presentation.slides[0]

    if len(slide.shapes) > 0 and isinstance(slide.shapes[0], charts.Chart):
        chart = slide.shapes[0]
        recovered_workbook = chart.chart_data.chart_data_workbook

        # Read or modify the recovered workbook data here.
    else:
        print("The first shape is not a chart.")

If the external workbook is unavailable and recovery is disabled, Aspose.Slides raises an exception. Enable recovery only when using the cached chart data is an acceptable fallback, because the cache may not contain changes made to the external workbook after the presentation was last updated.

FAQ

Can I determine whether a specific chart is linked to an external or an embedded workbook?

Yes. A chart has a data source type and a path to an external workbook; if the source is an external workbook, you can read the full path to make sure an external file is being used.

Are relative paths to external workbooks supported, and how are they stored?

Yes. If you specify a relative path, it is automatically converted to an absolute path. The presentation stores the absolute path in the PPTX file, so moving the workbook may require updating the link.

Can I use workbooks located on network resources/shares?

Yes, such workbooks can be used as an external data source. However, editing remote workbooks directly from Aspose.Slides is not supported—they can only be used as a source.

Does Aspose.Slides overwrite the external XLSX when saving the presentation?

The presentation stores a link to the external file. Editing cell-backed chart data can also update the linked local XLSX file. Use a copy of the workbook if the original must remain unchanged.

What should I do if the external file is password-protected?

Aspose.Slides does not accept a password when linking. A common approach is to remove protection in advance or prepare a decrypted copy (for example, using Aspose.Cells) and link to that copy.

Can multiple charts reference the same external workbook?

Yes. Each chart stores its own link. If they all point to the same file, updating that file will be reflected in each chart the next time the data is loaded.
