Shape Formatting

In PowerPoint, you can add shapes to slides. Since shapes are made of up lines, you can format shapes by modifying or applying certain effects to their constituent lines. Additionally, you can format shapes by specifying settings that determine how they (the area in them) are filled.

format-shape-powerpoint

Aspose.Slides for Python via .NET provides interfaces and properties that allow you to format shapes based on known options in PowerPoint.

Format Lines

Using Aspose.Slides, you can specify your preferred line style for a shape. These steps outline such a procedure:

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add an IShape to the slide.
  4. Set a color for the shape lines.
  5. Set the width for the shape lines.
  6. Set the line style for the shape line
  7. Set the dash style for the shape line.
  8. Write the modified presentation as a PPTX file.

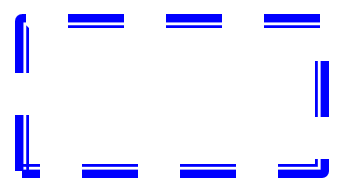

This Python code demonstrates an operation where we formatted a rectangle AutoShape:

import aspose.slides as slides
import aspose.pydrawing as draw

# Instantiates a Prseetation class that represents a PPTX file
with slides.Presentation() as pres:
    # Gets the first slide
    sld = pres.slides[0]

    # Adds a rectangle autoshape
    shp = sld.shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 50, 150, 150, 75)

    # Sets the fill color for the rectangle shape
    shp.fill_format.fill_type = slides.FillType.SOLID
    shp.fill_format.solid_fill_color.color = draw.Color.white

    # Applies some formatting on the rectangle's lines
    shp.line_format.style = slides.LineStyle.THICK_THIN
    shp.line_format.width = 7
    shp.line_format.dash_style = slides.LineDashStyle.DASH

    # Sets the color for the rectangle's line
    shp.line_format.fill_format.fill_type = slides.FillType.SOLID
    shp.line_format.fill_format.solid_fill_color.color = draw.Color.blue

    # Writes the PPTX file to disk
    pres.save("RectShpLn_out-1.pptx", slides.export.SaveFormat.PPTX)

Format Join Styles

These are the 3 join type options:

  • Round
  • Miter
  • Bevel

By default, when PowerPoint joins two lines at an angle (or a shape’s corner), it uses the Round setting. However, if you are looking to draw a shape with very sharp angles, you may want to select Miter.

join-style-powerpoint

This Python code demonstrates an operation where 3 rectangles (the image above) were created with the Miter, Bevel, and Round join type settings:

import aspose.slides as slides
import aspose.pydrawing as draw

# Instantiates a Prseetation class that represents a PPTX file
with slides.Presentation() as pres:
	# Gets the first slide
	sld = pres.slides[0]

	# Adds 3 rectangle autoshapes
	shp1 = sld.shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 50, 100, 150, 75)
	shp2 = sld.shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 300, 100, 150, 75)
	shp3 = sld.shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 50, 250, 150, 75)

	# Sets the fill color for the rectangle shape
	shp1.fill_format.fill_type = slides.FillType.SOLID
	shp1.fill_format.solid_fill_color.color = draw.Color.black
	shp2.fill_format.fill_type = slides.FillType.SOLID
	shp2.fill_format.solid_fill_color.color = draw.Color.black
	shp3.fill_format.fill_type = slides.FillType.SOLID
	shp3.fill_format.solid_fill_color.color = draw.Color.black

	# Sets the line's width
	shp1.line_format.width = 15
	shp2.line_format.width = 15
	shp3.line_format.width = 15

	# Sets the color for the rectangle's line
	shp1.line_format.fill_format.fill_type = slides.FillType.SOLID
	shp1.line_format.fill_format.solid_fill_color.color = draw.Color.blue
	shp2.line_format.fill_format.fill_type = slides.FillType.SOLID
	shp2.line_format.fill_format.solid_fill_color.color = draw.Color.blue
	shp3.line_format.fill_format.fill_type = slides.FillType.SOLID
	shp3.line_format.fill_format.solid_fill_color.color = draw.Color.blue

	# Sets the Join Style
	shp1.line_format.join_style = slides.LineJoinStyle.MITER
	shp2.line_format.join_style = slides.LineJoinStyle.BEVEL
	shp3.line_format.join_style = slides.LineJoinStyle.ROUND

	# Adds text to each rectangle
	shp1.text_frame.text = "This is Miter Join style"
	shp2.text_frame.text = "This is Bevel Join style"
	shp3.text_frame.text = "This is Round Join style"

	# Writes the PPTX file to disk
	pres.save("RectShpLnJoin_out-2.pptx", slides.export.SaveFormat.PPTX)

Gradient Fill

In PowerPoint, Gradient Fill is a formatting option that allows you to apply a continuous blend of colors to a shape. For example, you can apply a two or more colors in a setup where one color gradually fades and changes into another color.

This is how you use Aspose.Slides to apply a gradient fill to a shape:

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add an IShape to the slide.
  4. Set the Shape’s FillType to Gradient.
  5. Add your 2 preferred colors with defined positions using the Add methods exposed by the GradientStops collection associated with GradientFormat class.
  6. Write the modified presentation as a PPTX file.

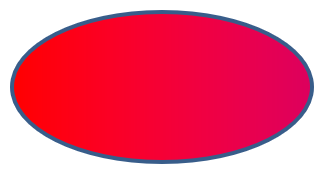

This Python code demonstrates an operation where the gradient fill effect was used on an ellipse:

import aspose.slides as slides
import aspose.pydrawing as draw

# Instantiates a presentation class that represents a presentation file
with slides.Presentation() as pres:
    # Gets the first slide
    sld = pres.slides[0]

    # Adds an ellipse autoshape
    shp = sld.shapes.add_auto_shape(slides.ShapeType.ELLIPSE, 50, 150, 75, 150)

    # Applies the gradient formatting to the ellipse
    shp.fill_format.fill_type = slides.FillType.GRADIENT
    shp.fill_format.gradient_format.gradient_shape = slides.GradientShape.LINEAR

    # Sets the direction of the gradient
    shp.fill_format.gradient_format.gradient_direction = slides.GradientDirection.FROM_CORNER2

    # Adds 2 Gradiant Stops
    shp.fill_format.gradient_format.gradient_stops.add(1.0, slides.PresetColor.PURPLE)
    shp.fill_format.gradient_format.gradient_stops.add(0, slides.PresetColor.RED)

    # Writes the PPTX file to disk
    pres.save("EllipseShpGrad_out-3.pptx", slides.export.SaveFormat.PPTX)

Pattern Fill

In PowerPoint, Pattern Fill is a formatting option that allows you to apply a two-color design comprising of dots, stripes, cross-hatches, or checks to a shape. Additionally, you get to select your preferred colors for your pattern’s foreground and background.

Aspose.Slides provides over 45 predefined styles that can be used to format shapes and enrich presentations. Even after you choose a predefined pattern, you can still specify the colors the pattern must contain.

This is how you use Aspose.Slides to apply a pattern fill to a shape:

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add an IShape to the slide.
  4. Set the Shape’s FillType to Pattern.
  5. Set your preferred pattern style for the shape.
  6. Set the Background Color for the PatternFormat.
  7. Set the Foreground Color for the PatternFormat.
  8. Write the modified presentation as a PPTX file.

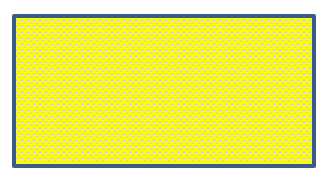

This Python code demonstrates an operation where a pattern fill was used to beautify a rectangle:

import aspose.slides as slides
import aspose.pydrawing as draw

# Instantiates a presentation class that represents a presentation file
with slides.Presentation() as pres:
    # Gets the first slide
    sld = pres.slides[0]

    # Adds a rectangle autoshape
    shp = sld.shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 50, 150, 75, 150)

    # Sets the fill type to Pattern
    shp.fill_format.fill_type = slides.FillType.PATTERN

    # Sets the pattern style
    shp.fill_format.pattern_format.pattern_style = slides.PatternStyle.TRELLIS

    # Sets the pattern back and fore colors
    shp.fill_format.pattern_format.back_color.color = draw.Color.light_gray
    shp.fill_format.pattern_format.fore_color.color = draw.Color.yellow

    #Writes the PPTX file to disk
    pres.save("RectShpPatt_out-4.pptx", slides.export.SaveFormat.PPTX)

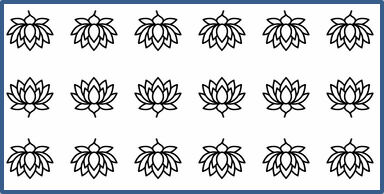

Picture Fill

In PowerPoint, Picture Fill is a formatting option that allows you to place a picture inside a shape. Essentially, you get to use a picture as a shape’s background.

This is how you use Aspose.Slides to fill a shape with a picture:

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add an IShape to the slide.
  4. Set the Shape’s FillType to Picture.
  5. Set the Picture Fill Mode to Tile.
  6. Create an IPPImage object using the image that will be used to fill the shape.
  7. Set the Picture.Image property of the PictureFillFormat object to the recently created IPPImage.
  8. Write the modified presentation as a PPTX file.

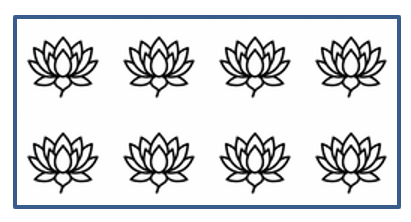

This Python code shows you how to fill a shape with a picture:

import aspose.slides as slides
import aspose.pydrawing as draw

# Instantiates a Prseetation class that represents a PPTX file
with slides.Presentation() as pres:
    # Gets the first slide
    sld = pres.slides[0]

    # Adds a rectangle autoshape
    shp = sld.shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 50, 150, 75, 150)


    # Sets the fill type to Picture
    shp.fill_format.fill_type = slides.FillType.PICTURE

    # Sets the picture fill mode
    shp.fill_format.picture_fill_format.picture_fill_mode = slides.PictureFillMode.TILE

    # Sets the picture
    img = draw.Bitmap(path + "Tulips.jpg")
    imgx = pres.images.add_image(img)
    shp.fill_format.picture_fill_format.picture.image = imgx

    # Writes the PPTX file to disk
    pres.save("RectShpPic_out-5.pptx", slides.export.SaveFormat.PPTX)

Solid Color Fill

In PowerPoint, Solid Color Fill is a formatting option that allows you to fill a shape with a single color. The chosen color is typically a plain color. The color gets applied to the shape background with any special effects or modifications.

This is how you use Aspose.Slides to apply solid color fill to a shape:

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add an IShape to the slide.
  4. Set the Shape’s FillType to Solid.
  5. Set your preferred color for the Shape.
  6. Write the modified presentation as a PPTX file.

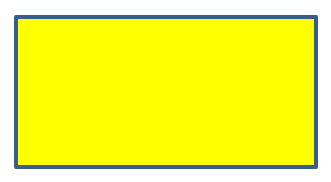

This Python code shows you how to apply the solid color fill to a box in PowerPoint:

import aspose.slides as slides
import aspose.pydrawing as draw

with slides.Presentation() as presentation:

    # Gets the first slide
    slide = presentation.slides[0]

    # Adds a rectangle autoshape
    shape = slide.shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 50, 150, 75, 150)

    # Sets the fill type to Solid
    shape.fill_format.fill_type = slides.FillType.SOLID

    # Sets the color for the rectangle
    shape.fill_format.solid_fill_color.color = draw.Color.yellow

    # Writes the PPTX file to disk
    presentation.save("RectShpSolid_out-6.pptx", slides.export.SaveFormat.PPTX)

Set Transparency

In PowerPoint, when you fill shapes with solid colors, gradients, pictures, or textures, you can specify the transparency level that determines the opacity of a fill. This way, for example, if you set a low transparency level, the slide object or background behind (the shape) shows through.

Aspose.Slides allows you to set the transparency level for a shape this way:

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add an IShape to the slide.
  4. Use Color.FromArgb with the alpha component set.
  5. Save the object as a PowerPoint file.

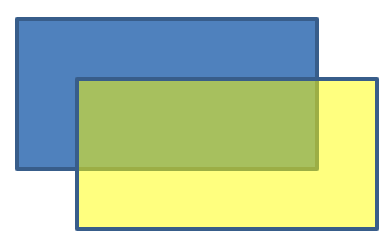

This python code demonstrates the process:

import aspose.pydrawing as draw
import aspose.slides as slides

with slides.Presentation() as presentation:
    slide = presentation.slides[0]

    # Adds a solid shape
    solidShape = slide.shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 75, 175, 75, 150)

    # Adds a transparent shape over solid
    shape = slide.shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 50, 150, 75, 150)
    shape.fill_format.fill_type = slides.FillType.SOLID
    shape.fill_format.solid_fill_color.color = draw.Color.from_argb(128, 204, 102, 0)

    presentation.save("ShapeTransparentOverSolid_out.pptx", slides.export.SaveFormat.PPTX)

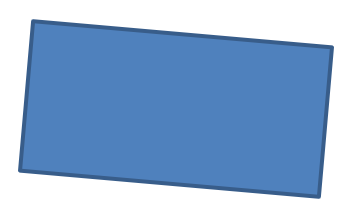

Rotate Shapes

Aspose.Slides allows you to rotate a shape added to a slide this way:

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add an IShape to the slide.
  4. Rotate the shape by the needed degrees.
  5. Write the modified presentation as a PPTX file.

This Python code shows you how to rotate a shape by 90 degrees:

import aspose.slides as slides
import aspose.pydrawing as draw

with slides.Presentation() as pres:
    # Gets the first slide
    sld = pres.slides[0]

    # Adds a rectangle autoshape
    shp = sld.shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 50, 150, 75, 150)

    # Rotates the shape by 90 degrees
    shp.rotation = 90

    # Writes the PPTX file to disk
    pres.save("RectShpRot_out-7.pptx", slides.export.SaveFormat.PPTX)

Add 3D Bevel Effects

Aspose.Slides for Python via .NET allows you to 3D bevel effects to a shape by modifying its ThreeDFormat properties this way:

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add an IShape to the slide.
  4. Set your preferred parameters for the shape’s ThreeDFormat properties.
  5. Write the presentation to disk.

This Python code shows you how to add 3D bevel effects to a shape:

import aspose.slides as slides
import aspose.pydrawing as draw

# Creates an instance of the Presentation class
with slides.Presentation() as pres:
    slide = pres.slides[0]

    # Adds a shape tp the slide
    shape = slide.shapes.add_auto_shape(slides.ShapeType.ELLIPSE, 30, 30, 100, 100)
    shape.fill_format.fill_type = slides.FillType.SOLID
    shape.fill_format.solid_fill_color.color = draw.Color.green
    format = shape.line_format.fill_format
    format.fill_type = slides.FillType.SOLID
    format.solid_fill_color.color = draw.Color.orange
    shape.line_format.width = 2.0

    # Sets the shape's ThreeDFormat properties
    shape.three_d_format.depth = 4
    shape.three_d_format.bevel_top.bevel_type = slides.BevelPresetType.CIRCLE
    shape.three_d_format.bevel_top.height = 6
    shape.three_d_format.bevel_top.width = 6
    shape.three_d_format.camera.camera_type = slides.CameraPresetType.ORTHOGRAPHIC_FRONT
    shape.three_d_format.light_rig.light_type = slides.LightRigPresetType.THREE_PT
    shape.three_d_format.light_rig.direction = slides.LightingDirection.TOP

    # Writes the presentation as a PPTX file
    pres.save("Bavel_out-8.pptx", slides.export.SaveFormat.PPTX)

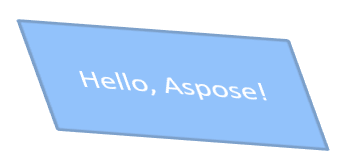

Add 3D Rotation Effect

Aspose.Slides allows you to apply 3D rotation effects to a shape by modifying its ThreeDFormat properties this way:

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add an IShape to the slide.
  4. Specify your preferred figures for CameraType and LightType.
  5. Write the presentation to disk.

This Python code shows you how to apply 3D rotation effects to a shape:

import aspose.slides as slides
import aspose.pydrawing as draw

# Creates an instance of the Presentation class
with slides.Presentation() as pres:
    autoShape = pres.slides[0].shapes.add_auto_shape(slides.ShapeType.RECTANGLE, 30, 30, 200, 200)

    autoShape.three_d_format.depth = 6
    autoShape.three_d_format.camera.set_rotation(40, 35, 20)
    autoShape.three_d_format.camera.camera_type = slides.CameraPresetType.ISOMETRIC_LEFT_UP
    autoShape.three_d_format.light_rig.light_type = slides.LightRigPresetType.BALANCED

    autoShape = pres.slides[0].shapes.add_auto_shape(slides.ShapeType.LINE, 30, 300, 200, 200)
    autoShape.three_d_format.depth = 6
    autoShape.three_d_format.camera.set_rotation(0, 35, 20)
    autoShape.three_d_format.camera.camera_type = slides.CameraPresetType.ISOMETRIC_LEFT_UP
    autoShape.three_d_format.light_rig.light_type = slides.LightRigPresetType.BALANCED


    pres.save("Rotation_out-9.pptx", slides.export.SaveFormat.PPTX)

Reset Formatting

This Python code shows you how to reset the formatting in a slide and revert the position, size and formatting of every shape that has a placeholder on LayoutSlide to their defaults:

import aspose.slides as slides

with slides.Presentation() as pres:
    for slide in pres.slides:
        # each shape on the slide that has a placeholder on the layout will be reverted
        slide.reset()
Shape Types Shape Effect
