How to create TreeMap chart with C++
Contents
[
Hide
]
Possible Usage Scenarios
A treemap chart provides a hierarchical view of your data and makes it easy to spot patterns, such as which items are a store’s best sellers. The tree branches are represented by rectangles and each sub-branch is shown as a smaller rectangle. The treemap chart displays categories by color and proximity and can easily show lots of data which would be difficult with other chart types.

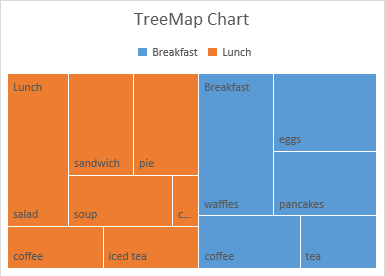

TreeMap chart
After running the code below, you will see the TreeMap chart as shown below.
Sample Code
The following sample code loads the sample Excel file and generates the output Excel file.
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
// Create an instance of Workbook
Workbook workbook(u"treemap.xlsx");
// Access the first worksheet
Worksheet worksheet = workbook.GetWorksheets().Get(0);
// Add a Treemap chart
int32_t pieIdx = worksheet.GetCharts().Add(ChartType::Treemap, 5, 6, 20, 12);
// Retrieve the Chart object
Chart chart = worksheet.GetCharts().Get(pieIdx);
// Set the legend can be showed
chart.SetShowLegend(true);
// Set the chart title name
chart.GetTitle().SetText(u"TreeMap Chart");
// Add series data range (D2:F13, actually)
chart.GetNSeries().Add(u"D2:F13", true);
// Set category data (A2:C13 is incorrect)
chart.GetNSeries().SetCategoryData(u"A2:C13");
// Show the DataLabels with category names
chart.GetNSeries().Get(0).GetDataLabels().SetShowCategoryName(true);
// Fill the PlotArea area with nothing
chart.GetPlotArea().GetArea().GetFillFormat().SetFillType(FillType::None);
// Save the Excel file
workbook.Save(u"out.xlsx");
Aspose::Cells::Cleanup();
}
