Handle Automatic Units of Chart Axis like Microsoft Excel with C++

Possible Usage Scenarios

Early versions of Aspose.Cells were not able to handle automatic units of the chart axis properly when the chart is rendered to image or PDF. Now, Aspose.Cells supports the handling of automatic units of the chart axis. There is no code change. Just convert your chart into image or PDF and it will render the chart axis just like Microsoft Excel renders it.

Handle Automatic Units of Chart Axis like Microsoft Excel

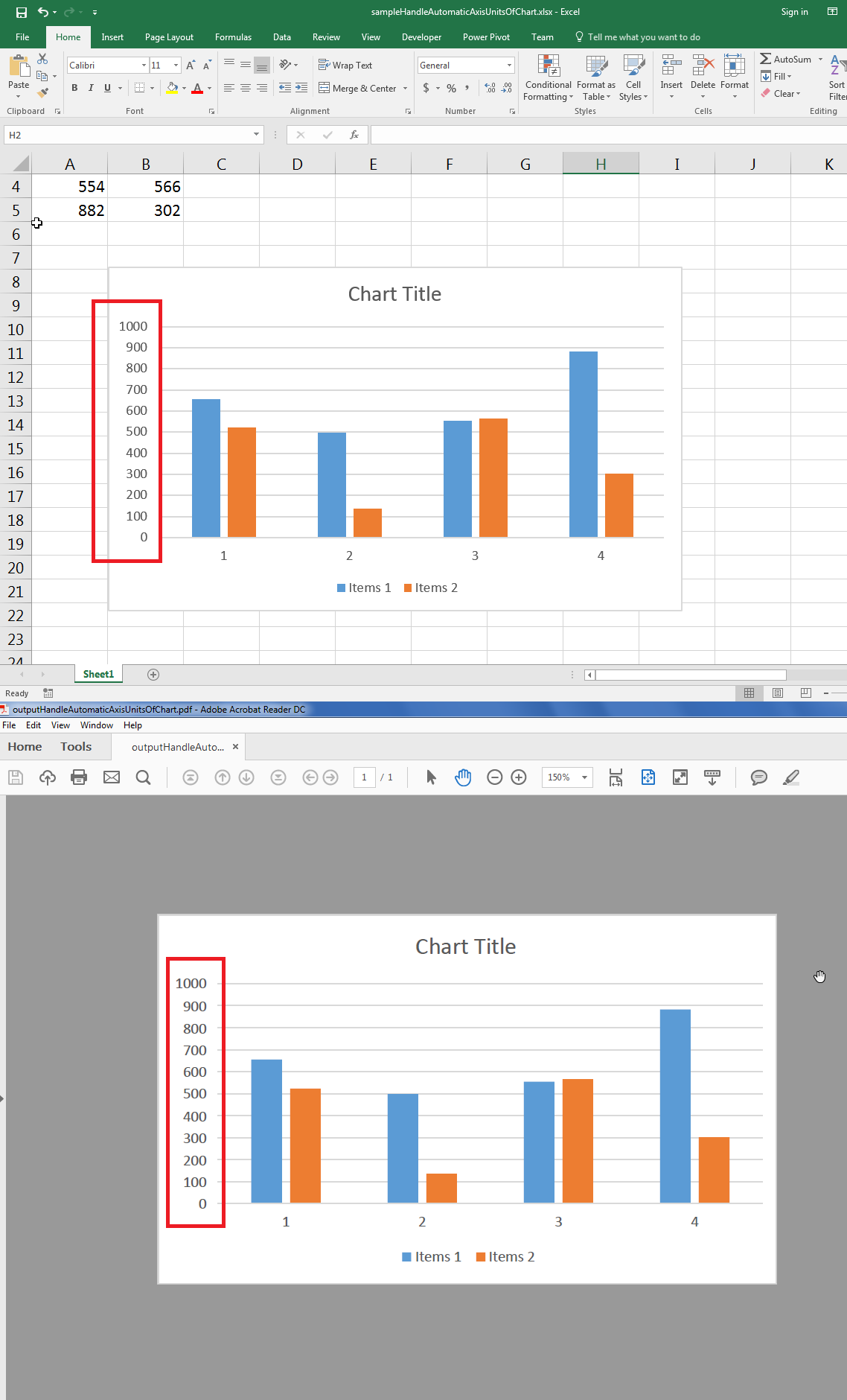

The following sample code loads the sample Excel file and generates the output PDF chart. The screenshot shows the automatic units of chart axis in red rectangles and also compares the sample Excel file chart with the output PDF chart. Both are exactly similar.

Sample Code

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Output directory path
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    // Load the sample Excel file
    U16String inputFilePath = srcDir + u"sampleHandleAutomaticUnitsOfChartAxisLikeMicrosoftExcel.xlsx";
    Workbook wb(inputFilePath);

    // Access first worksheet
    WorksheetCollection worksheets = wb.GetWorksheets();
    Worksheet ws = worksheets.Get(0);

    // Access first chart
    ChartCollection charts = ws.GetCharts();
    Chart ch = charts.Get(0);

    // Render chart to PDF
    U16String outputFilePath = outDir + u"outputHandleAutomaticUnitsOfChartAxisLikeMicrosoftExcel.pdf";
    ch.ToPdf(outputFilePath);

    std::cout << "Chart rendered to PDF successfully!" << std::endl;

    Aspose::Cells::Cleanup();
}
