Using ChartGlobalizationSettings Class to Set Different Languages for Chart Component with C++

Possible Usage Scenarios

Aspose.Cells APIs have exposed the ChartGlobalizationSettings class in order to deal with scenarios where the user wishes to set chart components to different languages, such as custom labels for subtotals in a spreadsheet.

Introduction to ChartGlobalizationSettings Class

The ChartGlobalizationSettings class currently offers the following eight methods which can be overridden in a custom class to translate items such as AxisTitle name, AxisUnit name, ChartTitle name, and so on, to different languages.

1. GetAxisTitleName: Gets the title name for the axis.
2. GetAxisUnitName: Gets the name of the axis unit.
3. GetChartTitleName: Gets the name of the chart title.
4. GetLegendDecreaseName: Gets the name for the “Decrease” label in the legend.
5. GetLegendIncreaseName: Gets the name for the “Increase” label in the legend.
6. GetLegendTotalName: Gets the name for the “Total” label in the legend.
7. GetOtherName: Gets the name of the “Other” label for the chart.
8. GetSeriesName: Gets the name of a series in the chart.

Custom language translation

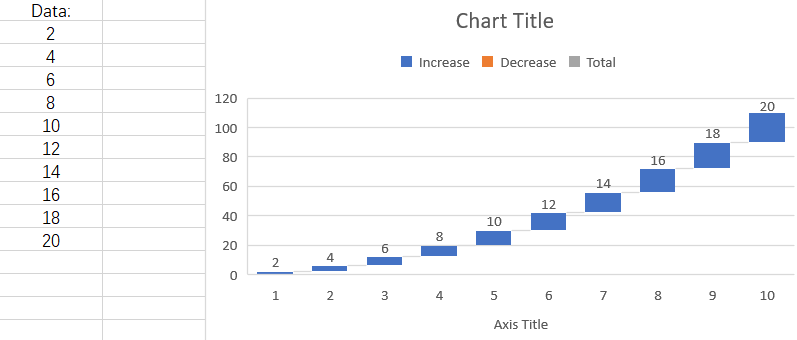

Here, we will create a waterfall chart based on the following data. The names of chart components will be displayed in English in the chart. We will use a Turkish language example to show how to display the chart title, legend increase/decrease names, total name, and axis title in Turkish.

Sample Code

The following sample code loads the sample Excel file.

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
using namespace Aspose::Cells::Charts;

class TurkeyChartGlobalizationSettings : public ChartGlobalizationSettings
{
public:
    TurkeyChartGlobalizationSettings() : ChartGlobalizationSettings() {}

    U16String GetChartTitleName() override
    {
        return u"Grafik Başlığı"; // Chart Title
    }

    U16String GetLegendIncreaseName() override
    {
        return u"Artış"; // Increase
    }

    U16String GetLegendDecreaseName() override
    {
        return u"Düşüş"; // Decrease
    }

    U16String GetLegendTotalName() override
    {
        return u"Toplam"; // Total
    }

    U16String GetAxisTitleName() override
    {
        return u"Eksen Başlığı"; // Axis Title
    }
};

void ChartGlobalizationSettingsTest()
{
    // Create an instance of an existing workbook
    U16String pathName = u"input.xlsx";
    Workbook workbook(pathName);

    // Set custom chart globalization settings; here we use TurkeyChartGlobalizationSettings
    TurkeyChartGlobalizationSettings* globalizationSettings = new TurkeyChartGlobalizationSettings();
    workbook.GetSettings().GetGlobalizationSettings().SetChartSettings(globalizationSettings);

    // Get the worksheet
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Load the chart from the source worksheet
    ChartCollection chartCollection = worksheet.GetCharts();
    Chart chart = chartCollection.Get(0);

    // Calculate the chart
    chart.Calculate();

    // Get the chart title
    Title title = chart.GetTitle();

    // Output the chart title
    std::cout << "\nWorkbook chart title: " << title.GetText().ToUtf8() << std::endl;

    // Get the legend labels
    Vector<U16String> legendEntriesLabels = chart.GetLegend().GetLegendLabels();

    // Output the legend entries
    for (int i = 0; i < legendEntriesLabels.GetLength(); i++)
    {
        std::cout << "\nWorkbook chart legend: " << legendEntriesLabels[i].ToUtf8() << std::endl;
    }

    // Output the axis title
    Title categoryAxisTitle = chart.GetCategoryAxis().GetTitle();
    std::cout << "\nWorkbook category axis title: " << categoryAxisTitle.GetText().ToUtf8() << std::endl;

    delete globalizationSettings;
}

int main()
{
    Aspose::Cells::Startup();
    ChartGlobalizationSettingsTest();
    Aspose::Cells::Cleanup();
    return 0;
}

Output generated by the sample code

This is the console output of the above sample code.

Workbook chart title: Grafik Başlığı

Workbook chart legend: Artış

Workbook chart legend: Düşüş

Workbook chart legend: Toplam

Workbook category axis title: Eksen Başlığı
