Customize 3D Charts in Presentations on Android
Overview
Aspose.Slides for Android via Java lets you customize the view of a 3D chart through the IChart.getRotation3D method. This article demonstrates how to adjust rotation, depth, right-angle axes, and spacing between series, then save the presentation in PPTX format.
Set the Rotation and Depth of a 3D Chart
The example below creates a Presentation and uses IShapeCollection.addChart to add a stacked 3D column chart to its first slide. It replaces the default series and categories with two series containing three values each. Worksheet index 0 identifies the chart’s first data worksheet; row 0 holds series names, and column 0 holds category labels.
The setRotationX and setRotationY methods set the chart’s rotation to 40 and 270 degrees, respectively. setDepthPercents sets its depth to 150% of its width, while setRightAngleAxes enables right-angle axes instead of perspective. The resulting presentation contains the populated chart with these 3D view settings.
import com.aspose.slides.*;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IChart chart = slide.getShapes().addChart(ChartType.StackedColumn3D, 0, 0, 500, 500);
chart.getChartData().getSeries().clear();
chart.getChartData().getCategories().clear();
IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();
int worksheetIndex = 0;
double[][] values = { { 20, 50, 30 }, { 30, 10, 60 } };
for (int categoryIndex = 0; categoryIndex < 3; categoryIndex++) {
IChartDataCell categoryCell = workbook.getCell(worksheetIndex, categoryIndex + 1, 0, "Category " + (categoryIndex + 1));
chart.getChartData().getCategories().add(categoryCell);
}
for (int seriesIndex = 0; seriesIndex < 2; seriesIndex++) {
IChartDataCell seriesCell = workbook.getCell(worksheetIndex, 0, seriesIndex + 1, "Series " + (seriesIndex + 1));
IChartSeries series = chart.getChartData().getSeries().add(seriesCell, chart.getType());
for (int categoryIndex = 0; categoryIndex < 3; categoryIndex++) {
IChartDataCell valueCell = workbook.getCell(worksheetIndex, categoryIndex + 1, seriesIndex + 1, values[seriesIndex][categoryIndex]);
series.getDataPoints().addDataPointForBarSeries(valueCell);
}
}
chart.getRotation3D().setRightAngleAxes(true);
chart.getRotation3D().setRotationX((byte) 40);
chart.getRotation3D().setRotationY(270);
chart.getRotation3D().setDepthPercents(150);
presentation.save("Rotation3D_out.pptx", SaveFormat.Pptx);
} finally {
presentation.dispose();
}
Adjust the Gap Between Series
Use IChartSeriesGroup.setGapDepth to control the distance between data series along the depth axis of a 3D chart, expressed as a percentage of the marker width. Use values from 0 to 500, inclusive: 0 removes the gap, while larger values increase the spacing. With a fixed chart depth, increasing the gap makes the markers thinner along the depth axis.
Access the group through IChartSeries.getParentSeriesGroup. The setting applies to every series in that group, not just the series used to access it. IChartSeries.getGapDepth returns the depth gap and reflects the parent group’s setting.
This setting affects 3D column and bar charts, including their cylinder, cone, and pyramid variants, as well as 3D line and area charts. The appearance depends on whether the series are arranged in depth, clustered, or stacked. For a clear comparison of gaps between separate series, use ChartType.Column3D from the ChartType class.
These methods control different aspects of the chart:
| Method | Effect |
|---|---|
| IChartSeriesGroup.setGapDepth | Spacing between series along the depth axis, as a percentage of the marker width. |
| IChartSeriesGroup.setGapWidth | Spacing between adjacent bar or column clusters, as a percentage of the bar or column width. |
| setDepthPercents | Overall chart depth, as a percentage of the chart width. |
The following self-contained example uses the default chart data, which contains three series and four categories. It saves two presentations with identical data, rotation, gap width, and chart depth; only the gap depth changes.
import com.aspose.slides.*;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IChart chart = slide.getShapes().addChart(ChartType.Column3D, 40, 30, 620, 230);
chart.getRotation3D().setRotationX((byte) 20);
chart.getRotation3D().setRotationY(30);
chart.getRotation3D().setDepthPercents(100);
IChartSeries series = chart.getChartData().getSeries().get_Item(0);
IChartSeriesGroup group = series.getParentSeriesGroup();
group.setGapWidth(150);
for (int gapDepth : new int[] { 0, 500 }) {
group.setGapDepth(gapDepth);
String fileName = "series_gap_depth_" + gapDepth + ".pptx";
presentation.save(fileName, SaveFormat.Pptx);
}
} finally {
presentation.dispose();
}

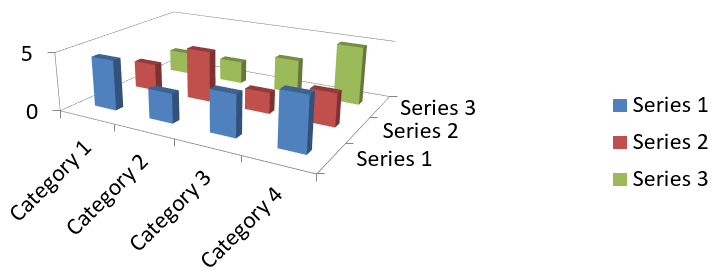

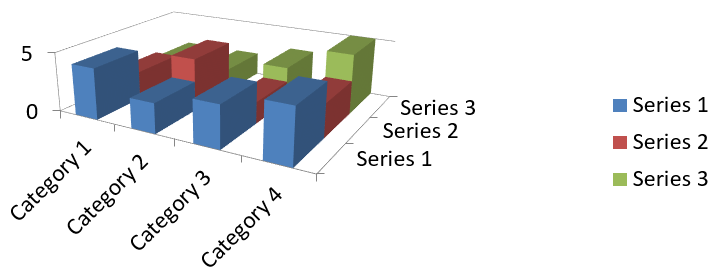

The following images illustrate the same gap depth settings in the equivalent .NET example and were exported using Microsoft PowerPoint.
| Gap depth: 0% | Gap depth: 500% |
|---|---|
 |
 |
FAQ
Which chart types support 3D mode in Aspose.Slides?
Aspose.Slides supports 3D variants of column charts, including Column 3D, Clustered Column 3D, Stacked Column 3D, and 100% Stacked Column 3D, along with related 3D types exposed through the ChartType class. For an exact, up-to-date list, check the ChartType members in the API reference of your installed version.
Can I get a raster image of a 3D chart for a report or the web?
Yes. You can export a chart to an image with Shape.getImage or render the entire slide to formats like PNG or JPEG. This is useful when you need a raster preview or want to embed the chart into documents, dashboards, or web pages without requiring PowerPoint.
How performant is building and rendering large 3D charts?
Performance depends on data volume and visual complexity. For best results, keep 3D effects minimal, avoid heavy textures on walls and plot areas, limit the number of data points per series when possible, and render to an appropriately sized output (resolution and dimensions) to match the target display or print needs.
