Customize Chart Axes in Presentations Using С++

Get the Max Values on the Vertical Axis

Aspose.Slides for C++ allows you to obtain the minimum and maximum values on a vertical axis. Go through these steps:

  1. Create an instance of the Presentation class.
  2. Access the first slide.
  3. Add a chart with default data.
  4. Get the actual maximum value on the axis.
  5. Get the actual minimum value on the axis.
  6. Get the actual major unit of the axis.
  7. Get the actual minor unit of the axis.
  8. Get the actual major unit scale of the axis.
  9. Get the actual minor unit scale of the axis.

This sample code—an implementation of the steps above—shows you how to get the required values in C++:

auto pres = System::MakeObject<Presentation>();
auto shapes = pres->get_Slides()->idx_get(0)->get_Shapes();
auto chart = System::ExplicitCast<Chart>(shapes->AddChart(ChartType::Area, 100.0f, 100.0f, 500.0f, 350.0f));
chart->ValidateChartLayout();

auto axes = chart->get_Axes();

double maxValue = axes->get_VerticalAxis()->get_ActualMaxValue();
double minValue = axes->get_VerticalAxis()->get_ActualMinValue();

double majorUnit = axes->get_HorizontalAxis()->get_ActualMajorUnit();
double minorUnit = axes->get_HorizontalAxis()->get_ActualMinorUnit();

// Saves the presentation
pres->Save(u"ErrorBars_out.pptx", SaveFormat::Pptx);

Swap the Data between Axes

Aspose.Slides allows you to quickly swap the data between axes—the data represented on the vertical axis (y-axis) moves to the horizontal axis (x-axis) and vice versa.

This C++ code shows you how to perform the data swap task between axes on a chart:

// Creates empty presentation
auto pres = System::MakeObject<Presentation>();
auto shapes = pres->get_Slides()->idx_get(0)->get_Shapes();
auto chart = shapes->AddChart(ChartType::ClusteredColumn, 100.0f, 100.0f, 400.0f, 300.0f);

// Switches rows and columns
chart->get_ChartData()->SwitchRowColumn();

// Saves presentation
pres->Save(u"SwitchChartRowColumns_out.pptx", SaveFormat::Pptx);

Disable the Vertical Axis for Line Charts

This C++ code shows you how to hide the vertical axis for a line chart:

auto pres = System::MakeObject<Presentation>();
auto shapes = pres->get_Slides()->idx_get(0)->get_Shapes();
auto chart = shapes->AddChart(ChartType::Line, 100.0f, 100.0f, 400.0f, 300.0f);
chart->get_Axes()->get_VerticalAxis()->set_IsVisible(false);

pres->Save(u"chart.pptx", SaveFormat::Pptx);

Disable the Horizontal Axis for Line Charts

This code shows you how to hide the horizontal axis for a line chart:

auto pres = System::MakeObject<Presentation>();
auto shapes = pres->get_Slides()->idx_get(0)->get_Shapes();
auto chart = shapes->AddChart(ChartType::Line, 100.0f, 100.0f, 400.0f, 300.0f);
chart->get_Axes()->get_HorizontalAxis()->set_IsVisible(false);

pres->Save(u"chart.pptx", SaveFormat::Pptx);

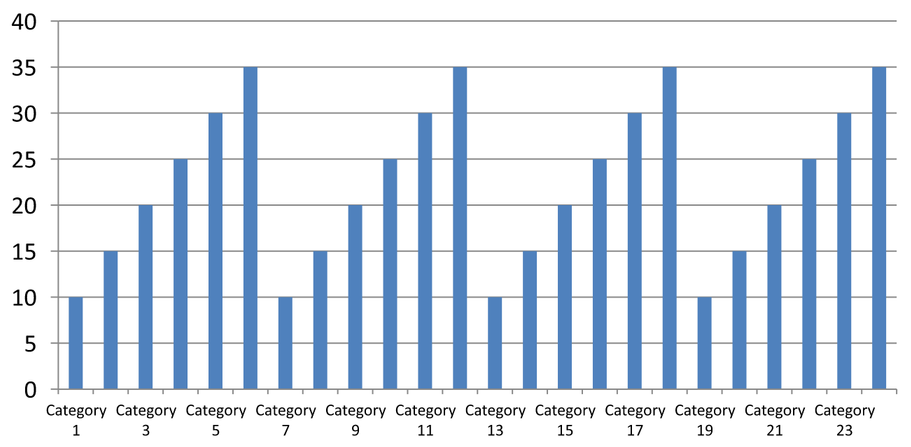

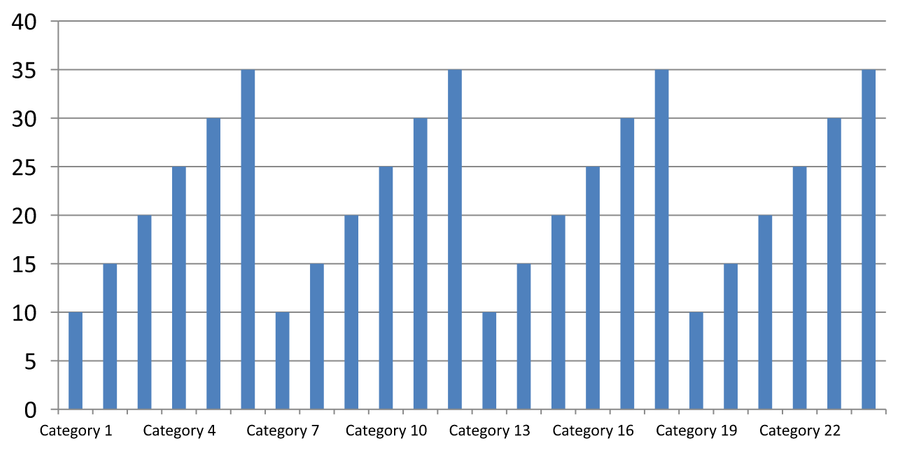

Change a Category Axis

Using the set_CategoryAxisType() method, you can specify your preferred category axis type (date or text). This code in C++ demonstrates the operation:

auto presentation = System::MakeObject<Presentation>(u"ExistingChart.pptx");
auto chart = System::AsCast<IChart>(presentation->get_Slides()->idx_get(0)->get_Shapes()->idx_get(0));
auto horizontalAxis = chart->get_Axes()->get_HorizontalAxis();

horizontalAxis->set_CategoryAxisType(CategoryAxisType::Date);
horizontalAxis->set_IsAutomaticMajorUnit(false);
horizontalAxis->set_MajorUnit(1);
horizontalAxis->set_MajorUnitScale(TimeUnitType::Months);

presentation->Save(u"ChangeChartCategoryAxis_out.pptx", SaveFormat::Pptx);

Set the Date Format for Category Axis Values

Aspose.Slides for C++ allows you to set the date format for a category axis value. The operation is demonstrated in this C++ code:

auto pres = System::MakeObject<Presentation>();
auto chart = pres->get_Slides()->idx_get(0)->get_Shapes()->AddChart(ChartType::Area, 50.0f, 50.0f, 450.0f, 300.0f);

auto wb = chart->get_ChartData()->get_ChartDataWorkbook();

wb->Clear(0);

chart->get_ChartData()->get_Series()->Clear();
auto areaCategories = chart->get_ChartData()->get_Categories();
areaCategories->Clear();
areaCategories->Add(wb->GetCell(0, u"A2", ObjectExt::Box<double>(DateTime(2015, 1, 1).ToOADate())));
areaCategories->Add(wb->GetCell(0, u"A3", ObjectExt::Box<double>(DateTime(2016, 1, 1).ToOADate())));
areaCategories->Add(wb->GetCell(0, u"A4", ObjectExt::Box<double>(DateTime(2017, 1, 1).ToOADate())));
areaCategories->Add(wb->GetCell(0, u"A5", ObjectExt::Box<double>(DateTime(2018, 1, 1).ToOADate())));

auto series = chart->get_ChartData()->get_Series()->Add(ChartType::Line);
auto dataPoints = series->get_DataPoints();
dataPoints->AddDataPointForLineSeries(wb->GetCell(0, u"B2", ObjectExt::Box<int32_t>(1)));
dataPoints->AddDataPointForLineSeries(wb->GetCell(0, u"B3", ObjectExt::Box<int32_t>(2)));
dataPoints->AddDataPointForLineSeries(wb->GetCell(0, u"B4", ObjectExt::Box<int32_t>(3)));
dataPoints->AddDataPointForLineSeries(wb->GetCell(0, u"B5", ObjectExt::Box<int32_t>(4)));

auto horizontalAxis = chart->get_Axes()->get_HorizontalAxis();
horizontalAxis->set_CategoryAxisType(CategoryAxisType::Date);
horizontalAxis->set_IsNumberFormatLinkedToSource(false);
horizontalAxis->set_NumberFormat(u"yyyy");

pres->Save(u"test.pptx", SaveFormat::Pptx);

Set the Rotation Angle for an Axis Title

Aspose.Slides for C++ allows you to set the rotation angle for a chart axis title. This C++ code demonstrates the operation:

auto pres = System::MakeObject<Presentation>();
auto shapes = pres->get_Slides()->idx_get(0)->get_Shapes();
auto chart = shapes->AddChart(ChartType::ClusteredColumn, 50.0f, 50.0f, 450.0f, 300.0f);
auto verticalAxis = chart->get_Axes()->get_VerticalAxis();
verticalAxis->set_HasTitle(true);
verticalAxis->get_Title()->get_TextFormat()->get_TextBlockFormat()->set_RotationAngle(90.0f);

pres->Save(u"test.pptx", SaveFormat::Pptx);

Set the Axis Position on a Category or Value Axis

Aspose.Slides for C++ allows you to set the position axis in a category or value axis. This C++ code shows how to perform the task:

auto pres = System::MakeObject<Presentation>();
auto shapes = pres->get_Slides()->idx_get(0)->get_Shapes();
auto chart = shapes->AddChart(ChartType::ClusteredColumn, 50.0f, 50.0f, 450.0f, 300.0f);
chart->get_Axes()->get_HorizontalAxis()->set_AxisBetweenCategories(true);

pres->Save(u"AsposeScatterChart.pptx", SaveFormat::Pptx);

Enable the Display Unit Label on a Chart Value Axis

Aspose.Slides for C++ allows you to configure a chart to show a unit label on its chart value axis. This C++ code demonstrates the operation:

auto pres = System::MakeObject<Presentation>(u"Test.pptx");
auto shapes = pres->get_Slides()->idx_get(0)->get_Shapes();
auto chart = shapes->AddChart(ChartType::ClusteredColumn, 50.0f, 50.0f, 450.0f, 300.0f);
chart->get_Axes()->get_VerticalAxis()->set_DisplayUnit(DisplayUnitType::Millions);

pres->Save(u"Result.pptx", SaveFormat::Pptx);

FAQ

How do I set the value at which one axis crosses the other (axis crossing)?

Axes provide a crossing setting: you can choose to cross at zero, at the maximum category/value, or at a specific numeric value. This is useful for shifting the X-axis up or down or for emphasizing a baseline.

How can I position tick labels relative to the axis (alongside, outside, inside)?

Set the label position to “cross”, “outside”, or “inside”. This affects readability and helps conserve space, especially on small charts.
