AutoFit Rows for Merged Cells with C++

Microsoft Excel provides a feature that allows you to auto-size the height of a cell according to its content. The feature is called auto-fit rows. Microsoft Excel doesn’t set auto-fit operation on merged cells natively. Sometimes the feature becomes vital for a user who really needs to implement auto-fit rows on merged cells too.

How to use AutoFitMergedCellsType for autofitting rows

Aspose.Cells supports this feature through the AutoFitterOptions.AutoFitMergedCellsType API. Using this API, it is possible to auto-fit rows in a worksheet including merged cells. Here is a list of all possible types of auto fitting merged cells:

• None
• FirstLine
• LastLine
• EachLine

Autofit Rows for Merged Cells

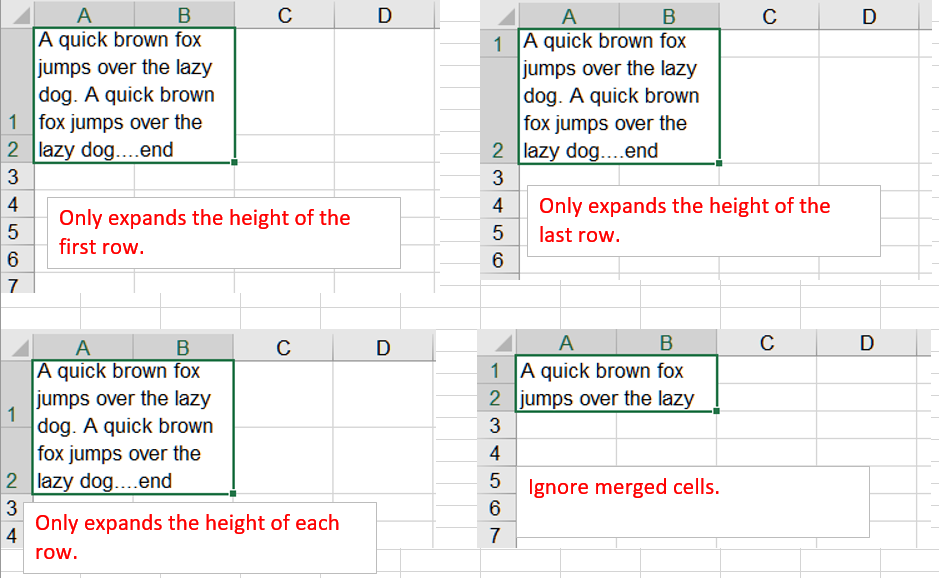

Please see the following code, it creates a workbook object and adds multiple worksheets. Use different methods for autofit operations in each worksheet. The screenshot shows the results after the execution of the sample code.

C++ Sample Code

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Create a new workbook
    Workbook workbook;

    // Get the first worksheet
    Worksheet sheet1 = workbook.GetWorksheets().Get(0);

    // Create a range A1:B2
    Range range = sheet1.GetCells().CreateRange(0, 0, 2, 2);

    // Merge the cells
    range.Merge();

    // Insert value to the merged cell A1
    sheet1.GetCells().Get(0, 0).SetValue(U16String(u"A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog....end"));

    // Create a style object
    Style style = sheet1.GetCells().Get(0, 0).GetStyle();

    // Set wrapping text on
    style.SetIsTextWrapped(true);

    // Apply the style to the cell
    sheet1.GetCells().Get(0, 0).SetStyle(style);

    // Create an object for AutoFitterOptions
    AutoFitterOptions options;

    // Only expands the height of the first row.
    options.SetAutoFitMergedCellsType(AutoFitMergedCellsType::FirstLine);

    // Autofit rows in the sheet (including the merged cells)
    sheet1.AutoFitRows(options);

    // Add a new worksheet
    int index = workbook.GetWorksheets().Add();
    Worksheet sheet2 = workbook.GetWorksheets().Get(index);
    sheet2.SetName(U16String(u"Sheet2"));

    // Create a range A1:B2
    Range range2 = sheet2.GetCells().CreateRange(0, 0, 2, 2);

    // Merge the cells
    range2.Merge();

    // Insert value to the merged cell A1
    sheet2.GetCells().Get(0, 0).SetValue(U16String(u"A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog....end"));

    // Create a style object
    Style style2 = sheet2.GetCells().Get(0, 0).GetStyle();

    // Set wrapping text on
    style2.SetIsTextWrapped(true);

    // Apply the style to the cell
    sheet2.GetCells().Get(0, 0).SetStyle(style2);

    // Create an object for AutoFitterOptions
    AutoFitterOptions options2;

    // Only expands the height of the last row.
    options2.SetAutoFitMergedCellsType(AutoFitMergedCellsType::LastLine);

    // Autofit rows in the sheet (including the merged cells)
    sheet2.AutoFitRows(options2);

    // Add another new worksheet
    index = workbook.GetWorksheets().Add();
    Worksheet sheet3 = workbook.GetWorksheets().Get(index);
    sheet3.SetName(U16String(u"Sheet3"));

    // Create a range A1:B2
    Range range3 = sheet3.GetCells().CreateRange(0, 0, 2, 2);

    // Merge the cells
    range3.Merge();

    // Insert value to the merged cell A1
    sheet3.GetCells().Get(0, 0).SetValue(U16String(u"A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog....end"));

    // Create a style object
    Style style3 = sheet3.GetCells().Get(0, 0).GetStyle();

    // Set wrapping text on
    style3.SetIsTextWrapped(true);

    // Apply the style to the cell
    sheet3.GetCells().Get(0, 0).SetStyle(style3);

    // Create an object for AutoFitterOptions
    AutoFitterOptions options3;

    // Only expands the height of each row.
    options3.SetAutoFitMergedCellsType(AutoFitMergedCellsType::EachLine);

    // Autofit rows in the sheet (including the merged cells)
    sheet3.AutoFitRows(options3);

    // Add another new worksheet
    index = workbook.GetWorksheets().Add();
    Worksheet sheet4 = workbook.GetWorksheets().Get(index);
    sheet4.SetName(U16String(u"Sheet4"));

    // Create a range A1:B2
    Range range4 = sheet4.GetCells().CreateRange(0, 0, 2, 2);

    // Merge the cells
    range4.Merge();

    // Insert value to the merged cell A1
    sheet4.GetCells().Get(0, 0).SetValue(U16String(u"A quick brown fox jumps over the lazy dog. A quick brown fox jumps over the lazy dog....end"));

    // Create a style object
    Style style4 = sheet4.GetCells().Get(0, 0).GetStyle();

    // Set wrapping text on
    style4.SetIsTextWrapped(true);

    // Apply the style to the cell
    sheet4.GetCells().Get(0, 0).SetStyle(style4);

    // Create an object for AutoFitterOptions
    AutoFitterOptions options4;

    // Ignore merged cells.
    options4.SetAutoFitMergedCellsType(AutoFitMergedCellsType::None);

    // Autofit rows in the sheet (not including the merged cells)
    sheet4.AutoFitRows(options4);

    // Save the Excel file
    workbook.Save(U16String(u"out.xlsx"));

    Aspose::Cells::Cleanup();
}
