Grouping and Ungrouping Rows and Columns with C++

Introduction

In a Microsoft Excel file, you can create an outline for the data to let you show and hide levels of detail with a single mouse click.

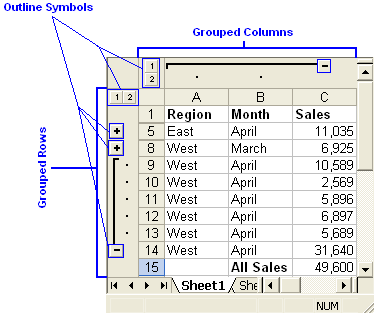

Click the Outline Symbols, 1,2,3, + and - to quickly display only the rows or columns that provide summaries or headings for sections in a worksheet, or you can use the symbols to see details under an individual summary or heading as shown below in the figure:

Grouping Rows and Columns.

Group Management of Rows and Columns

Aspose.Cells provides a class, Workbook that represents a Microsoft Excel file. The Workbook class contains a WorksheetCollection that allows access to each worksheet in the Excel file. A worksheet is represented by the Worksheet class. The Worksheet class provides a Cells collection that represents all cells in the worksheet.

The Cells collection provides several methods to manage rows or columns in a worksheet, few of these are discussed below in more detail.

Grouping Rows and Columns

It is possible to group rows or columns by calling the GroupRows and GroupColumns methods of the Cells collection. Both methods take the following parameters:

• First row/column index, the first row or column in the group.
• Last row/column index, the last row or column in the group.
• Is hidden, a Boolean parameter that specifies whether to hide rows/columns after grouping or not.

#include <iostream>
#include <memory>
#include "Aspose.Cells.h"

using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Path of input Excel file
    U16String inputFilePath = srcDir + u"book1.xls";

    // Create workbook from file
    Workbook workbook(inputFilePath);

    // Access the first worksheet in the Excel file
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Group first six rows (from 0 to 5) and make them hidden
    worksheet.GetCells().GroupRows(0, 5, true);

    // Group first three columns (from 0 to 2) and make them hidden
    worksheet.GetCells().GroupColumns(0, 2, true);

    // Save the modified Excel file
    U16String outputFilePath = srcDir + u"output.xls";
    workbook.Save(outputFilePath);

    std::cout << "Rows and columns grouped successfully!" << std::endl;

    Aspose::Cells::Cleanup();
}

Group Settings

Microsoft Excel allows you to configure group settings for displaying:

• Summary rows below detail.
• Summary columns to the right of detail.

Developers can configure these group settings using the GetOutline() property of the Worksheet class.

Summary Rows to Below of Detail

It is possible to control whether summary rows are displayed below detail by setting the Outline class' GetSummaryRowBelow() property to true or false.

#include <iostream>
#include "Aspose.Cells.h"

using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Output directory path
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    // Path of input Excel file
    U16String inputFilePath = srcDir + u"sample.xlsx";

    // Path of output Excel file
    U16String outputFilePath = outDir + u"output.xls";

    // Create workbook
    Workbook workbook(inputFilePath);

    // Get the first worksheet
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Grouping first six rows and first three columns
    worksheet.GetCells().GroupRows(0, 5, true);
    worksheet.GetCells().GroupColumns(0, 2, true);

    // Setting SummaryRowBelow property to false
    worksheet.GetOutline().SetSummaryRowBelow(false);

    // Save the modified Excel file
    workbook.Save(outputFilePath);

    std::cout << "Excel file modified and saved successfully!" << std::endl;

    Aspose::Cells::Cleanup();
}

Summary Columns to Right of Detail

Developers can also control displaying summary columns to the right of detail by setting the GetSummaryColumnRight() property of Outline class to true or false.

#include <iostream>
#include "Aspose.Cells.h"

using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Output directory path
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    // Path of input Excel file
    U16String inputFilePath = srcDir + u"sample.xlsx";

    // Path of output Excel file
    U16String outputFilePath = outDir + u"output.xls";

    // Create workbook
    Workbook workbook(inputFilePath);

    // Get the first worksheet
    WorksheetCollection sheets = workbook.GetWorksheets();
    Worksheet worksheet = sheets.Get(0);

    // Grouping first six rows and first three columns
    worksheet.GetCells().GroupRows(0, 5, true);
    worksheet.GetCells().GroupColumns(0, 2, true);

    // Set summary column to the right
    worksheet.GetOutline().SetSummaryColumnRight(true);

    // Save the modified Excel file
    workbook.Save(outputFilePath);

    std::cout << "Excel file modified and saved successfully!" << std::endl;

    Aspose::Cells::Cleanup();
}

Ungrouping Rows and Columns

To ungroup any grouped rows or columns, call the Cells collection’s UngroupRows and UngroupColumns methods. Both methods take two parameters:

• First row or column index, the first row/column to be ungrouped.
• Last row or column index, the last row/column to be ungrouped.

UngroupRows has an overload that takes a Boolean third parameter. Setting it to true removes all grouped information. Otherwise, only the outer group information is removed.

#include <iostream>
#include <memory>
#include "Aspose.Cells.h"

using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Path of input Excel file
    U16String inputFilePath = srcDir + u"book1.xls";

    // Create workbook from the input file
    Workbook workbook(inputFilePath);

    // Access the first worksheet in the Excel file
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Ungrouping first six rows (from 0 to 5)
    worksheet.GetCells().UngroupRows(0, 5);

    // Ungrouping first three columns (from 0 to 2)
    worksheet.GetCells().UngroupColumns(0, 2);

    // Save the modified Excel file
    U16String outputFilePath = srcDir + u"output.xls";
    workbook.Save(outputFilePath);

    Aspose::Cells::Cleanup();

    return 0;
}
