Hantera axlar för Excel diagram
Contents
[
Hide
]
I Excel-diagram finns det 3 typer av axlar:
- Horisontell (Kategori) Axel : X-axel
- Vertikal (Värde) Axel : Y-axel
- Djup (Serie) Axel : Z-axel
Axelealternativ
Aspose.Cells för Python via .NET tillåter också att hantera diagramaxlar vid körning, med Axis objekt kan du ändra alla alternativ för Axis som görs i Excel.
|
|
Hantera X- och Y-axlar
I Excel-diagram är horisontell och vertikal axlar de två mest populära axlarna att använda.

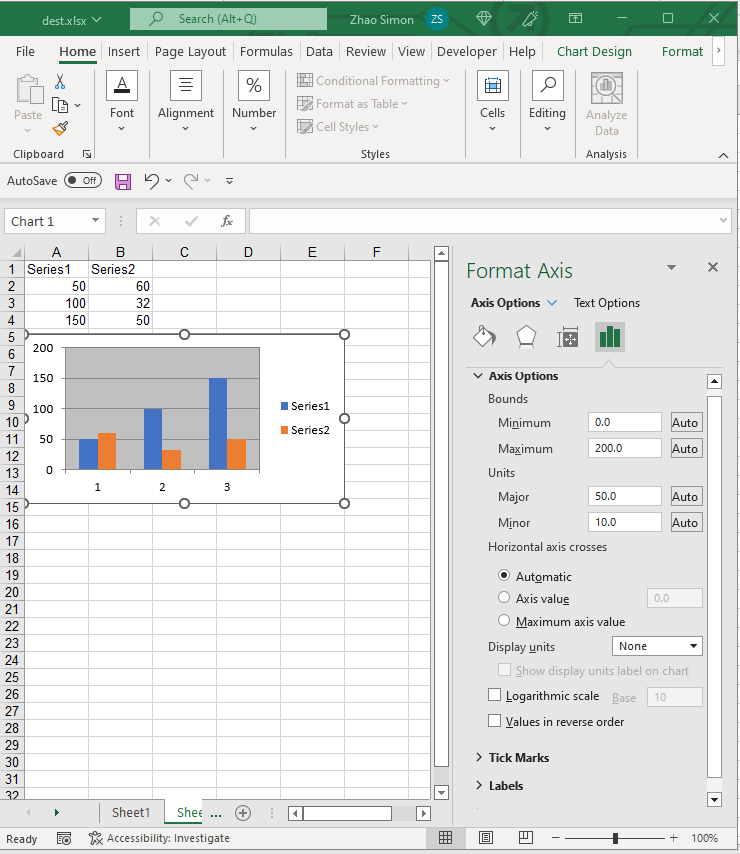

Följande kodsnutt visar hur man ställer in alternativen för X- och Y-axlarna.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| from aspose.cells import Workbook | |
| from aspose.cells.charts import ChartType | |
| # Instantiating a Workbook object | |
| workbook = Workbook() | |
| # Adding a new worksheet to the Workbook object | |
| sheetIndex = workbook.worksheets.add() | |
| # Obtaining the reference of the newly added worksheet by passing its sheet index | |
| worksheet = workbook.worksheets[sheetIndex] | |
| # Adding sample values to cells | |
| worksheet.cells.get("A1").put_value("Series1") | |
| worksheet.cells.get("A2").put_value(50) | |
| worksheet.cells.get("A3").put_value(100) | |
| worksheet.cells.get("A4").put_value(150) | |
| worksheet.cells.get("B1").put_value("Series2") | |
| worksheet.cells.get("B2").put_value(60) | |
| worksheet.cells.get("B3").put_value(32) | |
| worksheet.cells.get("B4").put_value(50) | |
| # Adding a chart to the worksheet | |
| chartIndex = worksheet.charts.add(ChartType.COLUMN, 5, 0, 15, 5) | |
| # Accessing the instance of the newly added chart | |
| chart = worksheet.charts[chartIndex] | |
| # Adding SeriesCollection (chart data source) to the chart ranging from "A1" cell to "B3" | |
| chart.set_chart_data_range("A1:B4", True) | |
| # hiding X axis | |
| chart.category_axis.is_visible = False | |
| # Setting max value of Y axis. | |
| chart.value_axis.max_value = 200 | |
| # Setting major unit. | |
| chart.value_axis.major_unit = 50.0 | |
| # Save the file | |
| workbook.save("chart_axes.xlsx") |
