مدیریت پاراگراف‌های متنی PowerPoint در Java

مرور کلی

Aspose.Slides برای Java متن را به‌عنوان سلسله‌مراتبی از فریم‌های متن، پاراگراف‌ها و بخش‌ها نمایش می‌دهد:

  • ITextFrame محفظه متن را در یک شکل نمایش می‌دهد و دسترسی به مجموعه پاراگراف‌های آن را فراهم می‌کند.
  • IParagraph یک پاراگراف در فریم متن را نشان می‌دهد و دسترسی به بخش‌ها و قالب‌بندی‌های سطح پاراگراف را فراهم می‌کند.
  • IPortion یک بخش متن داخل یک پاراگراف را نشان می‌دهد. هر بخش می‌تواند متن و قالب‌بندی سطح کاراکتر خود را داشته باشد.

بنابراین یک پاراگراف می‌تواند متنی با قلم‌ها، رنگ‌ها، اندازه‌ها و قالب‌بندی‌های مختلف داشته باشد که با استفاده از چندین بخش ایجاد می‌شود.

ایجاد و قالب‌بندی پاراگراف‌ها

پاراگراف‌ها را در فریم متن یک شکل ایجاد کنید و با بخش‌ها قالب‌بندی‌های جداگانه برای هر قسمت متن اعمال کنید. این بخش نشان می‌دهد چگونه چندین بخش را در هر پاراگراف ترکیب کنید و رنگ‌ها، اندازه‌های قلم و سبک‌های مختلف را اعمال کنید.

ایجاد پاراگراف‌ها با چندین بخش

مثال زیر در Java سه پاراگراف ایجاد می‌کند که هر یک شامل سه بخش متن در مجموعه‌ای هستند که توسط IParagraph.getPortions بازگردانده می‌شود. این مثال پاراگراف پیش‌فرض و بخش خالی آن را بازاستفاده می‌کند، سپس پاراگراف‌ها و بخش‌های باقی‌مانده را اضافه می‌کند. قالب‌بندی از طریق IPortion.getPortionFormat اعمال می‌شود: اولین بخش در هر پاراگراف قرمز، بولد و 15 نقطه است؛ دومین بخش آبی، ایتالیک و 18 نقطه؛ بخش سوم قالب‌بندی پیش‌فرض خود را حفظ می‌کند:

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 150, 300, 150);
    ITextFrame textFrame = shape.getTextFrame();

    IParagraph firstParagraph = textFrame.getParagraphs().get_Item(0);
    firstParagraph.getPortions().add(new Portion());
    firstParagraph.getPortions().add(new Portion());

    IParagraph secondParagraph = new Paragraph();
    secondParagraph.getPortions().add(new Portion());
    secondParagraph.getPortions().add(new Portion());
    secondParagraph.getPortions().add(new Portion());
    textFrame.getParagraphs().add(secondParagraph);

    IParagraph thirdParagraph = new Paragraph();
    thirdParagraph.getPortions().add(new Portion());
    thirdParagraph.getPortions().add(new Portion());
    thirdParagraph.getPortions().add(new Portion());
    textFrame.getParagraphs().add(thirdParagraph);

    int paragraphCount = textFrame.getParagraphs().getCount();
    for (int paragraphIndex = 0; paragraphIndex < paragraphCount; paragraphIndex++) {
        IParagraph paragraph = textFrame.getParagraphs().get_Item(paragraphIndex);
        int portionCount = paragraph.getPortions().getCount();
        for (int portionIndex = 0; portionIndex < portionCount; portionIndex++) {
            IPortion portion = paragraph.getPortions().get_Item(portionIndex);
            portion.setText("Portion " + (paragraphIndex + 1) + "." + (portionIndex + 1));

            if (portionIndex == 0) {
                portion.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
                portion.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.RED);
                portion.getPortionFormat().setFontBold(NullableBool.True);
                portion.getPortionFormat().setFontHeight(15);
            } else if (portionIndex == 1) {
                portion.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
                portion.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLUE);
                portion.getPortionFormat().setFontItalic(NullableBool.True);
                portion.getPortionFormat().setFontHeight(18);
            }
        }
    }

    presentation.save("paragraphs_with_portions.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

ایجاد فهرست‌های نقطه‌ای و عددی

متن پاراگراف‌ها را به فهرست‌های دارای نماد، عدد یا تصویر سفارشی سازماندهی کنید. مثال‌های این بخش قالب‌بندی گلوله‌ها، فهرست‌های چندسطحه‌ای و عددهای شروع سفارشی را پوشش می‌دهند.

ایجاد فهرست نقطه‌ای یا عددی

گلوله‌ها و شماره‌گذاری موارد مرتبط را اسکن کردن آسان‌تر می‌کند. در Aspose.Slides تنظیمات فهرست از طریق IBulletFormat تعریف می‌شود.

این مثال Java یک گلوله نمادین و یک مورد عددی را به همان فریم متن اضافه می‌کند. IBulletFormat.setType نوع گلوله را انتخاب می‌کند، در حالی که IBulletFormat.setChar نماد را فراهم می‌کند و IBulletFormat.setNumberedBulletStyle سبک شماره‌گذاری را انتخاب می‌کند. هر دو مورد از گلوله‌های سیاه با ارتفاع 100 درصد و تورفتگی پاراگراف 25 نقطه استفاده می‌کنند:

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    Paragraph symbolParagraph = new Paragraph();
    symbolParagraph.setText("Welcome to Aspose.Slides");
    symbolParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    symbolParagraph.getParagraphFormat().getBullet().setChar((char) 0x2022);
    symbolParagraph.getParagraphFormat().setIndent(25);
    symbolParagraph.getParagraphFormat().getBullet().getColor().setColorType(ColorType.RGB);
    symbolParagraph.getParagraphFormat().getBullet().getColor().setColor(Color.BLACK);
    symbolParagraph.getParagraphFormat().getBullet().setBulletHardColor(NullableBool.True);
    symbolParagraph.getParagraphFormat().getBullet().setHeight(100);
    textFrame.getParagraphs().add(symbolParagraph);

    Paragraph numberedParagraph = new Paragraph();
    numberedParagraph.setText("This is a numbered item");
    numberedParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    numberedParagraph.getParagraphFormat().getBullet().setNumberedBulletStyle(NumberedBulletStyle.BulletCircleNumWDBlackPlain);
    numberedParagraph.getParagraphFormat().setIndent(25);
    numberedParagraph.getParagraphFormat().getBullet().getColor().setColorType(ColorType.RGB);
    numberedParagraph.getParagraphFormat().getBullet().getColor().setColor(Color.BLACK);
    numberedParagraph.getParagraphFormat().getBullet().setBulletHardColor(NullableBool.True);
    numberedParagraph.getParagraphFormat().getBullet().setHeight(100);
    textFrame.getParagraphs().add(numberedParagraph);

    presentation.save("bulleted_and_numbered_list.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

استفاده از گلوله‌های تصویری

گلوله‌های تصویری به شما اجازه می‌دهند به‌جای نماد یا عدد از تصویر سفارشی استفاده کنید.

این مثال Java یک تصویر را به مجموعه تصویرهای ارائه به عنوان یک IPPImage اضافه می‌کند و آن را به عنوان گلوله پاراگراف استفاده می‌کند. برای استفاده از گلوله تصویر، IBulletFormat.setType فراخوانی می‌شود و تصویر از طریق IBulletFormat.getPicture اختصاص داده می‌شود. IBulletFormat.setHeight بر روی 100 درصد تنظیم می‌شود تا اندازه گلوله نسبت به متن پاراگراف تنظیم شود:

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IImage bulletImage = Images.fromFile("bullets.png");
    IPPImage presentationImage;
    try {
        presentationImage = presentation.getImages().addImage(bulletImage);
    } finally {
        bulletImage.dispose();
    }

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    Paragraph paragraph = new Paragraph();
    paragraph.setText("Welcome to Aspose.Slides");
    paragraph.getParagraphFormat().getBullet().setType(BulletType.Picture);
    paragraph.getParagraphFormat().getBullet().getPicture().setImage(presentationImage);
    paragraph.getParagraphFormat().getBullet().setHeight(100);
    textFrame.getParagraphs().add(paragraph);

    presentation.save("picture_bullet.pptx", SaveFormat.Pptx);
    presentation.save("picture_bullet.ppt", SaveFormat.Ppt);
} finally {
    presentation.dispose();
}

ایجاد فهرست چندسطحه‌ای

IParagraphFormat.setDepth را تنظیم کنید تا پاراگراف‌ها در سطوح مختلف یک فهرست قرار گیرند. سطح بالایی عمق 0 دارد.

این مثال Java مقادیر IParagraphFormat.setDepth را از 0 تا 3 به چهار پاراگراف اختصاص می‌دهد و سلسله‌مراتبی در یک فریم متن ایجاد می‌کند. هر پاراگراف از گلوله نمادین استفاده می‌کند؛ IBulletFormat.setChar بین یک گلوله گرد و یک خط تیره تغییر می‌کند تا سطوح مجاور را متمایز کند:

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    IParagraph firstParagraph = new Paragraph();
    firstParagraph.setText("Content");
    firstParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    firstParagraph.getParagraphFormat().getBullet().setChar((char) 0x2022);
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    firstParagraph.getParagraphFormat().setDepth((short) 0);

    IParagraph secondParagraph = new Paragraph();
    secondParagraph.setText("Second level");
    secondParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    secondParagraph.getParagraphFormat().getBullet().setChar('-');
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    secondParagraph.getParagraphFormat().setDepth((short) 1);

    IParagraph thirdParagraph = new Paragraph();
    thirdParagraph.setText("Third level");
    thirdParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    thirdParagraph.getParagraphFormat().getBullet().setChar((char) 0x2022);
    thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    thirdParagraph.getParagraphFormat().setDepth((short) 2);

    IParagraph fourthParagraph = new Paragraph();
    fourthParagraph.setText("Fourth level");
    fourthParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    fourthParagraph.getParagraphFormat().getBullet().setChar('-');
    fourthParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    fourthParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    fourthParagraph.getParagraphFormat().setDepth((short) 3);

    textFrame.getParagraphs().add(firstParagraph);
    textFrame.getParagraphs().add(secondParagraph);
    textFrame.getParagraphs().add(thirdParagraph);
    textFrame.getParagraphs().add(fourthParagraph);

    presentation.save("multilevel_list.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

شروع شماره‌گذاری فهرست با مقادیر سفارشی

از IBulletFormat.setNumberedBulletStartWith برای تنظیم عدد اولیه نمایش داده‌شده برای یک پاراگراف شماره‌دار استفاده کنید.

این مثال Java IBulletFormat.setType را برای استفاده از شماره‌گذاری در سه پاراگراف تنظیم می‌کند و مقادیر IBulletFormat.setNumberedBulletStartWith را به ترتیب 2، 3 و 7 اختصاص می‌دهد. مقدار شروع برای هر پاراگراف به‌صورت جداگانه پیکربندی می‌شود تا اعداد نمایش داده‌شده مقادیر را نادیده بگیرند:

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    Paragraph firstParagraph = new Paragraph();
    firstParagraph.setText("Start at 2");
    firstParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    firstParagraph.getParagraphFormat().getBullet().setNumberedBulletStartWith((short) 2);
    textFrame.getParagraphs().add(firstParagraph);

    Paragraph secondParagraph = new Paragraph();
    secondParagraph.setText("Start at 3");
    secondParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    secondParagraph.getParagraphFormat().getBullet().setNumberedBulletStartWith((short) 3);
    textFrame.getParagraphs().add(secondParagraph);

    Paragraph thirdParagraph = new Paragraph();
    thirdParagraph.setText("Start at 7");
    thirdParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    thirdParagraph.getParagraphFormat().getBullet().setNumberedBulletStartWith((short) 7);
    textFrame.getParagraphs().add(thirdParagraph);

    presentation.save("custom_numbered_list.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

کنترل چینش پاراگراف و ویژگی‌های انتهایی

حاشیه‌ها و تورفتگی‌های پاراگراف را تنظیم کنید تا موقعیت خط اول و خطوط بسته‌بندی شده را کنترل کنید. همچنین می‌توانید علامت پایان پاراگراف را جدا از بخش‌های متنی قابل مشاهده قالب‌بندی کنید.

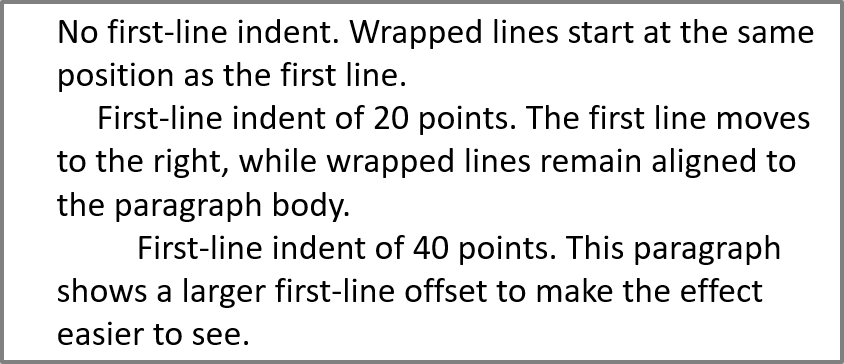

تنظیم تورفتگی خط اول

از متد IParagraphFormat.setIndent برای کنترل تورفتگی خط اول یک پاراگراف استفاده کنید. این تنظیم فقط خط اول را نسبت به حاشیه چپ پاراگراف جابه‌جا می‌کند. مقدار مثبت، خط اول را به سمت راست می‌برد، در حالی که خطوط باقی‌مانده به بدنه پاراگراف هم‌تراز می‌مانند.

از IParagraphFormat.setMarginLeft زمانی که نیاز به جابه‌جایی کل پاراگراف دارید استفاده کنید. از IParagraphFormat.setIndent وقتی که فقط خط اول را می‌خواهید جابه‌جا کنید استفاده کنید.

مثال زیر برای سه پاراگراف همان مقدار IParagraphFormat.setMarginLeft برابر 20 نقطه و مقادیر IParagraphFormat.setIndent برابر 0، 20 و 40 نقطه اعمال می‌کند. خطوط اول به ترتیب با آفست بزرگتر شروع می‌شوند، در حالی که خطوط بسته‌بندی شده همان حاشیه چپ را حفظ می‌کنند:

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 420, 220);
    shape.getFillFormat().setFillType(FillType.NoFill);
    shape.getLineFormat().getFillFormat().setFillType(FillType.Solid);
    shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.GRAY);

    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getTextFrameFormat().setAutofitType(TextAutofitType.Shape);
    textFrame.getParagraphs().clear();

    Paragraph firstParagraph = new Paragraph();
    firstParagraph.setText("No first-line indent. Wrapped lines start at the same position as the first line.");
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    firstParagraph.getParagraphFormat().setMarginLeft(20f);
    firstParagraph.getParagraphFormat().setIndent(0f);

    Paragraph secondParagraph = new Paragraph();
    secondParagraph.setText("First-line indent of 20 points. The first line moves to the right, while wrapped lines remain aligned to the paragraph body.");
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    secondParagraph.getParagraphFormat().setMarginLeft(20f);
    secondParagraph.getParagraphFormat().setIndent(20f);

    Paragraph thirdParagraph = new Paragraph();
    thirdParagraph.setText("First-line indent of 40 points. This paragraph shows a larger first-line offset to make the effect easier to see.");
    thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    thirdParagraph.getParagraphFormat().setMarginLeft(20f);
    thirdParagraph.getParagraphFormat().setIndent(40f);

    textFrame.getParagraphs().add(firstParagraph);
    textFrame.getParagraphs().add(secondParagraph);
    textFrame.getParagraphs().add(thirdParagraph);

    presentation.save("paragraph_indent.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

نتیجه:

تورفتگی خط اول پاراگراف‌ها

تنظیم تورفتگی معلق

تورفتگی معلق نوعی چینش پاراگراف است که در آن خط اول به سمت چپ خطوط باقی‌مانده شروع می‌شود. در Aspose.Slides این اثر را با ویژگی IParagraphFormat.setIndent ایجاد می‌کنید. مقدار Indent را به مقدار منفی تنظیم کنید تا خط اول نسبت به بدنه پاراگراف به چپ جابه‌جا شود.

در عمل، IParagraphFormat.setMarginLeft موقعیت چپ بدنه پاراگراف را تعریف می‌کند و IParagraphFormat.setIndent موقعیت خط اول را نسبت به آن حاشیه تعیین می‌کند. برای ایجاد تورفتگی معلق، مقدار مثبت MarginLeft و مقدار منفی Indent تنظیم کنید.

این قالب‌بندی برای کتابشناسی‌ها، مراجع، واژه‌نامه‌ها و سایر پاراگراف‌هایی که خطوط بسته‌بندی‌شده باید زیر بدنه پاراگراف نه زیر اولین کاراکتر خط اول قرار گیرند مفید است.

مثال Java زیر مقادیر IParagraphFormat.setMarginLeft برابر 40 و 60 نقطه را با مقادیر IParagraphFormat.setIndent برابر -20 و -30 نقطه ترکیب می‌کند. در هر پاراگراف، خط اول به سمت چپ خطوط بسته‌بندی‌شده شروع می‌شود؛ پاراگراف دوم تورفتگی معلق عمیق‌تری دارد:

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 420, 220);
    shape.getFillFormat().setFillType(FillType.NoFill);
    shape.getLineFormat().getFillFormat().setFillType(FillType.Solid);
    shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.GRAY);

    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getTextFrameFormat().setAutofitType(TextAutofitType.Shape);
    textFrame.getParagraphs().clear();

    Paragraph firstParagraph = new Paragraph();
    firstParagraph.setText("A hanging indent is created by combining a positive left margin with a negative indent. The first line starts to the left, while wrapped lines align with the paragraph body.");
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    firstParagraph.getParagraphFormat().setMarginLeft(40f);
    firstParagraph.getParagraphFormat().setIndent(-20f);

    Paragraph secondParagraph = new Paragraph();
    secondParagraph.setText("This second example uses a deeper hanging indent so the difference between the first line and the wrapped lines is easier to compare.");
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    secondParagraph.getParagraphFormat().setMarginLeft(60f);
    secondParagraph.getParagraphFormat().setIndent(-30f);

    textFrame.getParagraphs().add(firstParagraph);
    textFrame.getParagraphs().add(secondParagraph);

    presentation.save("hanging_indent.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

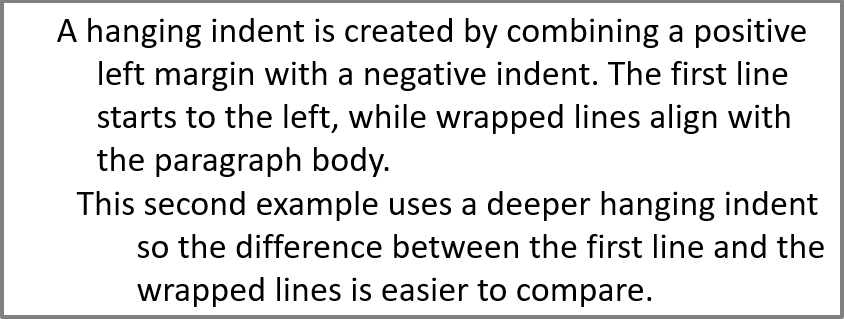

نتیجه:

تورفتگی معلق پاراگراف‌ها

تنظیم ویژگی‌های انتهای پاراگراف

متد IParagraph.setEndParagraphPortionFormat قالب‌بندی علامت پایان پاراگراف را کنترل می‌کند. مثال زیر یک PortionFormat با IBasePortionFormat.setFontHeight برابر 48 نقطه و IBasePortionFormat.setLatinFont برابر Times New Roman ایجاد می‌کند. این قالب به علامت پایان پاراگراف دوم اختصاص داده می‌شود و بخش‌های متنی قابل مشاهده بدون تغییر می‌مانند:

import com.aspose.slides.*;

Presentation presentation = new Presentation("Test.pptx");
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 10, 10, 200, 250);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    Paragraph firstParagraph = new Paragraph();
    firstParagraph.getPortions().add(new Portion("Sample text"));

    Paragraph secondParagraph = new Paragraph();
    secondParagraph.getPortions().add(new Portion("Sample text 2"));

    PortionFormat endParagraphFormat = new PortionFormat();
    endParagraphFormat.setFontHeight(48);
    endParagraphFormat.setLatinFont(new FontData("Times New Roman"));
    secondParagraph.setEndParagraphPortionFormat(endParagraphFormat);

    textFrame.getParagraphs().add(firstParagraph);
    textFrame.getParagraphs().add(secondParagraph);

    presentation.save("end_paragraph_format.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

شمارش خطوط رندر شده

برای قواعد پاراگراف که بر بسته‌بندی خودکار و نقطه‌گذاری در انتهای خطوط تأثیر می‌گذارند، به ‎Control Line Breaking‎ و ‎Control Hanging Punctuation‎ مراجعه کنید.

از IParagraph.getLinesCount برای شمارش خطوطی که یک پاراگراف پس از چینش متن اشغال می‌کند، از جمله بسته‌بندی خودکار استفاده کنید. این مورد برای بررسی طول متن و چینش در قالب‌های ارائه مفید است.

یک پاراگراف یک مورد در ‎ITextFrame.getParagraphs‎ است و می‌تواند چندین خط رندر شده را اشغال کند. یک شکست خط صریح داخل پاراگراف یک خط جدید ایجاد می‌کند بدون اینکه پاراگراف دیگری ساخته شود. بسته‌بندی خودکار خطوط را بر اساس عرض موجود ایجاد می‌کند بدون وارد کردن شکست‌های صریح به متن. بنابراین شمارش پاراگراف‌ها یا کاراکترهای شکست خط، تعداد خطوط رندر شده را نمی‌دهد.

مثال زیر یک شکل متنی ایجاد می‌کند، خطوط آن را می‌شمارد، شکل را باریک می‌کند و سپس متن را با رشته کوتاه‌تری جایگزین می‌کند. این مثال بسته‌بندی را با ‎ITextFrameFormat.setWrapText فعال می‌کند و ‎ITextFrameFormat.setAutofitType را غیرفعال می‌کند تا عرض شکل کنترل‌کننده بسته‌بندی باشد بدون اینکه متن به طور خودکار کوچک یا شکل تغییر اندازه دهد. هر اندازه‌گیری از ‎IParagraph.getLinesCount‎ استفاده می‌کند. ابعاد شکل به نقطه است. در پایان مثال یک پاراگراف دیگر اضافه می‌کند و مجموع شمارش خطوط را در کل فریم متن جمع می‌کند.

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 400, 200);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getTextFrameFormat().setWrapText(NullableBool.True);
    textFrame.getTextFrameFormat().setAutofitType(TextAutofitType.None);

    IParagraph paragraph = textFrame.getParagraphs().get_Item(0);
    paragraph.getParagraphFormat().getDefaultPortionFormat().setFontHeight(20);
    paragraph.setText("This text demonstrates how automatic wrapping changes the number of rendered lines.");
    System.out.println("Original width: " + paragraph.getLinesCount());

    shape.setWidth(150);
    System.out.println("Narrower shape: " + paragraph.getLinesCount());

    paragraph.setText("Short text.");
    System.out.println("Shorter text: " + paragraph.getLinesCount());

    Paragraph secondParagraph = new Paragraph();
    secondParagraph.setText("Another paragraph.");
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().setFontHeight(20);
    textFrame.getParagraphs().add(secondParagraph);

    int totalLineCount = 0;
    for (IParagraph currentParagraph : textFrame.getParagraphs()) {
        totalLineCount += currentParagraph.getLinesCount();
    }
    System.out.println("Total lines in the text frame: " + totalLineCount);
} finally {
    presentation.dispose();
}

با این متن و این ابعاد، باریک‌کردن شکل شمارش خطوط را افزایش می‌دهد، در حالی که جایگزینی متن با رشته کوتاه شمارش را کاهش می‌دهد. شمارش دقیق می‌تواند با در دسترس بودن قلم، جایگزینی، اندازه قلم، حاشیه‌ها، تورفتگی‌ها، بسته‌بندی و تنظیمات autofit متفاوت باشد. هنگام بررسی یک قالب، از قلم‌ها و تنظیمات چینشی که برای محیط هدف در نظر گرفته‌اید استفاده کنید.

تعداد خطوط به تنهایی تعیین نمی‌کند که آیا متن از مخزن خود سرریز می‌شود یا نه. ارتفاع موجود، ارتفاع خطوط، فاصله پاراگراف و خطوط، و رفتار autofit نیز مهم هستند؛ حتی یک خط واحد می‌تواند عرض موجود را در صورت غیرفعال بودن بسته‌بندی تجاوز کند.

واردات و صادرات محتوای پاراگراف

از HTML برای ورود متن به یک ارائه یا خروجی پاراگراف‌های موجود برای استفاده خارج از آن استفاده کنید. این بخش همچنین نشان می‌دهد چگونه پاراگراف‌های جداگانه را به‌عنوان تصویر رندر کنید، از جمله پاراگراف‌های داخل سلول‌های جدول.

وارد کردن متن HTML به پاراگراف‌ها

از ‎ParagraphCollection.addFromHtml‎ برای تبدیل نشانه‌گذاری HTML به پاراگراف‌ها و بخش‌ها در یک فریم متن استفاده کنید.

این مثال Java HTML را از یک فایل می‌خواند و نشانه‌گذاری را به ‎ParagraphCollection.addFromHtml‎ می‌فرستد. پاراگراف پیش‌فرض فریم متن را پاک می‌کند تا فریم فقط شامل محتوای وارد شده باشد. شکل مستطیلی حاشیه 10 نقطه‌ای در هر سمت اسلاید می‌گذارد:

import com.aspose.slides.*;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Paths;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    float shapeWidth = (float) presentation.getSlideSize().getSize().getWidth() - 20;
    float shapeHeight = (float) presentation.getSlideSize().getSize().getHeight() - 20;
    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 10, 10, shapeWidth, shapeHeight);
    shape.getFillFormat().setFillType(FillType.NoFill);
    shape.getTextFrame().getParagraphs().clear();

    try {
        byte[] htmlBytes = Files.readAllBytes(Paths.get("file.html"));
        String html = new String(htmlBytes, StandardCharsets.UTF_8);
        shape.getTextFrame().getParagraphs().addFromHtml(html);
        presentation.save("html_text.pptx", SaveFormat.Pptx);
    } catch (IOException exception) {
        System.out.println("The HTML file could not be read: " + exception.getMessage());
    }
} finally {
    presentation.dispose();
}

صادرات متن پاراگراف به HTML

از ‎ParagraphCollection.exportToHtml‎ برای صادرات یک بازه انتخابی از پاراگراف‌ها به HTML استفاده کنید. هنگام استفاده مجدد از متن ارائه در یک وب‌سایت، ممکن است بخواهید تأکید محلی را بدون انتقال قلم، اندازه یا سبک‌های جعبه متن ارائه حفظ کنید. ‎TextToHtmlConversionOptions.setTextInheritanceLimit‎ را تنظیم کنید تا کنترل کنید تا چه حد مبدل قالب‌بندی را به ارث می‌برد.

نمونه ارائه را از ‎the sample presentation‎ دانلود کنید و در پوشه کاری برنامه قرار دهید. اسلاید اول آن یک شکل متنی دارد با متن «Inherited text; explicit red 18pt». ورودی به‌صورت عمدی چندین سطح قالب‌بندی دارد:

  • سبک متن پیش‌فرض ارائه قلم Calibri و اندازه 28 pt را فراهم می‌کند.
  • سبک متن سطح اول فریم متن متن آبی و ایتالیک را فراهم می‌کند.
  • پاراگراف به‌صورت صریح متن بولد تنظیم می‌کند.
  • بخش دوم، «explicit red 18pt»، متن قرمز و اندازه 18 pt را به‌صورت صریح تنظیم می‌کند.

مثال کامل زیر همان پاراگراف‌ها را سه بار صادر می‌کند. ‎TextToHtmlConversionOptions‎ به متد صادرات پاس داده می‌شود و هر نتیجه به‌عنوان یک فایل HTML UTF‑8 جداگانه ذخیره می‌شود:

import com.aspose.slides.*;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Paths;

Presentation presentation = new Presentation("text-inheritance.pptx");
try {
    IShape shape = presentation.getSlides().get_Item(0).getShapes().get_Item(0);

    if (shape instanceof IAutoShape) {
        IAutoShape textShape = (IAutoShape) shape;
        ITextFrame textFrame = textShape.getTextFrame();
        if (textFrame != null) {
            IParagraphCollection paragraphs = textFrame.getParagraphs();

            int[] modes = { TextInheritanceLimit.All, TextInheritanceLimit.TextBox, TextInheritanceLimit.ParagraphOnly };
            String[] fileNames = { "All.html", "TextBox.html", "ParagraphOnly.html" };

            for (int i = 0; i < modes.length; i++) {
                TextToHtmlConversionOptions options = new TextToHtmlConversionOptions();
                options.setTextInheritanceLimit(modes[i]);

                String html = paragraphs.exportToHtml(0, paragraphs.getCount(), options);
                byte[] htmlBytes = html.getBytes(StandardCharsets.UTF_8);
                try {
                    Files.write(Paths.get(fileNames[i]), htmlBytes);
                } catch (IOException exception) {
                    System.out.println("The HTML file could not be written: " + exception.getMessage());
                }
            }
        } else {
            System.out.println("The first shape does not contain a text frame.");
        }
    } else {
        System.out.println("The first shape is not a text shape.");
    }
} finally {
    presentation.dispose();
}

HTML تولید شده CSS زیر را برای اولین بخش «Inherited text; » دارد. جدول اعلان‌های مرتبط را فهرست می‌کند؛ سایر ویژگی‌های تولید شده برای وضوح حذف شده‌اند.

خروجی CSS مرتبط برای بخش اول ظاهر
All.html font-family:'Calibri'; font-size:28pt; color:#0000ff; font-style:italic; font-weight:bold متن آبی، بولد، ایتالیک در 28 pt با Calibri، اگر آن قلم موجود باشد.
TextBox.html color:#0000ff; font-style:italic; font-weight:bold متن آبی، بولد، ایتالیک؛ صفحه یا مرورگر فونت و اندازه را فراهم می‌کند.
ParagraphOnly.html font-weight:bold متن بولد؛ صفحه یا مرورگر فونت، اندازه، رنگ و سبک ایتالیک را فراهم می‌کند.

بخش دوم color:#ff0000، font-size:18pt و font-weight:bold را در هر سه خروجی حفظ می‌کند. همچنین ایتالیک را در All و TextBox حفظ می‌کند اما در ParagraphOnly نیست. محدود کردن ارث‌بری بنابراین قالب‌بندی صریح اختصاص‌یافته به پاراگراف یا بخش را حذف نمی‌کند.

فایل‌ها را در همان مرورگر باز کنید تا مقایسه کنید. در دو حالت محدود شده، ویژگی‌های CSS حذف‌شده توسط سبک‌های صفحه مقصد یا پیش‌فرض‌های مرورگر حل می‌شوند، بنابراین ظاهر نهایی به مکانی که HTML استفاده می‌شود بستگی دارد.

ایجاد یک بخش کلیپ‌بورد HTML

از ‎TextToHtmlConversionOptions.setAddClipboardFragmentHeader‎ برای انتخاب خروجی از ‎IParagraphCollection.exportToHtml‎ استفاده کنید. با مقدار false، متد HTML معمولی برمی‌گرداند. با مقدار true، رشته بازگشتی با سرآیند کلیپ‌بورد ویندوز شروع می‌شود. فیلدهای StartHTML و EndHTML افست‌های بایت UTF‑8 HTML را می‌دهند، در حالی که StartFragment و EndFragment محتوای قابل چسباندن را شناسایی می‌کنند.

این مثال دو پاراگراف قالب‌بندی‌شده را به عنوان HTML معمولی (html) و به عنوان یک بخش کلیپ‌بورد HTML (clipboardHtml) صادر می‌کند. سپس برنامه می‌تواند این بخش را در کلیپ‌بورد سیستم بنویسد. اگر API کلیپ‌بورد انتظار بایت‌های خام داشته باشد، بخش را به‌صورت UTF‑8 بدون علامت ترتیب بایت (BOM) رمزگذاری کنید.

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 0, 0, 400, 100);
    IParagraphCollection paragraphs = shape.getTextFrame().getParagraphs();
    paragraphs.clear();
    paragraphs.addFromHtml("<p>Status: <b>Ready</b></p><p><i>Next steps</i></p>");

    TextToHtmlConversionOptions options = new TextToHtmlConversionOptions();
    options.setAddClipboardFragmentHeader(false);
    String html = paragraphs.exportToHtml(0, paragraphs.getCount(), options);

    options.setAddClipboardFragmentHeader(true);
    String clipboardHtml = paragraphs.exportToHtml(0, paragraphs.getCount(), options);
} finally {
    presentation.dispose();
}

رندر پاراگراف به عنوان تصویر

‎IParagraph.getImage‎ یک پاراگراف جداگانه را مستقیماً رندر می‌کند و یک ‎IImage‎ برمی‌گرداند. نتیجه را با ‎IImage.save‎ به فایل یا جریان ذخیره کنید. نیازی به رندر شکل حاوی آن یا برش دستی bitmap نیست.

‎IParagraph.getImage‎ می‌تواند null برگرداند اگر پاراگراف در مجموعه والد یافت نشود، مرزهای رندر معتبری نداشته باشد یا قابل رندر نباشد. قبل از ذخیره‌سازی نتیجه را بررسی کنید و پس از استفاده تصویر برگشتی را آزاد کنید.

رندر پاراگراف با مقیاس پیش‌فرض

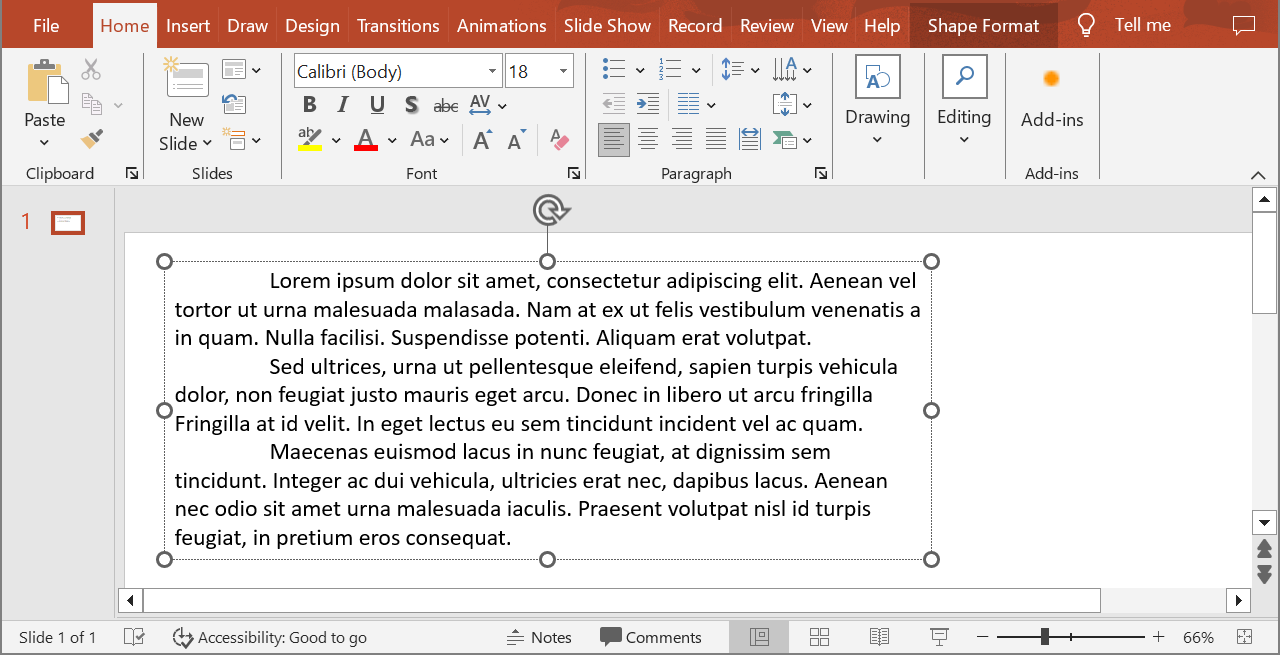

این مثال یک ارائه با یک اسلاید دارد که شکل اول آن یک جعبه متن حاوی سه پاراگراف است.

جعبه متن با سه پاراگراف

مثال زیر پاراگراف دوم را با ایندکس 1 انتخاب می‌کند و بدون پارامترهای مقیاس ‎IParagraph.getImage‎ را فراخوانی می‌کند. بررسی می‌کند که شکل پاراگراف مورد نیاز را دارد و رندر تصویر باز می‌گردد قبل از اینکه ‎IImage.save‎ برای ذخیره به فرمت PNG فراخوانی شود. بلوک finally تصویر را پس از استفاده آزاد می‌کند.

import com.aspose.slides.*;

Presentation presentation = new Presentation("sample.pptx");
try {
    IShape shape = presentation.getSlides().get_Item(0).getShapes().get_Item(0);

    if (shape instanceof IAutoShape) {
        IAutoShape textShape = (IAutoShape) shape;
        ITextFrame textFrame = textShape.getTextFrame();
        if (textFrame != null && textFrame.getParagraphs().getCount() > 1) {
            IParagraph paragraph = textFrame.getParagraphs().get_Item(1);
            IImage paragraphImage = paragraph.getImage();

            if (paragraphImage != null) {
                try {
                    paragraphImage.save("paragraph.png", ImageFormat.Png);
                } finally {
                    paragraphImage.dispose();
                }
            } else {
                System.out.println("The paragraph could not be rendered.");
            }
        } else {
            System.out.println("The expected paragraph was not found.");
        }
    } else {
        System.out.println("The first shape is not a text shape.");
    }
} finally {
    presentation.dispose();
}

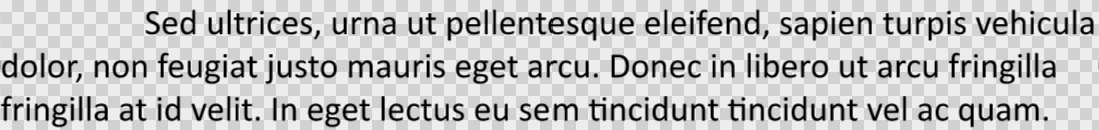

نتیجه:

تصویر پاراگراف

رندر پاراگراف در سلول جدول با مقیاس‌دهی

از بارگیری ‎IParagraph.getImage‎ که پارامترهای float scaleX و float scaleY را می‌پذیرد استفاده کنید تا عوامل مقیاس افقی و عمودی را تنظیم کنید. مثال زیر یک جدول می‌سازد، پاراگراف را در اولین سلول آن با دو برابر عرض و ارتفاع پیش‌فرض رندر می‌کند و نتیجه را به‌صورت تصویر PNG ذخیره می‌کند.

import com.aspose.slides.*;

float scaleX = 2f;
float scaleY = 2f;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    ITable table = slide.getShapes().addTable(50, 50, new double[] { 300 }, new double[] { 80 });
    IParagraph paragraph = table.get_Item(0, 0).getTextFrame().getParagraphs().get_Item(0);
    paragraph.setText("Text in a table cell");

    IImage paragraphImage = paragraph.getImage(scaleX, scaleY);
    if (paragraphImage != null) {
        try {
            paragraphImage.save("table_paragraph.png", ImageFormat.Png);
        } finally {
            paragraphImage.dispose();
        }
    } else {
        System.out.println("The paragraph could not be rendered.");
    }
} finally {
    presentation.dispose();
}

عامل مقیاس 1 آن محور را در اندازه پیکسل پیش‌فرض نگه می‌دارد. برای مثال، 2 برای هر دو عامل تصویر با عرض و ارتفاع تقریباً دو برابر ابعاد پیش‌فرض تولید می‌کند که برابر با چهار برابر پیکسل است. عوامل بزرگ‌تر معمولاً متن واضح‌تری برای زوم یا خروجی با وضوح بالا تولید می‌کنند، اما مصرف حافظه و حجم فایل را نیز افزایش می‌دهند. عوامل کمتر از 1 تصاویر کوچکتر با جزئیات کمتر تولید می‌کنند. برای حفظ نسبت عرض به ارتفاع پاراگراف از عوامل برابر استفاده کنید؛ عوامل متفاوت افقی و عمودی خروجی را به‌صورت مستقل کش می‌دهند.

رندر یک شکل کامل با ‎IShape.getImage‎ هنوز زمانی مفید است که خروجی باید پرکننده، حاشیه یا سایر زمینه‌های بصری شکل را شامل شود. برای تصویر فقط پاراگراف، از ‎IParagraph.getImage‎ استفاده کنید.

سؤالات متداول

آیا می‌توانم به‌طور کامل بسته‌بندی خط داخل فریم متن را غیرفعال کنم؟

بله. ‎ITextFrameFormat.setWrapText‎ را تنظیم کنید تا بسته‌بندی غیرفعال شود و خطوط در لبه‌های فریم متن شکسته نشوند.

چگونه می‌توانم مرزهای دقیق روی اسلاید یک پاراگراف خاص را دریافت کنم؟

از ‎IParagraph.getRect‎ برای دریافت مستطیل باندینگ پاراگراف استفاده کنید. ‎IPortion.getRect‎ مرزهای یک بخش جداگانه را فراهم می‌کند.

کنترل تراز پاراگراف (چپ، راست، مرکز یا کشیده) کجا انجام می‌شود؟

‎IParagraphFormat.setAlignment‎ یک تنظیم سطح پاراگراف است و بر تمام پاراگراف اعمال می‌شود، صرف‌نظر از قالب‌بندی بخش‌های جداگانه.

برای تراز عمودی بخش‌های با اندازه قلم متفاوت در هر خط، به ‎Align Fonts Within a Line‎ مراجعه کنید.

آیا می‌توانم زبان بازبینی را برای بخشی از پاراگراف تنظیم کنم؟

بله. برای بخش‌های جداگانه ‎IBasePortionFormat.setLanguageId‎ را تنظیم کنید تا یک پاراگراف بتواند متن‌های چند زبانه داشته باشد.
