Java에서 PowerPoint 텍스트 단락 관리

개요

Aspose.Slides for Java는 텍스트를 텍스트 프레임, 단락 및 포션의 계층 구조로 나타냅니다:

  • ITextFrame 텍스트 컨테이너를 나타내며 텍스트 프레임의 단락 컬렉션에 접근할 수 있습니다.
  • IParagraph 텍스트 프레임 내의 하나의 단락을 나타내며 포션 및 단락 수준 서식에 접근할 수 있습니다.
  • IPortion 단락 내의 텍스트 실행을 나타냅니다. 각 포션은 자체 텍스트와 문자 수준 서식을 가질 수 있습니다.

따라서 단락은 여러 포션을 사용하여 서로 다른 글꼴, 색상, 크기 및 기타 서식을 가진 텍스트를 포함할 수 있습니다.

단락 만들기 및 서식 지정

쉐이프의 텍스트 프레임에서 단락을 만들고 포션을 사용해 개별 텍스트 실행에 서식을 지정합니다. 이 섹션에서는 각 단락에 여러 포션을 결합하고 서로 다른 색상, 글꼴 크기 및 스타일을 적용하는 방법을 보여줍니다.

여러 포션을 가진 단락 만들기

다음 Java 예제는 IParagraph.getPortions 컬렉션에서 반환된 세 개의 텍스트 실행을 각각 포함하는 세 개의 단락을 생성합니다. 기본 단락과 빈 포션을 재사용한 뒤 남은 단락과 포션을 추가합니다. 서식은 IPortion.getPortionFormat을 통해 적용됩니다. 각 단락의 첫 번째 포션은 빨간색, 굵게, 15 포인트이며, 두 번째는 파란색, 이탤릭, 18 포인트입니다. 세 번째 포션은 기본 서식을 유지합니다:

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 150, 300, 150);
    ITextFrame textFrame = shape.getTextFrame();

    IParagraph firstParagraph = textFrame.getParagraphs().get_Item(0);
    firstParagraph.getPortions().add(new Portion());
    firstParagraph.getPortions().add(new Portion());

    IParagraph secondParagraph = new Paragraph();
    secondParagraph.getPortions().add(new Portion());
    secondParagraph.getPortions().add(new Portion());
    secondParagraph.getPortions().add(new Portion());
    textFrame.getParagraphs().add(secondParagraph);

    IParagraph thirdParagraph = new Paragraph();
    thirdParagraph.getPortions().add(new Portion());
    thirdParagraph.getPortions().add(new Portion());
    thirdParagraph.getPortions().add(new Portion());
    textFrame.getParagraphs().add(thirdParagraph);

    int paragraphCount = textFrame.getParagraphs().getCount();
    for (int paragraphIndex = 0; paragraphIndex < paragraphCount; paragraphIndex++) {
        IParagraph paragraph = textFrame.getParagraphs().get_Item(paragraphIndex);
        int portionCount = paragraph.getPortions().getCount();
        for (int portionIndex = 0; portionIndex < portionCount; portionIndex++) {
            IPortion portion = paragraph.getPortions().get_Item(portionIndex);
            portion.setText("Portion " + (paragraphIndex + 1) + "." + (portionIndex + 1));

            if (portionIndex == 0) {
                portion.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
                portion.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.RED);
                portion.getPortionFormat().setFontBold(NullableBool.True);
                portion.getPortionFormat().setFontHeight(15);
            } else if (portionIndex == 1) {
                portion.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
                portion.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLUE);
                portion.getPortionFormat().setFontItalic(NullableBool.True);
                portion.getPortionFormat().setFontHeight(18);
            }
        }
    }

    presentation.save("paragraphs_with_portions.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

글머리표 및 번호 매기기 목록 만들기

단락 텍스트를 기호, 번호 또는 사용자 정의 이미지가 있는 목록으로 구성합니다. 이 섹션의 예제는 글머리표 서식, 다중 레벨 목록 및 사용자 정의 시작 번호를 다룹니다.

글머리표 또는 번호 매기기 목록 만들기

글머리표와 번호 매기기는 관련 항목을 더 쉽게 스캔할 수 있게 합니다. Aspose.Slides에서 목록 설정은 IBulletFormat을 통해 정의됩니다.

다음 Java 예제는 동일한 텍스트 프레임에 기호 글머리표와 번호 매기기 항목을 추가합니다. IBulletFormat.setType은 글머리표 유형을 선택하고, IBulletFormat.setChar은 기호를 제공하며, IBulletFormat.setNumberedBulletStyle는 번호 매기기 스타일을 선택합니다. 두 항목 모두 높이가 100 %이고 들여쓰기가 25 포인트인 검은색 글머리표를 사용합니다:

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    Paragraph symbolParagraph = new Paragraph();
    symbolParagraph.setText("Welcome to Aspose.Slides");
    symbolParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    symbolParagraph.getParagraphFormat().getBullet().setChar((char) 0x2022);
    symbolParagraph.getParagraphFormat().setIndent(25);
    symbolParagraph.getParagraphFormat().getBullet().getColor().setColorType(ColorType.RGB);
    symbolParagraph.getParagraphFormat().getBullet().getColor().setColor(Color.BLACK);
    symbolParagraph.getParagraphFormat().getBullet().setBulletHardColor(NullableBool.True);
    symbolParagraph.getParagraphFormat().getBullet().setHeight(100);
    textFrame.getParagraphs().add(symbolParagraph);

    Paragraph numberedParagraph = new Paragraph();
    numberedParagraph.setText("This is a numbered item");
    numberedParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    numberedParagraph.getParagraphFormat().getBullet().setNumberedBulletStyle(NumberedBulletStyle.BulletCircleNumWDBlackPlain);
    numberedParagraph.getParagraphFormat().setIndent(25);
    numberedParagraph.getParagraphFormat().getBullet().getColor().setColorType(ColorType.RGB);
    numberedParagraph.getParagraphFormat().getBullet().getColor().setColor(Color.BLACK);
    numberedParagraph.getParagraphFormat().getBullet().setBulletHardColor(NullableBool.True);
    numberedParagraph.getParagraphFormat().getBullet().setHeight(100);
    textFrame.getParagraphs().add(numberedParagraph);

    presentation.save("bulleted_and_numbered_list.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

그림 글머리표 사용

그림 글머리표를 사용하면 기호나 숫자 대신 사용자 정의 이미지를 사용할 수 있습니다.

다음 Java 예제는 프레젠테이션의 이미지 컬렉션에 IPPImage로 이미지를 추가하고 이를 단락 글머리표로 사용합니다. IBulletFormat.setType을 호출해 그림 글머리표를 사용하도록 하고, IBulletFormat.getPicture를 통해 이미지를 할당합니다. IBulletFormat.setHeight를 100 %로 설정해 글머리표 크기를 단락 텍스트에 비례하도록 합니다:

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IImage bulletImage = Images.fromFile("bullets.png");
    IPPImage presentationImage;
    try {
        presentationImage = presentation.getImages().addImage(bulletImage);
    } finally {
        bulletImage.dispose();
    }

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    Paragraph paragraph = new Paragraph();
    paragraph.setText("Welcome to Aspose.Slides");
    paragraph.getParagraphFormat().getBullet().setType(BulletType.Picture);
    paragraph.getParagraphFormat().getBullet().getPicture().setImage(presentationImage);
    paragraph.getParagraphFormat().getBullet().setHeight(100);
    textFrame.getParagraphs().add(paragraph);

    presentation.save("picture_bullet.pptx", SaveFormat.Pptx);
    presentation.save("picture_bullet.ppt", SaveFormat.Ppt);
} finally {
    presentation.dispose();
}

다중 레벨 목록 만들기

IParagraphFormat.setDepth을 설정해 목록의 서로 다른 레벨에 단락을 배치합니다. 최상위 레벨은 0 깊이를 가집니다.

다음 Java 예제는 네 개의 단락에 대해 0부터 3까지의 IParagraphFormat.setDepth 값을 지정해 하나의 텍스트 프레임 내에 계층 구조를 만들고, 각 단락은 기호 글머리표를 사용합니다. IBulletFormat.setChar를 사용해 원형 글머리표와 하이픈을 번갈아가며 인접 레벨을 구분합니다:

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    IParagraph firstParagraph = new Paragraph();
    firstParagraph.setText("Content");
    firstParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    firstParagraph.getParagraphFormat().getBullet().setChar((char) 0x2022);
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    firstParagraph.getParagraphFormat().setDepth((short) 0);

    IParagraph secondParagraph = new Paragraph();
    secondParagraph.setText("Second level");
    secondParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    secondParagraph.getParagraphFormat().getBullet().setChar('-');
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    secondParagraph.getParagraphFormat().setDepth((short) 1);

    IParagraph thirdParagraph = new Paragraph();
    thirdParagraph.setText("Third level");
    thirdParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    thirdParagraph.getParagraphFormat().getBullet().setChar((char) 0x2022);
    thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    thirdParagraph.getParagraphFormat().setDepth((short) 2);

    IParagraph fourthParagraph = new Paragraph();
    fourthParagraph.setText("Fourth level");
    fourthParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    fourthParagraph.getParagraphFormat().getBullet().setChar('-');
    fourthParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    fourthParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    fourthParagraph.getParagraphFormat().setDepth((short) 3);

    textFrame.getParagraphs().add(firstParagraph);
    textFrame.getParagraphs().add(secondParagraph);
    textFrame.getParagraphs().add(thirdParagraph);
    textFrame.getParagraphs().add(fourthParagraph);

    presentation.save("multilevel_list.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

사용자 정의 값으로 번호 매기기 시작

IBulletFormat.setNumberedBulletStartWith을 사용해 번호 매기기 단락의 초기 번호를 설정합니다.

다음 Java 예제는 세 개의 단락에 대해 번호 매기기를 사용하도록 IBulletFormat.setType을 설정하고, 각각 2, 3, 7의 시작 값을 갖도록 IBulletFormat.setNumberedBulletStartWith을 지정합니다. 시작 값은 각 단락마다 별도로 구성되어 표시되는 번호가 건너뛰게 됩니다:

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    Paragraph firstParagraph = new Paragraph();
    firstParagraph.setText("Start at 2");
    firstParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    firstParagraph.getParagraphFormat().getBullet().setNumberedBulletStartWith((short) 2);
    textFrame.getParagraphs().add(firstParagraph);

    Paragraph secondParagraph = new Paragraph();
    secondParagraph.setText("Start at 3");
    secondParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    secondParagraph.getParagraphFormat().getBullet().setNumberedBulletStartWith((short) 3);
    textFrame.getParagraphs().add(secondParagraph);

    Paragraph thirdParagraph = new Paragraph();
    thirdParagraph.setText("Start at 7");
    thirdParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    thirdParagraph.getParagraphFormat().getBullet().setNumberedBulletStartWith((short) 7);
    textFrame.getParagraphs().add(thirdParagraph);

    presentation.save("custom_numbered_list.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

단락 레이아웃 및 종료 속성 제어

단락 여백 및 들여쓰기를 조정해 첫 번째 줄과 래핑된 줄의 위치를 제어합니다. 또한 표시 텍스트 포션과 별도로 단락 종료 표시의 서식을 지정할 수 있습니다.

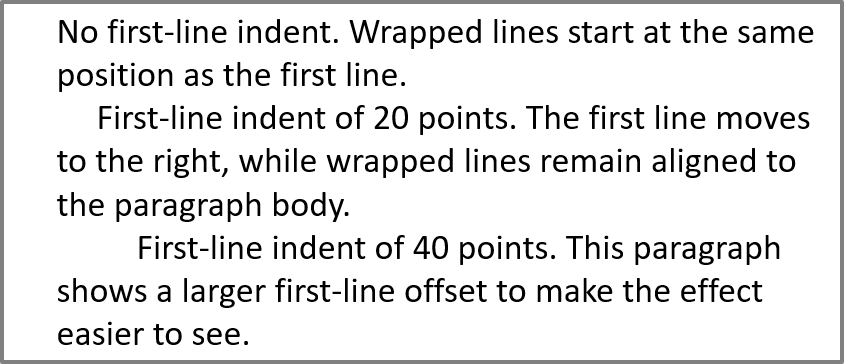

첫 줄 들여쓰기 설정

IParagraphFormat.setIndent 메서드를 사용해 단락의 첫 줄 들여쓰기를 제어합니다. 이 설정은 단락의 왼쪽 여백에 대해 첫 번째 줄만 이동시킵니다. 양수 값은 첫 번째 줄을 오른쪽으로 이동시키고, 나머지 줄은 단락 본문에 맞춰 정렬됩니다.

전체 단락을 이동하려면 IParagraphFormat.setMarginLeft를 사용합니다. 첫 번째 줄만 이동하려면 IParagraphFormat.setIndent를 사용합니다.

다음 예제는 세 단락에 동일한 IParagraphFormat.setMarginLeft 20 포인트와 IParagraphFormat.setIndent 값을 각각 0, 20, 40 포인트 적용합니다. 첫 줄은 점점 더 큰 오프셋에서 시작하고, 래핑된 줄은 동일한 왼쪽 여백을 유지합니다:

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 420, 220);
    shape.getFillFormat().setFillType(FillType.NoFill);
    shape.getLineFormat().getFillFormat().setFillType(FillType.Solid);
    shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.GRAY);

    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getTextFrameFormat().setAutofitType(TextAutofitType.Shape);
    textFrame.getParagraphs().clear();

    Paragraph firstParagraph = new Paragraph();
    firstParagraph.setText("No first-line indent. Wrapped lines start at the same position as the first line.");
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    firstParagraph.getParagraphFormat().setMarginLeft(20f);
    firstParagraph.getParagraphFormat().setIndent(0f);

    Paragraph secondParagraph = new Paragraph();
    secondParagraph.setText("First-line indent of 20 points. The first line moves to the right, while wrapped lines remain aligned to the paragraph body.");
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    secondParagraph.getParagraphFormat().setMarginLeft(20f);
    secondParagraph.getParagraphFormat().setIndent(20f);

    Paragraph thirdParagraph = new Paragraph();
    thirdParagraph.setText("First-line indent of 40 points. This paragraph shows a larger first-line offset to make the effect easier to see.");
    thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    thirdParagraph.getParagraphFormat().setMarginLeft(20f);
    thirdParagraph.getParagraphFormat().setIndent(40f);

    textFrame.getParagraphs().add(firstParagraph);
    textFrame.getParagraphs().add(secondParagraph);
    textFrame.getParagraphs().add(thirdParagraph);

    presentation.save("paragraph_indent.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

결과:

단락의 첫 줄 들여쓰기

행 부착 들여쓰기 설정

행 부착 들여쓰기는 첫 번째 줄이 나머지 줄보다 왼쪽에 시작되는 단락 레이아웃입니다. Aspose.Slides에서는 IParagraphFormat.setIndent 속성을 사용해 이 효과를 만들 수 있습니다. Indent를 음수 값으로 설정하면 단락 본문에 비해 첫 번째 줄이 왼쪽으로 이동합니다.

실제로는 IParagraphFormat.setMarginLeft가 단락 본문의 왼쪽 위치를 정의하고, IParagraphFormat.setIndent가 해당 여백에 대한 첫 번째 줄의 위치를 정의합니다. 행 부착 들여쓰기를 만들려면 양수 MarginLeft 값과 음수 Indent 값을 설정합니다.

이 서식은 참고문헌, 인용, 용어집 항목 및 다른 단락에서 래핑된 줄이 첫 줄의 첫 문자 아래가 아니라 단락 본문 아래에 정렬되어야 할 때 유용합니다.

다음 Java 예제는 IParagraphFormat.setMarginLeft 값을 40 포인트와 60 포인트로, IParagraphFormat.setIndent 값을 -20과 -30으로 각각 지정합니다. 각 단락에서 첫 번째 줄은 래핑된 줄보다 왼쪽에서 시작되며, 두 번째 단락은 더 깊은 행 부착 들여쓰기를 가집니다:

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 420, 220);
    shape.getFillFormat().setFillType(FillType.NoFill);
    shape.getLineFormat().getFillFormat().setFillType(FillType.Solid);
    shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.GRAY);

    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getTextFrameFormat().setAutofitType(TextAutofitType.Shape);
    textFrame.getParagraphs().clear();

    Paragraph firstParagraph = new Paragraph();
    firstParagraph.setText("A hanging indent is created by combining a positive left margin with a negative indent. The first line starts to the left, while wrapped lines align with the paragraph body.");
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    firstParagraph.getParagraphFormat().setMarginLeft(40f);
    firstParagraph.getParagraphFormat().setIndent(-20f);

    Paragraph secondParagraph = new Paragraph();
    secondParagraph.setText("This second example uses a deeper hanging indent so the difference between the first line and the wrapped lines is easier to compare.");
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    secondParagraph.getParagraphFormat().setMarginLeft(60f);
    secondParagraph.getParagraphFormat().setIndent(-30f);

    textFrame.getParagraphs().add(firstParagraph);
    textFrame.getParagraphs().add(secondParagraph);

    presentation.save("hanging_indent.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

결과:

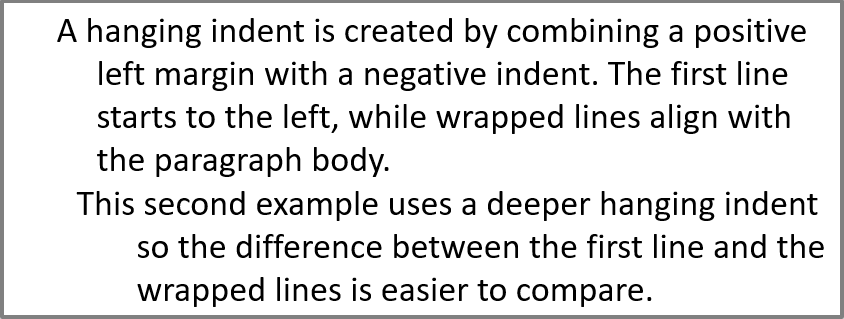

단락의 행 부착 들여쓰기

단락 종료 실행 속성 설정

IParagraph.setEndParagraphPortionFormat 메서드는 단락 종료 표시의 서식을 제어합니다. 다음 예제는 PortionFormat을 만들고, IBasePortionFormat.setFontHeight을 48 포인트, IBasePortionFormat.setLatinFont을 Times New Roman으로 설정합니다. 이 서식을 두 번째 단락의 종료 표시에 할당하고, 가시 텍스트 포션은 변경하지 않습니다:

import com.aspose.slides.*;

Presentation presentation = new Presentation("Test.pptx");
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 10, 10, 200, 250);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    Paragraph firstParagraph = new Paragraph();
    firstParagraph.getPortions().add(new Portion("Sample text"));

    Paragraph secondParagraph = new Paragraph();
    secondParagraph.getPortions().add(new Portion("Sample text 2"));

    PortionFormat endParagraphFormat = new PortionFormat();
    endParagraphFormat.setFontHeight(48);
    endParagraphFormat.setLatinFont(new FontData("Times New Roman"));
    secondParagraph.setEndParagraphPortionFormat(endParagraphFormat);

    textFrame.getParagraphs().add(firstParagraph);
    textFrame.getParagraphs().add(secondParagraph);

    presentation.save("end_paragraph_format.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

렌더링된 라인 수 계산

라인 종료 시 자동 래핑 및 구두점에 영향을 주는 단락 규칙은 Control Line Breaking 및 Control Hanging Punctuation 을 참고하십시오.

IParagraph.getLinesCount을 사용해 텍스트 레이아웃 후 단락이 차지하는 라인 수를 계산합니다(자동 래핑 포함). 이는 프레젠테이션 템플릿에서 텍스트 길이와 레이아웃을 확인할 때 유용합니다.

단락은 ITextFrame.getParagraphs의 항목이며, 여러 렌더링된 라인을 차지할 수 있습니다. 단락 내 명시적 줄 바꿈은 새 라인을 강제하지만 새로운 단락을 만들지는 않습니다. 자동 래핑은 명시적 줄 바꿈 없이 가용 폭에 따라 라인을 생성합니다. 따라서 단락 수 또는 줄 바꿈 문자만으로는 렌더링된 라인 수를 알 수 없습니다.

다음 예제는 텍스트 쉐이프를 만들고, 라인 수를 계산한 뒤, 쉐이프를 좁히고 짧은 문자열로 텍스트를 교체합니다. 예제는 ITextFrameFormat.setWrapText로 래핑을 활성화하고, ITextFrameFormat.setAutofitType로 자동 맞춤을 비활성화해 쉐이프 폭이 래핑을 제어하도록 합니다. 각 측정은 IParagraph.getLinesCount를 사용합니다. 쉐이프 크기는 포인트 단위입니다. 마지막으로 예제는 또 다른 단락을 추가하고 텍스트 프레임 전체의 라인 수를 합산합니다.

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 400, 200);
    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getTextFrameFormat().setWrapText(NullableBool.True);
    textFrame.getTextFrameFormat().setAutofitType(TextAutofitType.None);

    IParagraph paragraph = textFrame.getParagraphs().get_Item(0);
    paragraph.getParagraphFormat().getDefaultPortionFormat().setFontHeight(20);
    paragraph.setText("This text demonstrates how automatic wrapping changes the number of rendered lines.");
    System.out.println("Original width: " + paragraph.getLinesCount());

    shape.setWidth(150);
    System.out.println("Narrower shape: " + paragraph.getLinesCount());

    paragraph.setText("Short text.");
    System.out.println("Shorter text: " + paragraph.getLinesCount());

    Paragraph secondParagraph = new Paragraph();
    secondParagraph.setText("Another paragraph.");
    secondParagraph.getParagraphFormat().getDefaultPortionFormat().setFontHeight(20);
    textFrame.getParagraphs().add(secondParagraph);

    int totalLineCount = 0;
    for (IParagraph currentParagraph : textFrame.getParagraphs()) {
        totalLineCount += currentParagraph.getLinesCount();
    }
    System.out.println("Total lines in the text frame: " + totalLineCount);
} finally {
    presentation.dispose();
}

이 텍스트와 이러한 차원을 사용하면 쉐이프를 좁히면 라인 수가 증가하고, 짧은 문자열로 교체하면 라인 수가 감소합니다. 정확한 카운트는 글꼴 가용성 및 대체, 글꼴 크기, 여백, 들여쓰기, 래핑 및 자동 맞춤 설정에 따라 달라질 수 있습니다. 템플릿을 확인할 때는 대상 환경에서 사용할 글꼴 및 레이아웃 설정을 사용하십시오.

라인 수만으로 텍스트가 컨테이너를 초과하는지 여부를 판단할 수 없습니다. 사용 가능한 높이, 라인 높이, 단락 및 라인 간격, 자동 맞춤 동작도 중요합니다; 래핑이 비활성화된 경우 단일 라인이라도 가용 폭을 초과할 수 있습니다.

단락 내용 가져오기 및 내보내기

HTML을 사용해 텍스트를 프레젠테이션에 가져오거나 기존 단락을 외부에서 사용할 수 있도록 내보냅니다. 이 섹션에서는 테이블 셀 내 단락을 포함한 개별 단락을 이미지로 렌더링하는 방법도 보여줍니다.

HTML 텍스트를 단락으로 가져오기

ParagraphCollection.addFromHtml을 사용해 HTML 마크업을 텍스트 프레임의 단락 및 포션으로 변환합니다.

다음 Java 예제는 파일에서 HTML을 읽어 ParagraphCollection.addFromHtml에 전달합니다. 텍스트 프레임의 기본 단락을 지워 가져온 콘텐츠만 포함하도록 합니다. 사각형 쉐이프는 슬라이드 각 측면에 10 포인트 여백을 남깁니다:

import com.aspose.slides.*;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Paths;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    float shapeWidth = (float) presentation.getSlideSize().getSize().getWidth() - 20;
    float shapeHeight = (float) presentation.getSlideSize().getSize().getHeight() - 20;
    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 10, 10, shapeWidth, shapeHeight);
    shape.getFillFormat().setFillType(FillType.NoFill);
    shape.getTextFrame().getParagraphs().clear();

    try {
        byte[] htmlBytes = Files.readAllBytes(Paths.get("file.html"));
        String html = new String(htmlBytes, StandardCharsets.UTF_8);
        shape.getTextFrame().getParagraphs().addFromHtml(html);
        presentation.save("html_text.pptx", SaveFormat.Pptx);
    } catch (IOException exception) {
        System.out.println("The HTML file could not be read: " + exception.getMessage());
    }
} finally {
    presentation.dispose();
}

단락 텍스트를 HTML로 내보내기

ParagraphCollection.exportToHtml을 사용해 선택된 단락 범위를 HTML로 내보냅니다. 프레젠테이션 텍스트를 웹사이트에 재사용할 때, 프레젠테이션의 글꼴, 크기 또는 텍스트 박스 스타일을 유지하지 않고 로컬 강조만 유지하고 싶을 수 있습니다. TextToHtmlConversionOptions.setTextInheritanceLimit을 설정해 내보내기가 서식 상속을 따라갈 깊이를 제어합니다.

샘플 프레젠테이션을 다운로드하고 애플리케이션 작업 디렉터리에 배치합니다. 첫 슬라이드에는 텍스트 “Inherited text; explicit red 18pt"가 들어 있는 하나의 텍스트 쉐이프가 있습니다. 입력은 의도적으로 여러 서식 레벨을 사용합니다:

  • 프레젠테이션 기본 텍스트 스타일은 Calibri와 28 pt 크기를 제공합니다.
  • 텍스트 프레임의 1단계 텍스트 스타일은 파란색 텍스트와 이탤릭을 제공합니다.
  • 단락은 굵은 텍스트를 명시적으로 설정합니다.
  • 두 번째 포션인 “explicit red 18pt"는 빨간색 텍스트와 18 pt 크기를 명시적으로 설정합니다.

다음 완전한 예제는 동일한 단락을 세 번 내보냅니다. TextToHtmlConversionOptions을 내보내기 메서드에 전달하고 각 결과를 별도의 UTF-8 HTML 파일로 저장합니다:

import com.aspose.slides.*;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Paths;

Presentation presentation = new Presentation("text-inheritance.pptx");
try {
    IShape shape = presentation.getSlides().get_Item(0).getShapes().get_Item(0);

    if (shape instanceof IAutoShape) {
        IAutoShape textShape = (IAutoShape) shape;
        ITextFrame textFrame = textShape.getTextFrame();
        if (textFrame != null) {
            IParagraphCollection paragraphs = textFrame.getParagraphs();

            int[] modes = { TextInheritanceLimit.All, TextInheritanceLimit.TextBox, TextInheritanceLimit.ParagraphOnly };
            String[] fileNames = { "All.html", "TextBox.html", "ParagraphOnly.html" };

            for (int i = 0; i < modes.length; i++) {
                TextToHtmlConversionOptions options = new TextToHtmlConversionOptions();
                options.setTextInheritanceLimit(modes[i]);

                String html = paragraphs.exportToHtml(0, paragraphs.getCount(), options);
                byte[] htmlBytes = html.getBytes(StandardCharsets.UTF_8);
                try {
                    Files.write(Paths.get(fileNames[i]), htmlBytes);
                } catch (IOException exception) {
                    System.out.println("The HTML file could not be written: " + exception.getMessage());
                }
            }
        } else {
            System.out.println("The first shape does not contain a text frame.");
        }
    } else {
        System.out.println("The first shape is not a text shape.");
    }
} finally {
    presentation.dispose();
}

생성된 HTML에는 첫 번째 포션 “Inherited text; “에 대한 다음 CSS가 포함됩니다. 표는 관련 선언을 나열하고, 다른 생성 속성은 명확성을 위해 생략했습니다.

출력 파일 첫 번째 포션에 대한 관련 CSS 모양
All.html font-family:'Calibri'; font-size:28pt; color:#0000ff; font-style:italic; font-weight:bold Calibri가 사용 가능하면 28 pt, 파란색, 굵게, 이탤릭 텍스트
TextBox.html color:#0000ff; font-style:italic; font-weight:bold 파란색, 굵게, 이탤릭 텍스트; 주변 페이지 또는 브라우저가 글꼴 패밀리와 크기를 제공합니다
ParagraphOnly.html font-weight:bold 굵게 텍스트; 주변 페이지 또는 브라우저가 글꼴 패밀리, 크기, 색상 및 이탤릭 스타일을 제공합니다

두 번째 포션은 모든 출력에서 color:#ff0000, font-size:18pt, font-weight:bold를 유지합니다. 또한 All과 TextBox에서는 이탤릭이 유지되지만 ParagraphOnly에서는 유지되지 않습니다. 상속 제한을 사용해도 단락이나 포션에 명시적으로 할당된 서식은 제거되지 않습니다.

동일한 브라우저에서 파일을 열어 비교하십시오. 제한된 두 모드에서는 누락된 CSS 속성이 대상 페이지 스타일 또는 브라우저 기본값에 의해 해결되므로 최종 모양은 HTML이 사용되는 위치에 따라 달라집니다.

HTML 클립보드 조각 생성

TextToHtmlConversionOptions.setAddClipboardFragmentHeader을 사용해 IParagraphCollection.exportToHtml의 출력을 선택합니다. false이면 일반 HTML을 반환하고, true이면 Windows 클립보드 헤더가 포함된 문자열을 반환합니다. StartHTML과 EndHTML 필드는 HTML의 UTF-8 바이트 오프셋을 제공하고, StartFragment와 EndFragment는 붙여넣을 콘텐츠를 식별합니다.

이 예제는 두 개의 서식 있는 단락을 일반 HTML(html)과 HTML 클립보드 조각(clipboardHtml)으로 각각 내보냅니다. 애플리케이션은 이후 조각을 시스템 클립보드에 기록할 수 있습니다. 클립보드 API가 원시 바이트를 기대한다면, BOM 없이 UTF-8로 인코딩하십시오.

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 0, 0, 400, 100);
    IParagraphCollection paragraphs = shape.getTextFrame().getParagraphs();
    paragraphs.clear();
    paragraphs.addFromHtml("<p>Status: <b>Ready</b></p><p><i>Next steps</i></p>");

    TextToHtmlConversionOptions options = new TextToHtmlConversionOptions();
    options.setAddClipboardFragmentHeader(false);
    String html = paragraphs.exportToHtml(0, paragraphs.getCount(), options);

    options.setAddClipboardFragmentHeader(true);
    String clipboardHtml = paragraphs.exportToHtml(0, paragraphs.getCount(), options);
} finally {
    presentation.dispose();
}

단락을 이미지로 렌더링

IParagraph.getImage은 개별 단락을 직접 렌더링하고 IImage를 반환합니다. 결과를 IImage.save로 파일이나 스트림에 저장하십시오. 포함된 쉐이프를 렌더링하거나 비트맵을 수동으로 잘라낼 필요가 없습니다.

IParagraph.getImage은 단락이 상위 컬렉션에 없거나 유효한 렌더링 경계가 없거나 렌더링할 수 없는 경우 null을 반환할 수 있습니다. 저장하기 전에 결과를 확인하고 사용 후 반환된 이미지를 해제하십시오.

기본 스케일로 단락 렌더링

예제는 하나의 슬라이드가 있는 프레젠테이션을 사용하며, 첫 번째 쉐이프는 세 개의 단락이 들어 있는 텍스트 상자입니다.

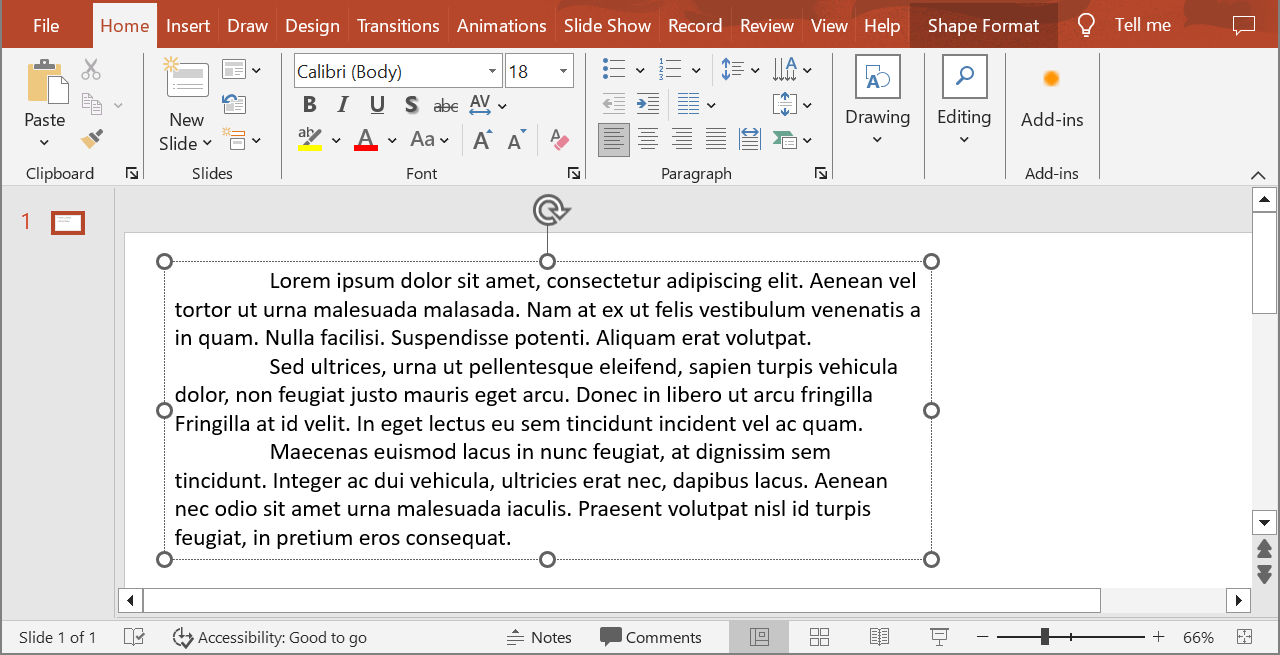

세 개의 단락이 있는 텍스트 박스

다음 예제는 인덱스 1에 있는 두 번째 단락을 선택하고 스케일 매개변수 없이 IParagraph.getImage을 호출합니다. 쉐이프에 필요한 단락이 포함되어 있는지와 렌더링이 이미지 를 반환했는지 확인한 뒤 IImage.save으로 PNG 형식으로 저장합니다. finally 블록에서 사용 후 이미지를 해제합니다.

import com.aspose.slides.*;

Presentation presentation = new Presentation("sample.pptx");
try {
    IShape shape = presentation.getSlides().get_Item(0).getShapes().get_Item(0);

    if (shape instanceof IAutoShape) {
        IAutoShape textShape = (IAutoShape) shape;
        ITextFrame textFrame = textShape.getTextFrame();
        if (textFrame != null && textFrame.getParagraphs().getCount() > 1) {
            IParagraph paragraph = textFrame.getParagraphs().get_Item(1);
            IImage paragraphImage = paragraph.getImage();

            if (paragraphImage != null) {
                try {
                    paragraphImage.save("paragraph.png", ImageFormat.Png);
                } finally {
                    paragraphImage.dispose();
                }
            } else {
                System.out.println("The paragraph could not be rendered.");
            }
        } else {
            System.out.println("The expected paragraph was not found.");
        }
    } else {
        System.out.println("The first shape is not a text shape.");
    }
} finally {
    presentation.dispose();
}

결과:

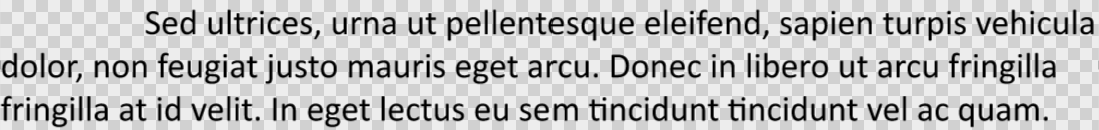

단락 이미지

테이블 셀에서 스케일링으로 단락 렌더링

float scaleX와 float scaleY 매개변수를 받는 IParagraph.getImage 오버로드를 사용해 가로 및 세로 스케일 팩터를 설정합니다. 다음 예제는 표를 만들고, 첫 번째 셀의 단락을 기본 너비와 높이의 두 배로 렌더링한 뒤 PNG 이미지로 저장합니다.

import com.aspose.slides.*;

float scaleX = 2f;
float scaleY = 2f;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    ITable table = slide.getShapes().addTable(50, 50, new double[] { 300 }, new double[] { 80 });
    IParagraph paragraph = table.get_Item(0, 0).getTextFrame().getParagraphs().get_Item(0);
    paragraph.setText("Text in a table cell");

    IImage paragraphImage = paragraph.getImage(scaleX, scaleY);
    if (paragraphImage != null) {
        try {
            paragraphImage.save("table_paragraph.png", ImageFormat.Png);
        } finally {
            paragraphImage.dispose();
        }
    } else {
        System.out.println("The paragraph could not be rendered.");
    }
} finally {
    presentation.dispose();
}

스케일 팩터 1은 해당 축을 기본 픽셀 크기로 유지합니다. 예를 들어, 두 팩터 모두 2이면 이미지의 너비와 높이가 대략 두 배가 되어 픽셀 수가 네 배가 됩니다. 큰 팩터는 확대하거나 고해상도 출력 시 텍스트를 더 선명하게 만들지만 메모리 사용량과 파일 크기도 증가합니다. 1 이하의 팩터는 세부 정보가 적은 작은 이미지를 생성합니다. 비율을 유지하려면 동일한 팩터를 사용하고, 서로 다른 가로·세로 팩터는 출력이 독립적으로 늘어나게 합니다.

IShape.getImage를 사용해 전체 쉐이프를 렌더링하는 경우, 쉐이프의 채우기, 테두리 또는 기타 시각적 컨텍스트가 포함되어야 할 때 유용합니다. 단락 전용 이미지는 IParagraph.getImage를 사용하십시오.

FAQ

텍스트 프레임 내부에서 라인 래핑을 완전히 비활성화할 수 있나요?

예. ITextFrameFormat.setWrapText을 false로 설정하면 래핑이 비활성화되어 라인이 텍스트 프레임 가장자리를 넘어 끊기지 않습니다.

특정 단락의 슬라이드 내 정확한 경계 사각형을 어떻게 얻나요?

IParagraph.getRect을 사용해 단락의 경계 사각형을 가져옵니다. IPortion.getRect은 개별 포션의 경계를 제공합니다.

단락 정렬(왼쪽, 오른쪽, 가운데, 양쪽 맞춤)은 어디에서 제어되나요?

IParagraphFormat.setAlignment은 단락 수준 설정이며, 개별 포션 서식과 무관하게 전체 단락에 적용됩니다.

각 라인 내에서 서로 다른 글꼴 크기의 포션을 수직 정렬하려면 Align Fonts Within a Line를 참조하십시오.

단락의 일부에 교정 언어를 설정할 수 있나요?

예. IBasePortionFormat.setLanguageId을 개별 포션에 설정하면 하나의 단락에 여러 언어의 텍스트를 포함할 수 있습니다.
