Create PowerPoint Presentations Charts in Java

Create Chart

Charts help people to quickly visualize data and gain insights, which may not be immediately obvious from a table or spreadsheet.

Why Create Charts?

Using charts, you get to

  • aggregate, condense, or summarize large amounts of data on a single slide in a presentation
  • expose patterns and trends in data
  • deduce the direction and momentum of data over time or with respect to a specific unit of measurement
  • spots outliers, aberrations, deviations, errors, nonsensical data, etc.
  • communicate or present complex data

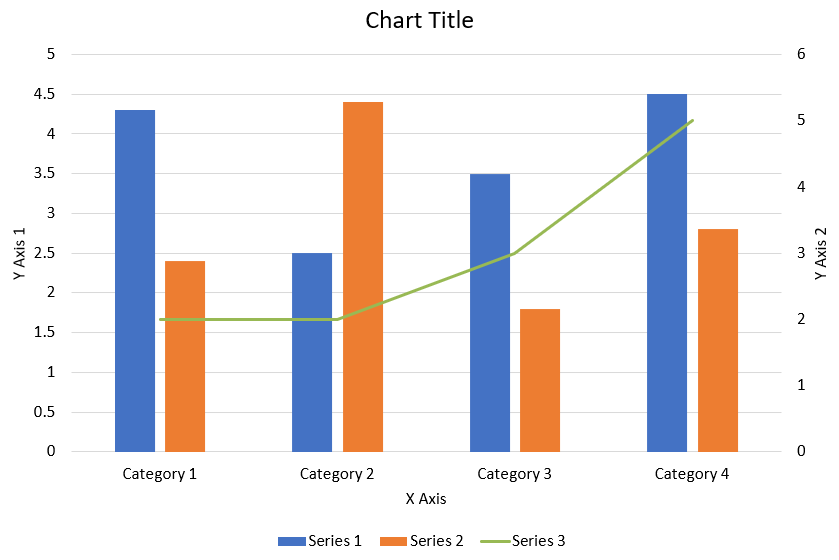

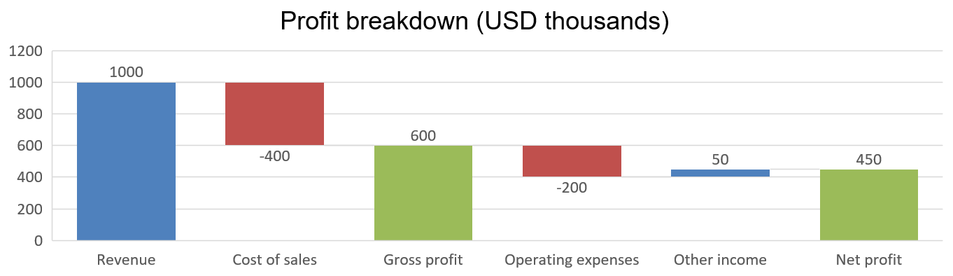

In PowerPoint, you can create charts through the insert function, which provides templates used to design many types of charts. Using Aspose.Slides, you can create regular charts (based on popular chart types) and custom charts.

Creating Normal Charts

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add a chart with some data and specify your preferred chart type.
  4. Add a title for the chart.
  5. Access the chart data worksheet.
  6. Clear all the default series and categories.
  7. Add new series and categories.
  8. Add some new chart data for the chart series.
  9. Add a fill color for chart series.
  10. Add labels for the chart series.
  11. Write the modified presentation as a PPTX file.

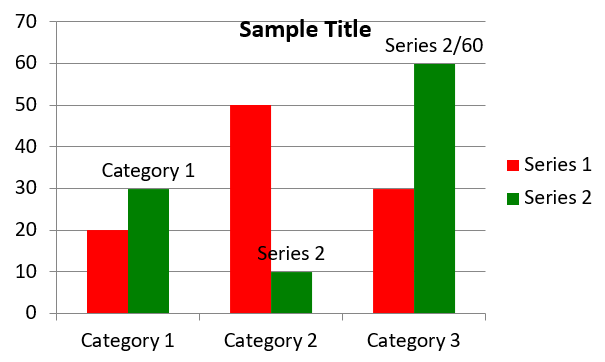

This Java code shows you how to create a normal chart:

// Instantiates a presentation class that represents a PPTX file
Presentation pres = new Presentation();
try {
    // Accesses the first slide
    ISlide sld = pres.getSlides().get_Item(0);

    // Adds a chart with its default data
    IChart chart = sld.getShapes().addChart(ChartType.ClusteredColumn, 0, 0, 500, 500);

    // Sets the chart Title
    chart.getChartTitle().addTextFrameForOverriding("Sample Title");
    chart.getChartTitle().getTextFrameForOverriding().getTextFrameFormat().setCenterText(NullableBool.True);
    chart.getChartTitle().setHeight(20);
    chart.hasTitle();

    // Sets the first series to show values
    chart.getChartData().getSeries().get_Item(0).getLabels().getDefaultDataLabelFormat().setShowValue(true);

    // Sets the index for the chart data sheet
    int defaultWorksheetIndex = 0;

    // Gets the chart data WorkSheet
    IChartDataWorkbook fact = chart.getChartData().getChartDataWorkbook();

    // Deletes the default generated series and categories
    chart.getChartData().getSeries().clear();
    chart.getChartData().getCategories().clear();
    int s = chart.getChartData().getSeries().size();
    s = chart.getChartData().getCategories().size();

    // Adds new series
    chart.getChartData().getSeries().add(fact.getCell(defaultWorksheetIndex, 0, 1, "Series 1"),chart.getType());
    chart.getChartData().getSeries().add(fact.getCell(defaultWorksheetIndex, 0, 2, "Series 2"),chart.getType());

    // Adds new categories
    chart.getChartData().getCategories().add(fact.getCell(defaultWorksheetIndex, 1, 0, "Caetegoty 1"));
    chart.getChartData().getCategories().add(fact.getCell(defaultWorksheetIndex, 2, 0, "Caetegoty 2"));
    chart.getChartData().getCategories().add(fact.getCell(defaultWorksheetIndex, 3, 0, "Caetegoty 3"));

    // Takes the first chart series
    IChartSeries series = chart.getChartData().getSeries().get_Item(0);

    // Now populates the series data
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 1, 1, 20));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 2, 1, 50));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 3, 1, 30));

    // Sets the fill color for series
    series.getFormat().getFill().setFillType(FillType.Solid);
    series.getFormat().getFill().getSolidFillColor().setColor(Color.RED);

    // Takes the second chart series
    series = chart.getChartData().getSeries().get_Item(1);

    // Populates series data
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 1, 2, 30));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 2, 2, 10));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 3, 2, 60));

    // Sets the fill color for the series
    series.getFormat().getFill().setFillType(FillType.Solid);
    series.getFormat().getFill().getSolidFillColor().setColor(Color.GREEN);

    //Create custom labels for each categories for the new series
    // Sets the first label to show Category name
    IDataLabel lbl = series.getDataPoints().get_Item(0).getLabel();
    lbl.getDataLabelFormat().setShowCategoryName(true);

    lbl = series.getDataPoints().get_Item(1).getLabel();
    lbl.getDataLabelFormat().setShowSeriesName(true);

    // Shows value for the third label
    lbl = series.getDataPoints().get_Item(2).getLabel();
    lbl.getDataLabelFormat().setShowValue(true);
    lbl.getDataLabelFormat().setShowSeriesName(true);
    lbl.getDataLabelFormat().setSeparator("/");

    // Saves the presentation with chart
    pres.save("output.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Creating Scattered Charts

Scattered charts (also known as scattered plots or x-y graphs) are often used to check for patterns or demonstrate correlations between two variables.

You may want to use a scattered chart when

  • you have paired numerical data
  • you have 2 variables that pair well together
  • you want to determine whether 2 variables are related
  • you have an independent variable that has multiple values for a dependent variable

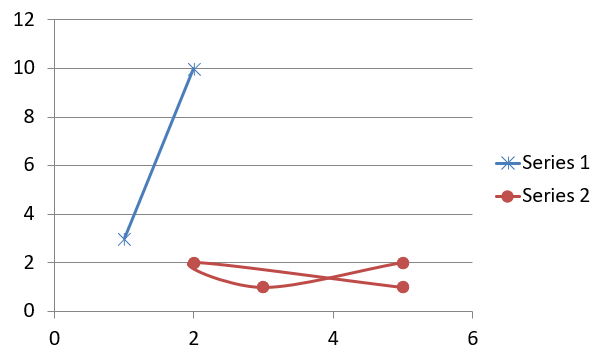

This Java code shows you how to create a scattered charts with a different series of markers:

// Instantiates a presentation class that represents a PPTX file
Presentation pres = new Presentation();
try {
    // Accesses the first slide
    ISlide slide = pres.getSlides().get_Item(0);

    // Creates the default chart
    IChart chart = slide.getShapes().addChart(ChartType.ScatterWithSmoothLines, 0, 0, 400, 400);

    // Gets the default chart data worksheet index
    int defaultWorksheetIndex = 0;

    // Gets the chart data worksheet
    IChartDataWorkbook fact = chart.getChartData().getChartDataWorkbook();

    // Deletes the demo series
    chart.getChartData().getSeries().clear();

    // Adds new series
    chart.getChartData().getSeries().add(fact.getCell(defaultWorksheetIndex, 1, 1, "Series 1"), chart.getType());
    chart.getChartData().getSeries().add(fact.getCell(defaultWorksheetIndex, 1, 3, "Series 2"), chart.getType());

    // Takes first chart series
    IChartSeries series = chart.getChartData().getSeries().get_Item(0);

    // Adds a new point (1:3) to the series
    series.getDataPoints().addDataPointForScatterSeries(fact.getCell(defaultWorksheetIndex, 2, 1, 1), fact.getCell(defaultWorksheetIndex, 2, 2, 3));

    // Adds a new point (2:10)
    series.getDataPoints().addDataPointForScatterSeries(fact.getCell(defaultWorksheetIndex, 3, 1, 2), fact.getCell(defaultWorksheetIndex, 3, 2, 10));

    // Changes the series type
    series.setType(ChartType.ScatterWithStraightLinesAndMarkers);

    // Changes the chart series marker
    series.getMarker().setSize(10);
    series.getMarker().setSymbol(MarkerStyleType.Star);

    // Takes the second chart series
    series = chart.getChartData().getSeries().get_Item(1);

    // Adds a new point (5:2) there
    series.getDataPoints().addDataPointForScatterSeries(fact.getCell(defaultWorksheetIndex, 2, 3, 5), fact.getCell(defaultWorksheetIndex, 2, 4, 2));

    // Adds a new point (3:1)
    series.getDataPoints().addDataPointForScatterSeries(fact.getCell(defaultWorksheetIndex, 3, 3, 3), fact.getCell(defaultWorksheetIndex, 3, 4, 1));

    // Adds a new point (2:2)
    series.getDataPoints().addDataPointForScatterSeries(fact.getCell(defaultWorksheetIndex, 4, 3, 2), fact.getCell(defaultWorksheetIndex, 4, 4, 2));

    // Adds a new point (5:1)
    series.getDataPoints().addDataPointForScatterSeries(fact.getCell(defaultWorksheetIndex, 5, 3, 5), fact.getCell(defaultWorksheetIndex, 5, 4, 1));

    // Changes the chart series marker
    series.getMarker().setSize(10);
    series.getMarker().setSymbol(MarkerStyleType.Circle);

    pres.save("AsposeChart_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Creating Pie Charts

Pie charts are best used to show the part-to-whole relationship in data, especially when the data contains categorical labels with numeric values. However, if your data contains many parts or labels, you may want to consider using a bar chart instead.

  1. Create an instance of the Presentation class.
  2. Obtain a slide’s reference by its index.
  3. Add a chart with default data along with the desired type (in this case, ChartType.Pie).
  4. Access the chart data IChartDataWorkbook.
  5. Clear the default series and categories.
  6. Add new series and categories.
  7. Add new chart data for the chart series.
  8. Add new points for charts and add custom colors for the pie chart’s sectors.
  9. Set labels for series.
  10. Set leader lines for series labels.
  11. Set the rotation angle for pie chart slides.
  12. Write the modified presentation to a PPTX file

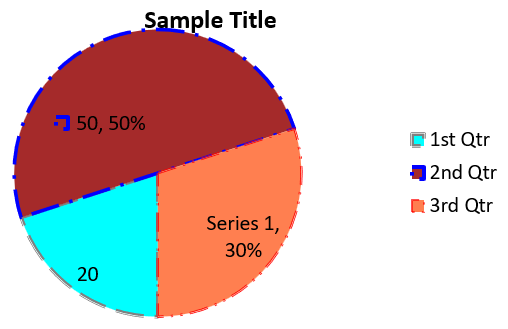

This Java code shows you how to create a pie chart:

// Instantiates a presentation class that represents a PPTX file
Presentation pres = new Presentation();
try {
    // Accesses the first slide
    ISlide slides = pres.getSlides().get_Item(0);

    // Adds a chart with default data
    IChart chart = slides.getShapes().addChart(ChartType.Pie, 100, 100, 400, 400);

    // Sets the chart Title
    chart.getChartTitle().addTextFrameForOverriding("Sample Title");
    chart.getChartTitle().getTextFrameForOverriding().getTextFrameFormat().setCenterText(NullableBool.True);
    chart.getChartTitle().setHeight(20);
    chart.setTitle(true);

    // Sets the first series to show values
    chart.getChartData().getSeries().get_Item(0).getLabels().getDefaultDataLabelFormat().setShowValue(true);

    // Sets the index for the chart data sheet
    int defaultWorksheetIndex = 0;

    // Gets the chart data worksheet
    IChartDataWorkbook fact = chart.getChartData().getChartDataWorkbook();

    // Deletes the default generated series and categories
    chart.getChartData().getSeries().clear();
    chart.getChartData().getCategories().clear();

    // Adds new categories
    chart.getChartData().getCategories().add(fact.getCell(0, 1, 0, "First Qtr"));
    chart.getChartData().getCategories().add(fact.getCell(0, 2, 0, "2nd Qtr"));
    chart.getChartData().getCategories().add(fact.getCell(0, 3, 0, "3rd Qtr"));

    // Adds new series
    IChartSeries series = chart.getChartData().getSeries().add(fact.getCell(0, 0, 1, "Series 1"), chart.getType());

    //Populates the series data
    series.getDataPoints().addDataPointForPieSeries(fact.getCell(defaultWorksheetIndex, 1, 1, 20));
    series.getDataPoints().addDataPointForPieSeries(fact.getCell(defaultWorksheetIndex, 2, 1, 50));
    series.getDataPoints().addDataPointForPieSeries(fact.getCell(defaultWorksheetIndex, 3, 1, 30));

    // Not working in new version
    // Adding new points and setting sector color
    // series.IsColorVaried = true;
    chart.getChartData().getSeriesGroups().get_Item(0).setColorVaried(true);

    IChartDataPoint point = series.getDataPoints().get_Item(0);
    point.getFormat().getFill().setFillType(FillType.Solid);
    point.getFormat().getFill().getSolidFillColor().setColor(Color.CYAN);

    // Sets the Sector border
    point.getFormat().getLine().getFillFormat().setFillType(FillType.Solid);
    point.getFormat().getLine().getFillFormat().getSolidFillColor().setColor(Color.GRAY);
    point.getFormat().getLine().setWidth(3.0);
    point.getFormat().getLine().setStyle(LineStyle.ThinThick);
    point.getFormat().getLine().setDashStyle(LineDashStyle.DashDot);

    IChartDataPoint point1 = series.getDataPoints().get_Item(1);
    point1.getFormat().getFill().setFillType(FillType.Solid);
    point1.getFormat().getFill().getSolidFillColor().setColor(Color.ORANGE);

    // Sets the Sector border
    point1.getFormat().getLine().getFillFormat().setFillType(FillType.Solid);
    point1.getFormat().getLine().getFillFormat().getSolidFillColor().setColor(Color.BLUE);
    point1.getFormat().getLine().setWidth(3.0);
    point1.getFormat().getLine().setStyle(LineStyle.Single);
    point1.getFormat().getLine().setDashStyle(LineDashStyle.LargeDashDot);

    IChartDataPoint point2 = series.getDataPoints().get_Item(2);
    point2.getFormat().getFill().setFillType(FillType.Solid);
    point2.getFormat().getFill().getSolidFillColor().setColor(Color.YELLOW);

    // Sets the Sector border
    point2.getFormat().getLine().getFillFormat().setFillType(FillType.Solid);
    point2.getFormat().getLine().getFillFormat().getSolidFillColor().setColor(Color.RED);
    point2.getFormat().getLine().setWidth(2.0);
    point2.getFormat().getLine().setStyle(LineStyle.ThinThin);
    point2.getFormat().getLine().setDashStyle(LineDashStyle.LargeDashDotDot);

    // Creates custom labels for each of categories for new series
    IDataLabel lbl1 = series.getDataPoints().get_Item(0).getLabel();

    // lbl.ShowCategoryName = true;
    lbl1.getDataLabelFormat().setShowValue(true);

    IDataLabel lbl2 = series.getDataPoints().get_Item(1).getLabel();
    lbl2.getDataLabelFormat().setShowValue(true);
    lbl2.getDataLabelFormat().setShowLegendKey(true);
    lbl2.getDataLabelFormat().setShowPercentage(true);

    IDataLabel lbl3 = series.getDataPoints().get_Item(2).getLabel();
    lbl3.getDataLabelFormat().setShowSeriesName(true);
    lbl3.getDataLabelFormat().setShowPercentage(true);

    // Shows Leader Lines for Chart
    series.getLabels().getDefaultDataLabelFormat().setShowLeaderLines(true);

    // Sets the Rotation Angle for Pie Chart Sectors
    chart.getChartData().getSeriesGroups().get_Item(0).setFirstSliceAngle(180);

    // Saves the presentation with a chart
    pres.save("PieChart_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

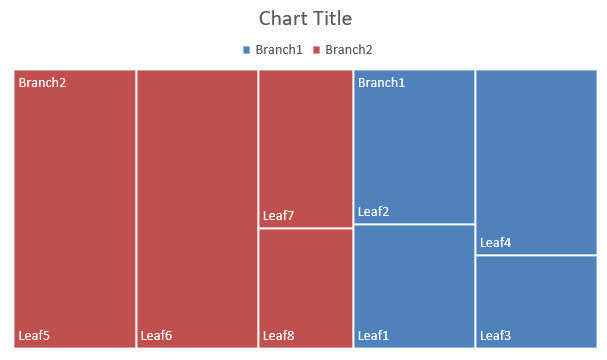

Creating Tree Map Charts

Tree map charts are best used for sales data when you want to show the relative size of data categories and (at the same time) quickly draw attention to items that are large contributors to each category.

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add a chart with default data along with the desired type (in this case, ChartType.TreeMap).
  4. Access the chart data IChartDataWorkbook.
  5. Clear the default series and categories.
  6. Add new series and categories.
  7. Add new chart data for the chart series.
  8. Write the modified presentation to a PPTX file

This Java code shows you how to create a tree map chart:

Presentation pres = new Presentation();
try {
    IChart chart = pres.getSlides().get_Item(0).getShapes().addChart(ChartType.Treemap, 50, 50, 500, 400);
    chart.getChartData().getCategories().clear();
    chart.getChartData().getSeries().clear();

    IChartDataWorkbook wb = chart.getChartData().getChartDataWorkbook();
    wb.clear(0);

    //branch 1
    IChartCategory leaf = chart.getChartData().getCategories().add(wb.getCell(0, "C1", "Leaf1"));
    leaf.getGroupingLevels().setGroupingItem(1, "Stem1");
    leaf.getGroupingLevels().setGroupingItem(2, "Branch1");

    chart.getChartData().getCategories().add(wb.getCell(0, "C2", "Leaf2"));

    leaf = chart.getChartData().getCategories().add(wb.getCell(0, "C3", "Leaf3"));
    leaf.getGroupingLevels().setGroupingItem(1, "Stem2");

    chart.getChartData().getCategories().add(wb.getCell(0, "C4", "Leaf4"));

    //branch 2
    leaf = chart.getChartData().getCategories().add(wb.getCell(0, "C5", "Leaf5"));
    leaf.getGroupingLevels().setGroupingItem(1, "Stem3");
    leaf.getGroupingLevels().setGroupingItem(2, "Branch2");

    chart.getChartData().getCategories().add(wb.getCell(0, "C6", "Leaf6"));

    leaf = chart.getChartData().getCategories().add(wb.getCell(0, "C7", "Leaf7"));
    leaf.getGroupingLevels().setGroupingItem(1, "Stem4");

    chart.getChartData().getCategories().add(wb.getCell(0, "C8", "Leaf8"));

    IChartSeries series = chart.getChartData().getSeries().add(ChartType.Treemap);
    series.getLabels().getDefaultDataLabelFormat().setShowCategoryName(true);
    series.getDataPoints().addDataPointForTreemapSeries(wb.getCell(0, "D1", 4));
    series.getDataPoints().addDataPointForTreemapSeries(wb.getCell(0, "D2", 5));
    series.getDataPoints().addDataPointForTreemapSeries(wb.getCell(0, "D3", 3));
    series.getDataPoints().addDataPointForTreemapSeries(wb.getCell(0, "D4", 6));
    series.getDataPoints().addDataPointForTreemapSeries(wb.getCell(0, "D5", 9));
    series.getDataPoints().addDataPointForTreemapSeries(wb.getCell(0, "D6", 9));
    series.getDataPoints().addDataPointForTreemapSeries(wb.getCell(0, "D7", 4));
    series.getDataPoints().addDataPointForTreemapSeries(wb.getCell(0, "D8", 3));

    series.setParentLabelLayout(ParentLabelLayoutType.Overlapping);

    pres.save("Treemap.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Creating Stock Charts

  1. Create an instance of the Presentation class.
  2. Obtain a slide’s reference by its index.
  3. Add a chart with default data along with the desired type (ChartType.OpenHighLowClose).
  4. Access the chart data IChartDataWorkbook.
  5. Clear the default series and categories.
  6. Add new series and categories.
  7. Add new chart data for the chart series.
  8. Specify HiLowLines format.
  9. Write the modified presentation to a PPTX file

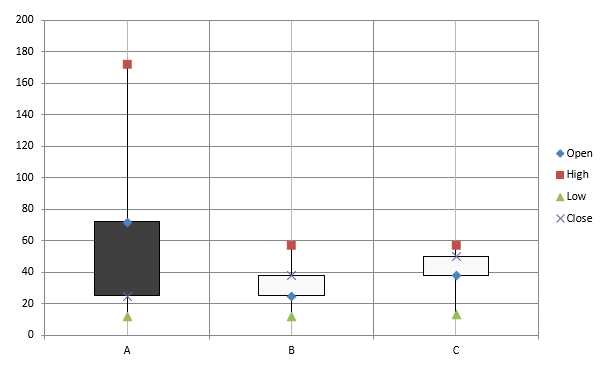

Sample Java code used to create a stock chart:

Presentation pres = new Presentation();
try {
    IChart chart = pres.getSlides().get_Item(0).getShapes().addChart(ChartType.OpenHighLowClose, 50, 50, 600, 400, false);

    chart.getChartData().getSeries().clear();
    chart.getChartData().getCategories().clear();

    IChartDataWorkbook wb = chart.getChartData().getChartDataWorkbook();

    chart.getChartData().getCategories().add(wb.getCell(0, 1, 0, "A"));
    chart.getChartData().getCategories().add(wb.getCell(0, 2, 0, "B"));
    chart.getChartData().getCategories().add(wb.getCell(0, 3, 0, "C"));

    chart.getChartData().getSeries().add(wb.getCell(0, 0, 1, "Open"), chart.getType());
    chart.getChartData().getSeries().add(wb.getCell(0, 0, 2, "High"), chart.getType());
    chart.getChartData().getSeries().add(wb.getCell(0, 0, 3, "Low"), chart.getType());
    chart.getChartData().getSeries().add(wb.getCell(0, 0, 4, "Close"), chart.getType());

    IChartSeries series = chart.getChartData().getSeries().get_Item(0);

    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 1, 1, 72));
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 2, 1, 25));
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 3, 1, 38));

    series = chart.getChartData().getSeries().get_Item(1);
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 1, 2, 172));
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 2, 2, 57));
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 3, 2, 57));

    series = chart.getChartData().getSeries().get_Item(2);
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 1, 3, 12));
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 2, 3, 12));
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 3, 3, 13));

    series = chart.getChartData().getSeries().get_Item(3);
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 1, 4, 25));
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 2, 4, 38));
    series.getDataPoints().addDataPointForStockSeries(wb.getCell(0, 3, 4, 50));

    chart.getChartData().getSeriesGroups().get_Item(0).getUpDownBars().setUpDownBars(true);
    chart.getChartData().getSeriesGroups().get_Item(0).getHiLowLinesFormat().getLine().getFillFormat().setFillType(FillType.Solid);

    for (IChartSeries ser : chart.getChartData().getSeries())
    {
        ser.getFormat().getLine().getFillFormat().setFillType(FillType.NoFill);
    }

    pres.save("output.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Creating Box and Whisker Charts

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add a chart with default data along with the desired type (ChartType.BoxAndWhisker).
  4. Access the chart data IChartDataWorkbook.
  5. Clear the default series and categories.
  6. Add new series and categories.
  7. Add new chart data for the chart series.
  8. Write the modified presentation to a PPTX file

This Java code shows you how to create a box and whisker chart:

Presentation pres = new Presentation();
try {
    IChart chart = pres.getSlides().get_Item(0).getShapes().addChart(ChartType.BoxAndWhisker, 50, 50, 500, 400);
    chart.getChartData().getCategories().clear();
    chart.getChartData().getSeries().clear();

    IChartDataWorkbook wb = chart.getChartData().getChartDataWorkbook();
    wb.clear(0);

    chart.getChartData().getCategories().add(wb.getCell(0, "A1", "Category 1"));
    chart.getChartData().getCategories().add(wb.getCell(0, "A2", "Category 1"));
    chart.getChartData().getCategories().add(wb.getCell(0, "A3", "Category 1"));
    chart.getChartData().getCategories().add(wb.getCell(0, "A4", "Category 1"));
    chart.getChartData().getCategories().add(wb.getCell(0, "A5", "Category 1"));
    chart.getChartData().getCategories().add(wb.getCell(0, "A6", "Category 1"));

    IChartSeries series = chart.getChartData().getSeries().add(ChartType.BoxAndWhisker);

    series.setQuartileMethod(QuartileMethodType.Exclusive);
    series.setShowMeanLine(true);
    series.setShowMeanMarkers(true);
    series.setShowInnerPoints(true);
    series.setShowOutlierPoints(true);

    series.getDataPoints().addDataPointForBoxAndWhiskerSeries(wb.getCell(0, "B1", 15));
    series.getDataPoints().addDataPointForBoxAndWhiskerSeries(wb.getCell(0, "B2", 41));
    series.getDataPoints().addDataPointForBoxAndWhiskerSeries(wb.getCell(0, "B3", 16));
    series.getDataPoints().addDataPointForBoxAndWhiskerSeries(wb.getCell(0, "B4", 10));
    series.getDataPoints().addDataPointForBoxAndWhiskerSeries(wb.getCell(0, "B5", 23));
    series.getDataPoints().addDataPointForBoxAndWhiskerSeries(wb.getCell(0, "B6", 16));

    pres.save("BoxAndWhisker.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

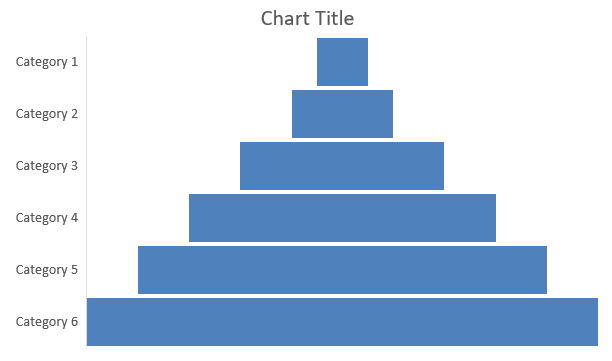

Creating Funnel Charts

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add a chart with default data along with the desired type (ChartType.Funnel).
  4. Write the modified presentation to a PPTX file

The Java code shows you how to create a funnel chart:

Presentation pres = new Presentation();
try {
    IChart chart = pres.getSlides().get_Item(0).getShapes().addChart(ChartType.Funnel, 50, 50, 500, 400);
    chart.getChartData().getCategories().clear();
    chart.getChartData().getSeries().clear();

    IChartDataWorkbook wb = chart.getChartData().getChartDataWorkbook();

    wb.clear(0);

    chart.getChartData().getCategories().add(wb.getCell(0, "A1", "Category 1"));
    chart.getChartData().getCategories().add(wb.getCell(0, "A2", "Category 2"));
    chart.getChartData().getCategories().add(wb.getCell(0, "A3", "Category 3"));
    chart.getChartData().getCategories().add(wb.getCell(0, "A4", "Category 4"));
    chart.getChartData().getCategories().add(wb.getCell(0, "A5", "Category 5"));
    chart.getChartData().getCategories().add(wb.getCell(0, "A6", "Category 6"));

    IChartSeries series = chart.getChartData().getSeries().add(ChartType.Funnel);

    series.getDataPoints().addDataPointForFunnelSeries(wb.getCell(0, "B1", 50));
    series.getDataPoints().addDataPointForFunnelSeries(wb.getCell(0, "B2", 100));
    series.getDataPoints().addDataPointForFunnelSeries(wb.getCell(0, "B3", 200));
    series.getDataPoints().addDataPointForFunnelSeries(wb.getCell(0, "B4", 300));
    series.getDataPoints().addDataPointForFunnelSeries(wb.getCell(0, "B5", 400));
    series.getDataPoints().addDataPointForFunnelSeries(wb.getCell(0, "B6", 500));

    pres.save("Funnel.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

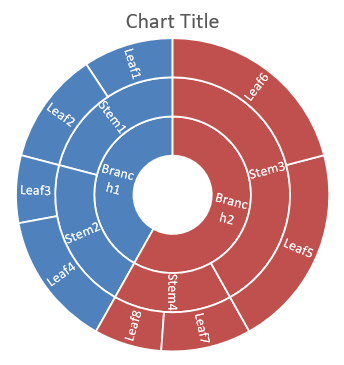

Creating Sunburst Charts

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add a chart with default data along with the desired type (in this case,ChartType.sunburst).
  4. Write the modified presentation to a PPTX file

This Java code shows you how to create a sunburst chart:

Presentation pres = new Presentation();
try {
    IChart chart = pres.getSlides().get_Item(0).getShapes().addChart(ChartType.Sunburst, 50, 50, 500, 400);
    chart.getChartData().getCategories().clear();
    chart.getChartData().getSeries().clear();

    IChartDataWorkbook wb = chart.getChartData().getChartDataWorkbook();
    wb.clear(0);

    //branch 1
    IChartCategory leaf = chart.getChartData().getCategories().add(wb.getCell(0, "C1", "Leaf1"));
    leaf.getGroupingLevels().setGroupingItem(1, "Stem1");
    leaf.getGroupingLevels().setGroupingItem(2, "Branch1");

    chart.getChartData().getCategories().add(wb.getCell(0, "C2", "Leaf2"));

    leaf = chart.getChartData().getCategories().add(wb.getCell(0, "C3", "Leaf3"));
    leaf.getGroupingLevels().setGroupingItem(1, "Stem2");

    chart.getChartData().getCategories().add(wb.getCell(0, "C4", "Leaf4"));

    //branch 2
    leaf = chart.getChartData().getCategories().add(wb.getCell(0, "C5", "Leaf5"));
    leaf.getGroupingLevels().setGroupingItem(1, "Stem3");
    leaf.getGroupingLevels().setGroupingItem(2, "Branch2");

    chart.getChartData().getCategories().add(wb.getCell(0, "C6", "Leaf6"));

    leaf = chart.getChartData().getCategories().add(wb.getCell(0, "C7", "Leaf7"));
    leaf.getGroupingLevels().setGroupingItem(1, "Stem4");

    chart.getChartData().getCategories().add(wb.getCell(0, "C8", "Leaf8"));

    IChartSeries series = chart.getChartData().getSeries().add(ChartType.Sunburst);
    series.getLabels().getDefaultDataLabelFormat().setShowCategoryName(true);
    series.getDataPoints().addDataPointForSunburstSeries(wb.getCell(0, "D1", 4));
    series.getDataPoints().addDataPointForSunburstSeries(wb.getCell(0, "D2", 5));
    series.getDataPoints().addDataPointForSunburstSeries(wb.getCell(0, "D3", 3));
    series.getDataPoints().addDataPointForSunburstSeries(wb.getCell(0, "D4", 6));
    series.getDataPoints().addDataPointForSunburstSeries(wb.getCell(0, "D5", 9));
    series.getDataPoints().addDataPointForSunburstSeries(wb.getCell(0, "D6", 9));
    series.getDataPoints().addDataPointForSunburstSeries(wb.getCell(0, "D7", 4));
    series.getDataPoints().addDataPointForSunburstSeries(wb.getCell(0, "D8", 3));

    pres.save("Sunburst.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

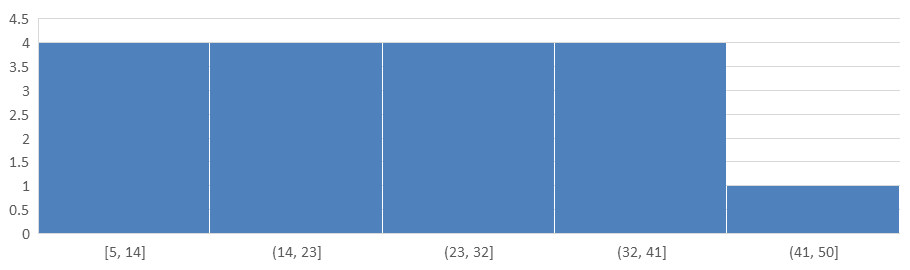

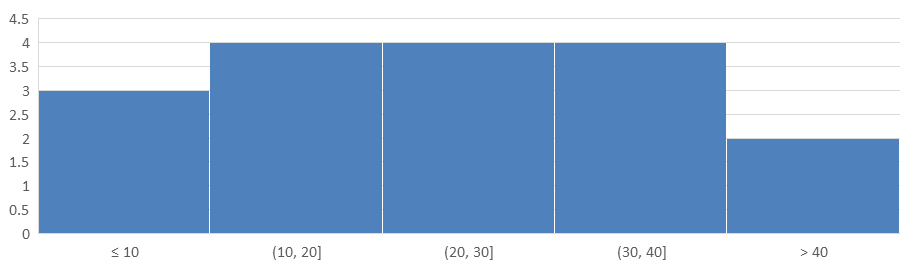

Creating Histogram Charts

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add a chart with default data along with the desired type (ChartType.Histogram).
  4. Access the chart data IChartDataWorkbook.
  5. Clear the default series and categories.
  6. Add new series and categories.
  7. Write the modified presentation to a PPTX file

This Java code shows you how to create an histogram chart:

Presentation pres = new Presentation();
try {
    IChart chart = pres.getSlides().get_Item(0).getShapes().addChart(ChartType.Histogram, 50, 50, 500, 400);
    chart.getChartData().getCategories().clear();
    chart.getChartData().getSeries().clear();

    IChartDataWorkbook wb = chart.getChartData().getChartDataWorkbook();
    wb.clear(0);

    IChartSeries series = chart.getChartData().getSeries().add(ChartType.Histogram);
    series.getDataPoints().addDataPointForHistogramSeries(wb.getCell(0, "A1", 15));
    series.getDataPoints().addDataPointForHistogramSeries(wb.getCell(0, "A2", -41));
    series.getDataPoints().addDataPointForHistogramSeries(wb.getCell(0, "A3", 16));
    series.getDataPoints().addDataPointForHistogramSeries(wb.getCell(0, "A4", 10));
    series.getDataPoints().addDataPointForHistogramSeries(wb.getCell(0, "A5", -23));
    series.getDataPoints().addDataPointForHistogramSeries(wb.getCell(0, "A6", 16));

    chart.getAxes().getHorizontalAxis().setAggregationType(AxisAggregationType.Automatic;)

    pres.save("Histogram.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Creating Radar Charts

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add a chart with some data and specify your preferred chart type (ChartType.Radar in this case).
  4. Write the modified presentation to a PPTX file

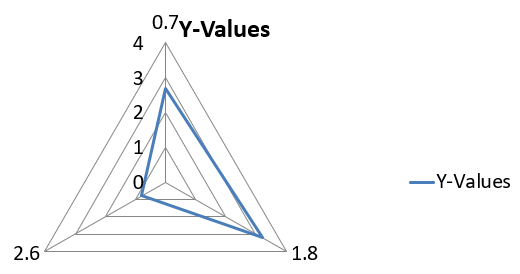

This Java code shows you how to create an radar chart:

Presentation pres = new Presentation();
try {
    pres.getSlides().get_Item(0).getShapes().addChart(ChartType.Radar, 20, 20, 400, 300);
    pres.save("Radar-chart.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

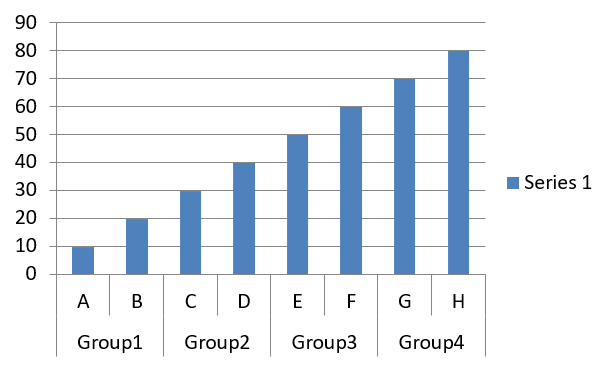

Creating Multi Category Charts

  1. Create an instance of the Presentation class.
  2. Get a slide’s reference through its index.
  3. Add a chart with default data along with the desired type (ChartType.ClusteredColumn).
  4. Access the chart data IChartDataWorkbook.
  5. Clear the default series and categories.
  6. Add new series and categories.
  7. Add new chart data for the chart series.
  8. Write the modified presentation to a PPTX file.

This Java code shows you how to create a multicategory chart:

Presentation pres = new Presentation();
try {
    IChart ch = pres.getSlides().get_Item(0).getShapes().addChart(ChartType.ClusteredColumn, 100, 100, 600, 450);
    ch.getChartData().getSeries().clear();
    ch.getChartData().getCategories().clear();

    IChartDataWorkbook fact = ch.getChartData().getChartDataWorkbook();
    fact.clear(0);
    int defaultWorksheetIndex = 0;

    IChartCategory category = ch.getChartData().getCategories().add(fact.getCell(0, "c2", "A"));
    category.getGroupingLevels().setGroupingItem(1, "Group1");
    category = ch.getChartData().getCategories().add(fact.getCell(0, "c3", "B"));

    category = ch.getChartData().getCategories().add(fact.getCell(0, "c4", "C"));
    category.getGroupingLevels().setGroupingItem(1, "Group2");
    category = ch.getChartData().getCategories().add(fact.getCell(0, "c5", "D"));

    category = ch.getChartData().getCategories().add(fact.getCell(0, "c6", "E"));
    category.getGroupingLevels().setGroupingItem(1, "Group3");
    category = ch.getChartData().getCategories().add(fact.getCell(0, "c7", "F"));

    category = ch.getChartData().getCategories().add(fact.getCell(0, "c8", "G"));
    category.getGroupingLevels().setGroupingItem(1, "Group4");
    category = ch.getChartData().getCategories().add(fact.getCell(0, "c9", "H"));

    // Adding Series
    IChartSeries series = ch.getChartData().getSeries().add(fact.getCell(0, "D1", "Series 1"),
            ChartType.ClusteredColumn);

    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, "D2", 10));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, "D3", 20));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, "D4", 30));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, "D5", 40));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, "D6", 50));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, "D7", 60));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, "D8", 70));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, "D9", 80));

    // Save presentation with chart
    pres.save("AsposeChart_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

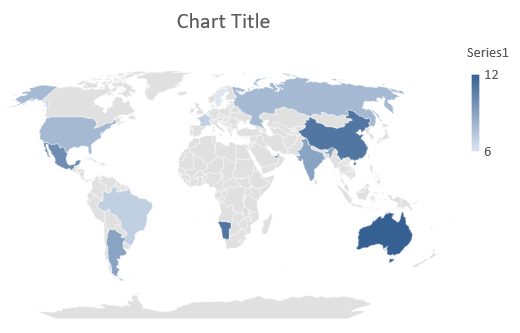

Creating Map Charts

A map chart is a visualization of an area containing data. Map charts are best used to compare data or values across geographical regions.

This Java code shows you how to create a map chart:

Presentation pres = new Presentation();
try {
    IChart chart = pres.getSlides().get_Item(0).getShapes().addChart(ChartType.Map, 50, 50, 500, 400);
    pres.save("mapChart.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Updating Charts

  1. Instantiate a Presentation class that represents the presentation containing the chart you want to update.
  2. Obtain the reference of a slide by using its Index.
  3. Traverse through all shapes to find the desired chart.
  4. Access the chart data worksheet.
  5. Modify the chart data series data by changing series values.
  6. Add a new series and populate the data in it.
  7. Write the modified presentation as a PPTX file.

This Java code shows you how to update a chart:

Presentation pres = new Presentation();
try {
    // Access first slideMarker
    ISlide sld = pres.getSlides().get_Item(0);

    // Get chart with default data
    IChart chart = (IChart)sld.getShapes().get_Item(0);

    // Setting the index of chart data sheet
    int defaultWorksheetIndex = 0;

    // Getting the chart data worksheet
    IChartDataWorkbook fact = chart.getChartData().getChartDataWorkbook();

    // Changing chart Category Name
    fact.getCell(defaultWorksheetIndex, 1, 0, "Modified Category 1");
    fact.getCell(defaultWorksheetIndex, 2, 0, "Modified Category 2");

    // Take first chart series
    IChartSeries series = chart.getChartData().getSeries().get_Item(0);

    // Now updating series data
    fact.getCell(defaultWorksheetIndex, 0, 1, "New_Series1");// Modifying series name
    series.getDataPoints().get_Item(0).getValue().setData(90);
    series.getDataPoints().get_Item(1).getValue().setData(123);
    series.getDataPoints().get_Item(2).getValue().setData(44);

    // Take Second chart series
    series = chart.getChartData().getSeries().get_Item(1);

    // Now updating series data
    fact.getCell(defaultWorksheetIndex, 0, 2, "New_Series2");// Modifying series name
    series.getDataPoints().get_Item(0).getValue().setData(23);
    series.getDataPoints().get_Item(1).getValue().setData(67);
    series.getDataPoints().get_Item(2).getValue().setData(99);

    // Now, Adding a new series
    chart.getChartData().getSeries().add(fact.getCell(defaultWorksheetIndex, 0, 3, "Series 3"), chart.getType());

    // Take 3rd chart series
    series = chart.getChartData().getSeries().get_Item(2);

    // Now populating series data
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 1, 3, 20));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 2, 3, 50));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 3, 3, 30));

    chart.setType(ChartType.ClusteredCylinder);

    // Save presentation with chart
    pres.save("AsposeChartModified_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

Setting Data Range for Charts

To set the data range for a chart, do this:

  1. Instantiate a Presentation class that represents the presentation containing the chart.
  2. Get a slide’s reference through its index.
  3. Traverse through all shapes to find the desired chart.
  4. Access the chart data and set the range.
  5. Save the modified presentation as a PPTX file.

This Java code shows you how to set the data range for a chart:

Presentation pres = new Presentation();
try {
    ISlide slide = pres.getSlides().get_Item(0);
    IChart chart = (IChart)slide.getShapes().get_Item(0);

    chart.getChartData().setRange("Sheet1!A1:B4");

    pres.save("SetDataRange_out.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}

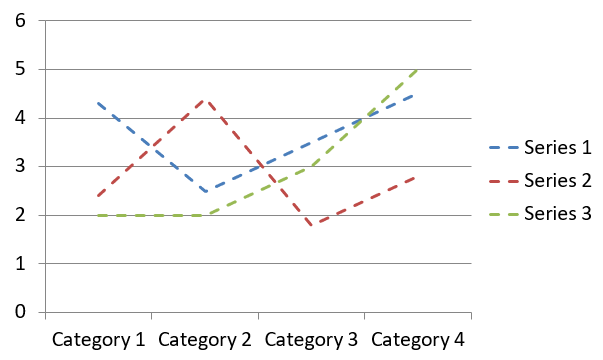

Using Default Markers in Charts

When you use a default marker in charts, each chart series get different default marker symbols automatically.

This Java code shows you how to set a chart series market automatically:

Presentation pres = new Presentation();
try {
    ISlide slide = pres.getSlides().get_Item(0);
    IChart chart = slide.getShapes().addChart(ChartType.LineWithMarkers, 10, 10, 400, 400);

    chart.getChartData().getSeries().clear();
    chart.getChartData().getCategories().clear();

    IChartDataWorkbook fact = chart.getChartData().getChartDataWorkbook();
    chart.getChartData().getSeries().add(fact.getCell(0, 0, 1, "Series 1"), chart.getType());
    IChartSeries series = chart.getChartData().getSeries().get_Item(0);

    chart.getChartData().getCategories().add(fact.getCell(0, 1, 0, "C1"));
    series.getDataPoints().addDataPointForLineSeries(fact.getCell(0, 1, 1, 24));
    chart.getChartData().getCategories().add(fact.getCell(0, 2, 0, "C2"));
    series.getDataPoints().addDataPointForLineSeries(fact.getCell(0, 2, 1, 23));
    chart.getChartData().getCategories().add(fact.getCell(0, 3, 0, "C3"));
    series.getDataPoints().addDataPointForLineSeries(fact.getCell(0, 3, 1, -10));
    chart.getChartData().getCategories().add(fact.getCell(0, 4, 0, "C4"));
    series.getDataPoints().addDataPointForLineSeries(fact.getCell(0, 4, 1, null));

    chart.getChartData().getSeries().add(fact.getCell(0, 0, 2, "Series 2"), chart.getType());
    //Take second chart series
    IChartSeries series2 = chart.getChartData().getSeries().get_Item(1);

    //Now populating series data
    series2.getDataPoints().addDataPointForLineSeries(fact.getCell(0, 1, 2, 30));
    series2.getDataPoints().addDataPointForLineSeries(fact.getCell(0, 2, 2, 10));
    series2.getDataPoints().addDataPointForLineSeries(fact.getCell(0, 3, 2, 60));
    series2.getDataPoints().addDataPointForLineSeries(fact.getCell(0, 4, 2, 40));

    chart.setLegend(true);
    chart.getLegend().setOverlay(false);

    pres.save("DefaultMarkersInChart.pptx", SaveFormat.Pptx);
} finally {
    if (pres != null) pres.dispose();
}
