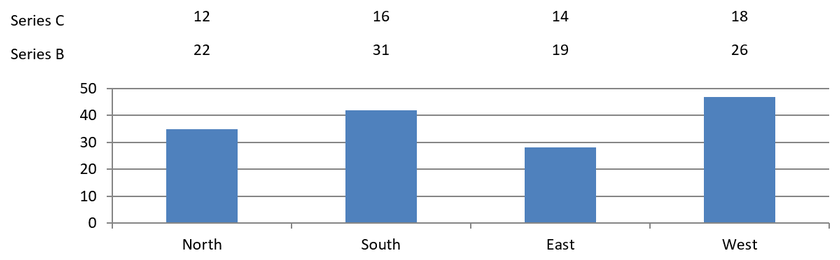

Data labels on a chart show details about the chart data series or individual data points. They allow readers to quickly identify data series and they also make charts easier to understand.
Set Precision of Data in Chart Data Labels
This JavaScript code shows you how to set the data precision in a chart data label:
var pres = new aspose.slides.Presentation();
try {
var chart = pres.getSlides().get_Item(0).getShapes().addChart(aspose.slides.ChartType.Line, 50, 50, 450, 300);
chart.setDataTable(true);
chart.getChartData().getSeries().get_Item(0).setNumberFormatOfValues("#,##0.00");
pres.save("output.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
if (pres != null) {
pres.dispose();
}
}
Display Percentage as Labels
Aspose.Slides for Node.js via Java allows you to set percentage labels on displayed charts. This JavaScript code demonstrates the operation:
// Creates an instance of the Presentation class
var pres = new aspose.slides.Presentation();
try {
// Gets the first slide
var slide = pres.getSlides().get_Item(0);
var chart = slide.getShapes().addChart(aspose.slides.ChartType.StackedColumn, 20, 20, 400, 400);
var series;
var total_for_Cat = new double[chart.getChartData().getCategories().size()];
for (var k = 0; k < chart.getChartData().getCategories().size(); k++) {
var cat = chart.getChartData().getCategories().get_Item(k);
for (var i = 0; i < chart.getChartData().getSeries().size(); i++) {
total_for_Cat[k] = total_for_Cat[k] + chart.getChartData().getSeries().get_Item(i).getDataPoints().get_Item(k).getValue().getData();
}
}
var dataPontPercent = 0.0;
for (var x = 0; x < chart.getChartData().getSeries().size(); x++) {
series = chart.getChartData().getSeries().get_Item(x);
series.getLabels().getDefaultDataLabelFormat().setShowLegendKey(false);
for (var j = 0; j < series.getDataPoints().size(); j++) {
var lbl = series.getDataPoints().get_Item(j).getLabel();
dataPontPercent = (series.getDataPoints().get_Item(j).getValue().getData() / total_for_Cat[j]) * 100;
var port = new aspose.slides.Portion();
port.setText(java.callStaticMethodSync("java.lang.String", "format", "{0:F2} %.2f", dataPontPercent));
port.getPortionFormat().setFontHeight(8.0);
lbl.getTextFrameForOverriding().setText("");
var para = lbl.getTextFrameForOverriding().getParagraphs().get_Item(0);
para.getPortions().add(port);
lbl.getDataLabelFormat().setShowSeriesName(false);
lbl.getDataLabelFormat().setShowPercentage(false);
lbl.getDataLabelFormat().setShowLegendKey(false);
lbl.getDataLabelFormat().setShowCategoryName(false);
lbl.getDataLabelFormat().setShowBubbleSize(false);
}
}
// Saves the presentation containing the chart
pres.save("output.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
if (pres != null) {
pres.dispose();
}
}
Set Percentage Sign with Chart Data Labels
This JavaScript code shows you to set the percentage sign for a chart data label:
// Creates an instance of the Presentation class
var pres = new aspose.slides.Presentation();
try {
// Gets a slide's reference through its index
var slide = pres.getSlides().get_Item(0);
// Creates the PercentsStackedColumn chart on a slide
var chart = slide.getShapes().addChart(aspose.slides.ChartType.PercentsStackedColumn, 20, 20, 500, 400);
// Sets the NumberFormatLinkedToSource to false
chart.getAxes().getVerticalAxis().setNumberFormatLinkedToSource(false);
chart.getAxes().getVerticalAxis().setNumberFormat("0.00%");
chart.getChartData().getSeries().clear();
var defaultWorksheetIndex = 0;
// Gets the chart data worksheet
var workbook = chart.getChartData().getChartDataWorkbook();
// Adds new series
var series = chart.getChartData().getSeries().add(workbook.getCell(defaultWorksheetIndex, 0, 1, "Reds"), chart.getType());
series.getDataPoints().addDataPointForBarSeries(workbook.getCell(defaultWorksheetIndex, 1, 1, 0.3));
series.getDataPoints().addDataPointForBarSeries(workbook.getCell(defaultWorksheetIndex, 2, 1, 0.5));
series.getDataPoints().addDataPointForBarSeries(workbook.getCell(defaultWorksheetIndex, 3, 1, 0.8));
series.getDataPoints().addDataPointForBarSeries(workbook.getCell(defaultWorksheetIndex, 4, 1, 0.65));
// Sets the fill color of series
series.getFormat().getFill().setFillType(java.newByte(aspose.slides.FillType.Solid));
series.getFormat().getFill().getSolidFillColor().setColor(java.getStaticFieldValue("java.awt.Color", "RED"));
// Sets the LabelFormat properties
series.getLabels().getDefaultDataLabelFormat().setShowValue(true);
series.getLabels().getDefaultDataLabelFormat().setNumberFormatLinkedToSource(false);
series.getLabels().getDefaultDataLabelFormat().setNumberFormat("0.0%");
series.getLabels().getDefaultDataLabelFormat().getTextFormat().getPortionFormat().setFontHeight(10);
series.getLabels().getDefaultDataLabelFormat().getTextFormat().getPortionFormat().getFillFormat().setFillType(java.newByte(aspose.slides.FillType.Solid));
series.getLabels().getDefaultDataLabelFormat().getTextFormat().getPortionFormat().getFillFormat().getSolidFillColor().setColor(java.getStaticFieldValue("java.awt.Color", "WHITE"));
series.getLabels().getDefaultDataLabelFormat().setShowValue(true);
// Adds new series
var series2 = chart.getChartData().getSeries().add(workbook.getCell(defaultWorksheetIndex, 0, 2, "Blues"), chart.getType());
series2.getDataPoints().addDataPointForBarSeries(workbook.getCell(defaultWorksheetIndex, 1, 2, 0.7));
series2.getDataPoints().addDataPointForBarSeries(workbook.getCell(defaultWorksheetIndex, 2, 2, 0.5));
series2.getDataPoints().addDataPointForBarSeries(workbook.getCell(defaultWorksheetIndex, 3, 2, 0.2));
series2.getDataPoints().addDataPointForBarSeries(workbook.getCell(defaultWorksheetIndex, 4, 2, 0.35));
// Sets Fill type and color
series2.getFormat().getFill().setFillType(java.newByte(aspose.slides.FillType.Solid));
series2.getFormat().getFill().getSolidFillColor().setColor(java.getStaticFieldValue("java.awt.Color", "BLUE"));
series2.getLabels().getDefaultDataLabelFormat().setShowValue(true);
series2.getLabels().getDefaultDataLabelFormat().setNumberFormatLinkedToSource(false);
series2.getLabels().getDefaultDataLabelFormat().setNumberFormat("0.0%");
series2.getLabels().getDefaultDataLabelFormat().getTextFormat().getPortionFormat().setFontHeight(10);
series2.getLabels().getDefaultDataLabelFormat().getTextFormat().getPortionFormat().getFillFormat().setFillType(java.newByte(aspose.slides.FillType.Solid));
series2.getLabels().getDefaultDataLabelFormat().getTextFormat().getPortionFormat().getFillFormat().getSolidFillColor().setColor(java.getStaticFieldValue("java.awt.Color", "WHITE"));
// Writes the presentation to disk
pres.save("SetDataLabelsPercentageSign_out.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
if (pres != null) {
pres.dispose();
}
}
Set Label Distances From Axis
This JavaScript code shows you how to set the label distance from a category axis when you are dealing with a chart plotted from axes:
// Creates an instance of the Presentation class
var pres = new aspose.slides.Presentation();
try {
// Gets a slide's reference
var sld = pres.getSlides().get_Item(0);
// Creates a chart on the slide
var ch = sld.getShapes().addChart(aspose.slides.ChartType.ClusteredColumn, 20, 20, 500, 300);
// Sets the label distance from an axis
ch.getAxes().getHorizontalAxis().setLabelOffset(500);
// WriteS the presentation to disk
pres.save("output.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
if (pres != null) {
pres.dispose();
}
}
Adjust Label Location
When you create a chart that does not rely on any axis such as a pie chart, the chart’s data labels may end up being too close to its edge. In such a case, you have to adjust the location of the data label so that the leader lines get displayed clearly.
This JavaScript code shows you how to adjust the label location on a pie chart:
var pres = new aspose.slides.Presentation();
try {
var chart = pres.getSlides().get_Item(0).getShapes().addChart(aspose.slides.ChartType.Pie, 50, 50, 200, 200);
var series = chart.getChartData().getSeries();
var label = series.get_Item(0).getLabels().get_Item(0);
label.getDataLabelFormat().setShowValue(true);
label.getDataLabelFormat().setPosition(aspose.slides.LegendDataLabelPosition.OutsideEnd);
label.setX(0.71);
label.setY(0.04);
pres.save("pres.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
if (pres != null) {
pres.dispose();
}
}
