Chart Series

A series is a row or column of numbers plotted in a chart.

chart-series-powerpoint

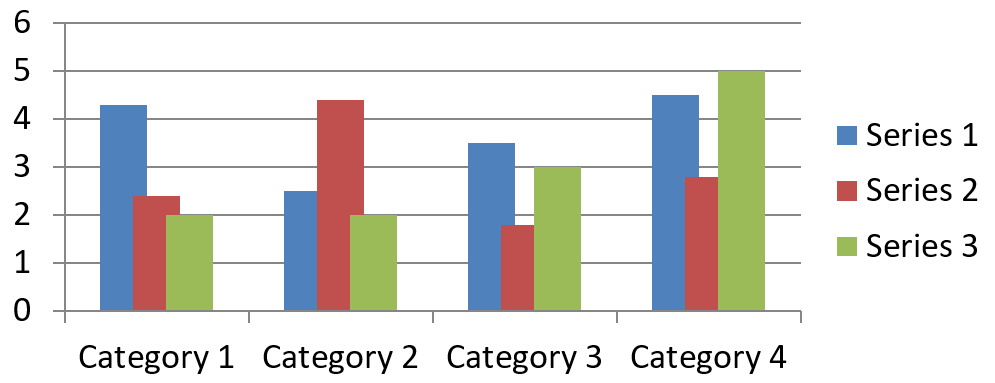

Set Chart Series Overlap

With the ChartSeries.getOverlap method, you can specify how much bars and columns should overlap on a 2D chart (range: -100 to 100). This property applies to all series of the parent series group: this is a projection of the appropriate group property. Therefore, this property is read-only.

Use the ParentSeriesGroup.getOverlap read/write property to set your preferred value for Overlap.

  1. Create an instance of the Presentation class.
  2. Add a clustered column chart on a slide.
  3. Access the first chart series.
  4. Access the chart series' ParentSeriesGroup and set your preferred overlap value for the series.
  5. Write the modified presentation to a PPTX file.

This JavaScript code shows you how to set the overlap for a chart series:

var pres = new aspose.slides.Presentation();
try {
    // Adds chart
    var chart = pres.getSlides().get_Item(0).getShapes().addChart(aspose.slides.ChartType.ClusteredColumn, 50, 50, 600, 400, true);
    var series = chart.getChartData().getSeries();
    if (series.get_Item(0).getOverlap() == 0) {
        // Sets series overlap
        series.get_Item(0).getParentSeriesGroup().setOverlap(-30);
    }
    // Writes the presentation file to disk
    pres.save("SetChartSeriesOverlap_out.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

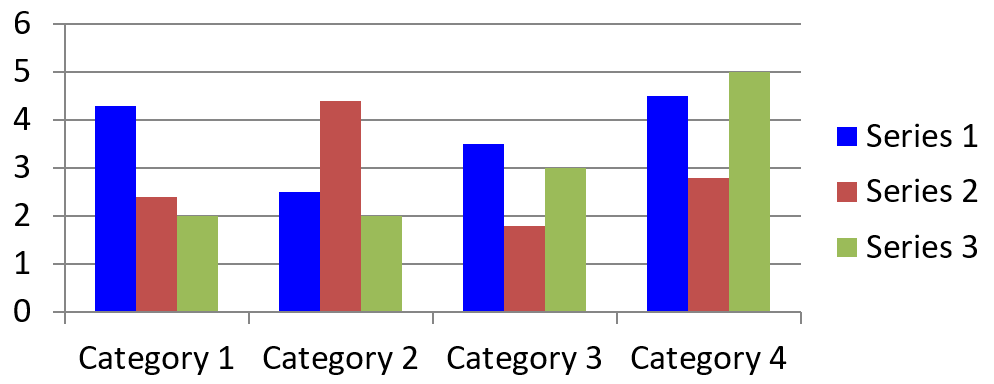

Change Series Color

Aspose.Slides for Node.js via Java allows you to change a series' color this way:

  1. Create an instance of the Presentation class.
  2. Add chart on the slide.
  3. Access the series whose color you want to change.
  4. Set your preferred fill type and fill color.
  5. Save the modified presentation.

This JavaScript code shows you how to change a series' color:

var pres = new aspose.slides.Presentation("test.pptx");
try {
    var chart = pres.getSlides().get_Item(0).getShapes().addChart(aspose.slides.ChartType.Pie, 50, 50, 600, 400);
    var point = chart.getChartData().getSeries().get_Item(0).getDataPoints().get_Item(1);
    point.setExplosion(30);
    point.getFormat().getFill().setFillType(java.newByte(aspose.slides.FillType.Solid));
    point.getFormat().getFill().getSolidFillColor().setColor(java.getStaticFieldValue("java.awt.Color", "BLUE"));
    pres.save("output.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

Change Series Category’s Color

Aspose.Slides for Node.js via Java allows you to change a series category’s color this way:

  1. Create an instance of the Presentation class.
  2. Add chart on the slide.
  3. Access the series category whose color you want to change.
  4. Set your preferred fill type and fill color.
  5. Save the modified presentation.

This code in JavaScript shows you how to change a series category’s color:

var pres = new aspose.slides.Presentation();
try {
    var chart = pres.getSlides().get_Item(0).getShapes().addChart(aspose.slides.ChartType.ClusteredColumn, 50, 50, 600, 400);
    var point = chart.getChartData().getSeries().get_Item(0).getDataPoints().get_Item(0);
    point.getFormat().getFill().setFillType(java.newByte(aspose.slides.FillType.Solid));
    point.getFormat().getFill().getSolidFillColor().setColor(java.getStaticFieldValue("java.awt.Color", "BLUE"));
    pres.save("output.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

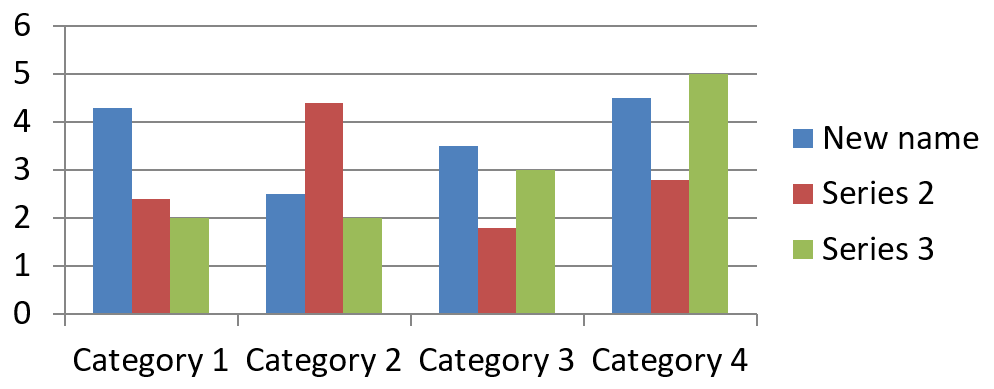

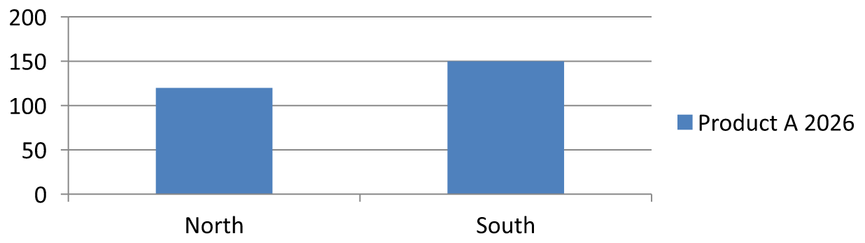

Change Series' Name

By default, the legend names for a chart are the contents of cells above each column or row of data.

In our example (sample image),

  • the columns are Series 1, Series 2, and Series 3;
  • the rows are Category 1, Category 2, Category 3, and Category 4.

Aspose.Slides for Node.js via Java allows you to update or change a series name in its chart data and legend.

This JavaScript code shows you how to change a series' name in its chart data ChartDataWorkbook:

var pres = new aspose.slides.Presentation();
try {
    var chart = pres.getSlides().get_Item(0).getShapes().addChart(aspose.slides.ChartType.Column3D, 50, 50, 600, 400, true);
    var seriesCell = chart.getChartData().getChartDataWorkbook().getCell(0, 0, 1);
    seriesCell.setValue("New name");
    pres.save("pres.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

This JavaScript code shows you how to change a series name in its legend through Series:

var pres = new aspose.slides.Presentation();
try {
    var chart = pres.getSlides().get_Item(0).getShapes().addChart(aspose.slides.ChartType.Column3D, 50, 50, 600, 400, true);
    var series = chart.getChartData().getSeries().get_Item(0);
    var name = series.getName();
    name.getAsCells().get_Item(0).setValue("New name");
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

Set Chart Series Fill Color

Aspose.Slides for Node.js via Java allows you to set the automatic fill color for chart series inside a plot area this way:

  1. Create an instance of the Presentation class.
  2. Obtain a slide’s reference by its index.
  3. Add a chart with default data based on your preferred type (in the example below, we used ChartType.ClusteredColumn).
  4. Access the chart series and set the fill color to Automatic.
  5. Save the presentation to a PPTX file.

This JavaScript code shows you how to set the automatic fill color for a chart series:

var pres = new aspose.slides.Presentation();
try {
    // Creates a clustered column chart
    var chart = pres.getSlides().get_Item(0).getShapes().addChart(aspose.slides.ChartType.ClusteredColumn, 100, 50, 600, 400);
    // Sets series fill format to automatic
    for (var i = 0; i < chart.getChartData().getSeries().size(); i++) {
        chart.getChartData().getSeries().get_Item(i).getAutomaticSeriesColor();
    }
    // Writes the presentation file to disk
    pres.save("AutoFillSeries_out.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

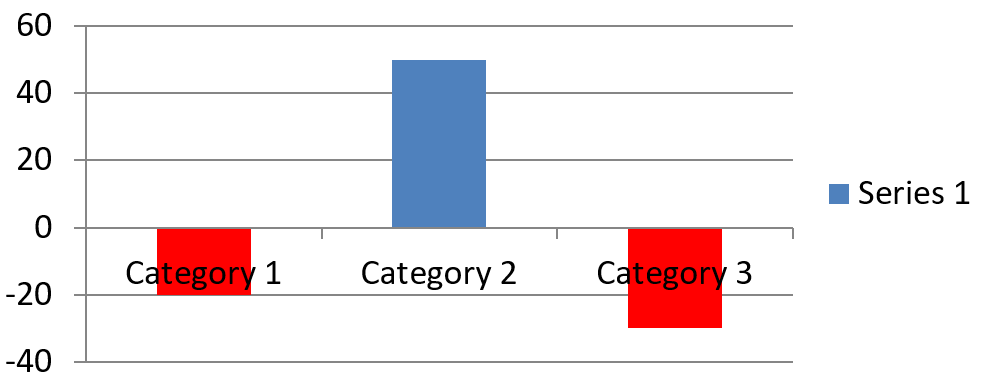

Set Chart Series Invert Fill Colors

Aspose.Slides allows you to set the invert fill color for chart series inside a plot area this way:

  1. Create an instance of the Presentation class.
  2. Obtain a slide’s reference by its index.
  3. Add a chart with default data based on your preferred type (in the example below, we used ChartType.ClusteredColumn).
  4. Access the chart series and set the fill color to invert.
  5. Save the presentation to a PPTX file.

This JavaScript code demonstrates the operation:

var inverColor = java.getStaticFieldValue("java.awt.Color", "RED");
var pres = new aspose.slides.Presentation();
try {
    var chart = pres.getSlides().get_Item(0).getShapes().addChart(aspose.slides.ChartType.ClusteredColumn, 100, 100, 400, 300);
    var workBook = chart.getChartData().getChartDataWorkbook();
    chart.getChartData().getSeries().clear();
    chart.getChartData().getCategories().clear();
    // Adds new series and categories
    chart.getChartData().getSeries().add(workBook.getCell(0, 0, 1, "Series 1"), chart.getType());
    chart.getChartData().getCategories().add(workBook.getCell(0, 1, 0, "Category 1"));
    chart.getChartData().getCategories().add(workBook.getCell(0, 2, 0, "Category 2"));
    chart.getChartData().getCategories().add(workBook.getCell(0, 3, 0, "Category 3"));
    // Takes the first chart series and populates its series data.
    var series = chart.getChartData().getSeries().get_Item(0);
    series.getDataPoints().addDataPointForBarSeries(workBook.getCell(0, 1, 1, -20));
    series.getDataPoints().addDataPointForBarSeries(workBook.getCell(0, 2, 1, 50));
    series.getDataPoints().addDataPointForBarSeries(workBook.getCell(0, 3, 1, -30));
    var seriesColor = series.getAutomaticSeriesColor();
    series.setInvertIfNegative(true);
    series.getFormat().getFill().setFillType(java.newByte(aspose.slides.FillType.Solid));
    series.getFormat().getFill().getSolidFillColor().setColor(seriesColor);
    series.getInvertedSolidFillColor().setColor(inverColor);
    pres.save("SetInvertFillColorChart_out.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

Set Series to Invert When Value is Negative

Aspose.Slides allows you to set inverts through theChartDataPoint.setInvertIfNegative method. When an invert is set using the properties, the data point inverts its colors when it gets a negative value.

This JavaScript code demonstrates the operation:

var pres = new aspose.slides.Presentation();
try {
    var chart = pres.getSlides().get_Item(0).getShapes().addChart(aspose.slides.ChartType.ClusteredColumn, 50, 50, 600, 400, true);
    var series = chart.getChartData().getSeries();
    chart.getChartData().getSeries().clear();
    var chartSeries = series.add(chart.getChartData().getChartDataWorkbook().getCell(0, "B1"), chart.getType());
    chartSeries.getDataPoints().addDataPointForBarSeries(chart.getChartData().getChartDataWorkbook().getCell(0, "B2", -5));
    chartSeries.getDataPoints().addDataPointForBarSeries(chart.getChartData().getChartDataWorkbook().getCell(0, "B3", 3));
    chartSeries.getDataPoints().addDataPointForBarSeries(chart.getChartData().getChartDataWorkbook().getCell(0, "B4", -2));
    chartSeries.getDataPoints().addDataPointForBarSeries(chart.getChartData().getChartDataWorkbook().getCell(0, "B5", 1));
    chartSeries.setInvertIfNegative(false);
    chartSeries.getDataPoints().get_Item(2).setInvertIfNegative(true);
    pres.save("out.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

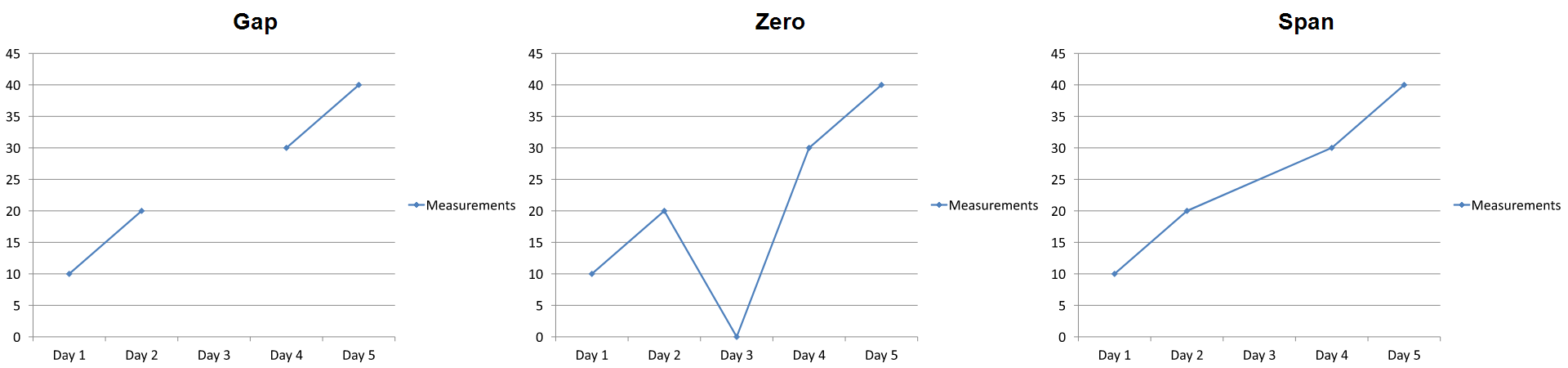

Clear Specific Data Points' Data

Aspose.Slides for Node.js via Java allows you to clear the DataPoints data for a specific chart series this way:

  1. Create an instance of the Presentation class.
  2. Obtain the reference of a slide through its index.
  3. Obtain the reference of a chart through its index.
  4. Iterate through all the chart DataPoints and set XValue and YValue to null.
  5. Clear allDataPoints for specific chart series.
  6. Write the modified presentation to a PPTX file.

This JavaScript code demonstrates the operation:

var pres = new aspose.slides.Presentation("TestChart.pptx");
try {
    var sl = pres.getSlides().get_Item(0);
    var chart = sl.getShapes().get_Item(0);
    for (let i = 0; i < chart.getChartData().getSeries().get_Item(0).getDataPoints().size(); i++) {
        let dataPoint = chart.getChartData().getSeries().get_Item(0).getDataPoints().get_Item(i);
        dataPoint.getXValue().getAsCell().setValue(null);
        dataPoint.getYValue().getAsCell().setValue(null);
    }
    chart.getChartData().getSeries().get_Item(0).getDataPoints().clear();
    pres.save("ClearSpecificChartSeriesDataPointsData.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}

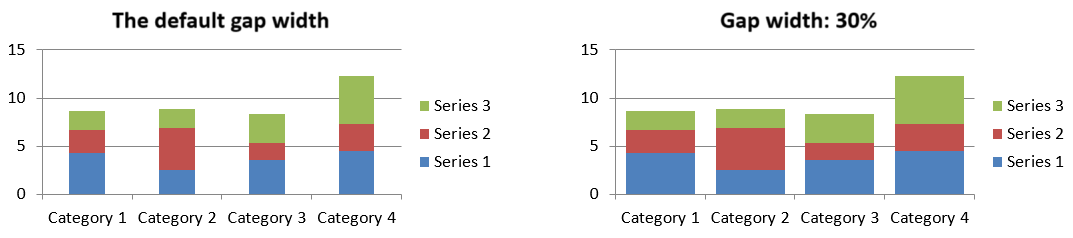

Set Series Gap Width

Aspose.Slides for Node.js via Java allows you to set a series' Gap Width through the GapWidth property this way:

  1. Create an instance of the Presentation class.
  2. Access first slide.
  3. Add chart with default data.
  4. Access any chart series.
  5. Set the GapWidth property.
  6. Write the modified presentation to a PPTX file.

This code in JavaScript shows you how to set a series' Gap Width:

// Creates empty presentation
var pres = new aspose.slides.Presentation();
try {
    // Accesses the presentation's first slide
    var slide = pres.getSlides().get_Item(0);
    // Adds a chart with default data
    var chart = slide.getShapes().addChart(aspose.slides.ChartType.StackedColumn, 0, 0, 500, 500);
    // Sets the index of the chart data sheet
    var defaultWorksheetIndex = 0;
    // Gets the chart data worksheet
    var fact = chart.getChartData().getChartDataWorkbook();
    // Adds series
    chart.getChartData().getSeries().add(fact.getCell(defaultWorksheetIndex, 0, 1, "Series 1"), chart.getType());
    chart.getChartData().getSeries().add(fact.getCell(defaultWorksheetIndex, 0, 2, "Series 2"), chart.getType());
    // Adds Categories
    chart.getChartData().getCategories().add(fact.getCell(defaultWorksheetIndex, 1, 0, "Caetegoty 1"));
    chart.getChartData().getCategories().add(fact.getCell(defaultWorksheetIndex, 2, 0, "Caetegoty 2"));
    chart.getChartData().getCategories().add(fact.getCell(defaultWorksheetIndex, 3, 0, "Caetegoty 3"));
    // Takes the second chart series
    var series = chart.getChartData().getSeries().get_Item(1);
    // Populates the series data
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 1, 1, 20));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 2, 1, 50));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 3, 1, 30));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 1, 2, 30));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 2, 2, 10));
    series.getDataPoints().addDataPointForBarSeries(fact.getCell(defaultWorksheetIndex, 3, 2, 60));
    // Sets GapWidth value
    series.getParentSeriesGroup().setGapWidth(50);
    // Saves presentation to disk
    pres.save("GapWidth_out.pptx", aspose.slides.SaveFormat.Pptx);
} finally {
    if (pres != null) {
        pres.dispose();
    }
}
