PHP에서 PowerPoint 도형 서식 지정
소개

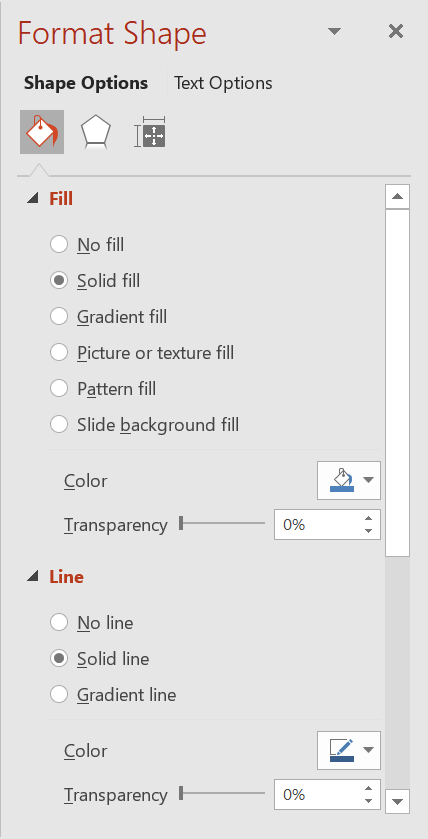

PowerPoint에서 도형의 윤곽선, 채우기 및 효과를 조정하여 형식을 지정합니다. Aspose.Slides for PHP via Java를 사용하면 투명도, 회전 및 3D 서식 지정 등 이러한 설정을 프로그래밍 방식으로 제어할 수 있습니다.

Aspose.Slides for PHP via Java는 PowerPoint에서 사용할 수 있는 동일한 옵션을 사용하여 도형을 서식 지정할 수 있는 클래스와 메서드를 제공합니다.
선 서식
Shape::getLineFormat을 사용하여 도형의 윤곽선을 제어합니다. 이 예제는 채우지 않은 사각형에 파란색 점선 윤곽선을 생성합니다. LineFormat::setStyle은 두께가 다른 복합 선을 선택하고, LineFormat::setWidth는 너비를 7포인트로 설정하며, LineFormat::setDashStyle은 대시 패턴을 선택합니다.
use aspose\slides\FillType;
use aspose\slides\LineDashStyle;
use aspose\slides\LineStyle;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$shape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
$shape->getFillFormat()->setFillType(FillType::NoFill);
$shape->getLineFormat()->setStyle(LineStyle::ThickThin);
$shape->getLineFormat()->setWidth(7);
$shape->getLineFormat()->setDashStyle(LineDashStyle::Dash);
$shape->getLineFormat()->getFillFormat()->setFillType(FillType::Solid);
$shape->getLineFormat()->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->BLUE);
$presentation->save("formatted_lines.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
결과:

사용자 지정 선 대시 패턴 설정
사전 정의된 선 스타일이 필요한 대시 길이와 간격을 제공하지 않을 때, 예를 들어 브랜드 윤곽선이나 기술 다이어그램에 사용하려면 LineFormat::setCustomDashPattern를 사용하십시오. 패턴을 할당하면 선 대시 스타일이 자동으로 LineDashStyle::Custom으로 변경됩니다.
배열 항목은 대시와 간격 길이를 번갈아 가며 시작은 대시부터입니다. 각 값은 선 너비의 배수이며, 예를 들어 너비가 3포인트일 때 [4, 2]는 12포인트 대시와 6포인트 간격을 생성합니다. 유한하고 음수가 아닌 값 쌍을 사용하여 완전한 대시‑간격 세그먼트를 정의합니다. 예제는 모든 대시와 간격이 보이도록 양수를 사용합니다.
이 예제는 동일한 길이와 평평한 캡을 가진 파란색 선 5개를 생성합니다. 처음 세 개는 3포인트 너비에서 패턴을 비교하고, 네 번째는 첫 번째 패턴을 두 배 너비로 반복하여 대시와 간격 길이를 모두 두 배로 늘립니다. 다섯 번째는 사용자 지정 패턴에서 실선으로 전환합니다.
use aspose\slides\FillType;
use aspose\slides\LineArrowheadStyle;
use aspose\slides\LineCapStyle;
use aspose\slides\LineDashStyle;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
use aspose\slides\SlideSizeScaleType;
$presentation = new Presentation();
try {
$presentation->getSlideSize()->setSize(600, 300, SlideSizeScaleType::DoNotScale);
$slide = $presentation->getSlides()->get_Item(0);
$patterns = [
[4, 2],
[1, 2],
[6, 2, 1, 2],
[4, 2],
[4, 2]
];
$lineColor = new Java("java.awt.Color", 0, 0, 139);
for ($i = 0; $i < count($patterns); $i++) {
$line = $slide->getShapes()->addAutoShape(ShapeType::Line, 50, 50 + $i * 50, 500, 0);
$line->getLineFormat()->setWidth($i == 3 ? 6 : 3);
$line->getLineFormat()->getFillFormat()->setFillType(FillType::Solid);
$line->getLineFormat()->getFillFormat()->getSolidFillColor()->setColor($lineColor);
$line->getLineFormat()->setCapStyle(LineCapStyle::Flat);
$line->getLineFormat()->setBeginArrowheadStyle(LineArrowheadStyle::None);
$line->getLineFormat()->setEndArrowheadStyle(LineArrowheadStyle::None);
$line->getLineFormat()->setCustomDashPattern($patterns[$i]);
}
// 마지막 선을 실선 스타일로 반환합니다.
$slide->getShapes()->get_Item(4)->getLineFormat()->setDashStyle(LineDashStyle::Solid);
$presentation->save("custom_dash_patterns.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
사전 정의된 점선 스타일로 돌아가려면 LineDashStyle::Dash을 LineFormat::setDashStyle으로 전달합니다. 선택된 스타일이 선의 외관을 제어합니다.
PowerPoint에서의 결과, 위에서 아래 순서대로: {4, 2}, 3 pt; {1, 2}, 3 pt; {6, 2, 1, 2}, 3 pt; {4, 2}, 6 pt; 및 Solid, 3 pt.

선 캡 설정
LineFormat::setCapStyle를 사용하여 열린 선의 끝을 설정합니다. LineCapStyle 클래스는 세 가지 명시적 캡 스타일을 제공합니다:
Flat: 스트로크가 끝점에서 멈춥니다.Round: 반원형 캡이 선 너비의 절반만큼 끝점 밖으로 연장됩니다.Square: 정사각형 캡이 선 너비의 절반만큼 끝점 밖으로 연장됩니다.
클래스에는 NotDefined도 포함되어 있으며, 이는 명시적인 캡 스타일이 할당되지 않았음을 의미합니다.
캡은 선 끝에 기호를 추가하는 화살표와, 선 세그먼트 사이의 모서리를 제어하는 조인과는 다릅니다. 이 예제는 LineFormat::setBeginArrowheadStyle와 LineFormat::setEndArrowheadStyle를 사용해 화살표를 비활성화하고 캡 모양만 비교합니다.
다음 예제는 가로선 3개를 생성합니다. 모두 20포인트 너비이며, 위에서 아래 순서대로 평평한 캡, 둥근 캡, 정사각형 캡을 사용합니다. 끝점은 동일한 가로 좌표를 가지며, 둥근 캡과 정사각형 캡은 각 끝점에서 10포인트씩 연장됩니다.
use aspose\slides\FillType;
use aspose\slides\LineArrowheadStyle;
use aspose\slides\LineCapStyle;
use aspose\slides\LineDashStyle;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
use aspose\slides\SlideSizeScaleType;
$presentation = new Presentation();
try {
$presentation->getSlideSize()->setSize(500, 240, SlideSizeScaleType::DoNotScale);
$slide = $presentation->getSlides()->get_Item(0);
$capStyles = [LineCapStyle::Flat, LineCapStyle::Round, LineCapStyle::Square];
for ($i = 0; $i < count($capStyles); $i++) {
$line = $slide->getShapes()->addAutoShape(ShapeType::Line, 100, 50 + $i * 70, 300, 0);
$line->getLineFormat()->setWidth(20);
$line->getLineFormat()->getFillFormat()->setFillType(FillType::Solid);
$lineColor = new Java("java.awt.Color", 0, 0, 139);
$line->getLineFormat()->getFillFormat()->getSolidFillColor()->setColor($lineColor);
$line->getLineFormat()->setDashStyle(LineDashStyle::Solid);
$line->getLineFormat()->setCapStyle($capStyles[$i]);
$line->getLineFormat()->setBeginArrowheadStyle(LineArrowheadStyle::None);
$line->getLineFormat()->setEndArrowheadStyle(LineArrowheadStyle::None);
}
$presentation->save("line_caps.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
PowerPoint에서의 결과, 위에서 아래 순서대로: Flat, Round, Square.

도형 선에 스케치 효과 적용
스케치 효과는 도형 선을 손으로 그린 것처럼 보이게 합니다. Shape::getLineFormat으로 선 설정에 접근하고, LineFormat::getSketchFormat으로 스케치 설정에 접근한 뒤, SketchFormat::setSketchType으로 LineSketchType 클래스의 값을 선택합니다.
다음 PHP 코드에서는 LineSketchType::Curved 효과를 적용하고, 명시적으로 할당된 값을 읽으며, LineSketchType::None으로 효과를 제거하는 방법을 보여줍니다.
use aspose\slides\LineSketchType;
use aspose\slides\Presentation;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$shape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 50, 200, 100);
$sketchFormat = $shape->getLineFormat()->getSketchFormat();
$sketchFormat->setSketchType(LineSketchType::Curved);
$explicitSketchType = $sketchFormat->getSketchType();
echo "Explicit sketch type: " . $explicitSketchType . PHP_EOL;
$sketchFormat->setSketchType(LineSketchType::None);
} finally {
$presentation->dispose();
}
SketchFormat::getSketchType으로 반환된 값은 도형에 직접 할당된 설정을 나타냅니다. 선 서식이 테마, 마스터 슬라이드 또는 레이아웃 슬라이드에서 상속될 수 있는 경우, LineFormat::getEffective으로 반환된 객체의 getSketchFormat 메서드에 접근하고, 그 getSketchType 값을 읽으십시오. 효과적인 값은 상속이 해결된 후 실제 적용된 서식을 반영합니다. 이 예제는 첫 번째 슬라이드에 최소 하나의 도형이 있는 기존 프레젠테이션을 필요로 하며 두 값을 모두 출력합니다.
use aspose\slides\Presentation;
$presentation = new Presentation("presentation.pptx");
try {
$shape = $presentation->getSlides()->get_Item(0)->getShapes()->get_Item(0);
$lineFormat = $shape->getLineFormat();
$explicitSketchType = $lineFormat->getSketchFormat()->getSketchType();
$effectiveLineFormat = $lineFormat->getEffective();
$effectiveSketchType = $effectiveLineFormat->getSketchFormat()->getSketchType();
echo "Explicit sketch type: " . $explicitSketchType . PHP_EOL;
echo "Effective sketch type: " . $effectiveSketchType . PHP_EOL;
} finally {
$presentation->dispose();
}
조인 스타일 서식
다음은 세 가지 조인 유형 옵션입니다:
- Round
- Miter
- Bevel
조인 스타일은 두 윤곽선 세그먼트가 모서리에서 만나는 방식을 제어합니다. 둥근 모서리는 Round, 날카로운 모서리는 Miter, 평평한 모서리는 Bevel을 사용하십시오.

이 예제는 파란색 윤곽선이 15포인트인 검은색 사각형 3개를 생성합니다. 각각에 대해 LineFormat::setJoinStyle를 LineJoinStyle의 마이터, 베벨, 라운드 값으로 설정하여 모서리가 어떻게 그려지는지 비교합니다.
use aspose\slides\FillType;
use aspose\slides\LineJoinStyle;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$miterShape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 20, 20, 150, 75);
$bevelShape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 210, 20, 150, 75);
$roundShape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 20, 135, 150, 75);
$miterShape->getFillFormat()->setFillType(FillType::Solid);
$miterShape->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->BLACK);
$bevelShape->getFillFormat()->setFillType(FillType::Solid);
$bevelShape->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->BLACK);
$roundShape->getFillFormat()->setFillType(FillType::Solid);
$roundShape->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->BLACK);
$miterShape->getLineFormat()->setWidth(15);
$bevelShape->getLineFormat()->setWidth(15);
$roundShape->getLineFormat()->setWidth(15);
$miterShape->getLineFormat()->getFillFormat()->setFillType(FillType::Solid);
$miterShape->getLineFormat()->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->BLUE);
$bevelShape->getLineFormat()->getFillFormat()->setFillType(FillType::Solid);
$bevelShape->getLineFormat()->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->BLUE);
$roundShape->getLineFormat()->getFillFormat()->setFillType(FillType::Solid);
$roundShape->getLineFormat()->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->BLUE);
$miterShape->getLineFormat()->setJoinStyle(LineJoinStyle::Miter);
$bevelShape->getLineFormat()->setJoinStyle(LineJoinStyle::Bevel);
$roundShape->getLineFormat()->setJoinStyle(LineJoinStyle::Round);
$miterShape->getTextFrame()->setText("Miter Join Style");
$bevelShape->getTextFrame()->setText("Bevel Join Style");
$roundShape->getTextFrame()->setText("Round Join Style");
$presentation->save("join_styles.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
뾰족한 모서리에서 마이터 조인 제한
LineFormat::setMiterLimit와 LineFormat::setJoinStyle를 LineJoinStyle::Miter 로 설정하여 날카로운 모서리가 얼마나 멀리 뻗을 수 있는지 제한합니다.
제한은 조인의 안쪽과 바깥쪽 모서리 사이 거리와 선 너비의 비율입니다. 예를 들어 8 값은 마이터 길이가 선 너비의 최대 8배까지 허용한다는 의미이며, 포인트 단위 측정이 아닙니다. 모서리가 제한을 초과하면 PowerPoint는 해당 모서리에 베벨 조인을 사용합니다. 제한이 클수록 더 뾰족한 점이 생성됩니다. 이 설정은 마이터 조인에만 영향을 주며, 모서리가 두 제한 모두 내에 있을 때는 눈에 보이는 효과가 없습니다.
이 예제는 각각 20포인트 윤곽선을 가진 동일한 무채색 삼각형 두 개를 생성합니다. 왼쪽 삼각형은 제한을 2로, 오른쪽은 8로 설정합니다. 각 삼각형은 가로 80포인트, 세로 160포인트이며, 상단 모서리의 마이터‑길이‑대‑선‑너비 비율은 약 4.12입니다. 따라서 PowerPoint는 왼쪽 정점을 베벨 처리하고 오른쪽 정점은 유지합니다.
use aspose\slides\FillType;
use aspose\slides\LineJoinStyle;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
use aspose\slides\SlideSizeScaleType;
$presentation = new Presentation();
try {
$presentation->getSlideSize()->setSize(500, 320, SlideSizeScaleType::DoNotScale);
$slide = $presentation->getSlides()->get_Item(0);
$miterLimits = [2, 8];
for ($i = 0; $i < count($miterLimits); $i++) {
$triangle = $slide->getShapes()->addAutoShape(ShapeType::Triangle, 90 + $i * 240, 110, 80, 160);
$triangle->getFillFormat()->setFillType(FillType::NoFill);
$triangle->getLineFormat()->setWidth(20);
$triangle->getLineFormat()->getFillFormat()->setFillType(FillType::Solid);
$lineColor = new Java("java.awt.Color", 0, 0, 139);
$triangle->getLineFormat()->getFillFormat()->getSolidFillColor()->setColor($lineColor);
$triangle->getLineFormat()->setJoinStyle(LineJoinStyle::Miter);
$triangle->getLineFormat()->setMiterLimit($miterLimits[$i]);
}
$presentation->save("miter_limits.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
PowerPoint에서의 결과: 왼쪽은 Miter limit 2, 오른쪽은 miter limit 8.

그라디언트 채우기
그라디언트 채우기는 도형 전체에 색을 혼합합니다. 이 예제는 FillFormat::getGradientFormat를 사용하여 빨간색에서 보라색으로 45도 각도의 선형 그라디언트로 타원을 채웁니다. GradientStopCollection::addPresetColor 메서드는 그라디언트 시작과 끝인 0과 1에 색 중지를 배치합니다. 기존 중지를 지우면 두 색만 사용됩니다.
use aspose\slides\FillType;
use aspose\slides\GradientShape;
use aspose\slides\Presentation;
use aspose\slides\PresetColor;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$shape = $slide->getShapes()->addAutoShape(ShapeType::Ellipse, 50, 50, 150, 75);
$shape->getFillFormat()->setFillType(FillType::Gradient);
$shape->getFillFormat()->getGradientFormat()->setGradientShape(GradientShape::Linear);
$shape->getFillFormat()->getGradientFormat()->setLinearGradientAngle(45);
$shape->getFillFormat()->getGradientFormat()->getGradientStops()->clear();
$shape->getFillFormat()->getGradientFormat()->getGradientStops()->addPresetColor(1.0, PresetColor::Purple);
$shape->getFillFormat()->getGradientFormat()->getGradientStops()->addPresetColor(0.0, PresetColor::Red);
$presentation->save("gradient_fill.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
결과:

그라디언트가 내보낸 이미지에서 PowerPoint와 다르게 보이는 경우, 그라디언트 렌더링 스타일 선택을 참조하십시오. 프레젠테이션에 저장된 그라디언트 채우기를 변경하지 않고도 렌더링 스타일을 선택할 수 있습니다.
선형 그라디언트 각도 설정
GradientFormat::setLinearGradientAngle를 사용하여 GradientShape::Linear 채우기의 방향을 제어합니다. 각도는 도(degree) 단위이며 시계 방향으로 증가합니다: 0은 왼쪽에서 오른쪽, 90은 위에서 아래, 180은 오른쪽에서 왼쪽, 270은 아래에서 위로 진행합니다. 소수 각도도 지원됩니다. [0, 360) 범위를 벗어나는 유한 각도는 한 바퀴로 정규화됩니다. 예를 들어 -45는 315가 되고, 360은 0이 됩니다.
이 예제는 동일한 빨강, 초록, 파랑 중지를 0, 0.5, 1 위치에 배치한 직사각형 6개를 생성합니다. 스케일을 비활성화하여 각도를 도형 비율과 무관하게 비교합니다. 각도는 왼쪽에서 오른쪽으로 첫 번째 행에 0, 45, 90, 두 번째 행에 135, 180, 270입니다.
use aspose\slides\FillType;
use aspose\slides\GradientShape;
use aspose\slides\NullableBool;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
use aspose\slides\SlideSizeScaleType;
$presentation = new Presentation();
try {
$presentation->getSlideSize()->setSize(720, 400, SlideSizeScaleType::DoNotScale);
$slide = $presentation->getSlides()->get_Item(0);
$angles = [0, 45, 90, 135, 180, 270];
for ($i = 0; $i < count($angles); $i++) {
$x = 30 + ($i % 3) * 230;
$y = 30 + intdiv($i, 3) * 190;
$shape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, $x, $y, 200, 150);
$shape->getLineFormat()->getFillFormat()->setFillType(FillType::NoFill);
$shape->getFillFormat()->setFillType(FillType::Gradient);
$gradient = $shape->getFillFormat()->getGradientFormat();
$gradient->setGradientShape(GradientShape::Linear);
$gradient->getGradientStops()->clear();
$gradient->getGradientStops()->add(0, java("java.awt.Color")->RED);
$gradient->getGradientStops()->add(0.5, java("java.awt.Color")->GREEN);
$gradient->getGradientStops()->add(1, java("java.awt.Color")->BLUE);
$gradient->setLinearGradientScaled(NullableBool::False);
$gradient->setLinearGradientAngle($angles[$i]);
}
$presentation->save("linear_gradient_angles.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
PowerPoint에서의 결과:

도형에 선형 그라디언트 스케일 적용
GradientFormat::setLinearGradientScaled는 NullableBool 값을 받습니다. False로 명시적으로 설정하면 도형 비율이 변해도 기하학적 그라디언트 각도가 유지되고, True로 설정하면 그라디언트가 도형의 너비와 높이에 맞춰 스케일됩니다. 스케일이 활성화된 경우, 정사각형이 아닌 도형에서는 보이는 각도가 할당된 각도와 다를 수 있습니다.
다음 예제는 45도 각도와 앞의 색 중지를 사용합니다. 왼쪽 열은 False, 오른쪽 열은 True를 사용합니다. 각 열에는 넓은 직사각형 위에 높은 직사각형이 있습니다. 두 번째 직사각형의 너비와 높이를 변경하여 채우기가 크기 조정에 어떻게 반응하는지 보여줍니다.
use aspose\slides\FillType;
use aspose\slides\GradientShape;
use aspose\slides\NullableBool;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
use aspose\slides\SlideSizeScaleType;
$presentation = new Presentation();
try {
$presentation->getSlideSize()->setSize(720, 460, SlideSizeScaleType::DoNotScale);
$slide = $presentation->getSlides()->get_Item(0);
$scalingOptions = [NullableBool::False, NullableBool::True];
for ($column = 0; $column < count($scalingOptions); $column++) {
for ($row = 0; $row < 2; $row++) {
$x = 30 + $column * 360;
$y = $row == 0 ? 30 : 150;
$shape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, $x, $y, 300, 90);
$shape->getLineFormat()->getFillFormat()->setFillType(FillType::NoFill);
$shape->getFillFormat()->setFillType(FillType::Gradient);
$gradient = $shape->getFillFormat()->getGradientFormat();
$gradient->setGradientShape(GradientShape::Linear);
$gradient->getGradientStops()->clear();
$gradient->getGradientStops()->add(0, java("java.awt.Color")->RED);
$gradient->getGradientStops()->add(0.5, java("java.awt.Color")->GREEN);
$gradient->getGradientStops()->add(1, java("java.awt.Color")->BLUE);
$gradient->setLinearGradientAngle(45);
$gradient->setLinearGradientScaled($scalingOptions[$column]);
if ($row == 1) {
$shape->setWidth(90);
$shape->setHeight(280);
}
}
}
$presentation->save("linear_gradient_scaling.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
PowerPoint에서의 결과, 왼쪽은 스케일 비활성화, 오른쪽은 스케일 활성화:

스케일이 비활성화된 경우, 대각선 색 밴드는 두 직사각형 모두에서 동일한 방향을 유지합니다. 스케일이 활성화되면 밴드가 도형 비율에 맞게 늘어납니다. 이는 템플릿의 그라디언트를 다른 크기의 도형에 적용할 때 도움이 됩니다. 정사각형에서는 스케일을 활성화해도 이 45도 선형 그라디언트의 모양이 변하지 않습니다.
각도와 스케일 설정은 선형 그라디언트에만 적용되며, [GradientShape::Radial] 또는 GradientShape::Rectangle 채우기를 제어하지 않습니다.
각도와 그라디언트 방향 결합
GradientFormat::setGradientDirection는 GradientDirection 클래스에서 그라디언트 스타일을 선택합니다; 이는 숫자 각도의 대체가 아닙니다. 선형 그라디언트의 경우, 코너 스타일은 setLinearGradientAngle를 통해 할당된 각도를 변경하지 않고 색이 배포되는 영역을 바꿀 수 있습니다. 각도나 스케일을 비교할 때 방향은 변경하지 마십시오.
다음 예제는 같은 설정을 순서를 바꿔 적용합니다. 두 직사각형은 동일하게 보이며, 방향을 각도 앞에 두든 뒤에 두든 결과가 변하지 않습니다.
use aspose\slides\FillType;
use aspose\slides\GradientDirection;
use aspose\slides\GradientShape;
use aspose\slides\NullableBool;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
for ($i = 0; $i < 2; $i++) {
$shape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 30, 30 + $i * 140, 320, 100);
$shape->getLineFormat()->getFillFormat()->setFillType(FillType::NoFill);
$shape->getFillFormat()->setFillType(FillType::Gradient);
$gradient = $shape->getFillFormat()->getGradientFormat();
$gradient->setGradientShape(GradientShape::Linear);
$gradient->getGradientStops()->clear();
$gradient->getGradientStops()->add(0, java("java.awt.Color")->RED);
$gradient->getGradientStops()->add(0.5, java("java.awt.Color")->GREEN);
$gradient->getGradientStops()->add(1, java("java.awt.Color")->BLUE);
$gradient->setLinearGradientScaled(NullableBool::True);
if ($i == 0) {
$gradient->setGradientDirection(GradientDirection::FromCorner1);
$gradient->setLinearGradientAngle(30);
} else {
$gradient->setLinearGradientAngle(30);
$gradient->setGradientDirection(GradientDirection::FromCorner1);
}
}
$presentation->save("linear_gradient_direction.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
패턴 채우기
패턴 채우기는 점, 줄무늬 또는 체크와 같은 두 색상의 디자인을 적용합니다. 이 예제는 PatternFormat::setPatternStyle으로 격자 패턴을 선택하고, PatternFormat::getBackColor으로 밝은 회색 배경을, PatternFormat::getForeColor으로 노란색 패턴 색을 지정합니다.
use aspose\slides\FillType;
use aspose\slides\PatternStyle;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$shape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
$shape->getFillFormat()->setFillType(FillType::Pattern);
$shape->getFillFormat()->getPatternFormat()->setPatternStyle(PatternStyle::Trellis);
$shape->getFillFormat()->getPatternFormat()->getBackColor()->setColor(java("java.awt.Color")->LIGHT_GRAY);
$shape->getFillFormat()->getPatternFormat()->getForeColor()->setColor(java("java.awt.Color")->YELLOW);
$presentation->save("pattern_fill.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
결과:

그림 채우기
그림 채우기는 도형 내부에 이미지를 사용합니다. 이 예제는 로컬 이미지를 필요로 하며, Images::fromFile를 사용해 프레젠테이션의 이미지 컬렉션에 로드합니다. PictureFillFormat::setPictureFillMode를 타일 모드로 설정하면 이미지가 직사각형 내에서 반복됩니다. 아래에 사용된 원본 이미지는 다음과 같습니다:

use aspose\slides\FillType;
use aspose\slides\Images;
use aspose\slides\PictureFillMode;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$shape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 50, 255, 130);
$shape->getFillFormat()->setFillType(FillType::Picture);
$shape->getFillFormat()->getPictureFillFormat()->setPictureFillMode(PictureFillMode::Tile);
$image = Images::fromFile("lotus.png");
try {
$picture = $presentation->getImages()->addImage($image);
} finally {
$image->dispose();
}
$shape->getFillFormat()->getPictureFillFormat()->getPicture()->setImage($picture);
$presentation->save("picture_fill.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}

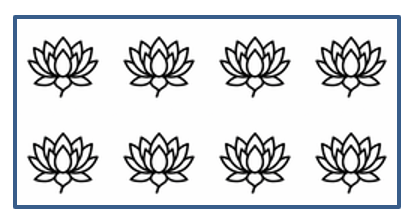

결과:

텍스처로 타일 이미지 사용
타일 이미지를 텍스처로 설정하고 타일링 동작을 맞춤화하려면 다음 PictureFillFormat 메서드를 사용할 수 있습니다:
- setPictureFillMode:
Tile또는Stretch중 그림 채우기 모드를 설정합니다. - setTileAlignment: 도형 내 타일 정렬을 지정합니다.
- setTileFlip: 타일을 가로, 세로 또는 두 방향 모두 뒤집을지 제어합니다.
- setTileOffsetX: 도형 원점에서 타일의 수평 오프셋(포인트)을 설정합니다.
- setTileOffsetY: 도형 원점에서 타일의 수직 오프셋(포인트)을 설정합니다.
- setTileScaleX: 타일의 수평 스케일을 백분율로 정의합니다.
- setTileScaleY: 타일의 수직 스케일을 백분율로 정의합니다.
이 예제는 로컬 이미지를 필요로 하며, 원본 크기의 50%로 반복하도록 PictureFillFormat을 구성합니다. −32 포인트 오프셋은 타일을 가로와 세로로 이동시키고, 오른쪽 아래 정렬과 양방향 플립은 반복 텍스처가 어떻게 배열되는지를 결정합니다.
use aspose\slides\FillType;
use aspose\slides\Images;
use aspose\slides\PictureFillMode;
use aspose\slides\Presentation;
use aspose\slides\RectangleAlignment;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
use aspose\slides\TileFlip;
$presentation = new Presentation();
try {
$firstSlide = $presentation->getSlides()->get_Item(0);
$shape = $firstSlide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 50, 190, 95);
$shape->getFillFormat()->setFillType(FillType::Picture);
$sourceImage = Images::fromFile("lotus.png");
try {
$presentationImage = $presentation->getImages()->addImage($sourceImage);
} finally {
$sourceImage->dispose();
}
$pictureFillFormat = $shape->getFillFormat()->getPictureFillFormat();
$pictureFillFormat->getPicture()->setImage($presentationImage);
$pictureFillFormat->setPictureFillMode(PictureFillMode::Tile);
$pictureFillFormat->setTileOffsetX(-32);
$pictureFillFormat->setTileOffsetY(-32);
$pictureFillFormat->setTileScaleX(50);
$pictureFillFormat->setTileScaleY(50);
$pictureFillFormat->setTileAlignment(RectangleAlignment::BottomRight);
$pictureFillFormat->setTileFlip(TileFlip::FlipBoth);
$presentation->save("tile.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}

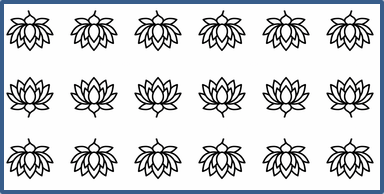

결과:

단색 채우기
단색 채우기는 도형에 단일, 균일한 색을 부여합니다. 이 예제는 FillFormat::setFillType를 사용해 단색 채우기 모드로 설정하고, FillFormat::getSolidFillColor를 통해 노란색을 할당한 뒤 직사각형을 프레젠테이션에 저장합니다.
use aspose\slides\FillType;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$shape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
$shape->getFillFormat()->setFillType(FillType::Solid);
$shape->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->YELLOW);
$presentation->save("solid_color_fill.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
결과:

테마 참조를 유지하면서 색 복사
ColorFormat::copyFrom를 사용하면 색 유형, 테마 참조 및 변환을 포함한 색 정의를 복사할 수 있습니다. 이는 도형 간에 채우기 색을 전달하면서 프레젠테이션 테마를 지속적으로 따르게 할 때 유용합니다. 이 메서드는 색만 복사하고 채우기 유형, 윤곽선 또는 기타 도형 서식은 복사하지 않습니다. 대상 도형의 채우기 유형은 FillFormat::setFillType으로 명시적으로 설정하십시오.
이 예제는 왼쪽에서 오른쪽 순서대로 원본, 테마 인식 복사본, 고정 RGB 복사본의 세 직사각형을 생성합니다. 원본은 ColorFormat::setSchemeColor으로 첫 번째 강조 색을 참조하고, ColorOperationCollection::add으로 색조를 추가합니다. RGB 복사본은 원본의 효과적인 채우기 색을 사용하므로 처음에 세 개 모두 동일해 보입니다. ColorFormat::setColor를 호출하면 고정 RGB 값이 설정되고 기존 색 변환이 모두 제거됩니다.
use aspose\slides\ColorTransformOperation;
use aspose\slides\FillType;
use aspose\slides\ImageFormat;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\SchemeColor;
use aspose\slides\ShapeType;
use aspose\slides\SlideSizeScaleType;
$presentation = new Presentation();
try {
$presentation->getSlideSize()->setSize(660, 220, SlideSizeScaleType::DoNotScale);
$slide = $presentation->getSlides()->get_Item(0);
$initialAccent = new Java("java.awt.Color", 65, 105, 225);
$presentation->getMasterTheme()->getColorScheme()->getAccent1()->setColor($initialAccent);
$source = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 30, 40, 180, 140);
$themeCopy = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 240, 40, 180, 140);
$rgbCopy = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 450, 40, 180, 140);
foreach ([$source, $themeCopy, $rgbCopy] as $shape) {
$shape->getFillFormat()->setFillType(FillType::Solid);
$shape->getLineFormat()->getFillFormat()->setFillType(FillType::NoFill);
}
$sourceColor = $source->getFillFormat()->getSolidFillColor();
$sourceColor->setSchemeColor(SchemeColor::Accent1);
$sourceColor->getColorTransform()->add(ColorTransformOperation::Tint, 0.75);
$themeCopy->getFillFormat()->getSolidFillColor()->copyFrom($sourceColor);
$rgbCopy->getFillFormat()->getSolidFillColor()->setColor($source->getFillFormat()->getEffective()->getSolidFillColor());
$before = $slide->getImage(1.0, 1.0);
try {
$before->save("color-copy-before.png", ImageFormat::Png);
} finally {
$before->dispose();
}
// 테마 참조는 새로운 강조 색을 따르며, 고정된 RGB 값은 따르지 않습니다.
$updatedAccent = new Java("java.awt.Color", 255, 69, 0);
$presentation->getMasterTheme()->getColorScheme()->getAccent1()->setColor($updatedAccent);
$after = $slide->getImage(1.0, 1.0);
try {
$after->save("color-copy-after.png", ImageFormat::Png);
} finally {
$after->dispose();
}
$presentation->save("copied_colors.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
테마 변경 전, 세 개의 채우기가 일치합니다:

테마 변경 후, 소스와 테마 인식 복사본은 새로운 강조 색을 따라 색조를 유지합니다. 고정 RGB 복사본은 파란색 그대로 유지됩니다:

복사된 정의는 소스와 독립적이며, 이후 소스의 테마 참조를 변경하거나 다른 색을 할당하거나 변환을 추가·제거해도 대상에는 영향을 주지 않습니다. 테마 변경은 두 도형 모두 동일한 테마 색을 개별적으로 참조하므로 계속 영향을 미칩니다.
PPTX를 저장하고 다시 열어도 ColorFormat::getColorType으로 반환된 색 유형, 테마 참조, ColorFormat::getColorTransform으로 반환된 변환 컬렉션이 보존됩니다. 정의가 RGB로 평탄화되지 않습니다.
다른 테마 컨텍스트(예: 강조 색 팔레트가 다른 프레젠테이션) 사이에서 복사할 경우, 복사된 참조는 대상의 테마에 따라 해석됩니다. 같은 참조와 변환이라도 다른 보이는 색이 될 수 있습니다. 자세한 내용은 프레젠테이션 테마을 참조하십시오.
슬라이드 배경을 도형 채우기로 사용
슬라이드 배경과 일치해야 하는 도형이 있는 경우, 예를 들어 프레젠테이션 템플릿에서, AutoShape::setUseBackgroundFill를 사용하십시오. 먼저 FillFormat::setFillType를 FillType::NotDefined 로 설정해 명시적인 채우기를 제거합니다. 이 조합을 사용하면 도형이 스타일 채우기가 아니라 슬라이드 배경을 사용합니다. 플래그만 활성화해도 기존 명시적 채우기가 제거되지 않습니다.
이는 FillType::NoFill과 다릅니다. 배경 채우기는 도형 뒤에 있는 객체를 슬라이드 배경 영역으로 가리며, 무채움은 해당 객체를 그대로 표시합니다. 그라디언트는 각 도형 내부가 아니라 슬라이드와 정렬됩니다.
다음 예제는 마스터에서 상속된 배경을 슬라이드에 적용하고, 세 직사각형 뒤에 마젠타 밴드를 배치합니다. 왼쪽 직사각형은 배경을 사용하고, 가운데 직사각형은 무채움이며, 오른쪽 직사각형은 배경 채우기에서 명시적인 주황색 채우기로 전환합니다.
use aspose\slides\BackgroundType;
use aspose\slides\FillType;
use aspose\slides\GradientShape;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
use aspose\slides\SlideSizeScaleType;
$presentation = new Presentation();
try {
$presentation->getSlideSize()->setSize(720, 400, SlideSizeScaleType::DoNotScale);
$slide = $presentation->getSlides()->get_Item(0);
// 마스터에서 그라디언트를 상속합니다.
$slide->getBackground()->setType(BackgroundType::NotDefined);
$slide->getLayoutSlide()->getBackground()->setType(BackgroundType::NotDefined);
$background = $slide->getLayoutSlide()->getMasterSlide()->getBackground();
$background->setType(BackgroundType::OwnBackground);
$background->getFillFormat()->setFillType(FillType::Gradient);
$gradient = $background->getFillFormat()->getGradientFormat();
$gradient->setGradientShape(GradientShape::Linear);
$gradient->setLinearGradientAngle(0);
$gradient->getGradientStops()->clear();
$startColor = new Java("java.awt.Color", 0, 0, 139);
$gradient->getGradientStops()->add(0, $startColor);
$endColor = new Java("java.awt.Color", 135, 206, 250);
$gradient->getGradientStops()->add(1, $endColor);
// 이 객체를 먼저 추가하여 사각형 뒤에 표시되도록 합니다.
$band = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 25, 150, 670, 100);
$band->getFillFormat()->setFillType(FillType::Solid);
$band->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->MAGENTA);
$band->getLineFormat()->getFillFormat()->setFillType(FillType::NoFill);
$backgroundShape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 100, 160, 200);
$backgroundShape->getFillFormat()->setFillType(FillType::NotDefined);
$backgroundShape->setUseBackgroundFill(true);
$noFillShape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 280, 100, 160, 200);
$noFillShape->getFillFormat()->setFillType(FillType::NoFill);
$explicitShape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 510, 100, 160, 200);
$explicitShape->getFillFormat()->setFillType(FillType::NotDefined);
$explicitShape->setUseBackgroundFill(true);
// 명시적 채우기를 적용하기 전에 배경 채우기를 비활성화합니다.
$explicitShape->setUseBackgroundFill(false);
$explicitShape->getFillFormat()->setFillType(FillType::Solid);
$fillColor = new Java("java.awt.Color", 255, 165, 0);
$explicitShape->getFillFormat()->getSolidFillColor()->setColor($fillColor);
$presentation->save("background_fill.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
결과, 왼쪽에서 오른쪽 순서대로: 배경 채우기, 무채움, 명시적 채우기. 마젠타 밴드는 왼쪽과 오른쪽 직사각형 뒤에 가려지지만 가운데 직사각형을 통해 보입니다.

동일한 동작은 슬라이드에 직접 정의된 배경이나 레이아웃에서 상속된 배경에도 적용됩니다. 도형은 슬라이드의 해결된 배경을 사용합니다; 예제는 슬라이드와 레이아웃 배경을 정의하지 않아 마스터가 제공하도록 했습니다.
투명도 설정
단색 채우기의 경우 색상의 알파 구성 요소가 불투명도를 제어합니다: 0은 완전 투명, 255는 완전 불투명합니다. 이 예제는 알파 값을 128로 설정하여 노란색 직사각형을 약 50% 투명하게 만들고, 아래쪽 직사각형이 보이도록 합니다. 색상은 FillFormat::getSolidFillColor로 할당됩니다.
use aspose\slides\FillType;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$solidShape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
$transparentShape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 80, 80, 150, 75);
$transparentShape->getFillFormat()->setFillType(FillType::Solid);
$fillColor = new Java("java.awt.Color", 255, 255, 0, 128);
$transparentShape->getFillFormat()->getSolidFillColor()->setColor($fillColor);
$presentation->save("shape_transparency.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
결과:

도형 회전
Shape::setRotation를 사용하여 슬라이드 평면에서 도형을 회전합니다. 각도는 도(degree) 단위이며, 이 예제는 직사각형을 시계 방향으로 5도 회전하고 프레젠테이션을 저장합니다.
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$shape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
$shape->setRotation(5);
$presentation->save("shape_rotation.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
결과:

3D 베벨 효과 추가
Shape::getThreeDFormat를 사용하면 도형에 깊이와 베벨 가장자리를 줄 수 있습니다. 이 예제는 녹색 타원을 주황색 윤곽선으로 만들고, ThreeDFormat::setDepth를 4포인트로 설정한 뒤, ThreeDFormat::getBevelTop를 통해 너비와 높이가 6포인트인 원형 상단 베벨을 적용합니다. 정면 직교 카메라와 3점 조명이 베벨을 가시화합니다.
use aspose\slides\BevelPresetType;
use aspose\slides\CameraPresetType;
use aspose\slides\FillType;
use aspose\slides\LightRigPresetType;
use aspose\slides\LightingDirection;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$shape = $slide->getShapes()->addAutoShape(ShapeType::Ellipse, 50, 50, 100, 100);
$shape->getFillFormat()->setFillType(FillType::Solid);
$fillColor = new Java("java.awt.Color", 0, 128, 0);
$shape->getFillFormat()->getSolidFillColor()->setColor($fillColor);
$shape->getLineFormat()->getFillFormat()->setFillType(FillType::Solid);
$lineColor = new Java("java.awt.Color", 255, 165, 0);
$shape->getLineFormat()->getFillFormat()->getSolidFillColor()->setColor($lineColor);
$shape->getLineFormat()->setWidth(2.0);
$shape->getThreeDFormat()->setDepth(4);
$shape->getThreeDFormat()->getBevelTop()->setBevelType(BevelPresetType::Circle);
$shape->getThreeDFormat()->getBevelTop()->setHeight(6);
$shape->getThreeDFormat()->getBevelTop()->setWidth(6);
$shape->getThreeDFormat()->getCamera()->setCameraType(CameraPresetType::OrthographicFront);
$shape->getThreeDFormat()->getLightRig()->setLightType(LightRigPresetType::ThreePt);
$shape->getThreeDFormat()->getLightRig()->setDirection(LightingDirection::Top);
$presentation->save("3D_bevel_effect.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
결과:

3D 회전 효과 추가
도형의 3D 뷰는 카메라 설정으로 제어됩니다. 이 예제는 Camera::setRotation를 사용해 위도, 경도, 회전 각도를 각각 40°, 35°, 20°로 지정합니다. Camera::setCameraType으로 등축 카메라를 선택하고, LightRig::setLightType으로 균형 조명을 선택한 뒤 서식이 적용된 직사각형을 저장합니다.
use aspose\slides\CameraPresetType;
use aspose\slides\LightRigPresetType;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$autoShape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
$autoShape->getTextFrame()->setText("Hello, Aspose!");
$autoShape->getThreeDFormat()->getCamera()->setCameraType(CameraPresetType::IsometricLeftUp);
$autoShape->getThreeDFormat()->getCamera()->setRotation(40, 35, 20);
$autoShape->getThreeDFormat()->getLightRig()->setLightType(LightRigPresetType::Balanced);
$presentation->save("3D_rotation_effect.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
결과:

도형 흑백 렌더링 제어
Shape::setBlackWhiteMode 메서드는 프레젠테이션이 흑백 모드로 보이거나 처리될 때 개별 도형이 어떻게 렌더링되는지를 지정합니다. 이 메서드 자체가 흑백 표시를 활성화하지 않으며, 일반 색상 모드에서는 도형의 채우기, 선, 기타 서식을 변경하지도 않습니다.
BlackWhiteMode 클래스의 값을 사용해 원하는 동작을 선택하십시오. 예를 들어 Automatic은 렌더링 응용 프로그램이 변환을 선택하도록 하고, Gray와 LightGray는 회색을 사용하며, BlackWhite는 검정과 흰색만, Black과 White는 단일 색을 강제하고, Color는 일반 색상을 유지하며, Hidden은 흑백 모드에서 도형을 생략합니다. NotDefined는 도형 수준 모드가 할당되지 않았음을 의미합니다.
이 예제는 주황색 직사각형을 만들고 Shape::setBlackWhiteMode을 회색으로 설정합니다. 저장된 도형은 일반 색상 표시에서는 주황색 채우기를 유지하고, 흑백 표시를 지원하는 응용 프로그램에서는 회색으로 렌더링됩니다.
use aspose\slides\BlackWhiteMode;
use aspose\slides\FillType;
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
use aspose\slides\ShapeType;
$presentation = new Presentation();
try {
$slide = $presentation->getSlides()->get_Item(0);
$shape = $slide->getShapes()->addAutoShape(ShapeType::Rectangle, 50, 50, 200, 100);
$shape->getFillFormat()->setFillType(FillType::Solid);
$fillColor = new Java("java.awt.Color", 255, 165, 0);
$shape->getFillFormat()->getSolidFillColor()->setColor($fillColor);
$shape->setBlackWhiteMode(BlackWhiteMode::Gray);
$presentation->save("shape_black_white_mode.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
일반 색상 모드에서는 직사각형이 주황색 채우기를 유지합니다. 흑백 표시 워크플로에서는 모드가 Gray로 설정되어 있기 때문에 회색으로 표시됩니다. 이를 통해 전체 컬러 슬라이드를 유지하면서 인쇄, 미리보기 또는 흑백 표시 설정을 따르는 워크플로에 대해 별도 모습을 정의할 수 있습니다.
서식 초기화
Slide::reset를 사용하면 레이아웃 자리표시자와 대응되는 슬라이드 자리표시자의 위치, 크기 및 서식을 복원합니다. 이 예제는 레이아웃에 연결된 자리표시자가 있는 기존 프레젠테이션을 필요로 하며, 저장 전에 모든 슬라이드를 재설정합니다. 해당 레이아웃 자리표시자가 없는 도형은 재설정되지 않습니다.
use aspose\slides\Presentation;
use aspose\slides\SaveFormat;
$presentation = new Presentation("sample.pptx");
try {
for ($i = 0; $i < java_values($presentation->getSlides()->size()); $i++) {
$slide = $presentation->getSlides()->get_Item($i);
$slide->reset();
}
$presentation->save("reset_formatting.pptx", SaveFormat::Pptx);
} finally {
$presentation->dispose();
}
FAQ
도형 서식이 최종 프레젠테이션 파일 크기에 영향을 줍니까?
색상, 선 스타일 및 효과 설정은 일반적으로 삽입된 이미지 및 미디어에 비해 데이터가 거의 추가되지 않습니다. 그림 채우기는 이미지가 프레젠테이션에 저장되기 때문에 파일 크기를 증가시킬 수 있습니다.
동일한 서식을 공유하는 슬라이드상의 도형을 감지하여 그룹화하려면 어떻게 해야 합니까?
각 도형의 핵심 서식 속성(채우기, 선, 효과 설정)을 비교하십시오. 모든 해당 값이 일치하면 스타일이 동일하다고 판단하고 논리적으로 해당 도형을 그룹화하면 이후 스타일 관리가 간소화됩니다.
맞춤형 도형 스타일 세트를 별도의 파일에 저장하여 다른 프레젠테이션에서 재사용할 수 있습니까?
예. 원하는 스타일이 적용된 샘플 도형을 템플릿 슬라이드 파일이나 .POTX 템플릿 파일에 저장합니다. 새 프레젠테이션을 만들 때 템플릿을 열고 필요한 스타일 도형을 복제한 뒤 필요에 따라 서식을 다시 적용합니다.
