Format PowerPoint Shapes in Python via Java

What this page is about

Learn how to format PowerPoint shapes in Python via Java using Aspose.Slides—set fill, line, and effect styles for PPT and PPTX files with precision and full control.

Introduction

Format shapes in PowerPoint by adjusting their outlines, fills, and effects. Aspose.Slides for Python via Java lets you control these settings programmatically, including transparency, rotation, and 3D formatting.

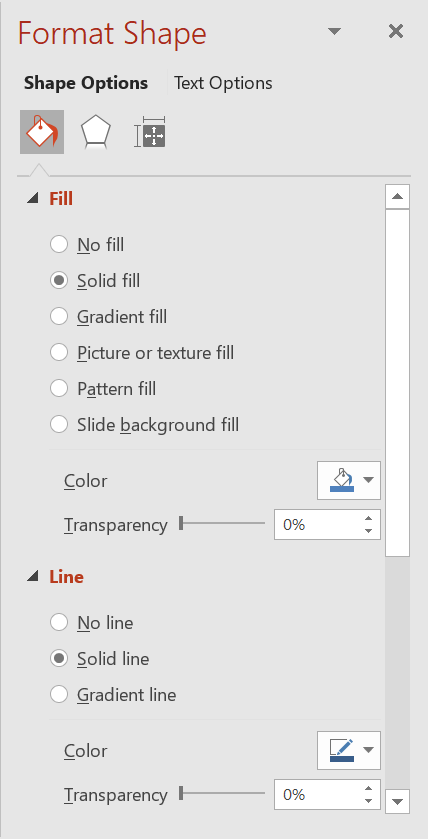

Shape formatting options in PowerPoint

Aspose.Slides for Python via Java provides classes and methods that allow you to format shapes using the same options available in PowerPoint.

Format Lines

Use Shape.getLineFormat to control a shape’s outline. This example creates an unfilled rectangle with a blue, dashed outline. LineFormat.setStyle selects a thick-thin compound line, while LineFormat.setWidth sets its width to 7 points and LineFormat.setDashStyle selects the dash pattern.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import FillType, LineDashStyle, LineStyle, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 150, 75)
    shape.getFillFormat().setFillType(FillType.NoFill)
    shape.getLineFormat().setStyle(LineStyle.ThickThin)
    shape.getLineFormat().setWidth(7)
    shape.getLineFormat().setDashStyle(LineDashStyle.Dash)
    shape.getLineFormat().getFillFormat().setFillType(FillType.Solid)
    shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.BLUE)

    presentation.save("formatted_lines.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result:

The formatted lines in the presentation

Apply Sketch Effects to Shape Lines

A sketch effect makes a shape line look hand-drawn. Use Shape.getLineFormat to access the line settings, LineFormat.getSketchFormat to access the sketch settings, and SketchFormat.setSketchType to select a value from the LineSketchType class.

The following Python code shows how to apply a LineSketchType.Curved effect, read the explicitly assigned value, and remove the effect with LineSketchType.None_:

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import LineSketchType, Presentation, ShapeType

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 200, 100)

    sketch_format = shape.getLineFormat().getSketchFormat()
    sketch_format.setSketchType(LineSketchType.Curved)
    explicit_sketch_type = sketch_format.getSketchType()
    print("Explicit sketch type:", explicit_sketch_type)
    sketch_format.setSketchType(LineSketchType.None_)
finally:
    presentation.dispose()

The value returned by SketchFormat.getSketchType represents the setting assigned directly to the shape. If the line formatting can be inherited from a theme, master slide, or layout slide, use LineFormat.getEffective and read the sketch type from the returned effective line formatting, as shown below. The effective value reflects the formatting that is actually applied after inheritance is resolved. This example requires an existing presentation with at least one shape on its first slide and prints both values:

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import Presentation

presentation = Presentation("presentation.pptx")
try:
    shape = presentation.getSlides().get_Item(0).getShapes().get_Item(0)

    line_format = shape.getLineFormat()
    explicit_sketch_type = line_format.getSketchFormat().getSketchType()
    effective_line_format = line_format.getEffective()
    effective_sketch_type = effective_line_format.getSketchFormat().getSketchType()

    print("Explicit sketch type:", explicit_sketch_type)
    print("Effective sketch type:", effective_sketch_type)
finally:
    presentation.dispose()

Format Join Styles

Here are the three join type options:

Round
Miter
Bevel

The join style controls how two outline segments meet at a corner. Use Round for rounded corners, Miter for sharp corners, or Bevel for flattened corners.

The join style in the presentation

This example creates three black rectangles with blue outlines 15 points wide. It sets LineFormat.setJoinStyle to the miter, bevel, and round values of LineJoinStyle, respectively, to compare how the corners are drawn.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import FillType, LineJoinStyle, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    miter_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 20, 20, 150, 75)
    bevel_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 210, 20, 150, 75)
    round_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 20, 135, 150, 75)

    miter_shape.getFillFormat().setFillType(FillType.Solid)
    miter_shape.getFillFormat().getSolidFillColor().setColor(Color.BLACK)
    bevel_shape.getFillFormat().setFillType(FillType.Solid)
    bevel_shape.getFillFormat().getSolidFillColor().setColor(Color.BLACK)
    round_shape.getFillFormat().setFillType(FillType.Solid)
    round_shape.getFillFormat().getSolidFillColor().setColor(Color.BLACK)

    miter_shape.getLineFormat().setWidth(15)
    bevel_shape.getLineFormat().setWidth(15)
    round_shape.getLineFormat().setWidth(15)

    miter_shape.getLineFormat().getFillFormat().setFillType(FillType.Solid)
    miter_shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.BLUE)
    bevel_shape.getLineFormat().getFillFormat().setFillType(FillType.Solid)
    bevel_shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.BLUE)
    round_shape.getLineFormat().getFillFormat().setFillType(FillType.Solid)
    round_shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.BLUE)

    miter_shape.getLineFormat().setJoinStyle(LineJoinStyle.Miter)
    bevel_shape.getLineFormat().setJoinStyle(LineJoinStyle.Bevel)
    round_shape.getLineFormat().setJoinStyle(LineJoinStyle.Round)

    miter_shape.getTextFrame().setText("Miter Join Style")
    bevel_shape.getTextFrame().setText("Bevel Join Style")
    round_shape.getTextFrame().setText("Round Join Style")

    presentation.save("join_styles.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

Gradient Fill

A gradient fill blends colors across a shape. This example fills an ellipse with a linear gradient at a 45-degree angle from red to purple using FillFormat.getGradientFormat. The GradientStopCollection.addPresetColor method places the color stops at 0 and 1, the beginning and end of the gradient. Clearing the existing stops ensures that only these two colors are used.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import FillType, GradientShape, Presentation, PresetColor, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    shape = slide.getShapes().addAutoShape(ShapeType.Ellipse, 50, 50, 150, 75)
    shape.getFillFormat().setFillType(FillType.Gradient)
    shape.getFillFormat().getGradientFormat().setGradientShape(GradientShape.Linear)
    shape.getFillFormat().getGradientFormat().setLinearGradientAngle(45)
    shape.getFillFormat().getGradientFormat().getGradientStops().clear()
    shape.getFillFormat().getGradientFormat().getGradientStops().addPresetColor(1.0, PresetColor.Purple)
    shape.getFillFormat().getGradientFormat().getGradientStops().addPresetColor(0.0, PresetColor.Red)

    presentation.save("gradient_fill.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result:

The ellipse with gradient fill

If a gradient looks different in an exported image than it does in PowerPoint, see Choose a Gradient Rendering Style. You can select a rendering style without changing the gradient fill stored in the presentation.

Pattern Fill

A pattern fill applies a two-color design, such as dots, stripes, or checks. This example uses PatternFormat.setPatternStyle to select a trellis pattern. PatternFormat.getBackColor supplies the light gray background, and PatternFormat.getForeColor supplies the yellow pattern color.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import FillType, PatternStyle, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 150, 75)
    shape.getFillFormat().setFillType(FillType.Pattern)
    shape.getFillFormat().getPatternFormat().setPatternStyle(PatternStyle.Trellis)
    shape.getFillFormat().getPatternFormat().getBackColor().setColor(Color.LIGHT_GRAY)
    shape.getFillFormat().getPatternFormat().getForeColor().setColor(Color.YELLOW)

    presentation.save("pattern_fill.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result:

The rectangle with pattern fill

Picture Fill

A picture fill uses an image inside a shape. This example requires a local image and uses Images.fromFile to load it into the presentation’s image collection. Setting PictureFillFormat.setPictureFillMode to the tiled mode repeats the image within the rectangle. The source image used here is shown below:

The lotus picture

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import FillType, Images, PictureFillMode, Presentation, SaveFormat, ShapeType

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 255, 130)
    shape.getFillFormat().setFillType(FillType.Picture)
    shape.getFillFormat().getPictureFillFormat().setPictureFillMode(PictureFillMode.Tile)

    image = Images.fromFile("lotus.png")
    try:
        picture = presentation.getImages().addImage(image)
    finally:
        image.dispose()
    shape.getFillFormat().getPictureFillFormat().getPicture().setImage(picture)

    presentation.save("picture_fill.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result:

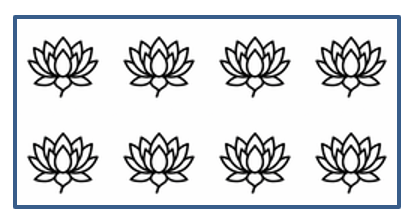

The shape with picture fill

Tile Picture As Texture

If you want to set a tiled picture as a texture and customize the tiling behavior, you can use the following methods of the PictureFillFormat class:

setPictureFillMode: Sets the picture fill mode—either Tile or Stretch.
setTileAlignment: Specifies the alignment of the tiles within the shape.
setTileFlip: Controls whether the tile is flipped horizontally, vertically, or both.
setTileOffsetX: Sets the horizontal offset of the tile (in points) from the shape’s origin.
setTileOffsetY: Sets the vertical offset of the tile (in points) from the shape’s origin.
setTileScaleX: Defines the horizontal scale of the tile as a percentage.
setTileScaleY: Defines the vertical scale of the tile as a percentage.

This example requires a local image and configures PictureFillFormat to repeat it at 50% of its original size. Offsets of −32 points shift the tiles horizontally and vertically; bottom-right alignment and flipping in both directions determine how the repeated texture is arranged.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import FillType, Images, PictureFillMode, Presentation, RectangleAlignment, SaveFormat, ShapeType, TileFlip

presentation = Presentation()
try:
    first_slide = presentation.getSlides().get_Item(0)

    shape = first_slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 190, 95)
    shape.getFillFormat().setFillType(FillType.Picture)

    source_image = Images.fromFile("lotus.png")
    try:
        presentation_image = presentation.getImages().addImage(source_image)
    finally:
        source_image.dispose()

    picture_fill_format = shape.getFillFormat().getPictureFillFormat()
    picture_fill_format.getPicture().setImage(presentation_image)
    picture_fill_format.setPictureFillMode(PictureFillMode.Tile)
    picture_fill_format.setTileOffsetX(-32)
    picture_fill_format.setTileOffsetY(-32)
    picture_fill_format.setTileScaleX(50)
    picture_fill_format.setTileScaleY(50)
    picture_fill_format.setTileAlignment(RectangleAlignment.BottomRight)
    picture_fill_format.setTileFlip(TileFlip.FlipBoth)

    presentation.save("tile.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result:

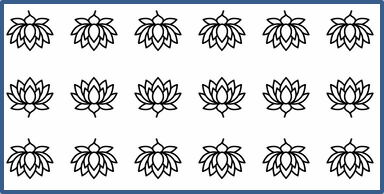

The tile options

Solid Color Fill

A solid fill gives a shape a single, uniform color. This example sets FillFormat.setFillType to the solid fill mode and assigns yellow through FillFormat.getSolidFillColor, then saves the rectangle in a presentation.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import FillType, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 150, 75)
    shape.getFillFormat().setFillType(FillType.Solid)
    shape.getFillFormat().getSolidFillColor().setColor(Color.YELLOW)

    presentation.save("solid_color_fill.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result:

The shape with solid color fill

Use the Slide Background as a Shape Fill

Use AutoShape.setUseBackgroundFill when a shape should match the slide background, for example in a presentation template. Set FillFormat.setFillType to FillType.NotDefined first to remove any explicit fill. With this combination, the shape uses the slide background instead of its style fill. Enabling the flag alone does not remove an existing explicit fill.

This differs from FillType.NoFill: background fill covers objects behind the shape with the corresponding area of the slide background, while no fill leaves those objects visible. A gradient remains aligned with the slide rather than restarting inside each shape.

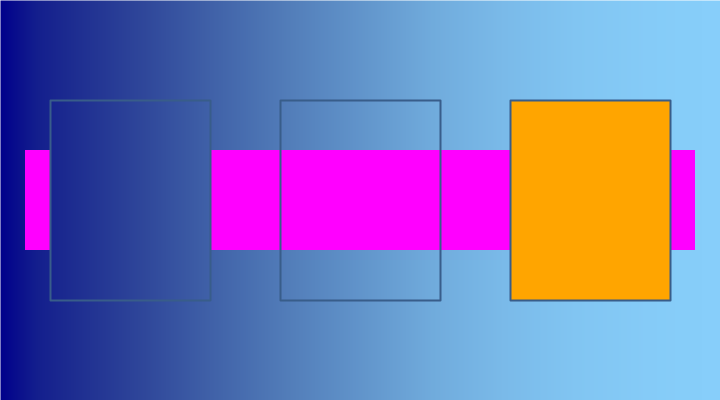

The following example creates a master background inherited by the slide and places a magenta band behind three rectangles. The left rectangle uses the background, the middle rectangle has no fill, and the right rectangle switches from background fill to an explicit orange fill.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BackgroundType, FillType, GradientShape, Presentation, SaveFormat, ShapeType, SlideSizeScaleType
from java.awt import Color

presentation = Presentation()
try:
    presentation.getSlideSize().setSize(720, 400, SlideSizeScaleType.DoNotScale)
    slide = presentation.getSlides().get_Item(0)

    # Inherit the gradient from the master.
    slide.getBackground().setType(BackgroundType.NotDefined)
    slide.getLayoutSlide().getBackground().setType(BackgroundType.NotDefined)
    background = slide.getLayoutSlide().getMasterSlide().getBackground()
    background.setType(BackgroundType.OwnBackground)
    background.getFillFormat().setFillType(FillType.Gradient)
    gradient = background.getFillFormat().getGradientFormat()
    gradient.setGradientShape(GradientShape.Linear)
    gradient.setLinearGradientAngle(0)
    gradient.getGradientStops().clear()
    color = Color(0, 0, 139)
    gradient.getGradientStops().add(0, color)
    color = Color(135, 206, 250)
    gradient.getGradientStops().add(1, color)

    # Add this object first so it appears behind the rectangles.
    band = slide.getShapes().addAutoShape(ShapeType.Rectangle, 25, 150, 670, 100)
    band.getFillFormat().setFillType(FillType.Solid)
    band.getFillFormat().getSolidFillColor().setColor(Color.MAGENTA)
    band.getLineFormat().getFillFormat().setFillType(FillType.NoFill)

    background_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 100, 160, 200)
    background_shape.getFillFormat().setFillType(FillType.NotDefined)
    background_shape.setUseBackgroundFill(True)

    no_fill_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 280, 100, 160, 200)
    no_fill_shape.getFillFormat().setFillType(FillType.NoFill)

    explicit_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 510, 100, 160, 200)
    explicit_shape.getFillFormat().setFillType(FillType.NotDefined)
    explicit_shape.setUseBackgroundFill(True)

    # Disable background fill before applying an explicit fill.
    explicit_shape.setUseBackgroundFill(False)
    explicit_shape.getFillFormat().setFillType(FillType.Solid)
    color = Color(255, 165, 0)
    explicit_shape.getFillFormat().getSolidFillColor().setColor(color)

    presentation.save("background_fill.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result, from left to right: background fill, no fill, and explicit fill. The magenta band is hidden by the left and right rectangles but remains visible through the middle rectangle.

Background fill, no fill, and explicit orange fill over a magenta band

The same behavior applies to a background defined directly on the slide or inherited from a layout. The shape uses the slide’s resolved background; the example leaves both the slide and layout backgrounds undefined so the master supplies it.

Set Transparency

For a solid fill, the color’s alpha component controls opacity: 0 is fully transparent and 255 is fully opaque. This example uses an alpha value of 128 for a yellow rectangle, making it approximately 50% transparent so the rectangle underneath remains visible. The color is assigned through FillFormat.getSolidFillColor.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import FillType, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    solid_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 150, 75)

    transparent_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 80, 80, 150, 75)
    transparent_shape.getFillFormat().setFillType(FillType.Solid)
    color = Color(255, 255, 0, 128)
    transparent_shape.getFillFormat().getSolidFillColor().setColor(color)

    presentation.save("shape_transparency.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result:

The transparent shape

Rotate Shapes

Use Shape.setRotation to rotate a shape in the slide plane. The angle is measured in degrees; this example rotates a rectangle 5 degrees clockwise and saves the presentation.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import Presentation, SaveFormat, ShapeType

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 150, 75)
    shape.setRotation(5)

    presentation.save("shape_rotation.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result:

The shape rotation

Add 3D Bevel Effects

Use Shape.getThreeDFormat to give a shape depth and beveled edges. This example creates a green ellipse with an orange outline, sets ThreeDFormat.setDepth to 4 points, and applies a circular top bevel with a width and height of 6 points through ThreeDFormat.getBevelTop. A front-facing orthographic camera and three-point lighting make the bevel visible.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BevelPresetType, CameraPresetType, FillType, LightRigPresetType, LightingDirection, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    shape = slide.getShapes().addAutoShape(ShapeType.Ellipse, 50, 50, 100, 100)
    shape.getFillFormat().setFillType(FillType.Solid)
    color = Color(0, 128, 0)
    shape.getFillFormat().getSolidFillColor().setColor(color)
    shape.getLineFormat().getFillFormat().setFillType(FillType.Solid)
    color = Color(255, 165, 0)
    shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(color)
    shape.getLineFormat().setWidth(2.0)
    shape.getThreeDFormat().setDepth(4)
    shape.getThreeDFormat().getBevelTop().setBevelType(BevelPresetType.Circle)
    shape.getThreeDFormat().getBevelTop().setHeight(6)
    shape.getThreeDFormat().getBevelTop().setWidth(6)
    shape.getThreeDFormat().getCamera().setCameraType(CameraPresetType.OrthographicFront)
    shape.getThreeDFormat().getLightRig().setLightType(LightRigPresetType.ThreePt)
    shape.getThreeDFormat().getLightRig().setDirection(LightingDirection.Top)

    presentation.save("3D_bevel_effect.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result:

The 3D bevel effect

Add 3D Rotation Effects

A shape’s 3D view is controlled by its camera settings. This example uses Camera.setRotation with latitude, longitude, and revolution angles of 40, 35, and 20 degrees, respectively. It selects an isometric camera through Camera.setCameraType and balanced lighting through LightRig.setLightType, then saves the formatted rectangle.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import CameraPresetType, LightRigPresetType, Presentation, SaveFormat, ShapeType

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    auto_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 150, 75)
    auto_shape.getTextFrame().setText("Hello, Aspose!")
    auto_shape.getThreeDFormat().getCamera().setCameraType(CameraPresetType.IsometricLeftUp)
    auto_shape.getThreeDFormat().getCamera().setRotation(40, 35, 20)
    auto_shape.getThreeDFormat().getLightRig().setLightType(LightRigPresetType.Balanced)

    presentation.save("3D_rotation_effect.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

The result:

The 3D rotation effect

Control Black-and-White Rendering for Shapes

The Shape.setBlackWhiteMode method specifies how an individual shape is rendered when a presentation is viewed or processed in black-and-white mode. It does not enable black-and-white display by itself, and it does not change the shape’s fill, line, or other formatting in normal color mode.

Use a value from the BlackWhiteMode class to select the desired behavior. For example, Automatic lets the rendering application choose the conversion, Gray and LightGray use gray coloring, BlackWhite uses only black and white, Black and White force a single color, Color preserves normal coloring, and Hidden omits the shape in black-and-white mode. NotDefined means that no shape-level mode is assigned.

This example creates an orange rectangle and sets Shape.setBlackWhiteMode to gray. The saved shape retains its orange fill for normal color display and requests gray coloring from applications that honor black-and-white display settings:

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BlackWhiteMode, FillType, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 200, 100)
    shape.getFillFormat().setFillType(FillType.Solid)
    color = Color(255, 165, 0)
    shape.getFillFormat().getSolidFillColor().setColor(color)
    shape.setBlackWhiteMode(BlackWhiteMode.Gray)

    presentation.save("shape_black_white_mode.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

In normal color mode, the rectangle retains its orange fill. In a black-and-white display workflow, it uses gray coloring because its mode is set to Gray. This lets you preserve a full-color slide while defining a distinct appearance for printing, previewing, or other workflows that honor the presentation’s black-and-white display settings.

Reset Formatting

Use Slide.reset to restore the position, size, and formatting of slide placeholders from their corresponding layout placeholders. This example requires an existing presentation with layout-linked placeholders and resets every slide before saving. Shapes without corresponding layout placeholders are not reset.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import Presentation, SaveFormat

presentation = Presentation("sample.pptx")
try:
    for slide in presentation.getSlides():
        slide.reset()

    presentation.save("reset_formatting.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

FAQ

Does shape formatting affect the final presentation file size?

Colors, line styles, and effect settings generally add little data compared with embedded images and media. Picture fills can increase the file size because their images are stored in the presentation.

How can I detect shapes on a slide that share identical formatting so I can group them?

Compare each shape’s key formatting properties—fill, line, and effect settings. If all corresponding values match, treat their styles as identical and logically group those shapes, which simplifies later style management.

Can I save a set of custom shape styles to a separate file for reuse in other presentations?

Yes. Store sample shapes with the desired styles in a template slide deck or a .POTX template file. When creating a new presentation, open the template, clone the styled shapes you need, and reapply their formatting wherever required.

Shape Types in Aspose.Slides for Python via Java Apply Shape Effects in Presentations Using Python via Java
