Quản lý Nhãn Dữ Liệu Biểu Đồ trong Bản Trình Chiếu trên Android

Giới thiệu

Nhãn dữ liệu hiển thị thông tin về chuỗi biểu đồ và các điểm dữ liệu riêng lẻ, giúp người đọc xác định giá trị và hiểu biểu đồ. Bài viết này giải thích cách định dạng giá trị, hiển thị phần trăm, đọc văn bản nhãn, kiểm soát nhãn vượt quá giá trị tối đa của trục, điều chỉnh khoảng cách nhãn trục danh mục và định vị nhãn biểu đồ tròn.

Đếm Nhãn Dữ Liệu Hiển Thị

Sử dụng getCountOfVisibleDataLabels để kiểm tra có bao nhiêu nhãn dữ liệu được bật hiển thị trước khi xuất bản bản trình chiếu. Không giống như getCount, phương thức này trả về tổng số nhãn trong bộ sưu tập, nó còn tính đến các mặc định của chuỗi và cài đặt nhãn riêng lẻ.

Ví dụ này tạo một biểu đồ cột với một chuỗi và ba điểm dữ liệu. Nó truy cập bộ sưu tập nhãn của chuỗi qua getLabels và in ra số lượng hiển thị khi các cài đặt thay đổi: 0, 3, 2, 3. Tổng số vẫn là 3.

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 50, 50, 500, 300);

    chart.getChartData().getSeries().clear();
    chart.getChartData().getCategories().clear();

    IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();
    IChartDataCell seriesCell = workbook.getCell(0, 0, 1, "Values");
    IChartSeries series = chart.getChartData().getSeries().add(seriesCell, chart.getType());

    for (int i = 0; i < 3; i++) {
        IChartDataCell categoryCell = workbook.getCell(0, i + 1, 0, "Category " + (i + 1));
        chart.getChartData().getCategories().add(categoryCell);
        IChartDataCell valueCell = workbook.getCell(0, i + 1, 1, (i + 1) * 10);
        series.getDataPoints().addDataPointForBarSeries(valueCell);
    }

    IDataLabelCollection labels = series.getLabels();
    System.out.println("Total: " + labels.getCount() + "; visible: " + labels.getCountOfVisibleDataLabels()); // Tổng: 3; hiển thị: 0

    labels.getDefaultDataLabelFormat().setShowValue(true);
    System.out.println("Visible: " + labels.getCountOfVisibleDataLabels()); // Hiển thị: 3

    labels.get_Item(1).getDataLabelFormat().setShowValue(false);
    System.out.println("Visible: " + labels.getCountOfVisibleDataLabels()); // Hiển thị: 2

    labels.get_Item(1).getDataLabelFormat().setShowLegendKey(true);
    System.out.println("Visible: " + labels.getCountOfVisibleDataLabels()); // Hiển thị: 3
} finally {
    presentation.dispose();
}

Phương thức getDefaultDataLabelFormat của chuỗi cung cấp các cài đặt mặc định. Truyền true cho setShowValue sẽ hiển thị giá trị cho cả ba nhãn. Truyền false qua getDataLabelFormat của một nhãn sẽ ghi đè cài đặt đó cho nhãn được chọn. Truyền true cho setShowLegendKey làm cho nhãn đó lại được tính là hiển thị, mặc dù giá trị của nó vẫn ẩn.

Số lượng hiển thị phản ánh các cài đặt hiển thị. Nó không đo lường liệu nhãn có chồng chéo, bị cắt hoặc có thể đọc được trong biểu đồ đã render.

Đặt Độ Chính Xác Số Trong Nhãn Dữ Liệu Biểu Đồ

Sử dụng setNumberFormatOfValues để định dạng giá trị chuỗi. Ví dụ này tạo một biểu đồ dòng với dữ liệu mặc định, hiển thị bảng dữ liệu và bật nhãn giá trị cho chuỗi đầu tiên. Định dạng #,##0.00 hiển thị dấu phân cách hàng nghìn và hai chữ số thập phân mà không thay đổi giá trị gốc.

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.Line, 50, 50, 450, 300);
    chart.setDataTable(true);

    IChartSeries series = chart.getChartData().getSeries().get_Item(0);
    series.setNumberFormatOfValues("#,##0.00");
    series.getLabels().getDefaultDataLabelFormat().setShowValue(true);

    presentation.save("PrecisionOfDatalabels_out.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

Để định dạng các ô số trong bảng tính nhúng của biểu đồ, xem Đặt Định Dạng Số Tùy Chỉnh cho Các Ô Bảng Tính. Ví dụ đó cũng cho thấy nhãn giá trị theo định dạng ô nguồn trong khi giữ nguyên giá trị số được lưu.

Hiển Thị Phần Trăm Là Nhãn

Đối với biểu đồ cột chồng, tính mỗi giá trị dưới dạng phần trăm của tổng danh mục và gán văn bản cho khung văn bản trả về bởi getTextFrameForOverriding. Ví dụ này sử dụng dữ liệu biểu đồ mặc định và hiển thị phần trăm với hai chữ số thập phân trong phông chữ 8 điểm. Các danh mục có tổng bằng 0 sẽ bị bỏ qua để tránh chia cho 0. Tính lại văn bản nhãn tùy chỉnh nếu dữ liệu biểu đồ thay đổi.

import com.aspose.slides.*;
import java.util.Locale;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.StackedColumn, 20, 20, 400, 400);

    double[] categoryTotals = new double[chart.getChartData().getCategories().size()];
    for (int k = 0; k < chart.getChartData().getCategories().size(); k++) {
        for (int i = 0; i < chart.getChartData().getSeries().size(); i++) {
            IChartSeries series = chart.getChartData().getSeries().get_Item(i);
            Number pointValue = (Number) series.getDataPoints().get_Item(k).getValue().getData();
            categoryTotals[k] += pointValue.doubleValue();
        }
    }

    for (int x = 0; x < chart.getChartData().getSeries().size(); x++) {
        IChartSeries series = chart.getChartData().getSeries().get_Item(x);
        series.getLabels().getDefaultDataLabelFormat().setShowLegendKey(false);

        for (int j = 0; j < series.getDataPoints().size(); j++) {
            IDataLabel label = series.getDataPoints().get_Item(j).getLabel();
            if (categoryTotals[j] == 0) {
                continue;
            }

            Number pointValue = (Number) series.getDataPoints().get_Item(j).getValue().getData();
            double dataPointPercent = (pointValue.doubleValue() / categoryTotals[j]) * 100;

            IPortion portion = new Portion();
            portion.setText(String.format(Locale.US, "%.2f %%", dataPointPercent));
            portion.getPortionFormat().setFontHeight(8f);

            label.getTextFrameForOverriding().setText("");
            IParagraph paragraph = label.getTextFrameForOverriding().getParagraphs().get_Item(0);
            paragraph.getPortions().add(portion);

            label.getDataLabelFormat().setShowValue(true);
            label.getDataLabelFormat().setShowSeriesName(false);
            label.getDataLabelFormat().setShowPercentage(false);
            label.getDataLabelFormat().setShowLegendKey(false);
            label.getDataLabelFormat().setShowCategoryName(false);
            label.getDataLabelFormat().setShowBubbleSize(false);
        }
    }

    presentation.save("DisplayPercentageAsLabels_out.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

Đặt Dấu Phần Trăm Cho Nhãn Dữ Liệu Biểu Đồ

Khi giá trị được lưu dưới dạng phân số, sử dụng setNumberFormat để hiển thị phần trăm. Truyền false cho setNumberFormatLinkedToSource để áp dụng định dạng nhãn một cách độc lập với các ô nguồn.

Ví dụ này tạo một biểu đồ cột chồng 100% với chuỗi màu đỏ và xanh lam qua bốn danh mục. Mỗi cặp giá trị cộng lại bằng 1. Định dạng nhãn 0.0% sẽ hiển thị 0.30 dưới dạng 30.0%, trong khi trục tung sử dụng hai chữ số thập phân. Cả hai chuỗi đều dùng văn bản nhãn trắng, 10 điểm.

import com.aspose.slides.*;
import android.graphics.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.PercentsStackedColumn, 20, 20, 500, 400);

    chart.getAxes().getVerticalAxis().setNumberFormatLinkedToSource(false);
    chart.getAxes().getVerticalAxis().setNumberFormat("0.00%");

    chart.getChartData().getSeries().clear();
    chart.getChartData().getCategories().clear();

    IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();
    int worksheetIndex = 0;
    for (int i = 0; i < 4; i++) {
        IChartDataCell categoryCell = workbook.getCell(worksheetIndex, i + 1, 0, "Category " + (i + 1));
        chart.getChartData().getCategories().add(categoryCell);
    }

    String[] seriesNames = { "Reds", "Blues" };
    int[] seriesColors = { Color.RED, Color.BLUE };
    double[][] values = { { 0.30, 0.50, 0.80, 0.65 }, { 0.70, 0.50, 0.20, 0.35 } };

    for (int i = 0; i < seriesNames.length; i++) {
        IChartDataCell seriesCell = workbook.getCell(worksheetIndex, 0, i + 1, seriesNames[i]);
        IChartSeries series = chart.getChartData().getSeries().add(seriesCell, chart.getType());
        for (int j = 0; j < 4; j++) {
            IChartDataCell valueCell = workbook.getCell(worksheetIndex, j + 1, i + 1, values[i][j]);
            series.getDataPoints().addDataPointForBarSeries(valueCell);
        }

        series.getFormat().getFill().setFillType(FillType.Solid);
        series.getFormat().getFill().getSolidFillColor().setColor(seriesColors[i]);

        IDataLabelFormat labelFormat = series.getLabels().getDefaultDataLabelFormat();
        labelFormat.setShowValue(true);
        labelFormat.setNumberFormatLinkedToSource(false);
        labelFormat.setNumberFormat("0.0%");
        labelFormat.getTextFormat().getPortionFormat().setFontHeight(10);
        labelFormat.getTextFormat().getPortionFormat().getFillFormat().setFillType(FillType.Solid);
        labelFormat.getTextFormat().getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.WHITE);
    }

    presentation.save("SetDataLabelsPercentageSign_out.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

Đọc Văn Bản Thực Tế Của Nhãn Dữ Liệu

Sử dụng getActualLabelText để lấy văn bản được tạo ra bởi cài đặt nhãn dữ liệu. Điều này hữu ích khi trích xuất nhãn cho báo cáo, tìm kiếm nội dung bản trình chiếu hoặc xác thực các biểu đồ được tạo. Trong ví dụ dưới, định dạng nhãn dữ liệu mặc định kết hợp tên danh mục, tên chuỗi và giá trị. Một điểm định dạng giá trị dưới dạng phần trăm, một điểm khác sử dụng văn bản tùy chỉnh từ getTextFrameForOverriding.

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 20, 20, 500, 300);

    chart.getChartData().getSeries().clear();
    chart.getChartData().getCategories().clear();

    IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();
    IChartDataCell firstCategoryCell = workbook.getCell(0, 1, 0, "Q1");
    chart.getChartData().getCategories().add(firstCategoryCell);
    IChartDataCell secondCategoryCell = workbook.getCell(0, 2, 0, "Q2");
    chart.getChartData().getCategories().add(secondCategoryCell);

    IChartDataCell northSeriesCell = workbook.getCell(0, 0, 1, "North");
    IChartSeries north = chart.getChartData().getSeries().add(northSeriesCell, chart.getType());
    IChartDataCell northFirstValueCell = workbook.getCell(0, 1, 1, 0.25);
    north.getDataPoints().addDataPointForBarSeries(northFirstValueCell);
    IChartDataCell northSecondValueCell = workbook.getCell(0, 2, 1, 0.75);
    north.getDataPoints().addDataPointForBarSeries(northSecondValueCell);

    IChartDataCell southSeriesCell = workbook.getCell(0, 0, 2, "South");
    IChartSeries south = chart.getChartData().getSeries().add(southSeriesCell, chart.getType());
    IChartDataCell southFirstValueCell = workbook.getCell(0, 1, 2, 0.40);
    south.getDataPoints().addDataPointForBarSeries(southFirstValueCell);
    IChartDataCell southSecondValueCell = workbook.getCell(0, 2, 2, 0.60);
    south.getDataPoints().addDataPointForBarSeries(southSecondValueCell);

    for (IChartSeries series : chart.getChartData().getSeries()) {
        IDataLabelFormat format = series.getLabels().getDefaultDataLabelFormat();
        format.setShowCategoryName(true);
        format.setShowSeriesName(true);
        format.setShowValue(true);
    }

    north.getLabels().get_Item(1).getDataLabelFormat().setNumberFormatLinkedToSource(false);
    north.getLabels().get_Item(1).getDataLabelFormat().setNumberFormat("0%");
    south.getLabels().get_Item(0).getTextFrameForOverriding().setText("Reviewed");

    for (IChartSeries series : chart.getChartData().getSeries()) {
        for (IChartDataPoint point : series.getDataPoints()) {
            IDataLabel label = point.getLabel();
            if (!label.isVisible()) {
                continue;
            }

            System.out.println("Value: " + point.getValue().getData() + "; label: " + label.getActualLabelText());
        }
    }
} finally {
    presentation.dispose();
}

Số được lưu trong một điểm dữ liệu vẫn là 0.75, ngay cả khi nhãn của nó hiển thị 75% cùng với tên danh mục và chuỗi. Văn bản tùy chỉnh thay thế nhãn được tạo. getActualLabelText trả về chuỗi nhãn kết quả trong cả hai trường hợp. Kiểm tra isVisible riêng biệt, như đã minh họa ở trên, khi bạn muốn chỉ trích xuất các nhãn hiển thị.

Kiểm Soát Nhãn Dữ Liệu Vượt Quá Giá Trị Tối Đa Của Trục

Khi bạn giới hạn phạm vi trục một cách thủ công, một số điểm dữ liệu có thể vượt quá giá trị tối đa đó. Sử dụng setShowDataLabelsOverMaximum để kiểm soát việc các nhãn dữ liệu của chúng có được hiển thị hay không. Cài đặt này thay đổi tính hiển thị của nhãn; nó không thay đổi phạm vi trục hay các giá trị dữ liệu gốc.

Ví dụ dưới tạo một biểu đồ cột cụm 2D với các giá trị 60 và 120. Nó truyền false cho setAutomaticMaxValue và đặt giá trị tối đa thành 100 bằng setMaxValue trên trục tung. Slide đầu tiên cho phép nhãn vượt quá tối đa; một bản sao của slide đó tắt tính năng này. Cả hai slide được lưu trong DataLabelsOverMaximum.pptx.

Kích hoạt nhãn giá trị với setShowValue. Cài đặt ở mức biểu đồ không tự động bật hiển thị giá trị hay ghi đè việc tắt hiển thị giá trị của một nhãn riêng lẻ. Ví dụ này bật giá trị cho toàn bộ chuỗi và sử dụng setPosition để đặt nhãn ở đầu ngoài của mỗi cột.

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 50, 50, 600, 400);
    chart.setLegend(false);

    chart.getChartData().getSeries().clear();
    chart.getChartData().getCategories().clear();

    IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();

    IChartDataCell firstCategory = workbook.getCell(0, 1, 0, "Within range");
    IChartDataCell secondCategory = workbook.getCell(0, 2, 0, "Above maximum");

    chart.getChartData().getCategories().add(firstCategory);
    chart.getChartData().getCategories().add(secondCategory);

    IChartDataCell seriesName = workbook.getCell(0, 0, 1, "Values");
    IChartSeries series = chart.getChartData().getSeries().add(seriesName, chart.getType());

    IChartDataCell firstValue = workbook.getCell(0, 1, 1, 60);
    IChartDataCell secondValue = workbook.getCell(0, 2, 1, 120);

    series.getDataPoints().addDataPointForBarSeries(firstValue);
    series.getDataPoints().addDataPointForBarSeries(secondValue);

    series.getLabels().getDefaultDataLabelFormat().setShowValue(true);
    series.getLabels().getDefaultDataLabelFormat().setPosition(LegendDataLabelPosition.OutsideEnd);

    chart.getAxes().getVerticalAxis().setAutomaticMaxValue(false);
    chart.getAxes().getVerticalAxis().setMaxValue(100);
    chart.setShowDataLabelsOverMaximum(true);

    ISlide secondSlide = presentation.getSlides().addClone(slide);
    IChart secondChart = (IChart) secondSlide.getShapes().get_Item(0);
    secondChart.setShowDataLabelsOverMaximum(false);

    presentation.save("DataLabelsOverMaximum.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

Các hình ảnh sau hiển thị các slide đã lưu được render bằng Microsoft PowerPoint. Với true, nhãn 120 hiển thị ở rìa trên; với false, nó bị ẩn. Nhãn 60 vẫn hiển thị, trục tối đa vẫn là 100, và điểm dữ liệu thứ hai vẫn là 120 trong cả hai trường hợp.

setShowDataLabelsOverMaximum(true) setShowDataLabelsOverMaximum(false)
PowerPoint chart showing the value label 120 with an axis maximum of 100 PowerPoint chart hiding the value label 120 with an axis maximum of 100

Đặt Khoảng Cách Nhãn Từ Trục

Sử dụng setLabelOffset để kiểm soát khoảng cách giữa nhãn trục danh mục và trục. Giá trị là phần trăm của kích thước phông chữ tối đa của các nhãn trục. Ví dụ này tạo một biểu đồ cột cụm và đặt độ lệch nhãn trục ngang thành 500. Cài đặt này ảnh hưởng đến nhãn trục danh mục chứ không phải nhãn gắn vào các điểm dữ liệu riêng lẻ.

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 20, 20, 500, 300);
    chart.getAxes().getHorizontalAxis().setLabelOffset(500);

    presentation.save("SetCategoryAxisLabelDistance_out.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

Điều Chỉnh Vị Trí Nhãn

Trên biểu đồ tròn, điều chỉnh vị trí nhãn dữ liệu để cải thiện khoảng cách và tạo chỗ cho các đường dẫn.

Ví dụ này hiển thị giá trị của điểm dữ liệu đầu tiên, đặt nhãn của nó bên ngoài miếng bánh và điều chỉnh độ lệch ngang và dọc bằng setX và setY. Các độ lệch này tính tương đối so với chiều rộng và chiều cao của biểu đồ.

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.Pie, 50, 50, 200, 200);
    IChartSeriesCollection series = chart.getChartData().getSeries();

    IDataLabel label = series.get_Item(0).getLabels().get_Item(0);
    label.getDataLabelFormat().setShowValue(true);
    label.getDataLabelFormat().setPosition(LegendDataLabelPosition.OutsideEnd);
    label.setX(0.71f);
    label.setY(0.04f);

    presentation.save("presentation.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

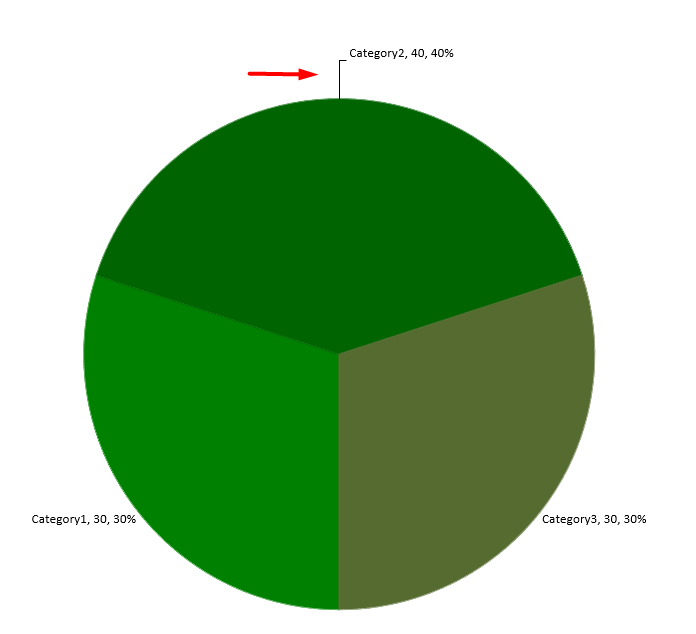

Pie chart with an adjusted data label position

Định Dạng Đường Dẫn (Leader Lines)

Khi nhãn biểu đồ tròn nằm ngoài các miếng bánh, các đường dẫn giúp người đọc ghép mỗi giá trị với miếng bánh tương ứng. Màu sắc tương phản và đường hơi dày hơn có thể làm cho các kết nối này dễ theo dõi hơn, trong khi độ trong suốt và kiểu đường nét gạch ngang giữ cho chúng không làm mất tập trung.

Sử dụng getLeaderLinesFormat để định dạng đường dẫn ở mức bộ sưu tập nhãn dữ liệu của chuỗi. Các cài đặt trong series.getLabels().getLeaderLinesFormat().getLine() áp dụng cho toàn bộ bộ sưu tập, không phải cho từng nhãn riêng lẻ.

Ví dụ này tạo một biểu đồ tròn với dữ liệu mặc định, hiển thị giá trị bên ngoài các miếng bánh và bật setShowLeaderLines. Nó di chuyển hai nhãn ra xa hơn các miếng bánh bằng các độ lệch setX và setY được biểu thị dưới dạng phần của chiều rộng và chiều cao biểu đồ. Không cần bản trình chiếu đầu vào.

GetFillFormat của đường đặt màu xanh đậm đặc với giá trị alpha 191 trong 255, tạo ra khoảng 25% độ trong suốt. setWidth đặt độ dày thành 2 điểm, và setDashStyle làm cho đường nét gạch.

import com.aspose.slides.*;
import android.graphics.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.Pie, 80, 50, 560, 400);
    chart.setLegend(false);

    IChartSeries series = chart.getChartData().getSeries().get_Item(0);

    IDataLabelFormat labelFormat = series.getLabels().getDefaultDataLabelFormat();
    labelFormat.setShowValue(true);
    labelFormat.setPosition(LegendDataLabelPosition.OutsideEnd);
    labelFormat.setShowLeaderLines(true);

    // Di chuyển hai nhãn ra xa hơn so với các miếng bánh.
    series.getLabels().get_Item(0).setX(0.10f);
    series.getLabels().get_Item(0).setY(-0.05f);
    series.getLabels().get_Item(1).setX(-0.10f);
    series.getLabels().get_Item(1).setY(0.05f);

    ILineFormat line = series.getLabels().getLeaderLinesFormat().getLine();
    line.getFillFormat().setFillType(FillType.Solid);
    line.getFillFormat().getSolidFillColor().setColor(Color.argb(191, 30, 90, 160));
    line.setWidth(2);
    line.setDashStyle(LineDashStyle.Dash);

    presentation.save("FormattedLeaderLines.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

Bật đường dẫn không có nghĩa là mọi nhãn sẽ có một đường. Tính hiển thị phụ thuộc vào vị trí nhãn và cách bố cục biểu đồ. Trong ví dụ này, hai nhãn bị dịch ra có đường dẫn hiển thị; các nhãn còn gần miếng bánh không cần đường dẫn.

Hình ảnh sau hiển thị tệp FormattedLeaderLines.pptx đã được render bằng Aspose.Slides:

Pie chart with blue, semitransparent dashed leader lines connecting two outside labels to their slices

Thêm Nhiều Hàng Nhãn Dữ Liệu Ở Trên Biểu Đồ Cột

Ví dụ này tạo một biểu đồ cột với hai hàng nhãn dữ liệu ở trên vùng vẽ. Chuỗi A hiển thị các cột có thể nhìn thấy, trong khi Chuỗi B và Chuỗi C cung cấp các nhãn bổ sung. Các cột của chúng bị ẩn bằng cách xóa màu nền và viền. Phương pháp ChartSeriesGroup.setOverlap căn chỉnh cả ba chuỗi sao cho trung tâm danh mục trùng nhau.

Các cài đặt của ChartPlotArea dự trữ không gian cho các hàng nhãn. Sau khi Chart.validateChartLayout tính toán vị trí mặc định, DataLabel.setX và DataLabel.setY giữ nguyên căn chỉnh ngang và áp dụng độ lệch dọc để sắp xếp nhãn thành hai hàng. Các số vẫn là nhãn dữ liệu liên kết với giá trị chuỗi; chỉ tiêu đề hàng là các hình dạng văn bản riêng biệt.

import com.aspose.slides.*;
import android.graphics.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 40, 40, 640, 200);
    chart.setTitle(false);
    chart.setLegend(false);
    chart.getTextFormat().getPortionFormat().setFontHeight(12);

    chart.getChartData().getSeries().clear();
    chart.getChartData().getCategories().clear();

    IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();
    workbook.clear(0);

    String[] categories = {"North", "South", "East", "West"};
    String[] seriesNames = {"Series A", "Series B", "Series C"};
    double[][] seriesValues = {
            {35, 42, 28, 47},
            {22, 31, 19, 26},
            {12, 16, 14, 18}
    };

    for (int categoryIndex = 0; categoryIndex < categories.length; categoryIndex++) {
        IChartDataCell categoryCell = workbook.getCell(0, categoryIndex + 1, 0, categories[categoryIndex]);
        chart.getChartData().getCategories().add(categoryCell);
    }

    for (int seriesIndex = 0; seriesIndex < seriesNames.length; seriesIndex++) {
        IChartDataCell seriesCell = workbook.getCell(0, 0, seriesIndex + 1, seriesNames[seriesIndex]);
        IChartSeries series = chart.getChartData().getSeries().add(seriesCell, ChartType.ClusteredColumn);

        for (int categoryIndex = 0; categoryIndex < categories.length; categoryIndex++) {
            IChartDataCell valueCell = workbook.getCell(0, categoryIndex + 1, seriesIndex + 1, seriesValues[seriesIndex][categoryIndex]);
            series.getDataPoints().addDataPointForBarSeries(valueCell);
        }

        if (seriesIndex > 0) {
            // Ẩn các cột của B và C, nhưng vẫn giữ nhãn dữ liệu của chúng.
            series.getFormat().getFill().setFillType(FillType.NoFill);
            series.getFormat().getLine().getFillFormat().setFillType(FillType.NoFill);
            series.getLabels().getDefaultDataLabelFormat().setShowValue(true);
            series.getLabels().getDefaultDataLabelFormat().getTextFormat().getPortionFormat().setFontHeight(12);
            IFillFormat labelFill = series.getLabels().getDefaultDataLabelFormat().getTextFormat().getPortionFormat().getFillFormat();
            labelFill.setFillType(FillType.Solid);
            labelFill.getSolidFillColor().setColor(Color.BLACK);
            series.getLabels().getDefaultDataLabelFormat().setPosition(LegendDataLabelPosition.InsideBase);
        }
    }

    // Căn chỉnh ba chuỗi sao cho trung tâm danh mục giống nhau.
    chart.getChartData().getSeries().get_Item(0).getParentSeriesGroup().setOverlap((byte) 100);

    // Sử dụng ít đường lưới hơn cho ví dụ gọn này.
    chart.getAxes().getVerticalAxis().setAutomaticMajorUnit(false);
    chart.getAxes().getVerticalAxis().setMajorUnit(10);

    // Dự trữ không gian phía trên biểu đồ cho hai hàng nhãn dữ liệu.
    chart.getPlotArea().setLayoutTargetType(LayoutTargetType.Inner);
    chart.getPlotArea().setX(0.15f);
    chart.getPlotArea().setY(0.32f);
    chart.getPlotArea().setWidth(0.80f);
    chart.getPlotArea().setHeight(0.48f);
    chart.validateChartLayout();

    for (int seriesIndex = 1; seriesIndex < seriesNames.length; seriesIndex++) {
        IChartSeries series = chart.getChartData().getSeries().get_Item(seriesIndex);
        float rowTop = seriesIndex == 1 ? 0.15f : 0.03f;

        for (int categoryIndex = 0; categoryIndex < categories.length; categoryIndex++) {
            IDataLabel dataLabel = series.getDataPoints().get_Item(categoryIndex).getLabel();
            // Giữ vị trí ngang mặc định. Y là độ lệch từ
            // vị trí nhãn mặc định, được biểu diễn dưới dạng phần của chiều cao biểu đồ.
            dataLabel.setX(0);
            dataLabel.setY(rowTop - dataLabel.getActualY() / chart.getHeight());
        }

        // Chỉ tiêu đề hàng là một hình dạng văn bản riêng biệt.
        IAutoShape rowHeading = slide.getShapes().addAutoShape(ShapeType.Rectangle, chart.getX(), chart.getY() + rowTop * chart.getHeight(), 85, 18);
        rowHeading.getFillFormat().setFillType(FillType.NoFill);
        rowHeading.getLineFormat().getFillFormat().setFillType(FillType.NoFill);
        rowHeading.addTextFrame(seriesNames[seriesIndex]);
        rowHeading.getTextFrame().getTextFrameFormat().setMarginTop(0);
        rowHeading.getTextFrame().getTextFrameFormat().setMarginBottom(0);
        IPortionFormat headingFormat = rowHeading.getTextFrame().getParagraphs().get_Item(0).getPortions().get_Item(0).getPortionFormat();
        headingFormat.setFontHeight(12);
        headingFormat.getFillFormat().setFillType(FillType.Solid);
        headingFormat.getFillFormat().getSolidFillColor().setColor(Color.BLACK);
    }

    presentation.save("multiple-rows-of-labels.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

Column chart with two rows of data labels above the plot area

Câu Hỏi Thường Gặp

Làm thế nào để ngăn nhãn dữ liệu chồng chéo trên biểu đồ dày đặc?

Kết hợp tự động đặt nhãn, đường dẫn và giảm kích thước phông chữ; nếu cần, ẩn một số trường (ví dụ, danh mục) hoặc chỉ hiển thị nhãn cho các giá trị cực đoan hoặc các điểm quan trọng.

Làm thế nào để tắt nhãn chỉ cho các giá trị bằng không, âm hoặc rỗng?

Lọc các điểm dữ liệu trước khi bật nhãn và tắt hiển thị cho giá trị 0, giá trị âm hoặc giá trị thiếu theo quy tắc đã định.

Làm thế nào để đảm bảo kiểu nhãn nhất quán khi xuất ra PDF/hình ảnh?

Thiết lập rõ ràng họ phông chữ và kích thước, đồng thời xác nhận phông chữ có sẵn trong môi trường render để tránh dùng phông thay thế.
