使用 Java 自訂簡報中的圖表坐標軸

概述

本文說明如何使用 Aspose.Slides for Java 自訂圖表坐標軸。內容涵蓋計算坐標軸值、切換圖表列與欄、坐標軸可見性、類別標籤與刻度間隔、日期類別與格式設定、標題旋轉、坐標軸位置、顯示單位,以及對數比例。

取得圖表縱軸的最大值

建立一個簡報並加入具有預設資料的區域圖。於讀取計算坐標軸值之前,呼叫validateChartLayout,以確保圖表版面配置為最新狀態。

讀取getActualMaxValue與getActualMinValue取得坐標軸上下限,並使用getActualMajorUnit與getActualMinorUnit取得刻度間隔。getActualMajorUnitScale與getActualMinorUnitScale提供時間單位比例,對日期坐標軸相關。範例將這些值存入本機變數,然後存檔圖表。

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.Area, 100, 100, 500, 350);
    chart.validateChartLayout();

    double maxValue = chart.getAxes().getVerticalAxis().getActualMaxValue();
    double minValue = chart.getAxes().getVerticalAxis().getActualMinValue();

    double majorUnit = chart.getAxes().getVerticalAxis().getActualMajorUnit();
    double minorUnit = chart.getAxes().getVerticalAxis().getActualMinorUnit();

    int majorUnitScale = chart.getAxes().getVerticalAxis().getActualMajorUnitScale();
    int minorUnitScale = chart.getAxes().getVerticalAxis().getActualMinorUnitScale();

    presentation.save("AxisValues_out.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

交換坐標軸之間的資料

使用switchRowColumn交換圖表資料中系列與類別的角色。原先的每個類別會變成系列,原先的每個系列會變成類別。這會改變資料的分組方式,但不會交換水平與垂直坐標軸。範例使用setRange將預設資料綁定至 Sheet1!A1:D5(包括標頭列與類別欄),再切換列與欄,最後存檔得到四個系列與三個類別的圖表。

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 100, 100, 400, 300);
    chart.getChartData().setRange("Sheet1!A1:D5");
    chart.getChartData().switchRowColumn();

    presentation.save("SwitchChartRowColumns_out.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

反轉坐標軸的繪製順序

使用setPlotOrderReversed反轉類別或數值坐標軸。例如,水平條形圖可以依工作表的順序從上到下顯示專案階段:Planning、Development、Testing。反轉坐標軸會改變繪製方向,並不會對工作表資料進行排序或重新排列。相較之下,switchRowColumn則交換系列與類別的角色。

以下範例建立一個包含三個階段與一個系列的水平條形圖,並產生三張投影片:正常順序、顛倒類別、顛倒數值。每個副本使用相同的資料集,且每張投影片僅對一個坐標軸做反轉。

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredBar, 50, 40, 620, 320);
    chart.setLegend(false);

    chart.getChartData().getCategories().clear();
    chart.getChartData().getSeries().clear();

    IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();
    workbook.clear(0);

    IChartSeries series = chart.getChartData().getSeries().add(ChartType.ClusteredBar);
    String[] stages = { "Planning", "Development", "Testing" };
    int[] values = { 10, 30, 20 };
    for (int i = 0; i < stages.length; i++) {
        IChartDataCell categoryCell = workbook.getCell(0, i + 1, 0, stages[i]);
        chart.getChartData().getCategories().add(categoryCell);
        IChartDataCell valueCell = workbook.getCell(0, i + 1, 1, values[i]);
        series.getDataPoints().addDataPointForBarSeries(valueCell);
    }

    // 幻燈片 2:在頂部顯示第一個類別。
    ISlide categorySlide = presentation.getSlides().addClone(slide);
    IChart categoryChart = (IChart)categorySlide.getShapes().get_Item(0);
    categoryChart.getAxes().getVerticalAxis().setPlotOrderReversed(true);
    // 保持水平數值軸位於底部。
    categoryChart.getAxes().getVerticalAxis().setCrossType(CrossesType.Maximum);

    // 幻燈片 3:僅反轉水平數值刻度。
    ISlide valueSlide = presentation.getSlides().addClone(slide);
    IChart valueChart = (IChart)valueSlide.getShapes().get_Item(0);
    valueChart.getAxes().getHorizontalAxis().setPlotOrderReversed(true);

    presentation.save("ReversedAxes.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

反轉坐標軸也可以將垂直坐標軸移至繪圖區的另一側。setCrossType控制另一坐標軸在被設定的坐標軸何處交叉。在第 2 張投影片中,於顛倒的類別軸上呼叫 CrossesType.Maximum,可讓水平數值軸保持在底部。若要設定特定交叉點,請使用setCrossAt。變更方向時請檢查交叉設定,尤其當圖表已設定自訂交叉點時。呼叫 setPlotOrderReversed 並傳入 false 可還原為正常繪製方向;交叉設定是獨立的。

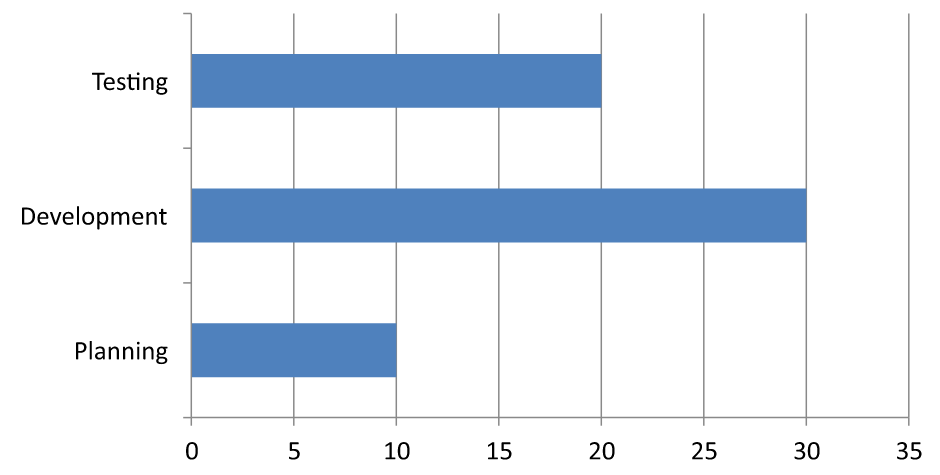

正常順序(幻燈片 1) 顛倒類別(幻燈片 2) 顛倒數值(幻燈片 3)
水平條形圖,類別與數值軸順序正常 水平條形圖,類別自上而下顯示 水平條形圖,數值軸顛倒且零位於右側
類別由下往上排列;數值由左向右遞增。 Planning、Development 與 Testing 由上往下排列。數值與工作表列順序保持不變。 類別保持正常順序;數值由右向左遞增。類別軸在右側的零處交叉。

停用折線圖的縱軸

於縱軸呼叫setVisible並傳入 false,即可隱藏該軸。範例建立一個預設資料的折線圖,並以隱藏縱軸的方式存檔。

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.Line, 100, 100, 400, 300);
    chart.getAxes().getVerticalAxis().setVisible(false);

    presentation.save("HiddenVerticalAxis.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

停用折線圖的橫軸

於水平軸呼叫setVisible並傳入 false,即可隱藏該軸。範例建立一個預設資料的折線圖,並以隱藏水平軸的方式存檔。

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.Line, 100, 100, 400, 300);
    chart.getAxes().getHorizontalAxis().setVisible(false);

    presentation.save("HiddenHorizontalAxis.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

顯示或隱藏圖表格線

呼叫getShowMajorGridLines與getShowMinorGridLines以檢查坐標軸目前顯示哪些格線。這些方法回傳目前的可見性。若要顯示次要格線,使用getMinorGridLinesFormat並將其線條填色設定為實色且可見。若要隱藏,將填色設定為FillType.NoFill。getMajorGridLinesFormat 以相同方式變更主要格線的線條填色。變更填色不會影響坐標軸的可見性與刻度。

此群組柱狀圖的縱軸最初僅顯示主要格線。範例先將次要格線以深橙色顯示,之後再隱藏,最後存檔。程式會在每個步驟印出格線的可見性。

import com.aspose.slides.*;
import java.awt.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 30, 30, 660, 230);
    IAxis axis = chart.getAxes().getVerticalAxis();
    System.out.printf("Initial: major=%b, minor=%b%n", axis.getShowMajorGridLines(), axis.getShowMinorGridLines());

    ILineFillFormat minorFill = axis.getMinorGridLinesFormat().getLine().getFillFormat();
    minorFill.setFillType(FillType.Solid);
    minorFill.getSolidFillColor().setColor(new Color(255, 140, 0));
    System.out.printf("Enabled: minor=%b%n", axis.getShowMinorGridLines());

    minorFill.setFillType(FillType.NoFill);
    System.out.printf("Hidden: major=%b, minor=%b%n", axis.getShowMajorGridLines(), axis.getShowMinorGridLines());

    presentation.save("ChartGridlines.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}
啟用次要格線 隱藏次要格線
縱軸上主要格線之間的橙色次要格線 相同的柱狀圖,僅顯示主要格線

變更類別軸

使用setCategoryAxisType可以選擇日期或文字類別軸。本範例需要 ExistingChart.pptx,其中第一張投影片的第一個圖形為圖表,且類別儲存格包含 Excel 數值日期。範例將水平軸改為日期軸。呼叫setAutomaticMajorUnit並傳入 false,再以setMajorUnit傳入 1,以及setMajorUnitScale傳入 TimeUnitType.Months,即可在每個月的間隔上放置主要刻度。

import com.aspose.slides.*;

Presentation presentation = new Presentation("ExistingChart.pptx");
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = (IChart) slide.getShapes().get_Item(0);
    chart.getAxes().getHorizontalAxis().setCategoryAxisType(CategoryAxisType.Date);
    chart.getAxes().getHorizontalAxis().setAutomaticMajorUnit(false);
    chart.getAxes().getHorizontalAxis().setMajorUnit(1);
    chart.getAxes().getHorizontalAxis().setMajorUnitScale(TimeUnitType.Months);

    presentation.save("ChangeChartCategoryAxis_out.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

從資料判斷類別軸類型

在填入類別之後,呼叫setCategoryAxisTypeAutomatically,然後讀取getCategoryAxisType 以檢查選擇的類型。這在圖表可能接受文字標籤或數值日期時很有用。此方法在呼叫時即決定類型,並不會在之後的資料變更時自動重新評估。更換類別後請再次呼叫。

以下範例建立一個文字類別的圖表,並在選取的類型為 CategoryAxisType.Text 時印出 true。接著將類別儲存格的值改為日期,再次呼叫該方法,當選取的類型為 CategoryAxisType.Date 時印出 true。日期以數值 OLE Automation 形式儲存,計算方式為自 1899 年 12 月 30 日起的天數,而非日期字串。setCustomNumberFormat 控制這些值的顯示方式;它不會將文字轉換成數值日期。更多關於類別儲存格的資訊,請參考圖表工作簿。

使用自動判斷的前提是輸入已知為文字類別或數值日期,如本範例所示。對於普通數值標籤、混合類別或空資料,請明確呼叫setCategoryAxisType 以符合預期意義。僅有數值本身不足以表明類別代表日期。

import com.aspose.slides.*;
import java.time.LocalDate;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 30, 40, 660, 320);

    chart.getChartData().getCategories().clear();
    chart.getChartData().getSeries().clear();

    IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();
    workbook.clear(0);

    IChartDataCell seriesName = workbook.getCell(0, 0, 1, "Sales");
    IChartSeries series = chart.getChartData().getSeries().add(seriesName, chart.getType());
    String[] labels = { "First", "Second", "Third" };

    for (int i = 0; i < labels.length; i++) {
        IChartDataCell categoryCell = workbook.getCell(0, i + 1, 0, labels[i]);
        chart.getChartData().getCategories().add(categoryCell);

        IChartDataCell valueCell = workbook.getCell(0, i + 1, 1, (i + 1) * 10);
        series.getDataPoints().addDataPointForBarSeries(valueCell);
    }

    IAxis axis = chart.getAxes().getHorizontalAxis();
    axis.setCategoryAxisTypeAutomatically();
    System.out.println(axis.getCategoryAxisType() == CategoryAxisType.Text); // 正確

    LocalDate baseDate = LocalDate.of(1899, 12, 30);
    LocalDate[] dates = { LocalDate.of(2026, 1, 1), LocalDate.of(2026, 1, 2), LocalDate.of(2026, 2, 1) };

    for (int i = 0; i < dates.length; i++) {
        IChartDataCell categoryCell = workbook.getCell(0, i + 1, 0);
        categoryCell.setValue((double)(dates[i].toEpochDay() - baseDate.toEpochDay()));
        categoryCell.setCustomNumberFormat("yyyy-mm-dd");
    }

    axis.setCategoryAxisTypeAutomatically();
    System.out.println(axis.getCategoryAxisType() == CategoryAxisType.Date); // 正確

    presentation.save("AutomaticCategoryAxis.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

控制類別軸標籤間隔

當圖表的類別數量過多時,可減少可見坐標軸標籤的數量,而不必移除類別或資料點。先以false呼叫setAutomaticTickLabelSpacing,再將想要的類別間隔傳入setTickLabelSpacing。對於正常排序的文字類別,計數從第一個類別開始:

間隔 範例中顯示的標籤
1 Category 1, Category 2, Category 3, … Category 24
2 Category 1, Category 3, Category 5, … Category 23
3 Category 1, Category 4, Category 7, … Category 22

間隔為 3 時會每隔兩個標籤顯示一次,僅顯示每第三個標籤,未顯示的標籤仍保留其欄位。自動間隔會根據可用空間自行決定間隔,未必會顯示所有標籤。

刻度線有獨立的控制方式。以false呼叫setAutomaticTickMarksSpacing,再使用setTickMarksSpacing 設定其間隔。例如,1 會在每個類別間隔保留刻度線,同時標籤僅每三個類別顯示一次。使用setMajorTickMark 並設定為可見樣式,即可觀察結果。再次以true呼叫任一自動間隔設定器,圖表會重新選擇間隔。

以下獨立範例建立 24 個類別與一個系列,然後在 CategoryAxisIntervals.pptx 中儲存三張投影片:自動間隔、手動標籤間隔(刻度線獨立)以及恢復自動間隔。兩個副本均保留原始圖表資料,無需輸入投影片。水平標籤文字使密度差異更加明顯。

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 30, 40, 660, 320);

    chart.setLegend(false);
    chart.getChartData().getCategories().clear();
    chart.getChartData().getSeries().clear();

    IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();
    workbook.clear(0);

    IChartSeries series = chart.getChartData().getSeries().add(ChartType.ClusteredColumn);
    for (int i = 0; i < 24; i++) {
        IChartDataCell categoryCell = workbook.getCell(0, i + 1, 0, "Category " + (i + 1));
        chart.getChartData().getCategories().add(categoryCell);
        IChartDataCell valueCell = workbook.getCell(0, i + 1, 1, 10 + i % 6 * 5);
        series.getDataPoints().addDataPointForBarSeries(valueCell);
    }

    IAxis axis = chart.getAxes().getHorizontalAxis();
    axis.setCategoryAxisType(CategoryAxisType.Text);
    axis.getTextFormat().getTextBlockFormat().setRotationAngle(0);
    axis.getTextFormat().getPortionFormat().setFontHeight(12);
    axis.setMajorTickMark(TickMarkType.Outside);
    axis.setAutomaticTickLabelSpacing(true);
    axis.setAutomaticTickMarksSpacing(true);

    // 幻燈片 2:顯示每三個標籤,但為每個類別保留刻度線。
    ISlide manualSlide = presentation.getSlides().addClone(slide);
    IChart manualChart = (IChart)manualSlide.getShapes().get_Item(0);
    IAxis manualAxis = manualChart.getAxes().getHorizontalAxis();
    manualAxis.setAutomaticTickLabelSpacing(false);
    manualAxis.setTickLabelSpacing(3);
    manualAxis.setAutomaticTickMarksSpacing(false);
    manualAxis.setTickMarksSpacing(1);

    // 幻燈片 3:讓圖表再次自行選擇間隔。
    ISlide restoredSlide = presentation.getSlides().addClone(manualSlide);
    IChart restoredChart = (IChart)restoredSlide.getShapes().get_Item(0);
    restoredChart.getAxes().getHorizontalAxis().setAutomaticTickLabelSpacing(true);
    restoredChart.getAxes().getHorizontalAxis().setAutomaticTickMarksSpacing(true);

    presentation.save("CategoryAxisIntervals.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

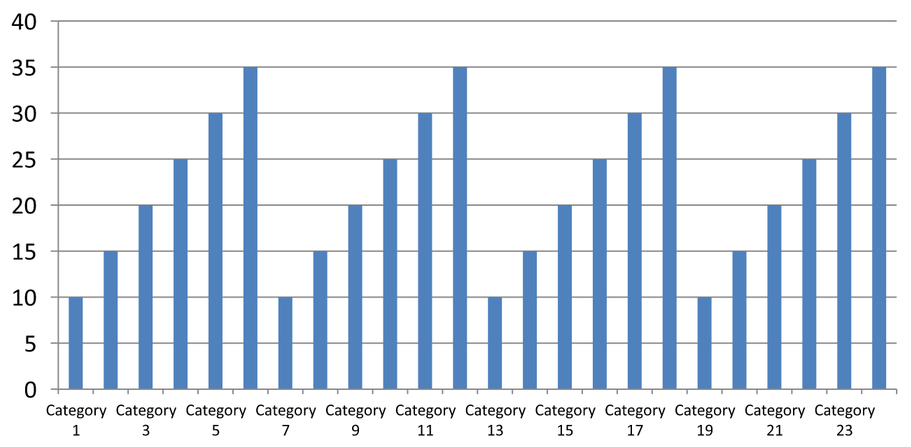

自動間隔(幻燈片 1): 在此渲染中,每兩個類別標籤會顯示一次,且會換行。自動結果會因圖表尺寸、字型與渲染器不同而有所變化。

自動類別標籤間隔,所有 24 欄皆可見

手動間隔(幻燈片 2): 每三個標籤顯示在同一行,且刻度線仍保留於每個類別間隔。所有 24 欄(包括未顯示標籤的欄)仍保持可見且數值相同。第 3 張投影片恢復如上所示的自動外觀。

手動類別標籤間隔為三,所有 24 欄皆可見

選擇正確的軸與間隔

對文字類別軸(如柱狀圖、折線圖、區域圖或條形圖的類別軸)使用此類別計數間隔。在柱狀圖中,它是水平軸;在水平條形圖中,類別軸為垂直軸,請對由getVerticalAxis 回傳的軸套用此設定。對於同時具備系列軸的圖表,刻度線間隔亦適用於系列軸。

請勿使用類別標籤間隔來設定數值軸的數值比例。於數值軸上,setMajorUnit 代表數值間的差異,例如 10 會在 0、10、20… 等位置產生刻度。類別標籤間隔 3 則僅是計算類別位置,與其實際資料值無關。散佈圖與氣泡圖使用數值軸而非文字類別軸。對於日期軸,請依照變更類別軸 中的說明使用基於時間的主要單位與比例。

設定類別軸值的日期格式

此範例將預設圖表資料換成四筆年度值。日期以 OLE Automation 序號儲存在第一個工作表(索引 0),計算方式為自 1899 年 12 月 30 日起的天數。使用setCategoryAxisType 並傳入 CategoryAxisType.Date,再以setNumberFormatLinkedToSource 傳入 false,最後將 yyyy 傳給setNumberFormat ,即可讓類別標籤獨立於儲存格格式,顯示四位數年份。

import com.aspose.slides.*;
import java.time.LocalDate;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.Line, 50, 50, 450, 300);

    chart.getChartData().getCategories().clear();
    chart.getChartData().getSeries().clear();

    IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();
    workbook.clear(0);

    LocalDate baseDate = LocalDate.of(1899, 12, 30);

    IChartSeries series = chart.getChartData().getSeries().add(ChartType.Line);
    for (int i = 0; i < 4; i++) {
        LocalDate date = LocalDate.of(2015 + i, 1, 1);
        IChartDataCell categoryCell = workbook.getCell(0, i + 1, 0, date.toEpochDay() - baseDate.toEpochDay());
        chart.getChartData().getCategories().add(categoryCell);

        IChartDataCell valueCell = workbook.getCell(0, i + 1, 1, i + 1);
        series.getDataPoints().addDataPointForLineSeries(valueCell);
    }

    chart.getAxes().getHorizontalAxis().setCategoryAxisType(CategoryAxisType.Date);
    chart.getAxes().getHorizontalAxis().setNumberFormatLinkedToSource(false);
    chart.getAxes().getHorizontalAxis().setNumberFormat("yyyy");

    presentation.save("DateAxisFormat.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

設定圖表坐標軸標題的旋轉角度

於垂直坐標軸呼叫setTitle 並傳入 true,提供標題文字,然後使用setRotationAngle 來旋轉標題。角度以度數為單位;本範例將欄狀圖的數值軸標題旋轉 90 度後存檔。

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 50, 50, 450, 300);
    chart.getAxes().getVerticalAxis().setTitle(true);
    chart.getAxes().getVerticalAxis().getTitle().addTextFrameForOverriding("Value");
    chart.getAxes().getVerticalAxis().getTitle().getTextFormat().getTextBlockFormat().setRotationAngle(90);

    presentation.save("RotatedAxisTitle.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

設定類別或數值軸上的軸位置

使用setAxisBetweenCategories 以控制數值軸是於類別軸的類別之間交叉,還是於類別刻度標記處交叉。此設定僅適用於類別軸。範例在柱狀圖的水平類別軸上設定為 true,並存檔示範結果。

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 50, 50, 450, 300);
    chart.getAxes().getHorizontalAxis().setAxisBetweenCategories(true);

    presentation.save("AxisBetweenCategories.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

設定圖表數值軸的顯示單位

使用setDisplayUnit 可在不更改底層資料的情況下縮放數值軸的標籤。將DisplayUnitType 設為 Millions,則 60,000,000 會顯示為 60。範例建立一個柱狀圖,並將其垂直軸的顯示單位設定為百萬。

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.ClusteredColumn, 50, 50, 450, 300);
    chart.getAxes().getVerticalAxis().setDisplayUnit(DisplayUnitType.Millions);

    presentation.save("Result.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

設定對數數值軸

對數數值軸在正值跨越多個数量级時特別有用。例如,服務在五個時期可能分別收到 10、100、1,000、10,000 與 100,000 個請求。線性比例下,較小的值會聚集在接近零的位置。對數比例則使它們的相對增長更易於比較:相等的距離代表相等的比例,而非相等的差異。

於數值軸呼叫setLogarithmic 並傳入 true,再使用setLogBase 以選擇基底。此變更僅影響現有值的顯示方式,並不會改變資料或新增對數趨勢線。趨勢線是對資料進行擬合的獨立功能。

選擇數值軸與基底

對於折線圖或柱狀圖,數值軸由getVerticalAxis 回傳。對於水平條形圖,則由getHorizontalAxis 回傳。散佈圖與氣泡圖有兩條數值軸,請為 X 軸值選擇水平軸,為 Y 軸值選擇垂直軸,或兩者皆設定。請勿對類別軸套用對數比例。

預設的對數基底為 10。對於 PPTX 圖表,基底可設定為 2~1000(含),亦支援小數基底如 2.5。使用 10 為基底時,10、100、1,000、10,000 等次方會等距分佈。

比較線性與對數比例

以下獨立範例在第一張投影片建立一個包含五筆請求次數的折線圖,然後複製該投影片並在第二張投影片上啟用以 10 為底的對數數值軸。兩張投影片皆保留相同資料。

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IChart chart = slide.getShapes().addChart(ChartType.Line, 30, 40, 660, 200);

    chart.setLegend(false);

    chart.getChartData().getCategories().clear();
    chart.getChartData().getSeries().clear();

    IChartDataWorkbook workbook = chart.getChartData().getChartDataWorkbook();
    workbook.clear(0);

    IChartSeries series = chart.getChartData().getSeries().add(ChartType.Line);
    double[] values = { 10, 100, 1000, 10000, 100000 };

    for (int i = 0; i < values.length; i++) {
        IChartDataCell categoryCell = workbook.getCell(0, i + 1, 0, "Period " + (i + 1));
        chart.getChartData().getCategories().add(categoryCell);

        IChartDataCell valueCell = workbook.getCell(0, i + 1, 1, values[i]);
        series.getDataPoints().addDataPointForLineSeries(valueCell);
    }

    // 保持第一張投影片為線性,僅變更副本的數值軸比例。
    ISlide logarithmicSlide = presentation.getSlides().addClone(slide);
    IChart logarithmicChart = (IChart)logarithmicSlide.getShapes().get_Item(0);
    IAxis valueAxis = logarithmicChart.getAxes().getVerticalAxis();
    valueAxis.setLogarithmic(true);
    valueAxis.setLogBase(10);

    presentation.save("LogarithmicAxis.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

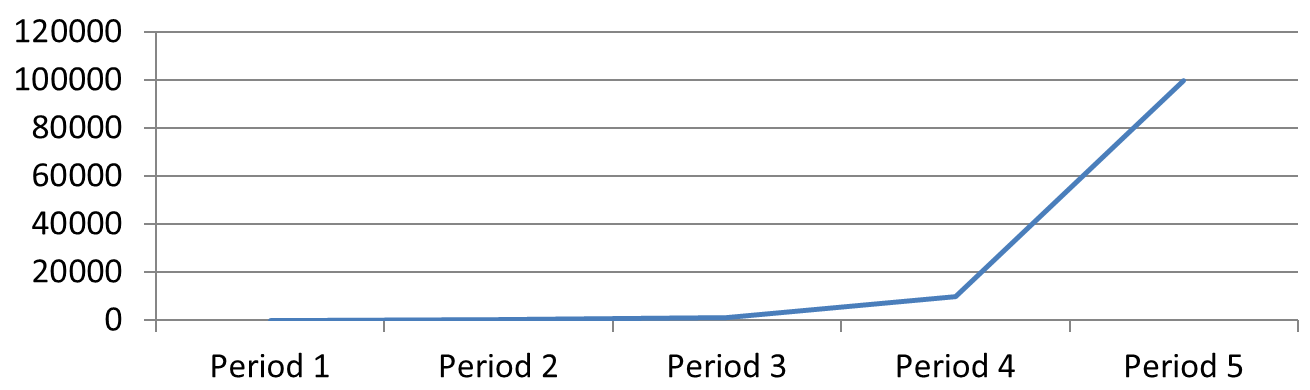

線性比例(幻燈片 1): 相等的垂直距離代表請求次數的相等差異。最大值會主導圖表,使較小的值難以辨識。

PowerPoint 線圖,顯示在直線數值軸上的五個請求計數

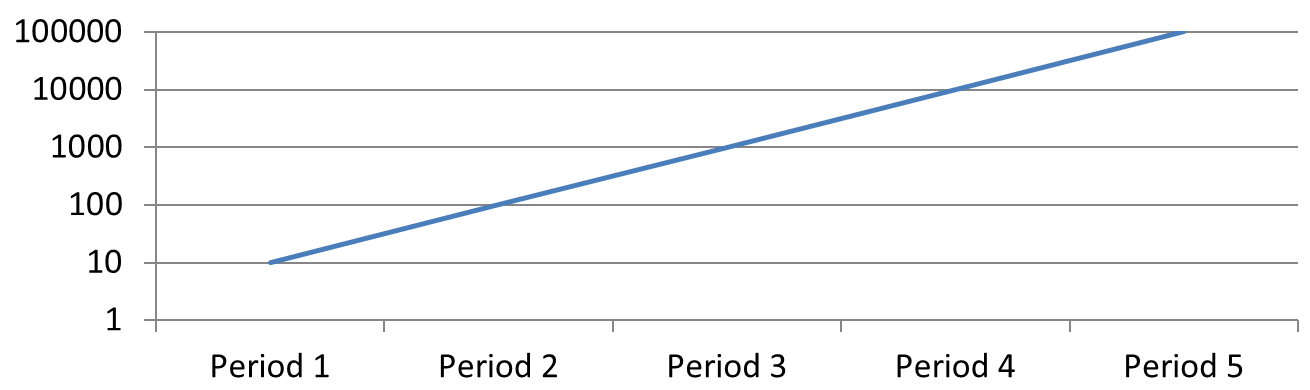

對數比例(幻燈片 2): 相等的垂直距離代表相等的比例。每個時期的請求量是前一時期的十倍,因而在以 10 為底的比例上呈現直線上升。坐標軸標籤仍顯示原始請求次數。

同樣的五個請求計數於 PowerPoint 上的以 10 為底的對數數值軸

處理零與負值

對數比例只能顯示嚴格正值。啟用前請先檢查資料;若零或負值具有意義,請保留線性比例或將其另行顯示。若在分析上適合排除這些值,請說明省略的原因。切勿以小的正值靜默取代,因會改變資料意涵。任何手動設定的對數軸最小值或最大值也必須為正。

常見問題

如何設定一條坐標軸與另一條交叉的值(坐標軸交叉)?

使用setCrossType 來選擇交叉行為。若要指定數值交叉點,請使用setCrossAt。這些設定可將坐標軸交叉移至合適的基線。

如何相對於坐標軸定位刻度標籤?

呼叫setTickLabelPosition,並使用TickLabelPositionType 的 Low、High、NextTo 或 None。若要控制刻度本身,請使用setMajorTickMark 或setMinorTickMark;這些設定與標籤位置是分開的。
