C++ で PowerPoint の図形をフォーマットする

このページの概要

Aspose.Slides を使用して C++ で PowerPoint の図形をフォーマットする方法を学びます。PPT および PPTX ファイルに対して、塗りつぶし、線、効果のスタイルを正確かつ完全に制御して設定できます。

はじめに

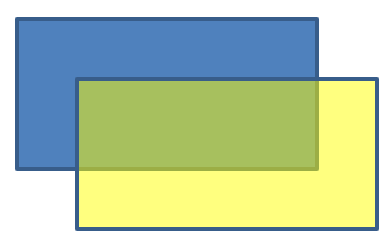

PowerPoint の図形の輪郭、塗りつぶし、効果を調整して書式設定します。Aspose.Slides for C++ を使用すると、透過性、回転、3D 書式設定などの設定をプログラムで制御できます。

PowerPoint の図形書式設定オプション

Aspose.Slides for C++ は、PowerPoint で利用可能な同じオプションを使用して図形をフォーマットできるインターフェイスとメソッドを提供します。

線の書式設定

Use IShape::get_LineFormat to control a shape’s outline. This example creates an unfilled rectangle with a blue, dashed outline. ILineFormat::set_Style selects a thick‑thin compound line, while ILineFormat::set_Width sets its width to 7 points and ILineFormat::set_DashStyle selects the dash pattern.

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/LineDashStyle.h>
#include <DOM/LineStyle.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
shape->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_LineFormat()->set_Style(LineStyle::ThickThin);
shape->get_LineFormat()->set_Width(7);
shape->get_LineFormat()->set_DashStyle(LineDashStyle::Dash);
shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Blue());

presentation->Save(u"formatted_lines.pptx", SaveFormat::Pptx);
presentation->Dispose();

結果：

プレゼンテーションの書式設定された線

カスタム線ダッシュパターンの設定

Use ILineFormat::set_CustomDashPattern when predefined line styles do not provide the dash lengths and gaps you need, for example for branded outlines or technical diagrams. Assigning a pattern automatically changes the dash style to LineDashStyle::Custom.

配列の要素はダッシュとギャップの長さが交互に並び、ダッシュから始まります。各値は線幅の倍数です。{ 4, 2 } を幅 3 ポイントで使用すると、12 ポイントのダッシュの後に 6 ポイントのギャップが続きます。有限かつ非負の値のペアを使用して、完全なダッシュ‑ギャップセグメントを定義します。この例では、すべてのダッシュとギャップが見えるように正の値を使用しています。

この例は、同じ長さでフラットキャップを持つ青い線を5本作成します。最初の3本は幅 3 ポイントでパターンを比較し、4本目は最初のパターンを幅の2倍で繰り返し、ダッシュとギャップの長さも2倍にします。5本目はカスタムパターンから実線に切り替えます。

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ISlideSize.h>
#include <DOM/LineArrowheadStyle.h>
#include <DOM/LineCapStyle.h>
#include <DOM/LineDashStyle.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/SlideSizeScaleType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>
#include <system/array.h>
#include <array>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
presentation->get_SlideSize()->SetSize(600, 300, SlideSizeScaleType::DoNotScale);
auto slide = presentation->get_Slide(0);

const auto patterns = std::array<ArrayPtr<float>, 5>{
    MakeArray<float>({ 4, 2 }),
    MakeArray<float>({ 1, 2 }),
    MakeArray<float>({ 6, 2, 1, 2 }),
    MakeArray<float>({ 4, 2 }),
    MakeArray<float>({ 4, 2 })
};

for (auto i = 0; i < patterns.size(); i++)
{
    auto line = slide->get_Shapes()->AddAutoShape(ShapeType::Line, 50, 50 + i * 50, 500, 0);
    line->get_LineFormat()->set_Width(i == 3 ? 6 : 3);
    line->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
    line->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_DarkBlue());
    line->get_LineFormat()->set_CapStyle(LineCapStyle::Flat);
    line->get_LineFormat()->set_BeginArrowheadStyle(LineArrowheadStyle::None);
    line->get_LineFormat()->set_EndArrowheadStyle(LineArrowheadStyle::None);
    line->get_LineFormat()->set_CustomDashPattern(patterns[i]);
}

// Return the last line to a solid style.
slide->get_Shape(4)->get_LineFormat()->set_DashStyle(LineDashStyle::Solid);

presentation->Save(u"custom_dash_patterns.pptx", SaveFormat::Pptx);
presentation->Dispose();

Instead of a custom pattern, pass LineDashStyle::Dash to ILineFormat::set_DashStyle. The selected style controls the line’s appearance.

PowerPoint 上の結果（上から順に）：{4, 2}, 3 pt、{1, 2}, 3 pt、{6, 2, 1, 2}, 3 pt、{4, 2}, 6 pt、および Solid, 3 pt。

三つのカスタムダッシュパターン、最初のパターンを使用した太い線、そして PowerPoint の実線

線キャップの設定

Use ILineFormat::set_CapStyle to set the ends of an open line. The LineCapStyle enumeration provides three explicit cap styles:

Flat: 線は端点で止まります。
Round: 半円形のキャップが線幅の半分だけ端点を超えて伸びます。
Square: 正方形のキャップが線幅の半分だけ端点を超えて伸びます。

The enumeration also includes NotDefined, which means that no cap style is explicitly assigned.

Caps are different from arrowheads, which add symbols to line ends, and joins, which control corners between line segments. This example disables arrowheads through ILineFormat::set_BeginArrowheadStyle and ILineFormat::set_EndArrowheadStyle so that only the cap shapes are compared.

The following example creates three otherwise identical horizontal lines, 20 points wide. From top to bottom, they use flat, round, and square caps. Their endpoints have the same horizontal coordinates; the round and square caps extend 10 points beyond each endpoint.

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ISlideSize.h>
#include <DOM/LineArrowheadStyle.h>
#include <DOM/LineCapStyle.h>
#include <DOM/LineDashStyle.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/SlideSizeScaleType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>
#include <array>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
presentation->get_SlideSize()->SetSize(500, 240, SlideSizeScaleType::DoNotScale);
auto slide = presentation->get_Slide(0);

const auto capStyles = std::array<LineCapStyle, 3>{ LineCapStyle::Flat, LineCapStyle::Round, LineCapStyle::Square };

for (auto i = 0; i < capStyles.size(); i++)
{
    auto line = slide->get_Shapes()->AddAutoShape(ShapeType::Line, 100, 50 + i * 70, 300, 0);
    line->get_LineFormat()->set_Width(20);
    line->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
    line->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_DarkBlue());
    line->get_LineFormat()->set_DashStyle(LineDashStyle::Solid);
    line->get_LineFormat()->set_CapStyle(capStyles[i]);
    line->get_LineFormat()->set_BeginArrowheadStyle(LineArrowheadStyle::None);
    line->get_LineFormat()->set_EndArrowheadStyle(LineArrowheadStyle::None);
}

presentation->Save(u"line_caps.pptx", SaveFormat::Pptx);
presentation->Dispose();

PowerPoint 上の結果（上から順に）：Flat、Round、Square。

同一の太い線に対するフラット、ラウンド、スクエアのキャップ

図形線へのスケッチ効果の適用

A sketch effect makes a shape line look hand‑drawn. Use IShape::get_LineFormat to access the line settings, ILineFormat::get_SketchFormat to access the sketch settings, and ISketchFormat::set_SketchType to select a value from the LineSketchType enumeration.

The following C++ code shows how to apply a LineSketchType::Curved effect, read the explicitly assigned value, and remove the effect with LineSketchType::None :

#include <DOM/IAutoShape.h>
#include <DOM/ILineFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISketchFormat.h>
#include <DOM/ISlide.h>
#include <DOM/LineSketchType.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <system/console.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 200, 100);

auto sketchFormat = shape->get_LineFormat()->get_SketchFormat();
sketchFormat->set_SketchType(LineSketchType::Curved);
auto explicitSketchType = sketchFormat->get_SketchType();
Console::WriteLine(u"Explicit sketch type: {0}", explicitSketchType);
sketchFormat->set_SketchType(LineSketchType::None);

presentation->Dispose();

The value returned by ISketchFormat::get_SketchType represents the setting assigned directly to the shape. If the line formatting can be inherited from a theme, master slide, or layout slide, use ILineFormat::GetEffective, access ILineFormatEffectiveData::get_SketchFormat, and read ISketchFormatEffectiveData::get_SketchType. The effective value reflects the formatting that is actually applied after inheritance is resolved. This example requires an existing presentation with at least one shape on its first slide and prints both values:

#include <DOM/ILineFormat.h>
#include <DOM/ILineFormatEffectiveData.h>
#include <DOM/IShape.h>
#include <DOM/ISketchFormat.h>
#include <DOM/ISketchFormatEffectiveData.h>
#include <DOM/ISlide.h>
#include <DOM/LineSketchType.h>
#include <DOM/Presentation.h>
#include <system/console.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;

auto presentation = MakeObject<Presentation>(u"presentation.pptx");
auto shape = presentation->get_Slide(0)->get_Shape(0);

auto lineFormat = shape->get_LineFormat();
auto explicitSketchType = lineFormat->get_SketchFormat()->get_SketchType();
auto effectiveLineFormat = lineFormat->GetEffective();
auto effectiveSketchType = effectiveLineFormat->get_SketchFormat()->get_SketchType();

Console::WriteLine(u"Explicit sketch type: {0}", explicitSketchType);
Console::WriteLine(u"Effective sketch type: {0}", effectiveSketchType);
presentation->Dispose();

結合スタイルの書式設定

Here are the three join type options:

Round
Miter
Bevel

The join style controls how two outline segments meet at a corner. Use Round for rounded corners, Miter for sharp corners, or Bevel for flattened corners.

プレゼンテーションの結合スタイル

This example creates three black rectangles with blue outlines 15 points wide. It sets ILineFormat::set_JoinStyle to the miter, bevel, and round values of LineJoinStyle, respectively, to compare how the corners are drawn.

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/LineJoinStyle.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto miterShape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 20, 20, 150, 75);
auto bevelShape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 210, 20, 150, 75);
auto roundShape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 20, 135, 150, 75);

miterShape->get_FillFormat()->set_FillType(FillType::Solid);
miterShape->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
bevelShape->get_FillFormat()->set_FillType(FillType::Solid);
bevelShape->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
roundShape->get_FillFormat()->set_FillType(FillType::Solid);
roundShape->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());

miterShape->get_LineFormat()->set_Width(15);
bevelShape->get_LineFormat()->set_Width(15);
roundShape->get_LineFormat()->set_Width(15);

miterShape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
miterShape->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Blue());
bevelShape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
bevelShape->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Blue());
roundShape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
roundShape->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Blue());

miterShape->get_LineFormat()->set_JoinStyle(LineJoinStyle::Miter);
bevelShape->get_LineFormat()->set_JoinStyle(LineJoinStyle::Bevel);
roundShape->get_LineFormat()->set_JoinStyle(LineJoinStyle::Round);

miterShape->get_TextFrame()->set_Text(u"Miter Join Style");
bevelShape->get_TextFrame()->set_Text(u"Bevel Join Style");
roundShape->get_TextFrame()->set_Text(u"Round Join Style");

presentation->Save(u"join_styles.pptx", SaveFormat::Pptx);
presentation->Dispose();

鋭角でのミータ結合の制限

Use ILineFormat::set_MiterLimit with ILineFormat::set_JoinStyle set to LineJoinStyle::Miter to limit how far a sharp corner can extend.

The limit is a ratio of the distance between the inner and outer corners of the join to the line width. For example, a value of 8 permits a miter length of up to eight times the line width; it is not a measurement in points. If the corner would exceed the limit, PowerPoint uses a beveled join at that corner. A larger limit allows sharper points. The setting affects miter joins only, and changing it has no visible effect when the corner remains within both limits.

This example creates two identical, unfilled triangles with outlines 20 points wide. The left triangle uses a limit of 2, and the right uses 8. Each triangle is 80 points wide and 160 points high, giving its top corner a miter‑length‑to‑line‑width ratio of approximately 4.12. Consequently, PowerPoint bevels the left apex and preserves the right apex.

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ISlideSize.h>
#include <DOM/LineJoinStyle.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/SlideSizeScaleType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>
#include <array>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
presentation->get_SlideSize()->SetSize(500, 320, SlideSizeScaleType::DoNotScale);
auto slide = presentation->get_Slide(0);

const auto miterLimits = std::array<float, 2>{ 2.0f, 8.0f };

for (auto i = 0; i < miterLimits.size(); i++)
{
    auto triangle = slide->get_Shapes()->AddAutoShape(ShapeType::Triangle, 90 + i * 240, 110, 80, 160);
    triangle->get_FillFormat()->set_FillType(FillType::NoFill);
    triangle->get_LineFormat()->set_Width(20);
    triangle->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
    triangle->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_DarkBlue());
    triangle->get_LineFormat()->set_JoinStyle(LineJoinStyle::Miter);
    triangle->get_LineFormat()->set_MiterLimit(miterLimits[i]);
}

presentation->Save(u"miter_limits.pptx", SaveFormat::Pptx);
presentation->Dispose();

PowerPoint 上の結果：左側は Miter limit 2、右側は miter limit 8。

PowerPoint のミータリミット 2 のベベル頂点とミータリミット 8 の尖った頂点

グラデーション塗りつぶし

A gradient fill blends colors across a shape. This example fills an ellipse with a linear gradient at a 45‑degree angle from red to purple using IFillFormat::get_GradientFormat. The IGradientStopCollection::Add method places the color stops at 0 and 1, the beginning and end of the gradient. Clearing the existing stops ensures that only these two colors are used.

#include <DOM/FillType.h>
#include <DOM/GradientShape.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IGradientFormat.h>
#include <DOM/IGradientStopCollection.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <DOM/PresetColor.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Ellipse, 50, 50, 150, 75);
shape->get_FillFormat()->set_FillType(FillType::Gradient);
shape->get_FillFormat()->get_GradientFormat()->set_GradientShape(GradientShape::Linear);
shape->get_FillFormat()->get_GradientFormat()->set_LinearGradientAngle(45);
shape->get_FillFormat()->get_GradientFormat()->get_GradientStops()->Clear();
shape->get_FillFormat()->get_GradientFormat()->get_GradientStops()->Add(1.0f, PresetColor::Purple);
shape->get_FillFormat()->get_GradientFormat()->get_GradientStops()->Add(0.0f, PresetColor::Red);

presentation->Save(u"gradient_fill.pptx", SaveFormat::Pptx);
presentation->Dispose();

結果：

グラデーション塗りつぶしの楕円形

If a gradient looks different in an exported image than it does in PowerPoint, see Choose a Gradient Rendering Style. You can select a rendering style without changing the gradient fill stored in the presentation.

線形グラデーション角度の設定

Use IGradientFormat::set_LinearGradientAngle to control the orientation of a GradientShape::Linear fill. The angle is measured in degrees and increases clockwise: 0 runs from left to right, 90 from top to bottom, 180 from right to left, and 270 from bottom to top. Fractional angles are supported. Finite angles outside [0, 360) are normalized to one revolution; for example, -45 becomes 315 and 360 becomes 0.

This example creates six rectangles with identical red, green, and blue stops at positions 0, 0.5, and 1. Scaling is disabled so that the angle can be compared independently of the rectangles' proportions. The angles, from left to right, are 0, 45, and 90 in the first row, and 135, 180, and 270 in the second row.

#include <DOM/FillType.h>
#include <DOM/GradientShape.h>
#include <DOM/IAutoShape.h>
#include <DOM/IFillFormat.h>
#include <DOM/IGradientFormat.h>
#include <DOM/IGradientStopCollection.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ISlideSize.h>
#include <DOM/NullableBool.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/SlideSizeScaleType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>
#include <array>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
presentation->get_SlideSize()->SetSize(720, 400, SlideSizeScaleType::DoNotScale);
auto slide = presentation->get_Slide(0);

const auto angles = std::array<float, 6>{ 0, 45, 90, 135, 180, 270 };

for (auto i = 0; i < angles.size(); i++)
{
    auto x = 30 + (i % 3) * 230;
    auto y = 30 + (i / 3) * 190;

    auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, x, y, 200, 150);
    shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);
    shape->get_FillFormat()->set_FillType(FillType::Gradient);

    auto gradient = shape->get_FillFormat()->get_GradientFormat();
    gradient->set_GradientShape(GradientShape::Linear);
    gradient->get_GradientStops()->Clear();
    gradient->get_GradientStops()->Add(0.0f, Color::get_Red());
    gradient->get_GradientStops()->Add(0.5f, Color::get_Lime());
    gradient->get_GradientStops()->Add(1.0f, Color::get_Blue());
    gradient->set_LinearGradientScaled(NullableBool::False);
    gradient->set_LinearGradientAngle(angles[i]);
}

presentation->Save(u"linear_gradient_angles.pptx", SaveFormat::Pptx);
presentation->Dispose();

PowerPoint 上の結果：

上段は 0°, 45°, 90°、下段は 135°, 180°, 270° の線形グラデーション

形状で線形グラデーションをスケールする

IGradientFormat::set_LinearGradientScaled accepts a NullableBool value. Set it explicitly to False to keep the geometric gradient angle as the shape’s proportions change, or to True to scale the gradient with the shape’s width and height. With scaling enabled, the visible angle can differ from the assigned angle on a non‑square shape.

The following example uses a 45‑degree angle and the same color stops as the angle comparison. The left column uses False; the right column uses True. Each column contains a wide rectangle above a tall rectangle. Both start with the same wide dimensions; changing the second rectangle’s width and height demonstrates how the fill responds to resizing without changing its gradient settings.

#include <DOM/FillType.h>
#include <DOM/GradientShape.h>
#include <DOM/IAutoShape.h>
#include <DOM/IFillFormat.h>
#include <DOM/IGradientFormat.h>
#include <DOM/IGradientStopCollection.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ISlideSize.h>
#include <DOM/NullableBool.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/SlideSizeScaleType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>
#include <array>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
presentation->get_SlideSize()->SetSize(720, 460, SlideSizeScaleType::DoNotScale);
auto slide = presentation->get_Slide(0);

const auto scalingOptions = std::array<NullableBool, 2>{ NullableBool::False, NullableBool::True };

for (auto column = 0; column < scalingOptions.size(); column++)
{
    for (auto row = 0; row < 2; row++)
    {
        auto x = 30 + column * 360;
        auto y = row == 0 ? 30 : 150;

        auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, x, y, 300, 90);
        shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);
        shape->get_FillFormat()->set_FillType(FillType::Gradient);

        auto gradient = shape->get_FillFormat()->get_GradientFormat();
        gradient->set_GradientShape(GradientShape::Linear);
        gradient->get_GradientStops()->Clear();
        gradient->get_GradientStops()->Add(0.0f, Color::get_Red());
        gradient->get_GradientStops()->Add(0.5f, Color::get_Lime());
        gradient->get_GradientStops()->Add(1.0f, Color::get_Blue());
        gradient->set_LinearGradientAngle(45);
        gradient->set_LinearGradientScaled(scalingOptions[column]);

        if (row == 1)
        {
            shape->set_Width(90);
            shape->set_Height(280);
        }
    }
}

presentation->Save(u"linear_gradient_scaling.pptx", SaveFormat::Pptx);
presentation->Dispose();

PowerPoint 上の結果（左はスケーリング無効、右は有効）：

幅広と高さの長方形に対する 45° グラデーション、左は LinearGradientScaled = False、右は True の比較

With scaling disabled, the diagonal color bands keep the same orientation in both rectangles. With scaling enabled, the bands stretch with the shape’s proportions. This helps reproduce a template’s gradient when adapting a shape to a different size. On a square, enabling scaling does not change the appearance of this 45‑degree gradient.

Both the angle and scaling settings apply to linear gradients. They do not control GradientShape::Radial or GradientShape::Rectangle fills.

角度とグラデーション方向の組み合わせ

IGradientFormat::set_GradientDirection selects a gradient style from the GradientDirection enumeration; it is not a substitute for a numeric angle. For a linear gradient, the corner styles can change the area over which the colors are distributed without changing the angle assigned through IGradientFormat::set_LinearGradientAngle. Keep the direction unchanged when comparing angles or scaling.

The following example applies the same settings in opposite orders. The two rectangles have the same appearance: assigning the direction before or after the angle does not change the result.

#include <DOM/FillType.h>
#include <DOM/GradientDirection.h>
#include <DOM/GradientShape.h>
#include <DOM/IAutoShape.h>
#include <DOM/IFillFormat.h>
#include <DOM/IGradientFormat.h>
#include <DOM/IGradientStopCollection.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/NullableBool.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

for (auto i = 0; i < 2; i++)
{
    auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 30, 30 + i * 140, 320, 100);
    shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);
    shape->get_FillFormat()->set_FillType(FillType::Gradient);

    auto gradient = shape->get_FillFormat()->get_GradientFormat();
    gradient->set_GradientShape(GradientShape::Linear);
    gradient->get_GradientStops()->Clear();
    gradient->get_GradientStops()->Add(0.0f, Color::get_Red());
    gradient->get_GradientStops()->Add(0.5f, Color::get_Lime());
    gradient->get_GradientStops()->Add(1.0f, Color::get_Blue());
    gradient->set_LinearGradientScaled(NullableBool::True);

    if (i == 0)
    {
        gradient->set_GradientDirection(GradientDirection::FromCorner1);
        gradient->set_LinearGradientAngle(30);
    }
    else
    {
        gradient->set_LinearGradientAngle(30);
        gradient->set_GradientDirection(GradientDirection::FromCorner1);
    }
}

presentation->Save(u"linear_gradient_direction.pptx", SaveFormat::Pptx);
presentation->Dispose();

パターン塗りつぶし

A pattern fill applies a two‑color design, such as dots, stripes, or checks. This example uses IPatternFormat::set_PatternStyle to select a trellis pattern. IPatternFormat::get_BackColor supplies the light gray background, and IPatternFormat::get_ForeColor supplies the yellow pattern color.

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IPatternFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/PatternStyle.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
shape->get_FillFormat()->set_FillType(FillType::Pattern);
shape->get_FillFormat()->get_PatternFormat()->set_PatternStyle(PatternStyle::Trellis);
shape->get_FillFormat()->get_PatternFormat()->get_BackColor()->set_Color(Color::get_LightGray());
shape->get_FillFormat()->get_PatternFormat()->get_ForeColor()->set_Color(Color::get_Yellow());

presentation->Save(u"pattern_fill.pptx", SaveFormat::Pptx);
presentation->Dispose();

結果：

パターン塗りつぶしの長方形

画像塗りつぶし

A picture fill uses an image inside a shape. This example requires a local image and uses Images::FromFile to load it into the presentation’s image collection. Setting IPictureFillFormat::set_PictureFillMode to the tiled mode repeats the image within the rectangle. The source image used here is shown below:

蓮の画像

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IFillFormat.h>
#include <DOM/IImageCollection.h>
#include <DOM/IPictureFillFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ISlidesPicture.h>
#include <DOM/PictureFillMode.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <IImage.h>
#include <Util/Images.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 255, 130);
shape->get_FillFormat()->set_FillType(FillType::Picture);
shape->get_FillFormat()->get_PictureFillFormat()->set_PictureFillMode(PictureFillMode::Tile);

auto image = Images::FromFile(u"lotus.png");
auto presentationImage = presentation->get_Images()->AddImage(image);
shape->get_FillFormat()->get_PictureFillFormat()->get_Picture()->set_Image(presentationImage);

presentation->Save(u"picture_fill.pptx", SaveFormat::Pptx);
image->Dispose();
presentation->Dispose();

結果：

画像塗りつぶしの図形

テクスチャとして画像をタイル配置

If you want to set a tiled picture as a texture and customize the tiling behavior, you can use the following methods of the IPictureFillFormat interface and PictureFillFormat class:

set_PictureFillMode：画像の塗りつぶしモードを設定します（Tile または Stretch）。
set_TileAlignment：図形内部でタイルを配置する位置を指定します。
set_TileFlip：タイルを水平方向、垂直方向、または両方に反転するかを制御します。
set_TileOffsetX：図形の原点からタイルの水平方向オフセット（ポイント）を設定します。
set_TileOffsetY：図形の原点からタイルの垂直方向オフセット（ポイント）を設定します。
set_TileScaleX：タイルの水平方向スケールをパーセンテージで定義します。
set_TileScaleY：タイルの垂直方向スケールをパーセンテージで定義します。

This example requires a local image and configures IPictureFillFormat to repeat it at 50% of its original size. Offsets of −32 points shift the tiles horizontally and vertically; bottom‑right alignment and flipping in both directions determine how the repeated texture is arranged.

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IFillFormat.h>
#include <DOM/IImageCollection.h>
#include <DOM/IPictureFillFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ISlidesPicture.h>
#include <DOM/PictureFillMode.h>
#include <DOM/Presentation.h>
#include <DOM/RectangleAlignment.h>
#include <DOM/ShapeType.h>
#include <DOM/TileFlip.h>
#include <Export/SaveFormat.h>
#include <IImage.h>
#include <Util/Images.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;

auto presentation = MakeObject<Presentation>();
auto firstSlide = presentation->get_Slide(0);

auto shape = firstSlide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 190, 95);
shape->get_FillFormat()->set_FillType(FillType::Picture);

auto sourceImage = Images::FromFile(u"lotus.png");
auto presentationImage = presentation->get_Images()->AddImage(sourceImage);

auto pictureFillFormat = shape->get_FillFormat()->get_PictureFillFormat();
pictureFillFormat->get_Picture()->set_Image(presentationImage);
pictureFillFormat->set_PictureFillMode(PictureFillMode::Tile);
pictureFillFormat->set_TileOffsetX(-32);
pictureFillFormat->set_TileOffsetY(-32);
pictureFillFormat->set_TileScaleX(50);
pictureFillFormat->set_TileScaleY(50);
pictureFillFormat->set_TileAlignment(RectangleAlignment::BottomRight);
pictureFillFormat->set_TileFlip(TileFlip::FlipBoth);

presentation->Save(u"tile.pptx", SaveFormat::Pptx);
sourceImage->Dispose();
presentation->Dispose();

結果：

タイルオプション

単色塗りつぶし

A solid fill gives a shape a single, uniform color. This example sets IFillFormat::set_FillType to the solid fill mode and assigns yellow through IFillFormat::get_SolidFillColor, then saves the rectangle in a presentation.

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
shape->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Yellow());

presentation->Save(u"solid_color_fill.pptx", SaveFormat::Pptx);
presentation->Dispose();

結果：

単色塗りつぶしの図形

スライドの背景を図形の塗りつぶしとして使用

Use IAutoShape::set_UseBackgroundFill when a shape should match the slide background, for example in a presentation template. Set IFillFormat::set_FillType to FillType::NotDefined first to remove any explicit fill. With this combination, the shape uses the slide background instead of its style fill. Enabling the flag alone does not remove an existing explicit fill.

This differs from FillType::NoFill：背景塗りつぶしは図形の背後にあるオブジェクトをスライド背景の対応領域で覆いますが、NoFill はそれらのオブジェクトを表示したままにします。グラデーションは各図形内部で再開されるのではなく、スライドに合わせて配置され続けます。

The following example creates a master background inherited by the slide and places a magenta band behind three rectangles. The left rectangle uses the background, the middle rectangle has no fill, and the right rectangle switches from background fill to an explicit orange fill.

#include <DOM/BackgroundType.h>
#include <DOM/FillType.h>
#include <DOM/GradientShape.h>
#include <DOM/IAutoShape.h>
#include <DOM/IBackground.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IGradientFormat.h>
#include <DOM/IGradientStopCollection.h>
#include <DOM/ILayoutSlide.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IMasterSlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ISlideSize.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/SlideSizeScaleType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
presentation->get_SlideSize()->SetSize(720, 400, SlideSizeScaleType::DoNotScale);
auto slide = presentation->get_Slide(0);

// マスターからグラデーションを継承します。
slide->get_Background()->set_Type(BackgroundType::NotDefined);
slide->get_LayoutSlide()->get_Background()->set_Type(BackgroundType::NotDefined);
auto background = slide->get_LayoutSlide()->get_MasterSlide()->get_Background();
background->set_Type(BackgroundType::OwnBackground);
background->get_FillFormat()->set_FillType(FillType::Gradient);
auto gradient = background->get_FillFormat()->get_GradientFormat();
gradient->set_GradientShape(GradientShape::Linear);
gradient->set_LinearGradientAngle(0);
gradient->get_GradientStops()->Clear();
gradient->get_GradientStops()->Add(0, Color::get_DarkBlue());
gradient->get_GradientStops()->Add(1, Color::get_LightSkyBlue());

// このオブジェクトを最初に追加して、長方形の背面に表示されるようにします。
auto band = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 25, 150, 670, 100);
band->get_FillFormat()->set_FillType(FillType::Solid);
band->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Magenta());
band->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);

auto backgroundShape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 100, 160, 200);
backgroundShape->get_FillFormat()->set_FillType(FillType::NotDefined);
backgroundShape->set_UseBackgroundFill(true);

auto noFillShape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 280, 100, 160, 200);
noFillShape->get_FillFormat()->set_FillType(FillType::NoFill);

auto explicitShape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 510, 100, 160, 200);
explicitShape->get_FillFormat()->set_FillType(FillType::NotDefined);
explicitShape->set_UseBackgroundFill(true);

// 背景塗りつぶしを無効にしてから明示的な塗りつぶしを適用します。
explicitShape->set_UseBackgroundFill(false);
explicitShape->get_FillFormat()->set_FillType(FillType::Solid);
explicitShape->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Orange());

presentation->Save(u"background_fill.pptx", SaveFormat::Pptx);
presentation->Dispose();

結果（左から右へ）：background fill、no fill、explicit fill。マゼンタの帯は左と右の矩形で隠れますが、中央の矩形を通しては見えます。

背景塗りつぶし、無塗りつぶし、オレンジの明示的塗りつぶしがマゼンタの帯の上にある様子

The same behavior applies to a background defined directly on the slide or inherited from a layout. The shape uses the slide’s resolved background; the example leaves both the slide and layout backgrounds undefined so the master supplies it.

透明度の設定

For a solid fill, the color’s alpha component controls opacity: 0 is fully transparent and 255 is fully opaque. This example uses an alpha value of 128 for a yellow rectangle, making it approximately 50% transparent so the rectangle underneath remains visible. The color is assigned through IFillFormat::get_SolidFillColor.

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

const int alpha = 128;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto solidShape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);

auto transparentShape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 80, 80, 150, 75);
transparentShape->get_FillFormat()->set_FillType(FillType::Solid);
transparentShape->get_FillFormat()->get_SolidFillColor()->set_Color(Color::FromArgb(alpha, Color::get_Yellow()));

presentation->Save(u"shape_transparency.pptx", SaveFormat::Pptx);
presentation->Dispose();

結果：

透明な図形

図形の回転

Use IShape::set_Rotation to rotate a shape in the slide plane. The angle is measured in degrees; this example rotates a rectangle 5 degrees clockwise and saves the presentation.

#include <DOM/IAutoShape.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
shape->set_Rotation(5);

presentation->Save(u"shape_rotation.pptx", SaveFormat::Pptx);
presentation->Dispose();

結果：

図形の回転

3D ベベル効果の追加

Use IShape::get_ThreeDFormat to give a shape depth and beveled edges. This example creates a green ellipse with an orange outline, sets IThreeDFormat::set_Depth to 4 points, and applies a circular top bevel with a width and height of 6 points through IThreeDFormat::get_BevelTop. A front‑facing orthographic camera and three‑point lighting make the bevel visible.

#include <DOM/BevelPresetType.h>
#include <DOM/CameraPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILightRig.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IShapeBevel.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Ellipse, 50, 50, 100, 100);
shape->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Green());
shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Orange());
shape->get_LineFormat()->set_Width(2.0);
shape->get_ThreeDFormat()->set_Depth(4);
shape->get_ThreeDFormat()->get_BevelTop()->set_BevelType(BevelPresetType::Circle);
shape->get_ThreeDFormat()->get_BevelTop()->set_Height(6);
shape->get_ThreeDFormat()->get_BevelTop()->set_Width(6);
shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::ThreePt);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);

presentation->Save(u"3D_bevel_effect.pptx", SaveFormat::Pptx);
presentation->Dispose();

結果：

3D ベベル効果

3D 回転効果の追加

A shape’s 3D view is controlled by its camera settings. This example uses ICamera::SetRotation with latitude, longitude, and revolution angles of 40, 35, and 20 degrees, respectively. It selects an isometric camera through ICamera::set_CameraType and balanced lighting through ILightRig::set_LightType, then saves the formatted rectangle.

#include <DOM/CameraPresetType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/ILightRig.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto autoShape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 150, 75);
autoShape->get_TextFrame()->set_Text(u"Hello, Aspose!");
autoShape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::IsometricLeftUp);
autoShape->get_ThreeDFormat()->get_Camera()->SetRotation(40, 35, 20);
autoShape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Balanced);

presentation->Save(u"3D_rotation_effect.pptx", SaveFormat::Pptx);
presentation->Dispose();

結果：

3D 回転効果

図形の白黒描画の制御

The IShape::set_BlackWhiteMode method specifies how an individual shape is rendered when a presentation is viewed or processed in black‑and‑white mode. It does not enable black‑and‑white display by itself, and it does not change the shape’s fill, line, or other formatting in normal color mode.

Use a value from the BlackWhiteMode enumeration to select the desired behavior. For example, Automatic lets the rendering application choose the conversion, Gray and LightGray use gray coloring, BlackWhite uses only black and white, Black and White force a single color, Color preserves normal coloring, and Hidden omits the shape in black‑and‑white mode. NotDefined means that no shape‑level mode is assigned.

This example creates an orange rectangle and sets IShape::set_BlackWhiteMode to gray. The saved shape retains its orange fill for normal color display and requests gray coloring from applications that honor black‑and‑white display settings:

#include <DOM/BlackWhiteMode.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 200, 100);
shape->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Orange());
shape->set_BlackWhiteMode(BlackWhiteMode::Gray);

presentation->Save(u"shape_black_white_mode.pptx", SaveFormat::Pptx);
presentation->Dispose();

In normal color mode, the rectangle retains its orange fill. In a black‑and‑white display workflow, it uses gray coloring because its mode is set to Gray. This lets you preserve a full‑color slide while defining a distinct appearance for printing, previewing, or other workflows that honor the presentation’s black‑and‑white display settings.

書式設定のリセット

Use ISlide::Reset to restore the position, size, and formatting of slide placeholders from their corresponding layout placeholders. This example requires an existing presentation with layout‑linked placeholders and resets every slide before saving. Shapes without corresponding layout placeholders are not reset.

#include <DOM/ISlide.h>
#include <DOM/ISlideCollection.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/enumerator_adapter.h>
#include <system/smart_ptr.h>

using namespace Aspose::Slides;
using namespace System;
using namespace Aspose::Slides::Export;

auto presentation = MakeObject<Presentation>(u"sample.pptx");
for (auto&& slide : IterateOver(presentation->get_Slides()))
{
    slide->Reset();
}

presentation->Save(u"reset_formatting.pptx", SaveFormat::Pptx);
presentation->Dispose();

FAQ

Does shape formatting affect the final presentation file size?

色や線のスタイル、効果設定は、埋め込み画像やメディアに比べてデータ量がほとんど増えません。画像塗りつぶしは、使用する画像がプレゼンテーションに保存されるため、ファイルサイズが増加する可能性があります。

How can I detect shapes on a slide that share identical formatting so I can group them?

各図形の主要な書式プロパティ（塗りつぶし、線、効果設定）を比較します。すべての対応する値が一致すれば、同一スタイルとみなし、論理的にグループ化して後のスタイル管理を簡素化できます。

Can I save a set of custom shape styles to a separate file for reuse in other presentations?

はい。目的のスタイルを持つサンプル図形をテンプレートスライドまたは .POTX テンプレートファイルに保存します。新しいプレゼンテーションを作成するときにテンプレートを開き、必要なスタイル付き図形をクローンして目的の場所に再適用します。

シェイプタイプ C++ を使用したプレゼンテーションへの図形エフェクトの適用
