Python via Java에서 프레젠테이션 줌 관리

소개

PowerPoint 줌을 사용하면 슬라이드 쇼 중에 특정 슬라이드와 섹션 사이를 탐색할 수 있습니다. Aspose.Slides for Python via Java를 사용하면 슬라이드, 섹션 및 요약 줌을 만들고 미리 보기, 테두리 및 전환 효과를 사용자 지정할 수 있습니다.

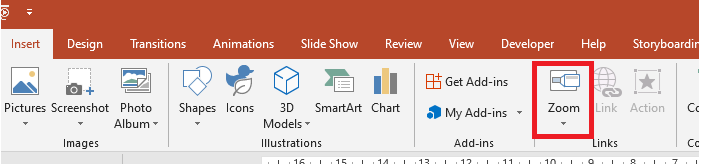

PowerPoint zoom overview

  • 전체 프레젠테이션을 한 슬라이드에 요약하려면 요약 줌을 사용하세요.
  • 선택한 슬라이드만 표시하려면 슬라이드 줌을 사용하세요.
  • 단일 섹션만 표시하려면 섹션 줌을 사용하세요.

슬라이드 줌

슬라이드 줌은 프레젠테이션을 보다 역동적으로 만들고, 흐름을 방해하지 않으면서 원하는 순서대로 슬라이드를 자유롭게 탐색할 수 있게 해줍니다. 슬라이드 줌은 섹션이 많지 않은 짧은 프레젠테이션에 적합하지만, 다양한 프레젠테이션 시나리오에서도 사용할 수 있습니다.

슬라이드 줌을 사용하면 하나의 개요 슬라이드에서 관련 정보를 탐색할 수 있습니다.

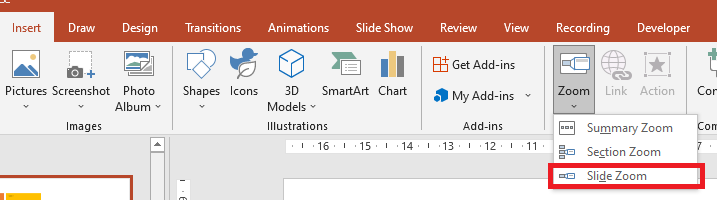

Selecting slides for a slide zoom

슬라이드 줌 개체에 대해서는 Aspose.Slides가 ZoomImageType 열거형, ZoomFrame 클래스 및 ShapeCollection 클래스의 메서드를 제공합니다.

줌 프레임 만들기

ShapeCollection.addZoomFrame을 사용하여 개요 슬라이드에 개별 슬라이드에 대한 링크를 배치합니다. 이 예제는 배경이 서로 다른 두 개의 대상 슬라이드를 만들고, 각각의 미리 보기를 첫 번째 슬라이드에 추가한 뒤 프레젠테이션을 PPTX 형식으로 저장합니다. 프레임 위치와 크기는 포인트 단위로 지정됩니다.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BackgroundType, FillType, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    overview_slide = presentation.getSlides().get_Item(0)

    second_slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    third_slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())

    second_slide.getBackground().setType(BackgroundType.OwnBackground)
    second_slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    second_slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color.CYAN)

    text_box = second_slide.getShapes().addAutoShape(ShapeType.Rectangle, 100, 200, 500, 200)
    text_box.getTextFrame().setText("Second Slide")

    third_slide.getBackground().setType(BackgroundType.OwnBackground)
    third_slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    third_slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(189, 183, 107))

    text_box = third_slide.getShapes().addAutoShape(ShapeType.Rectangle, 100, 200, 500, 200)
    text_box.getTextFrame().setText("Third Slide")

    overview_slide.getShapes().addZoomFrame(20, 20, 250, 200, second_slide)
    overview_slide.getShapes().addZoomFrame(200, 250, 250, 200, third_slide)

    presentation.save("presentation.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

사용자 정의 이미지로 줌 프레임 만들기

ShapeCollection.addZoomFrame에 사용자 정의 이미지를 전달하면 대상 슬라이드의 기본 미리 보기를 교체할 수 있습니다. 이 예제는 로컬 이미지를 필요로 하며, 이를 Images.fromFile으로 로드한 뒤 ImageCollection.addImage을 통해 프레젠테이션에 추가합니다. 결과 프레임은 해당 이미지를 표시하면서 두 번째 슬라이드에 링크됩니다.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BackgroundType, FillType, Images, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    overview_slide = presentation.getSlides().get_Item(0)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().setType(BackgroundType.OwnBackground)
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color.CYAN)

    text_box = slide.getShapes().addAutoShape(ShapeType.Rectangle, 100, 200, 500, 200)
    text_box.getTextFrame().setText("Second Slide")

    image = Images.fromFile("image.png")
    try:
        preview_image = presentation.getImages().addImage(image)
    finally:
        image.dispose()

    overview_slide.getShapes().addZoomFrame(20, 20, 300, 200, slide, preview_image)

    presentation.save("presentation.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

줌 프레임 서식 지정

이 예제는 두 개의 슬라이드 줌 프레임을 사용자 지정합니다. 첫 번째 프레임에는 ZoomObject.setZoomImage로 로컬 이미지를 지정하고, 두 번째 프레임에는 Shape.getLineFormat을 사용해 5포인트의 점선-점선 핑크 테두리를 적용합니다. ZoomObject.setShowBackground에 False를 전달하면 두 번째 프레임의 배경이 숨겨집니다. 사용자 정의 미리 보기를 위해 로컬 이미지가 필요하며, 두 프레임 모두 저장된 PPTX에서 슬라이드 대상은 유지됩니다.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BackgroundType, FillType, Images, LineDashStyle, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    overview_slide = presentation.getSlides().get_Item(0)

    second_slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    third_slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())

    second_slide.getBackground().setType(BackgroundType.OwnBackground)
    second_slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    second_slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color.CYAN)

    text_box = second_slide.getShapes().addAutoShape(ShapeType.Rectangle, 100, 200, 500, 200)
    text_box.getTextFrame().setText("Second Slide")

    third_slide.getBackground().setType(BackgroundType.OwnBackground)
    third_slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    third_slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(189, 183, 107))

    text_box = third_slide.getShapes().addAutoShape(ShapeType.Rectangle, 100, 200, 500, 200)
    text_box.getTextFrame().setText("Third Slide")

    first_zoom_frame = overview_slide.getShapes().addZoomFrame(20, 20, 250, 200, second_slide)
    second_zoom_frame = overview_slide.getShapes().addZoomFrame(200, 250, 250, 200, third_slide)

    image = Images.fromFile("image.png")
    try:
        preview_image = presentation.getImages().addImage(image)
    finally:
        image.dispose()

    first_zoom_frame.setZoomImage(preview_image)

    second_zoom_frame.getLineFormat().setWidth(5)
    second_zoom_frame.getLineFormat().getFillFormat().setFillType(FillType.Solid)
    second_zoom_frame.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color(255, 105, 180))
    second_zoom_frame.getLineFormat().setDashStyle(LineDashStyle.DashDot)

    second_zoom_frame.setShowBackground(False)

    presentation.save("presentation.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

섹션 줌

섹션 줌은 프레젠테이션의 섹션에 연결됩니다. 이를 사용해 주제를 다시 방문하거나 프레젠테이션의 다른 부분이 어떻게 연결되는지 보여줄 수 있습니다.

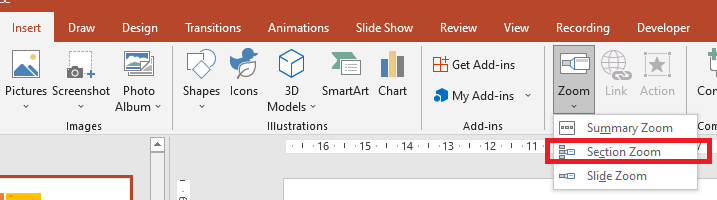

Selecting a section for a section zoom

섹션 줌 개체에 대해서는 Aspose.Slides가 SectionZoomFrame 클래스 및 ShapeCollection 클래스의 메서드를 제공합니다.

섹션 줌 프레임 만들기

SectionCollection.addSection으로 섹션을 만든 뒤, 반환된 섹션을 ShapeCollection.addSectionZoomFrame에 전달합니다. 이 예제는 첫 번째 슬라이드에 섹션 줌을 배치하고, 색상이 있는 슬라이드로 시작하는 섹션에 연결합니다. 프레임 위치와 크기는 포인트 단위로 지정되며 프레젠테이션은 PPTX 형식으로 저장됩니다.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BackgroundType, FillType, Presentation, SaveFormat
from java.awt import Color

presentation = Presentation()
try:
    overview_slide = presentation.getSlides().get_Item(0)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(154, 205, 50))
    slide.getBackground().setType(BackgroundType.OwnBackground)

    section = presentation.getSections().addSection("Section 1", slide)
    section_zoom_frame = overview_slide.getShapes().addSectionZoomFrame(20, 20, 300, 200, section)

    presentation.save("presentation.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

사용자 정의 이미지로 섹션 줌 프레임 만들기

ShapeCollection.addSectionZoomFrame의 이미지 오버로드를 사용하면 대상 섹션을 변경하지 않고 사용자 정의 미리 보기를 표시할 수 있습니다. 이 예제는 로컬 이미지를 필요로 하며, 이를 Images.fromFile으로 로드하고 ImageCollection.addImage을 통해 추가합니다. 저장된 프레젠테이션에는 첫 번째 슬라이드에 새로 만든 섹션에 연결된 섹션 줌이 포함됩니다.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BackgroundType, FillType, Images, Presentation, SaveFormat
from java.awt import Color

presentation = Presentation()
try:
    overview_slide = presentation.getSlides().get_Item(0)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(154, 205, 50))
    slide.getBackground().setType(BackgroundType.OwnBackground)

    image = Images.fromFile("image.png")
    try:
        preview_image = presentation.getImages().addImage(image)
    finally:
        image.dispose()

    section = presentation.getSections().addSection("Section 1", slide)
    section_zoom_frame = overview_slide.getShapes().addSectionZoomFrame(20, 20, 300, 200, section, preview_image)

    presentation.save("presentation.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

섹션 줌의 대상 섹션 변경

SectionZoomFrame.setTargetSection을 사용하면 기존 섹션 줌을 다시 만들지 않고도 대상 섹션을 재지정할 수 있습니다. 같은 프레젠테이션의 Presentation.getSections 컬렉션에서 채워진 섹션을 선택합니다. 빈 섹션을 할당하면 현재 대상이 변경되지 않으므로, 할당하기 전에 Section.getSlidesListOfSection을 확인하십시오. 섹션에 대한 자세한 내용은 슬라이드 섹션 관리를 참조하십시오.

다음 예제는 프레젠테이션 파일을 로드하는데, 여기에는 여러 개의 채워진 섹션, Section navigation이라는 기존 섹션 줌, 그리고 고유 이름 Results를 가진 섹션이 포함되어 있어야 합니다. 모든 슬라이드를 검색해 줌을 찾고, 섹션이 재정렬될 때 변할 수 있는 컬렉션 인덱스 대신 이름으로 대상 섹션을 찾습니다. 이름이 고유하지 않은 경우 Section.getSectionId를 사용해 목적지를 식별하십시오.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import Presentation, SaveFormat, SectionZoomFrame

presentation = Presentation("section-zoom.pptx")
try:
    zoom = None
    for slide in presentation.getSlides():
        for shape in slide.getShapes():
            if isinstance(shape, SectionZoomFrame) and shape.getName() == "Section navigation":
                zoom = shape
                break
        if zoom is not None:
            break

    target_section = None
    for section in presentation.getSections():
        if section.getName() == "Results":
            target_section = section
            break

    if zoom is None or target_section is None:
        print("The section zoom or destination section was not found.")
    elif target_section.getSlidesListOfSection().size() == 0:
        print("The destination section is empty.")
    else:
        current_section = zoom.getTargetSection()
        current_name = "" if current_section is None else current_section.getName()
        print("Current section: " + str(current_name))
        zoom.setTargetSection(target_section)
        presentation.save("section-zoom-updated.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

섹션 줌 프레임 서식 지정

이 예제는 섹션 줌을 100×75 포인트로 이동 및 크기 조정하고, ZoomObject.setZoomImage로 로컬 이미지를 할당하며, 2.5포인트 점선-점선 갈색 테두리를 적용합니다. ZoomObject.setReturnToParent을 활성화해 섹션 후 원본 슬라이드로 돌아가게 하고, ZoomObject.setShowBackground을 비활성화하며, ZoomObject.setTransitionDuration을 1.5초로 설정합니다. 사용자 정의 미리 보기를 위해 로컬 이미지가 필요합니다.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BackgroundType, FillType, Images, LineDashStyle, Presentation, SaveFormat
from java.awt import Color

presentation = Presentation()
try:
    overview_slide = presentation.getSlides().get_Item(0)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(154, 205, 50))
    slide.getBackground().setType(BackgroundType.OwnBackground)

    section = presentation.getSections().addSection("Section 1", slide)

    section_zoom_frame = overview_slide.getShapes().addSectionZoomFrame(20, 20, 300, 200, section)
    section_zoom_frame.setX(100)
    section_zoom_frame.setY(300)
    section_zoom_frame.setWidth(100)
    section_zoom_frame.setHeight(75)

    image = Images.fromFile("image.png")
    try:
        preview_image = presentation.getImages().addImage(image)
    finally:
        image.dispose()

    section_zoom_frame.setZoomImage(preview_image)

    section_zoom_frame.setReturnToParent(True)
    section_zoom_frame.setShowBackground(False)

    section_zoom_frame.getLineFormat().getFillFormat().setFillType(FillType.Solid)
    section_zoom_frame.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color(165, 42, 42))
    section_zoom_frame.getLineFormat().setDashStyle(LineDashStyle.DashDot)
    section_zoom_frame.getLineFormat().setWidth(2.5)

    section_zoom_frame.setTransitionDuration(1.5)

    presentation.save("presentation.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

요약 줌

요약 줌은 프레젠테이션 섹션에 대한 개요를 제공합니다. 슬라이드 쇼 중에 이를 사용해 섹션으로 이동하거나, 앞으로 건너뛰거나, 순서를 따르지 않고 다시 주제로 돌아갈 수 있습니다.

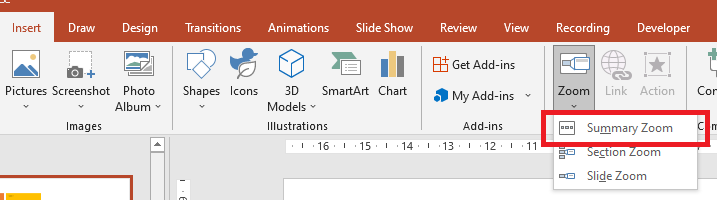

Selecting sections for a summary zoom

요약 줌 개체에 대해서는 Aspose.Slides가 SummaryZoomFrame, SummaryZoomSection, SummaryZoomSectionCollection 클래스와 ShapeCollection 클래스의 메서드를 제공합니다.

요약 줌 만들기

ShapeCollection.addSummaryZoomFrame을 사용해 프레젠테이션 섹션의 개요를 생성합니다. 이 예제는 배경이 서로 다른 네 개의 섹션을 만든 뒤 첫 번째 슬라이드에 요약 줌을 추가합니다. 프레임 위치와 크기는 포인트 단위로 지정되며 결과 개요는 PPTX 프레젠테이션으로 저장됩니다.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BackgroundType, FillType, Presentation, SaveFormat
from java.awt import Color

presentation = Presentation()
try:
    overview_slide = presentation.getSlides().get_Item(0)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(165, 42, 42))
    slide.getBackground().setType(BackgroundType.OwnBackground)

    presentation.getSections().addSection("Section 1", slide)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color.CYAN)
    slide.getBackground().setType(BackgroundType.OwnBackground)

    presentation.getSections().addSection("Section 2", slide)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(127, 255, 0))
    slide.getBackground().setType(BackgroundType.OwnBackground)

    presentation.getSections().addSection("Section 3", slide)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(0, 100, 0))
    slide.getBackground().setType(BackgroundType.OwnBackground)

    presentation.getSections().addSection("Section 4", slide)

    summary_zoom_frame = overview_slide.getShapes().addSummaryZoomFrame(150, 50, 300, 200)

    presentation.save("presentation.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

요약 줌 섹션 추가 및 제거

요약 줌은 SummaryZoomFrame.getSummaryZoomCollection에서 SummaryZoomSection 객체를 저장합니다. 이 예제는 두 개의 섹션 개요를 만든 뒤 SummaryZoomSectionCollection.addSummaryZoomSection으로 세 번째 섹션을 추가하고, SummaryZoomSectionCollection.removeSummaryZoomSection으로 첫 번째 섹션 항목을 제거합니다. 항목을 제거해도 프레젠테이션 섹션과 슬라이드는 그대로 유지됩니다.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BackgroundType, FillType, Presentation, SaveFormat
from java.awt import Color

presentation = Presentation()
try:
    overview_slide = presentation.getSlides().get_Item(0)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(165, 42, 42))
    slide.getBackground().setType(BackgroundType.OwnBackground)

    first_section = presentation.getSections().addSection("Section 1", slide)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color.CYAN)
    slide.getBackground().setType(BackgroundType.OwnBackground)

    presentation.getSections().addSection("Section 2", slide)

    summary_zoom_frame = overview_slide.getShapes().addSummaryZoomFrame(150, 5, 300, 200)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(127, 255, 0))
    slide.getBackground().setType(BackgroundType.OwnBackground)

    third_section = presentation.getSections().addSection("Section 3", slide)

    summary_zoom_frame.getSummaryZoomCollection().addSummaryZoomSection(third_section)

    summary_zoom_frame.getSummaryZoomCollection().removeSummaryZoomSection(first_section)

    presentation.save("presentation.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

요약 줌 섹션 서식 지정

이 예제는 SummaryZoomFrame.getSummaryZoomCollection에서 첫 번째 항목(인덱스 0)을 서식 지정합니다. ZoomObject.setZoomImage를 위해 로컬 이미지가 필요하고, 1.5포인트 점선-점선 검은색 테두리를 적용하며, ZoomObject.setTransitionDuration을 1.5초로 설정합니다. ZoomObject.setReturnToParent에 False를 전달하면 이 항목에 대해 요약 슬라이드로 자동 반환이 비활성화됩니다.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BackgroundType, FillType, Images, LineDashStyle, Presentation, SaveFormat
from java.awt import Color

presentation = Presentation()
try:
    overview_slide = presentation.getSlides().get_Item(0)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color(165, 42, 42))
    slide.getBackground().setType(BackgroundType.OwnBackground)

    presentation.getSections().addSection("Section 1", slide)

    slide = presentation.getSlides().addEmptySlide(overview_slide.getLayoutSlide())
    slide.getBackground().getFillFormat().setFillType(FillType.Solid)
    slide.getBackground().getFillFormat().getSolidFillColor().setColor(Color.CYAN)
    slide.getBackground().setType(BackgroundType.OwnBackground)

    presentation.getSections().addSection("Section 2", slide)

    summary_zoom_frame = overview_slide.getShapes().addSummaryZoomFrame(150, 50, 300, 200)

    summary_section = summary_zoom_frame.getSummaryZoomCollection().get_Item(0)

    image = Images.fromFile("image.png")
    try:
        preview_image = presentation.getImages().addImage(image)
    finally:
        image.dispose()

    summary_section.setZoomImage(preview_image)
    summary_section.setReturnToParent(False)

    summary_section.getLineFormat().getFillFormat().setFillType(FillType.Solid)
    summary_section.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK)
    summary_section.getLineFormat().setDashStyle(LineDashStyle.DashDot)
    summary_section.getLineFormat().setWidth(1.5)

    summary_section.setTransitionDuration(1.5)

    presentation.save("presentation.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

FAQ

대상 슬라이드를 표시한 후 ‘부모’ 슬라이드로 돌아가는 것을 제어할 수 있나요?

예. ZoomObject.setReturnToParent에 True를 전달하면 대상 콘텐츠가 표시된 후 원본 슬라이드로 돌아갑니다.

Zoom 전환의 ‘속도’ 또는 지속 시간을 조정할 수 있나요?

예. ZoomObject.setTransitionDuration을 사용해 전환 지속 시간을 초 단위로 제어할 수 있습니다.

프레젠테이션에 포함할 수 있는 Zoom 객체 수에 제한이 있나요?

문서화된 명확한 API 제한은 없습니다. 실질적인 제한은 프레젠테이션 복잡도와 뷰어 성능에 따라 달라집니다. 많은 Zoom 프레임을 추가할 수 있지만 파일 크기와 렌더링 시간을 고려하세요.
