Manage Chart Workbooks in Presentations in .NET

What this page is about

Discover Aspose.Slides for .NET: effortlessly manage chart workbooks in PowerPoint and OpenDocument formats to streamline your presentation data.

Overview

This article explains how to work with chart workbooks in Aspose.Slides. It shows how to read and write chart data through workbook streams, use workbook cells as chart data labels, access worksheet collections, and specify the data source type for chart values.

It also covers working with external workbooks as chart data sources. The examples demonstrate how to create and assign an external workbook, retrieve the path of an external workbook linked to a chart, and edit chart data when the workbook is available.

For workbook cells that represent missing data, see Control the Display of Empty Cells for the difference between an empty cell and zero, and a line-chart comparison of the available display modes.

Include Data from Hidden Rows and Columns

Use IChart.PlotVisibleCellsOnly to control whether a chart plots data from hidden worksheet rows and columns. Set it to true to plot only visible cells, or false to include both visible and hidden cells. This setting controls chart plotting; it does not hide or unhide worksheet rows or columns.

The sample presentation contains a column chart as the first shape on its first slide. The embedded worksheet, Sheet1, contains the following source range, A1:C4. Row 3 and column C are hidden, but their cells still contain values.

Worksheet row	A: Month	B: Retail	C: Wholesale (hidden column)
2	January	10	30
3 (hidden row)	February	40	60
4	March	20	50

Access source cells through IChartData.ChartDataWorkbook and read IChartDataCell.IsHidden to inspect their hidden status. This property is read-only. In this file, B2 is visible, B3 belongs to the hidden row, and C2 belongs to the hidden column; the example prints False, True, and True, respectively.

For this example, refresh the chart data after changing the plotting setting: retain the embedded workbook with ReadWorkbookStream and reload it with WriteWorkbookStream. When including all cells, also use SetRange to restore the complete range, including the hidden February category. Simply changing the flag is insufficient to refresh this sample’s cached chart data and category labels.

using System;
using Aspose.Slides;
using Aspose.Slides.Charts;
using Aspose.Slides.Export;

using var presentation = new Presentation("hidden-source-data.pptx");
var slide = presentation.Slides[0];

if (slide.Shapes[0] is IChart chart)
{
    var workbook = chart.ChartData.ChartDataWorkbook;
    Console.WriteLine($"B2 hidden: {workbook.GetCell(0, "B2").IsHidden}");
    Console.WriteLine($"B3 hidden: {workbook.GetCell(0, "B3").IsHidden}");
    Console.WriteLine($"C2 hidden: {workbook.GetCell(0, "C2").IsHidden}");

    using var workbookStream = chart.ChartData.ReadWorkbookStream();
    foreach (var visibleOnly in new[] { true, false })
    {
        chart.PlotVisibleCellsOnly = visibleOnly;

        // Refresh the chart data from the embedded workbook.
        workbookStream.Position = 0;
        chart.ChartData.WriteWorkbookStream(workbookStream);
        if (!visibleOnly)
        {
            // Restore the complete source range, including hidden categories.
            chart.ChartData.SetRange("Sheet1!$A$1:$C$4");
        }

        presentation.Save($"hidden_cells_{visibleOnly}.pptx", SaveFormat.Pptx);
    }
}
else
{
    Console.WriteLine("The first shape is not a chart.");
}

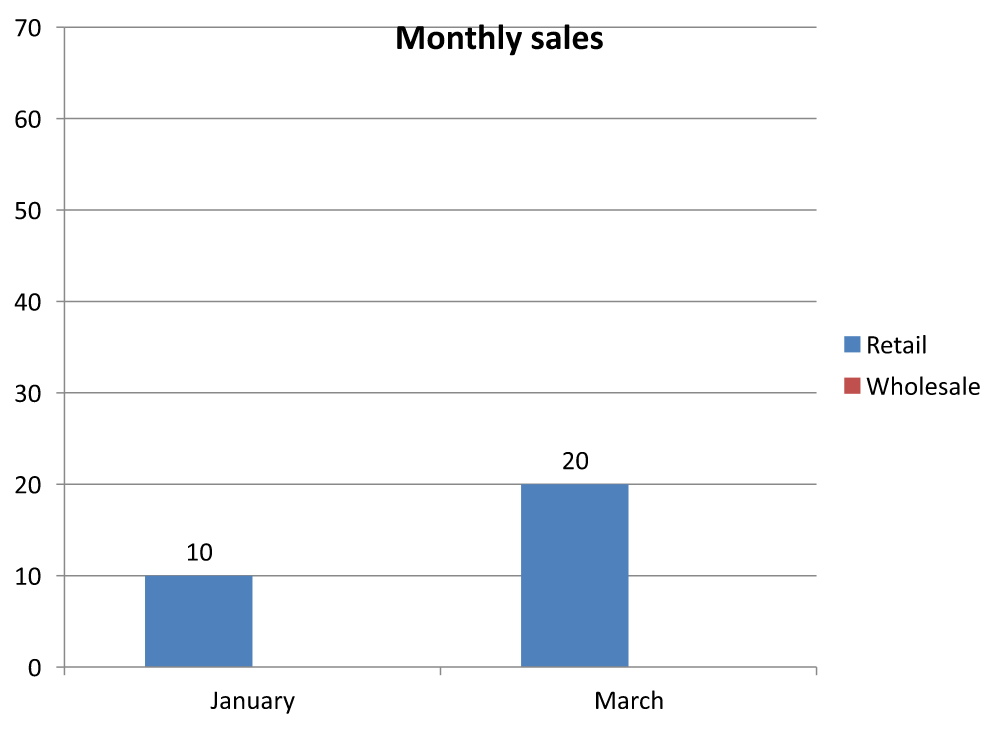

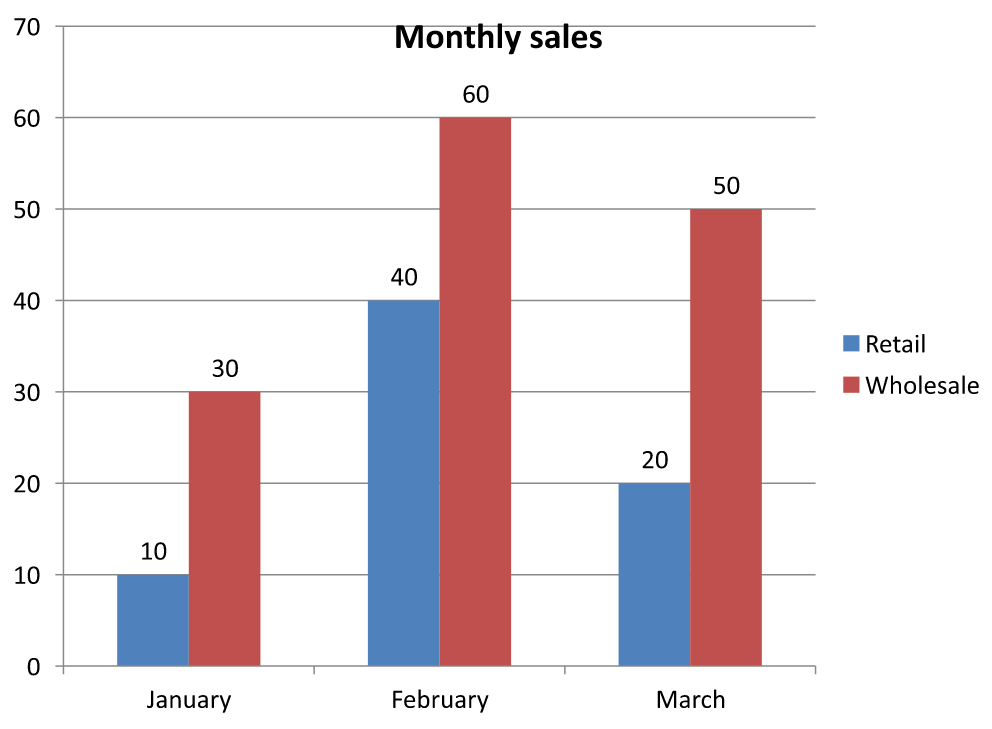

The example saves two versions of the presentation: one with only the visible Retail values (10 and 20), and another with all six values. The images below were rendered from the saved presentations after reopening them; both files preserve their assigned plotting setting. Row 3 and column C remain hidden in both embedded workbooks.

Only visible cells (`true`)	All cells (`false`)

A hidden cell containing a value is different from an empty cell. IChart.DisplayBlanksAs controls how missing values are displayed; it does not include or exclude hidden source data. See Control the Display of Empty Cells for an example.

Retrieve a Chart’s Data Range

Before updating workbook data in an existing presentation, inspect the source ranges to identify which worksheet cells each chart uses. The IChartData.GetRange method returns the current data range as a worksheet-qualified formula, such as Sheet1!$A$1:$D$5. Here, Sheet1 is the worksheet name, ! separates it from the cell range, and $A$1:$D$5 identifies cells A1 through D5, inclusive. The dollar signs indicate absolute row and column references.

The method reads the current range without changing the chart or its workbook. If the chart does not use a workbook as its data source, it throws InvalidOperationException. For more information, see the ChartData API Reference.

This example opens a presentation and checks the shapes directly on each slide for charts. It prints each chart’s name and source range. If a chart does not use a workbook, it prints a message and continues to the next chart.

using System;
using Aspose.Slides;
using Aspose.Slides.Charts;

using var presentation = new Presentation("presentation.pptx");

foreach (var slide in presentation.Slides)
{
    foreach (var shape in slide.Shapes)
    {
        if (shape is IChart chart)
        {
            try
            {
                var range = chart.ChartData.GetRange();
                Console.WriteLine($"{chart.Name}: {range}");
            }
            catch (InvalidOperationException)
            {
                Console.WriteLine($"{chart.Name}: The chart does not use a workbook as its data source.");
            }
        }
    }
}

Read and Write Chart Data from a Workbook

Aspose.Slides for .NET provides the ReadWorkbookStream and WriteWorkbookStream methods that allow you to read and write chart data workbooks (containing chart data edited with Aspose.Cells). Note that the chart data has to be organized in the same manner or must have a structure similar to the source.

This example uses a presentation with a chart as the first shape on its first slide. It reads the embedded workbook into a stream, clears the existing series and categories, and writes the same workbook back. The changes remain in memory; the example does not save the presentation.

using System;
using Aspose.Slides;
using Aspose.Slides.Charts;

using var presentation = new Presentation("chart.pptx");
var slide = presentation.Slides[0];

var shapeCount = slide.Shapes.Count;
if (shapeCount > 0 && slide.Shapes[0] is IChart chart)
{
    var chartData = chart.ChartData;
    using var workbookStream = chartData.ReadWorkbookStream();

    chartData.Series.Clear();
    chartData.Categories.Clear();

    workbookStream.Position = 0;
    chartData.WriteWorkbookStream(workbookStream);
}
else
{
    Console.WriteLine("The first shape is not a chart.");
}

Validate Chart Layout After Workbook Modification

When you replace an embedded workbook with a modified one, the chart retains its original series and category collections. This mismatch can cause IChart.ValidateChartLayout to fail with an index-out-of-range error. Clear the existing series and categories before writing the updated workbook back to the chart. This example uses a chart that is the first shape on the first slide. The comment marks where workbook editing would occur; the runnable example writes the original workbook back and validates the layout in memory.

using System;
using Aspose.Slides;
using Aspose.Slides.Charts;

using var presentation = new Presentation("chart.pptx");
var slide = presentation.Slides[0];

var shapeCount = slide.Shapes.Count;
if (shapeCount > 0 && slide.Shapes[0] is IChart chart)
{
    var chartData = chart.ChartData;
    using var workbookStream = chartData.ReadWorkbookStream();

    // Modify the workbook stream here, for example, using Aspose.Cells.

    chartData.Series.Clear();
    chartData.Categories.Clear();

    workbookStream.Position = 0;
    chartData.WriteWorkbookStream(workbookStream);
    chart.ValidateChartLayout();
}
else
{
    Console.WriteLine("The first shape is not a chart.");
}

Clearing the collections removes stale data references before the workbook is written back. Rebuild any required series and category mappings for the updated workbook before using the chart.

Set a Workbook Cell as a Chart Data Label

You can use text from workbook cells as chart data labels.

This example adds a bubble chart with default data to the first slide of an existing presentation. It uses cells A10:A12 on worksheet 0 for the first three labels in the first series, enables labels from cells, and saves the updated presentation.

using Aspose.Slides;
using Aspose.Slides.Charts;
using Aspose.Slides.Export;

using var presentation = new Presentation("chart2.pptx");
var slide = presentation.Slides[0];

var chart = slide.Shapes.AddChart(ChartType.Bubble, 50, 50, 600, 400, true);
var series = chart.ChartData.Series[0];
var workbook = chart.ChartData.ChartDataWorkbook;

series.Labels.DefaultDataLabelFormat.ShowLabelValueFromCell = true;
series.Labels[0].ValueFromCell = workbook.GetCell(0, "A10", "Label 0 cell value");
series.Labels[1].ValueFromCell = workbook.GetCell(0, "A11", "Label 1 cell value");
series.Labels[2].ValueFromCell = workbook.GetCell(0, "A12", "Label 2 cell value");

presentation.Save("resultchart.pptx", SaveFormat.Pptx);

Manage Worksheets

The IChartDataWorkbook.Worksheets property provides access to the worksheets in a chart workbook. This example creates a pie chart with default data and prints each worksheet name to the console.

using System;
using Aspose.Slides;
using Aspose.Slides.Charts;

using var presentation = new Presentation();
var slide = presentation.Slides[0];

var chart = slide.Shapes.AddChart(ChartType.Pie, 50, 50, 400, 500);
var workbook = chart.ChartData.ChartDataWorkbook;

for (var i = 0; i < workbook.Worksheets.Count; i++)
{
    Console.WriteLine(workbook.Worksheets[i].Name);
}

Specify the Data Source Type

This example creates a 3D column chart with default data and sets two series names using different data sources. The first name uses a string literal; the second uses cell C1 on worksheet 0. The DataSourceType enumeration selects the source for each name. The example saves the presentation with the updated series names.

using Aspose.Slides;
using Aspose.Slides.Charts;
using Aspose.Slides.Export;

using var presentation = new Presentation();
var slide = presentation.Slides[0];

var chart = slide.Shapes.AddChart(ChartType.Column3D, 50, 50, 600, 400, true);
var literalName = chart.ChartData.Series[0].Name;

literalName.DataSourceType = DataSourceType.StringLiterals;
literalName.Data = "LiteralString";

var cellName = chart.ChartData.Series[1].Name;
var nameCell = chart.ChartData.ChartDataWorkbook.GetCell(0, "C1", "NewCell");
cellName.DataSourceType = DataSourceType.Worksheet;
cellName.Data = nameCell;

presentation.Save("pres.pptx", SaveFormat.Pptx);

Detect Unsupported Embedded Workbook Formats

Aspose.Slides does not support the Excel binary workbook (.xlsb) format that can be embedded in some charts. You can use the EmbeddedWorkbookType property on IChartData together with the WorkbookType enumeration to detect unsupported formats and skip those charts. This example inspects the shapes on the first slide of an existing presentation, skips non-chart shapes, and prints a diagnostic message for each chart with an embedded .xlsb workbook.

using System;
using Aspose.Slides;
using Aspose.Slides.Charts;

using var presentation = new Presentation("sample.pptx");
var slide = presentation.Slides[0];

foreach (var shape in slide.Shapes)
{
    if (shape is not IChart chart)
    {
        continue;
    }

    var chartData = chart.ChartData;
    var isInternalWorkbook = chartData.DataSourceType == ChartDataSourceType.InternalWorkbook;
    var isBinaryMacro = chartData.EmbeddedWorkbookType == WorkbookType.WorkbookBinaryMacro;

    if (isInternalWorkbook && isBinaryMacro)
    {
        Console.WriteLine("Skipping a chart with an unsupported .xlsb workbook.");
        continue;
    }

    // Read or modify supported chart workbook data here.
}

External Workbook

Aspose.Slides supports using external workbooks as a data source for charts.

Create an External Workbook

Use ReadWorkbookStream and SetExternalWorkbook to export an embedded chart workbook to a file and link the chart to that external workbook.

This example creates a pie chart with default data and exports its workbook. It closes the output stream before assigning the external workbook as the chart data source, then saves the linked presentation.

using System.IO;
using Aspose.Slides;
using Aspose.Slides.Charts;
using Aspose.Slides.Export;

using var presentation = new Presentation();
var slide = presentation.Slides[0];

var chart = slide.Shapes.AddChart(ChartType.Pie, 50, 50, 400, 600);
var workbookPath = Path.GetFullPath("externalWorkbook1.xlsx");

using (var workbookStream = chart.ChartData.ReadWorkbookStream())
using (var fileStream = File.Create(workbookPath))
{
    workbookStream.CopyTo(fileStream);
}

chart.ChartData.SetExternalWorkbook(workbookPath);
presentation.Save("externalWorkbook.pptx", SaveFormat.Pptx);

Set an External Workbook

Using the SetExternalWorkbook method, you can assign an external workbook to a chart as its data source. This method can also be used to update a path to the external workbook (if the latter has been moved).

While you cannot edit the data in workbooks stored in remote locations or resources, you can still use such workbooks as an external data source. If the relative path for an external workbook is provided, it gets converted to a full path automatically.

This example uses an external workbook whose worksheet named Sheet1 contains a series name in B1, category names in A2:A4, and numeric values in B2:B4. The example creates a pie chart, links the workbook, and uses SetRange to map A1:B4 to one series and three categories. It saves the presentation with the linked chart.

using System.IO;
using Aspose.Slides;
using Aspose.Slides.Charts;
using Aspose.Slides.Export;

using var presentation = new Presentation();
var slide = presentation.Slides[0];

var chart = slide.Shapes.AddChart(ChartType.Pie, 50, 50, 400, 600, true);
var chartData = chart.ChartData;
var workbookPath = Path.GetFullPath("externalWorkbook.xlsx");

chartData.SetExternalWorkbook(workbookPath);
chartData.SetRange("Sheet1!$A$1:$B$4");

presentation.Save("Presentation_with_externalWorkbook.pptx", SaveFormat.Pptx);

The updateChartData parameter of SetExternalWorkbook controls whether the workbook is loaded.

When updateChartData is false, only the workbook path is updated. The chart data is not loaded or updated from the target workbook, so the workbook can be unavailable.
When updateChartData is true, the chart data is updated from the target workbook.

The following example assigns a placeholder URL with updateChartData set to false. It retains the pie chart’s default data and saves the presentation without loading the unavailable workbook.

using Aspose.Slides;
using Aspose.Slides.Charts;
using Aspose.Slides.Export;

using var presentation = new Presentation();
var slide = presentation.Slides[0];

var chart = slide.Shapes.AddChart(ChartType.Pie, 50, 50, 400, 600, true);

chart.ChartData.SetExternalWorkbook("https://example.com/unavailable-workbook.xlsx", false);
presentation.Save("SetExternalWorkbookWithUpdateChartData.pptx", SaveFormat.Pptx);

Get the External Data Source Workbook Path of a Chart

To identify the workbook linked to a chart, check whether the chart uses an external data source and retrieve its workbook path.

This example inspects the first shape on the first slide of a presentation with a linked external workbook. If it is a chart linked to an external workbook, the example prints ExternalWorkbookPath to the console. It then saves a copy of the presentation.

using System;
using Aspose.Slides;
using Aspose.Slides.Charts;
using Aspose.Slides.Export;

using var presentation = new Presentation("externalWorkbook.pptx");
var slide = presentation.Slides[0];

var shapeCount = slide.Shapes.Count;
if (shapeCount > 0 && slide.Shapes[0] is IChart chart)
{
    var chartData = chart.ChartData;
    if (chartData.DataSourceType == ChartDataSourceType.ExternalWorkbook)
    {
        Console.WriteLine(chartData.ExternalWorkbookPath);
    }
    else
    {
        Console.WriteLine("The chart does not use an external workbook.");
    }
}
else
{
    Console.WriteLine("The first shape is not a chart.");
}

presentation.Save("Result.pptx", SaveFormat.Pptx);

Edit Chart Data

You can edit the data in external workbooks the same way you make changes to the contents of internal workbooks. When an external workbook cannot be loaded, an exception is thrown.

This example uses a chart that is the first shape on the first slide and is linked to an accessible external workbook. It sets the cell-backed value of the first data point in the first series to 100 and saves the updated presentation. Editing cell values can update the linked external XLSX file, so use a copy if you need to preserve the original workbook.

using System;
using Aspose.Slides;
using Aspose.Slides.Charts;
using Aspose.Slides.Export;

using var presentation = new Presentation("presentation.pptx");
var slide = presentation.Slides[0];

var shapeCount = slide.Shapes.Count;
if (shapeCount > 0 && slide.Shapes[0] is IChart chart)
{
    var series = chart.ChartData.Series;
    if (series.Count > 0 && series[0].DataPoints.Count > 0)
    {
        var valueCell = series[0].DataPoints[0].Value.AsCell;
        if (valueCell != null)
        {
            valueCell.Value = 100;
            presentation.Save("presentation_out.pptx", SaveFormat.Pptx);
        }
        else
        {
            Console.WriteLine("The first data point is not linked to a workbook cell.");
        }
    }
    else
    {
        Console.WriteLine("The chart has no data points to edit.");
    }
}
else
{
    Console.WriteLine("The first shape is not a chart.");
}

Recover a Workbook from the Chart Cache

If a chart uses an external workbook that is missing or unavailable, Aspose.Slides can reconstruct the chart workbook from the data cached in the presentation. Create LoadOptions, configure its SpreadsheetOptions, and set ISpreadsheetOptions.RecoverWorkbookFromChartCache to true before opening the presentation.

The following C# example recovers workbook data for a chart that is the first shape on the first slide and references an unavailable external workbook. It accesses the recovered data through IChart.ChartData and IChartData.ChartDataWorkbook:

using System;
using Aspose.Slides;
using Aspose.Slides.Charts;

var spreadsheetOptions = new SpreadsheetOptions
{
    RecoverWorkbookFromChartCache = true
};
var loadOptions = new LoadOptions
{
    SpreadsheetOptions = spreadsheetOptions
};

using var presentation = new Presentation("presentation.pptx", loadOptions);
var slide = presentation.Slides[0];

var shapeCount = slide.Shapes.Count;
if (shapeCount > 0 && slide.Shapes[0] is IChart chart)
{
    var recoveredWorkbook = chart.ChartData.ChartDataWorkbook;

    // Read or modify the recovered workbook data here.
}
else
{
    Console.WriteLine("The first shape is not a chart.");
}

If the external workbook is unavailable and recovery is disabled, Aspose.Slides throws an InvalidOperationException. Enable recovery only when using the cached chart data is an acceptable fallback, because the cache may not contain changes made to the external workbook after the presentation was last updated.

FAQ

Can I determine whether a specific chart is linked to an external or an embedded workbook?

Yes. A chart has a data source type and a path to an external workbook; if the source is an external workbook, you can read the full path to make sure an external file is being used.

Are relative paths to external workbooks supported, and how are they stored?

Yes. If you specify a relative path, it is automatically converted to an absolute path. The presentation stores the absolute path in the PPTX file, so moving the workbook may require updating the link.

Can I use workbooks located on network resources/shares?

Yes, such workbooks can be used as an external data source. However, editing remote workbooks directly from Aspose.Slides is not supported—they can only be used as a source.

Does Aspose.Slides overwrite the external XLSX when saving the presentation?

The presentation stores a link to the external file. Editing cell-backed chart data can also update the linked local XLSX file. Use a copy of the workbook if the original must remain unchanged.

What should I do if the external file is password-protected?

Aspose.Slides does not accept a password when linking. A common approach is to remove protection in advance or prepare a decrypted copy (for example, using Aspose.Cells) and link to that copy.

Can multiple charts reference the same external workbook?

Yes. Each chart stores its own link. If they all point to the same file, updating that file will be reflected in each chart the next time the data is loaded.

Format Presentation Charts in .NET Animate PowerPoint Charts in .NET
