C++를 사용한 프레젠테이션에서 차트 축 맞춤 설정
개요
이 문서에서는 Aspose.Slides for C++를 사용하여 차트 축을 사용자 지정하는 방법을 설명합니다. 계산된 축 값, 차트 행 및 열 전환, 축 표시 여부, 범주 레이블 및 눈금 간격, 날짜 범주 및 서식, 제목 회전, 축 위치 지정 및 표시 단위를 다룹니다.
차트에서 수직 축의 최대값 가져오기
Create a 프레젠테이션 and add an area chart with default data. Call ValidateChartLayout before reading calculated axis values so that the chart layout is up to date.
Read get_ActualMaxValue and get_ActualMinValue for the axis limits, and get_ActualMajorUnit and get_ActualMinorUnit for the tick intervals. get_ActualMajorUnitScale and get_ActualMinorUnitScale provide time-unit scales, which are relevant to date axes. The example stores these values in local variables and saves the chart.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Area, 100, 100, 500, 350);
chart->ValidateChartLayout();
auto maxValue = chart->get_Axes()->get_VerticalAxis()->get_ActualMaxValue();
auto minValue = chart->get_Axes()->get_VerticalAxis()->get_ActualMinValue();
auto majorUnit = chart->get_Axes()->get_VerticalAxis()->get_ActualMajorUnit();
auto minorUnit = chart->get_Axes()->get_VerticalAxis()->get_ActualMinorUnit();
auto majorUnitScale = chart->get_Axes()->get_VerticalAxis()->get_ActualMajorUnitScale();
auto minorUnitScale = chart->get_Axes()->get_VerticalAxis()->get_ActualMinorUnitScale();
presentation->Save(u"AxisValues_out.pptx", SaveFormat::Pptx);
축 간 데이터 교환
Use SwitchRowColumn to exchange the roles of series and categories in chart data. Each former category becomes a series, and each former series becomes a category. This changes how the data is grouped; it does not exchange the horizontal and vertical axes. The example uses SetRange to bind the default data to Sheet1!A1:D5, including the header row and category column, before switching rows and columns. It saves a chart with four series and three categories.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
#include <DOM/Chart/IChartData.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 100, 100, 400, 300);
chart->get_ChartData()->SetRange(u"Sheet1!A1:D5");
chart->get_ChartData()->SwitchRowColumn();
presentation->Save(u"SwitchChartRowColumns_out.pptx", SaveFormat::Pptx);
선 차트에서 수직 축 비활성화
Use set_IsVisible with false on the vertical axis to hide it. The example creates a line chart with default data and saves it with the vertical axis hidden.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Line, 100, 100, 400, 300);
chart->get_Axes()->get_VerticalAxis()->set_IsVisible(false);
presentation->Save(u"HiddenVerticalAxis.pptx", SaveFormat::Pptx);
선 차트에서 수평 축 비활성화
Use set_IsVisible with false on the horizontal axis to hide it. The example creates a line chart with default data and saves it with the horizontal axis hidden.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Line, 100, 100, 400, 300);
chart->get_Axes()->get_HorizontalAxis()->set_IsVisible(false);
presentation->Save(u"HiddenHorizontalAxis.pptx", SaveFormat::Pptx);
범주 축 변경
Use set_CategoryAxisType to choose a date or text category axis. This example requires ExistingChart.pptx, with a chart as the first shape on the first slide and category cells containing numeric Excel date values. It changes the horizontal axis to a date axis. Calling set_IsAutomaticMajorUnit with false, set_MajorUnit with 1, and set_MajorUnitScale with months places major ticks at one-month intervals.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
#include <DOM/Chart/CategoryAxisType.h>
#include <DOM/Chart/TimeUnitType.h>
#include <system/object_ext.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>(u"ExistingChart.pptx");
auto slide = presentation->get_Slide(0);
auto chart = System::ExplicitCast<IChart>(slide->get_Shape(0));
chart->get_Axes()->get_HorizontalAxis()->set_CategoryAxisType(CategoryAxisType::Date);
chart->get_Axes()->get_HorizontalAxis()->set_IsAutomaticMajorUnit(false);
chart->get_Axes()->get_HorizontalAxis()->set_MajorUnit(1);
chart->get_Axes()->get_HorizontalAxis()->set_MajorUnitScale(TimeUnitType::Months);
presentation->Save(u"ChangeChartCategoryAxis_out.pptx", SaveFormat::Pptx);
범주 축 레이블 간격 제어
When a chart has many categories, reduce the number of visible axis labels without removing categories or data points. Use set_IsAutomaticTickLabelSpacing with false, then use set_TickLabelSpacing with the desired category interval. For text categories in their normal order, counting starts at the first category:
| 간격 | 예시에서 표시된 레이블 |
|---|---|
1 |
범주 1, 범주 2, 범주 3, … 범주 24 |
2 |
범주 1, 범주 3, 범주 5, … 범주 23 |
3 |
범주 1, 범주 4, 범주 7, … 범주 22 |
An interval of 3 displays every third label, leaving two labels hidden between displayed labels. It does not remove the corresponding columns. Automatic spacing chooses an interval based on the available space; it does not necessarily display every label.
Tick marks have separate controls. Use set_IsAutomaticTickMarksSpacing with false and use set_TickMarksSpacing to set their interval. For example, 1 keeps a tick mark at every category interval while labels appear only every third category. Use set_MajorTickMark with a visible style so you can see the result. Setting either automatic-spacing property back to true lets the chart choose that interval again.
The following self-contained example creates 24 categories and one series, then saves three slides in CategoryAxisIntervals.pptx: automatic spacing, manual label spacing with independent tick marks, and restored automatic spacing. The two copies retain the original chart data. No input presentation is required. Horizontal label text makes the difference in density easy to see.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/CategoryAxisType.h>
#include <DOM/Chart/TickMarkType.h>
#include <DOM/Chart/IChartTextFormat.h>
#include <DOM/Chart/IChartTextBlockFormat.h>
#include <DOM/Chart/IChartPortionFormat.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <system/object_ext.h>
#include <DOM/ISlideCollection.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 30, 40, 660, 320);
chart->set_HasLegend(false);
chart->get_ChartData()->get_Categories()->Clear();
chart->get_ChartData()->get_Series()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
workbook->Clear(0);
auto series = chart->get_ChartData()->get_Series()->Add(ChartType::ClusteredColumn);
for (auto i = 0; i < 24; i++)
{
auto categoryName = System::String::Format(u"Category {0}", i + 1);
auto categoryCell = workbook->GetCell(0, i + 1, 0, System::ObjectExt::Box(categoryName));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
auto valueCell = workbook->GetCell(0, i + 1, 1, System::ObjectExt::Box(10 + i % 6 * 5));
series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}
auto axis = chart->get_Axes()->get_HorizontalAxis();
axis->set_CategoryAxisType(CategoryAxisType::Text);
axis->get_TextFormat()->get_TextBlockFormat()->set_RotationAngle(0);
axis->get_TextFormat()->get_PortionFormat()->set_FontHeight(12);
axis->set_MajorTickMark(TickMarkType::Outside);
axis->set_IsAutomaticTickLabelSpacing(true);
axis->set_IsAutomaticTickMarksSpacing(true);
// 슬라이드 2: 모든 세 번째 레이블을 표시하되, 각 카테고리마다 눈금 표시를 유지합니다.
auto manualSlide = presentation->get_Slides()->AddClone(slide);
auto manualChart = System::ExplicitCast<IChart>(manualSlide->get_Shape(0));
auto manualAxis = manualChart->get_Axes()->get_HorizontalAxis();
manualAxis->set_IsAutomaticTickLabelSpacing(false);
manualAxis->set_TickLabelSpacing(3);
manualAxis->set_IsAutomaticTickMarksSpacing(false);
manualAxis->set_TickMarksSpacing(1);
// 슬라이드 3: 차트가 두 간격을 다시 선택하도록 합니다.
auto restoredSlide = presentation->get_Slides()->AddClone(manualSlide);
auto restoredChart = System::ExplicitCast<IChart>(restoredSlide->get_Shape(0));
restoredChart->get_Axes()->get_HorizontalAxis()->set_IsAutomaticTickLabelSpacing(true);
restoredChart->get_Axes()->get_HorizontalAxis()->set_IsAutomaticTickMarksSpacing(true);
presentation->Save(u"CategoryAxisIntervals.pptx", SaveFormat::Pptx);

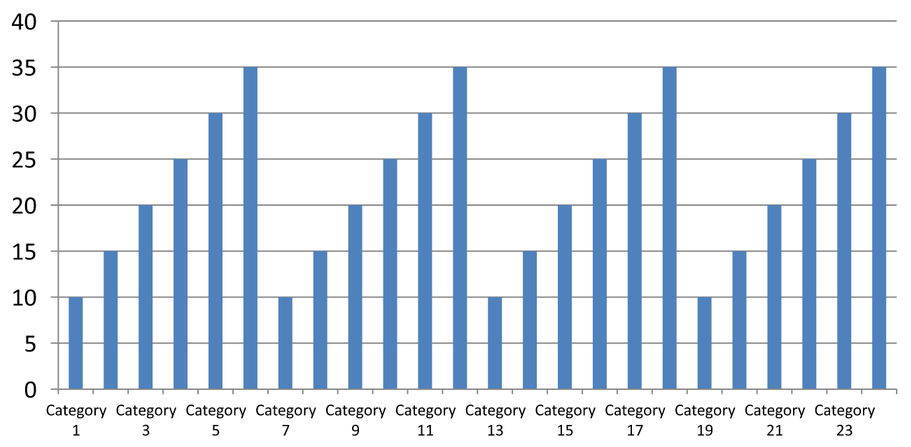

자동 간격 (슬라이드 1): In this rendering, every second category label is displayed and wraps onto two lines. The automatic result can vary with chart size, fonts, and the renderer.

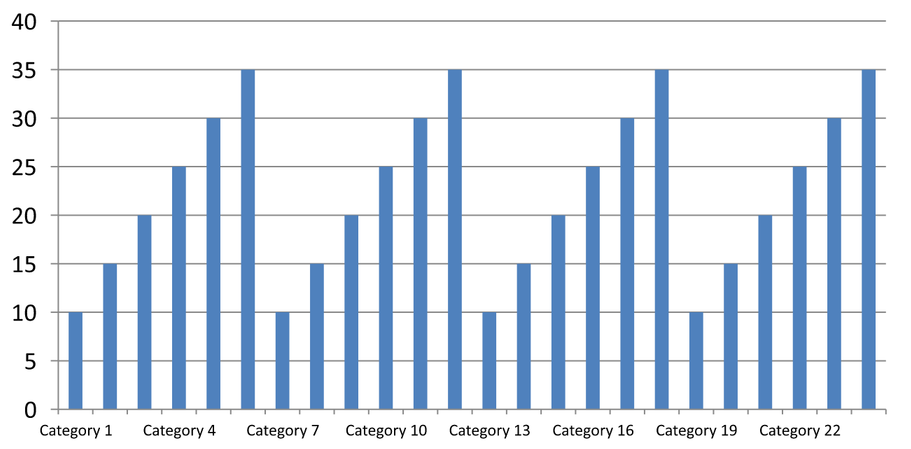

수동 간격 (슬라이드 2): Every third label is displayed on one line, while tick marks remain at every category interval. All 24 columns, including those without labels, remain visible with the same values. Slide 3 restores the automatic appearance shown above.
올바른 축 및 간격 선택

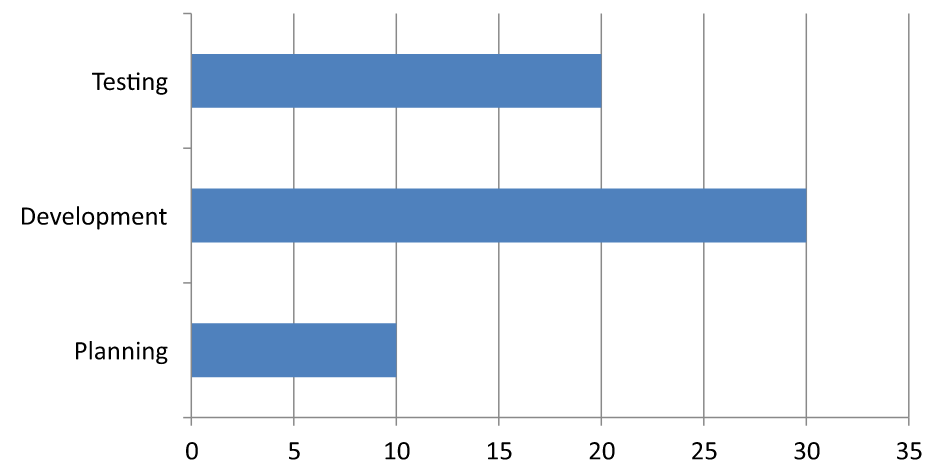

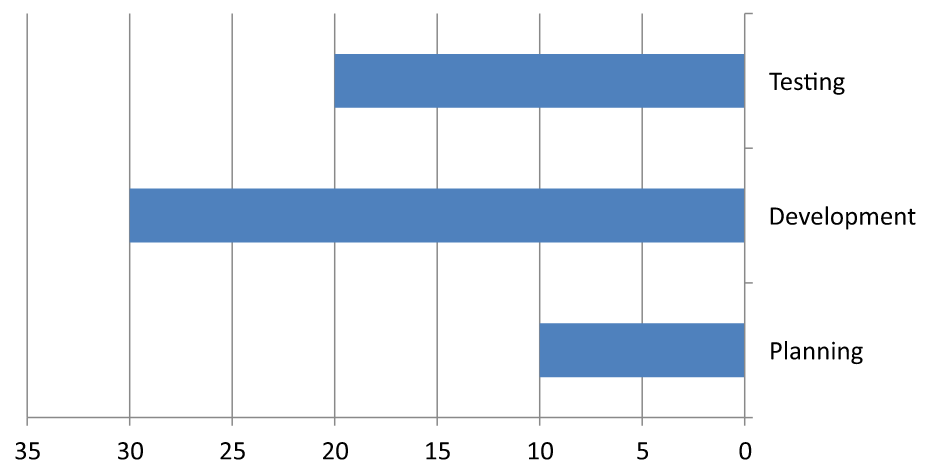

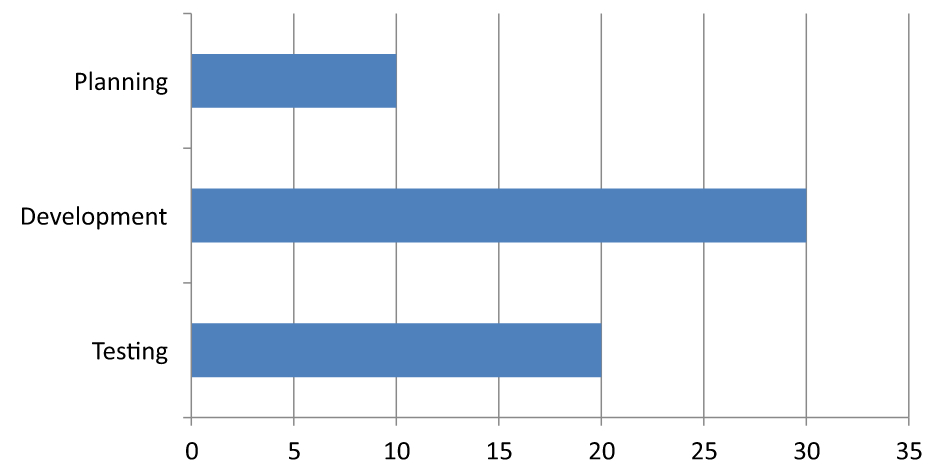

Use this category-count interval for a text category axis, such as the category axis of a column, line, area, or bar chart. In a column chart, it is the horizontal axis. In a horizontal bar chart, the category axis is vertical, so apply these settings to get_VerticalAxis. Tick-mark spacing also applies to a series axis in charts that have one.

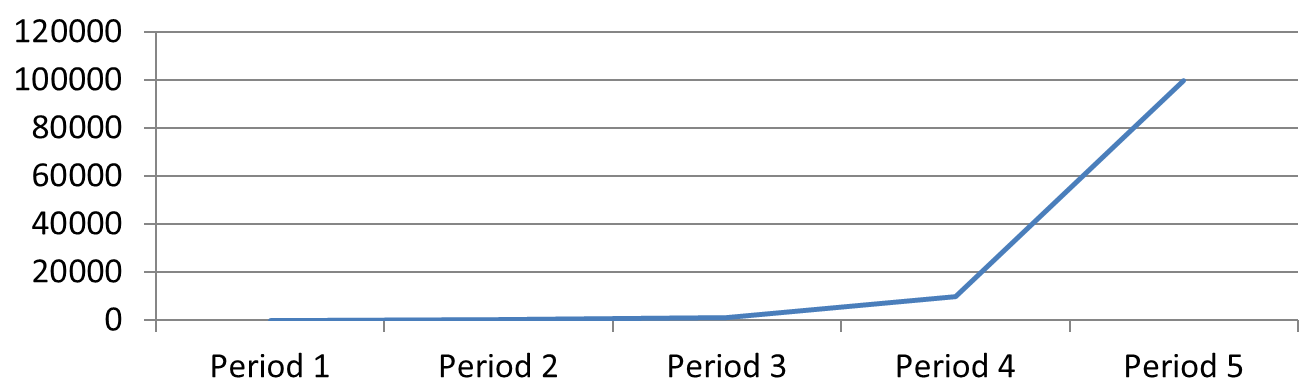

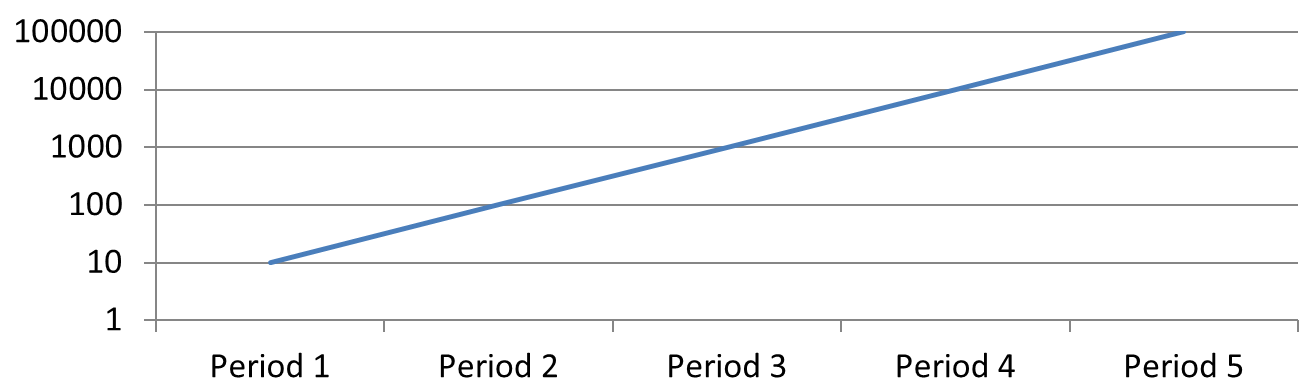

Do not use category label spacing to set the numeric scale of a value axis. On a value axis, set_MajorUnit specifies a difference in values: for example, a major unit of 10 produces ticks at 0, 10, 20, and so on when the axis starts at zero. A category label interval of 3 instead counts category positions, regardless of their data values. Scatter and bubble charts use value axes rather than a text category axis. For a date axis, use time-based major units and scales as described in Change a Category Axis.
범주 축 값의 날짜 형식 설정
The example replaces the default chart data with four annual values. Dates are stored as OLE Automation serial numbers in the first worksheet (index 0). Use set_CategoryAxisType to select a date axis, disable source-linked formatting with set_IsNumberFormatLinkedToSource, and assign yyyy with set_NumberFormat so the category labels display four-digit years independently of the cell formatting.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/CategoryAxisType.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <system/object_ext.h>
#include <system/date_time.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Line, 50, 50, 450, 300);
chart->get_ChartData()->get_Categories()->Clear();
chart->get_ChartData()->get_Series()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
workbook->Clear(0);
auto series = chart->get_ChartData()->get_Series()->Add(ChartType::Line);
for (auto i = 0; i < 4; i++)
{
auto date = System::DateTime(2015 + i, 1, 1);
auto categoryCell = workbook->GetCell(0, i + 1, 0, System::ObjectExt::Box(date.ToOADate()));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
auto valueCell = workbook->GetCell(0, i + 1, 1, System::ObjectExt::Box(i + 1));
series->get_DataPoints()->AddDataPointForLineSeries(valueCell);
}
chart->get_Axes()->get_HorizontalAxis()->set_CategoryAxisType(CategoryAxisType::Date);
chart->get_Axes()->get_HorizontalAxis()->set_IsNumberFormatLinkedToSource(false);
chart->get_Axes()->get_HorizontalAxis()->set_NumberFormat(u"yyyy");
presentation->Save(u"DateAxisFormat.pptx", SaveFormat::Pptx);
차트 축 제목 회전 각도 설정
Enable the vertical-axis title with set_HasTitle, provide title text, and use set_RotationAngle to rotate the title. The angle is measured in degrees; this example saves a column chart with its value-axis title rotated by 90 degrees.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
#include <DOM/Chart/IChartTextFormat.h>
#include <DOM/Chart/IChartTextBlockFormat.h>
#include <DOM/Chart/IChartTitle.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 50, 50, 450, 300);
chart->get_Axes()->get_VerticalAxis()->set_HasTitle(true);
chart->get_Axes()->get_VerticalAxis()->get_Title()->AddTextFrameForOverriding(u"Value");
chart->get_Axes()->get_VerticalAxis()->get_Title()->get_TextFormat()->get_TextBlockFormat()->set_RotationAngle(90);
presentation->Save(u"RotatedAxisTitle.pptx", SaveFormat::Pptx);
범주 또는 값 축에서 축 위치 설정
Use set_AxisBetweenCategories to control whether the value axis crosses the category axis between categories or at category tick marks. This property applies to category axes. The example sets it to true on the horizontal category axis of a column chart and saves the result.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 50, 50, 450, 300);
chart->get_Axes()->get_HorizontalAxis()->set_AxisBetweenCategories(true);
presentation->Save(u"AxisBetweenCategories.pptx", SaveFormat::Pptx);
차트 값 축에 표시 단위 설정
Use set_DisplayUnit to scale the labels on a value axis without changing the underlying data. With DisplayUnitType set to Millions, a value of 60,000,000 is displayed as 60. The example creates a column chart and applies the millions display unit to its vertical axis.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
#include <DOM/Chart/DisplayUnitType.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 50, 50, 450, 300);
chart->get_Axes()->get_VerticalAxis()->set_DisplayUnit(DisplayUnitType::Millions);
presentation->Save(u"Result.pptx", SaveFormat::Pptx);
자주 묻는 질문
축이 서로 교차하는 값(축 교차)을 어떻게 설정합니까?
Use set_CrossType to select the crossing behavior. To specify a numeric crossing value, use set_CrossAt. These settings let you move the axis crossing to a suitable baseline.
축에 대해 눈금 레이블 위치를 어떻게 지정합니까?
Use set_TickLabelPosition with a value from TickLabelPositionType: Low, High, NextTo, or None. To control the tick marks themselves, use set_MajorTickMark or set_MinorTickMark; these are separate from label positioning.
