Chart Data Label

Data labels on a chart show details about the chart data series or individual data points. They allow readers to quickly identify data series and they also make charts easier to understand.

Set Precision of Data in Chart Data Labels

This Python code shows you how to set the data precision in a chart data label:

import aspose.slides.charts as charts
import aspose.slides as slides

with slides.Presentation() as pres:
	chart = pres.slides[0].shapes.add_chart(charts.ChartType.LINE, 50, 50, 450, 300)
	chart.has_data_table = True
	chart.chart_data.series[0].number_format_of_values = "#,##0.00"

	pres.save("PrecisionOfDatalabels_out.pptx", slides.export.SaveFormat.PPTX)

Display Percentage as Labels

Aspose.Slides for Python via .NET allows you to set percentage labels on displayed charts. This Python code demonstrates the operation:

import aspose.slides.charts as charts
import aspose.slides as slides

# Creates an instance of the Presentation class
with slides.Presentation() as presentation:
    slide = presentation.slides[0]
    chart = slide.shapes.add_chart(charts.ChartType.STACKED_COLUMN, 20, 20, 400, 400)
    series = chart.chart_data.series[0]
    total_for_Cat = [0]*len(chart.chart_data.categories)
    for k in range(len(chart.chart_data.categories)):
        cat = chart.chart_data.categories[k]
        for i in range(len(chart.chart_data.series)):
            total_for_Cat[k] += chart.chart_data.series[i].data_points[k].value.data

dataPontPercent = 0

for x in range(len(chart.chart_data.series)):
    series = chart.chart_data.series[x]
    series.labels.default_data_label_format.show_legend_key = False

    for j in range(len(series.data_points)):
        lbl = series.data_points[j].label
        dataPontPercent = series.data_points[j].value.data / total_for_Cat[j] * 100

        port = slides.Portion()
        port.text = "{0:.2f} %".format(dataPontPercent)
        port.portion_format.font_height = 8
        lbl.text_frame_for_overriding.text = ""
        para = lbl.text_frame_for_overriding.paragraphs[0]
        para.portions.add(port)

        lbl.data_label_format.show_series_name = False
        lbl.data_label_format.show_percentage = False
        lbl.data_label_format.show_legend_key = False
        lbl.data_label_format.show_category_name = False
        lbl.data_label_format.show_bubble_size = False

# Saves the presentation containing the chart
presentation.save("DisplayPercentageAsLabels_out.pptx", slides.export.SaveFormat.PPTX)

Set Percentage Sign with Chart Data Labels

This Python code shows you to set the percentage sign for a chart data label:

import aspose.slides.charts as charts
import aspose.slides as slides
import aspose.pydrawing as draw

# Creates an instance of Presentation class
with slides.Presentation() as presentation:

    # Gets a slide's reference through its index
    slide = presentation.slides[0]

    # Creates the PercentsStackedColumn chart on a slide
    chart = slide.shapes.add_chart(charts.ChartType.PERCENTS_STACKED_COLUMN, 20, 20, 500, 400)

    # Sets the NumberFormatLinkedToSource to false
    chart.axes.vertical_axis.is_number_format_linked_to_source = False
    chart.axes.vertical_axis.number_format = "0.00%"

    chart.chart_data.series.clear()
    defaultWorksheetIndex = 0

    # Gets the chart data worksheet
    workbook = chart.chart_data.chart_data_workbook

    # Adds new series
    series = chart.chart_data.series.add(workbook.get_cell(defaultWorksheetIndex, 0, 1, "Reds"), chart.type)
    series.data_points.add_data_point_for_bar_series(workbook.get_cell(defaultWorksheetIndex, 1, 1, 0.30))
    series.data_points.add_data_point_for_bar_series(workbook.get_cell(defaultWorksheetIndex, 2, 1, 0.50))
    series.data_points.add_data_point_for_bar_series(workbook.get_cell(defaultWorksheetIndex, 3, 1, 0.80))
    series.data_points.add_data_point_for_bar_series(workbook.get_cell(defaultWorksheetIndex, 4, 1, 0.65))

    # Sets the fill color of series
    series.format.fill.fill_type = slides.FillType.SOLID
    series.format.fill.solid_fill_color.color = draw.Color.red

    # Sets the LabelFormat properties
    series.labels.default_data_label_format.show_value = True
    series.labels.default_data_label_format.is_number_format_linked_to_source = False
    series.labels.default_data_label_format.number_format = "0.0%"
    series.labels.default_data_label_format.text_format.portion_format.font_height = 10
    series.labels.default_data_label_format.text_format.portion_format.fill_format.fill_type = slides.FillType.SOLID
    series.labels.default_data_label_format.text_format.portion_format.fill_format.solid_fill_color.color = draw.Color.white
    series.labels.default_data_label_format.show_value = True

    # Adds new series
    series2 = chart.chart_data.series.add(workbook.get_cell(defaultWorksheetIndex, 0, 2, "Blues"), chart.type)
    series2.data_points.add_data_point_for_bar_series(workbook.get_cell(defaultWorksheetIndex, 1, 2, 0.70))
    series2.data_points.add_data_point_for_bar_series(workbook.get_cell(defaultWorksheetIndex, 2, 2, 0.50))
    series2.data_points.add_data_point_for_bar_series(workbook.get_cell(defaultWorksheetIndex, 3, 2, 0.20))
    series2.data_points.add_data_point_for_bar_series(workbook.get_cell(defaultWorksheetIndex, 4, 2, 0.35))

    # Sets Fill type and color
    series2.format.fill.fill_type = slides.FillType.SOLID
    series2.format.fill.solid_fill_color.color = draw.Color.blue
    series2.labels.default_data_label_format.show_value = True
    series2.labels.default_data_label_format.is_number_format_linked_to_source = False
    series2.labels.default_data_label_format.number_format = "0.0%"
    series2.labels.default_data_label_format.text_format.portion_format.font_height = 10
    series2.labels.default_data_label_format.text_format.portion_format.fill_format.fill_type = slides.FillType.SOLID
    series2.labels.default_data_label_format.text_format.portion_format.fill_format.solid_fill_color.color = draw.Color.white

    # Writes the presentation to disk
    presentation.save("SetDatalabelsPercentageSign_out.pptx", slides.export.SaveFormat.PPTX)

Set Label Distance From Axis

This Python code shows you how to set the label distance from a category axis when you are dealing with a chart plotted from axes:

import aspose.slides.charts as charts
import aspose.slides as slides

	# Creates an instance of the Presentation class
with slides.Presentation() as presentation:
    # Gets a slide's reference
    sld = presentation.slides[0]

    # Creates a chart on the slide
    ch = sld.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 20, 20, 500, 300)

    # Sets the label distance from an axis
    ch.axes.horizontal_axis.label_offset = 500

    # Writes the presentation to disk
    presentation.save("SetCategoryAxisLabelDistance_out.pptx", slides.export.SaveFormat.PPTX)

Adjust Label Location

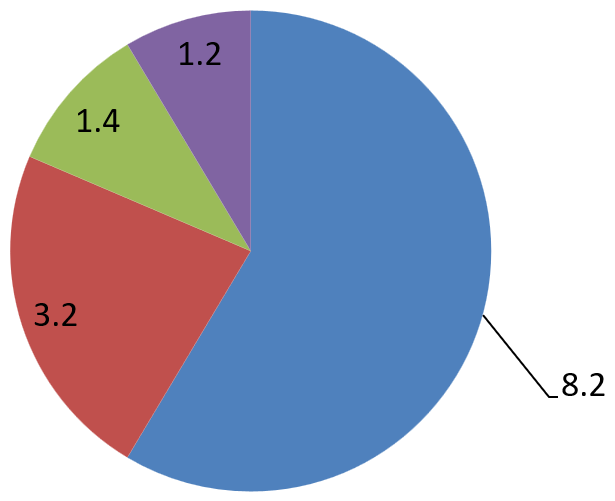

When you create a chart that does not rely on any axis such as a pie chart, the chart’s data labels may end up being too close to its edge. In such a case, you have to adjust the location of the data label so that the leader lines get displayed clearly.

This Python code shows you how to adjust the label location on a pie chart:

import aspose.slides as slides


with slides.Presentation() as pres:
    chart = pres.slides[0].shapes.add_chart(slides.charts.ChartType.PIE, 50, 50, 200, 200)

    series = chart.chart_data.series
    label = series[0].labels[0]

    label.data_label_format.show_value = True
    label.data_label_format.position = slides.charts.LegendDataLabelPosition.OUTSIDE_END
    label.x = 0.71
    label.y = 0.04

    pres.save("pres.pptx", slides.export.SaveFormat.PPTX)

pie-chart-adjusted-label
