Customize Chart Axes in Presentations with Python
Overview
This article explains how to customize chart axes with Aspose.Slides for Python via .NET. It covers calculated axis values, switching chart rows and columns, axis visibility, category label and tick-mark intervals, date categories and formatting, title rotation, axis positioning, display units, and logarithmic scaling.
Get the Max Values on the Vertical Axis on Charts
Create a Presentation and add an area chart with default data. Call validate_chart_layout before reading calculated axis values so that the chart layout is up to date.
Read actual_max_value and actual_min_value for the axis limits, and actual_major_unit and actual_minor_unit for the tick intervals. actual_major_unit_scale and actual_minor_unit_scale provide time-unit scales, which are relevant to date axes. The example stores these values in local variables and saves the chart.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.AREA, 100, 100, 500, 350)
chart.validate_chart_layout()
max_value = chart.axes.vertical_axis.actual_max_value
min_value = chart.axes.vertical_axis.actual_min_value
major_unit = chart.axes.vertical_axis.actual_major_unit
minor_unit = chart.axes.vertical_axis.actual_minor_unit
major_unit_scale = chart.axes.vertical_axis.actual_major_unit_scale
minor_unit_scale = chart.axes.vertical_axis.actual_minor_unit_scale
presentation.save("AxisValues_out.pptx", slides.export.SaveFormat.PPTX)
Swap the Data between Axes
Use switch_row_column to exchange the roles of series and categories in chart data. Each former category becomes a series, and each former series becomes a category. This changes how the data is grouped; it does not exchange the horizontal and vertical axes. The example uses set_range to bind the default data to Sheet1!A1:D5, including the header row and category column, before switching rows and columns. It saves a chart with four series and three categories.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 100, 100, 400, 300)
chart.chart_data.set_range("Sheet1!A1:D5")
chart.chart_data.switch_row_column()
presentation.save("SwitchChartRowColumns_out.pptx", slides.export.SaveFormat.PPTX)
Reverse the Plotting Order of an Axis
Use is_plot_order_reversed to reverse a category or value axis. For example, a horizontal bar chart can show project stages from top to bottom in the same order as the worksheet: Planning, Development, Testing. Reversing an axis changes the plotting direction; it does not sort or rearrange the workbook data. By comparison, switch_row_column exchanges the roles of series and categories.
The following example creates a horizontal bar chart with three stages and one series. It saves a presentation with three slides: normal order, reversed categories, and reversed values. Each copy uses the same dataset, and only one axis is reversed on each copy.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_BAR, 50, 40, 620, 320)
chart.has_legend = False
chart.chart_data.categories.clear()
chart.chart_data.series.clear()
workbook = chart.chart_data.chart_data_workbook
workbook.clear(0)
series = chart.chart_data.series.add(charts.ChartType.CLUSTERED_BAR)
stages = ["Planning", "Development", "Testing"]
values = [10, 30, 20]
for i, stage in enumerate(stages):
category_cell = workbook.get_cell(0, i + 1, 0, stage)
chart.chart_data.categories.add(category_cell)
value_cell = workbook.get_cell(0, i + 1, 1, values[i])
series.data_points.add_data_point_for_bar_series(value_cell)
# Slide 2: display the first category at the top.
category_slide = presentation.slides.add_clone(slide)
category_chart = category_slide.shapes[0]
category_chart.axes.vertical_axis.is_plot_order_reversed = True
# Keep the horizontal value axis at the bottom.
category_chart.axes.vertical_axis.cross_type = charts.CrossesType.MAXIMUM
# Slide 3: reverse only the horizontal numeric scale.
value_slide = presentation.slides.add_clone(slide)
value_chart = value_slide.shapes[0]
value_chart.axes.horizontal_axis.is_plot_order_reversed = True
presentation.save("ReversedAxes.pptx", slides.export.SaveFormat.PPTX)
Reversing an axis can also move the perpendicular axis to the opposite side of the plot. cross_type controls where the other axis crosses the axis being configured. In slide 2, setting it to MAXIMUM on the reversed category axis keeps the horizontal value axis at the bottom. For a specific crossing point, use cross_at. Check the crossing settings when changing direction, especially if the chart already has a custom crossing point. Set is_plot_order_reversed back to False to restore the normal plotting direction; crossing settings are separate.

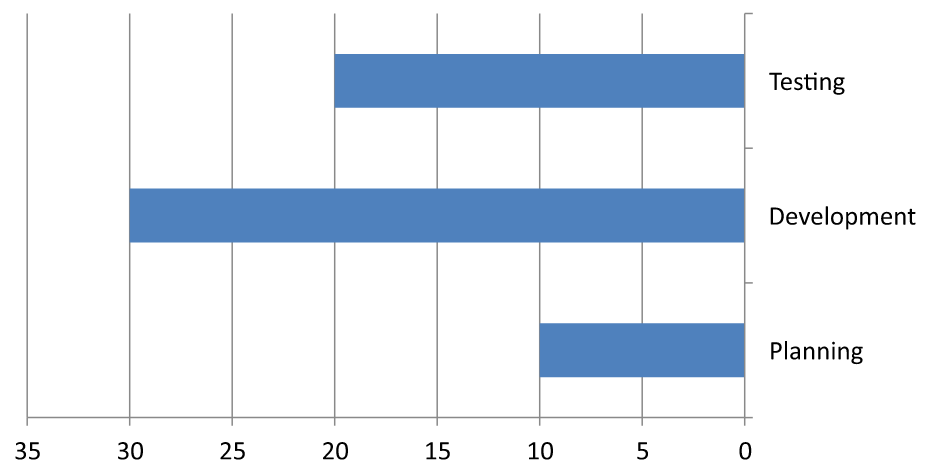

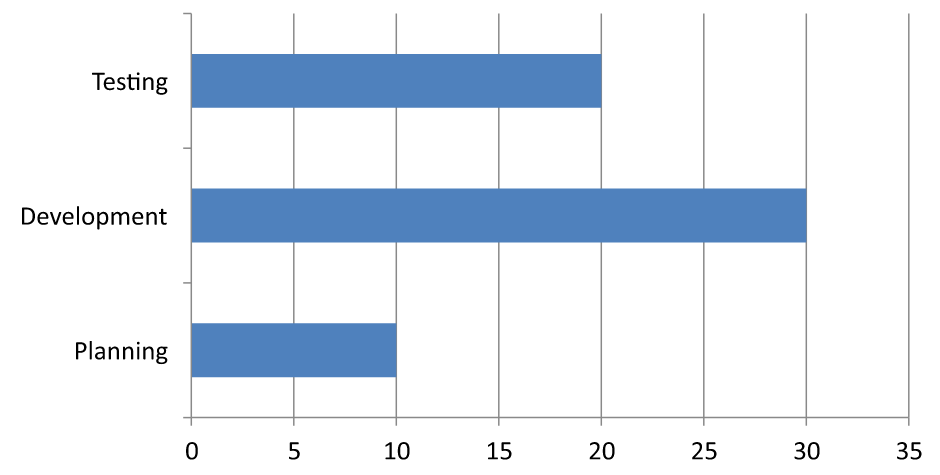

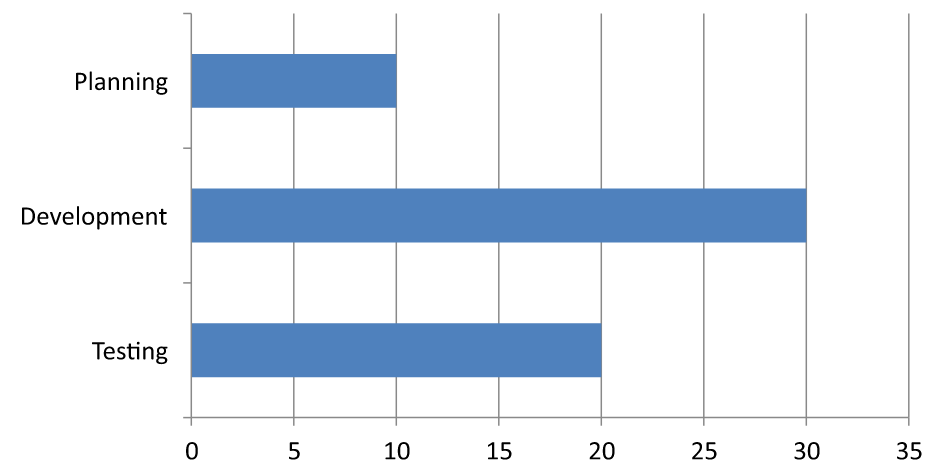

| Normal order (slide 1) | Reversed categories (slide 2) | Reversed values (slide 3) |
|---|---|---|
 |
 |
 |
| Categories run from bottom to top; values increase from left to right. | Planning, Development, and Testing run from top to bottom. Values and workbook row order are unchanged. | Categories retain their normal order; values increase from right to left. The category axis crosses at zero on the right. |
Disable the Vertical Axis for Line Charts
Set is_visible to False on the vertical axis to hide it. The example creates a line chart with default data and saves it with the vertical axis hidden.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.LINE, 100, 100, 400, 300)
chart.axes.vertical_axis.is_visible = False
presentation.save("HiddenVerticalAxis.pptx", slides.export.SaveFormat.PPTX)
Disable the Horizontal Axis for Line Charts
Set is_visible to False on the horizontal axis to hide it. The example creates a line chart with default data and saves it with the horizontal axis hidden.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.LINE, 100, 100, 400, 300)
chart.axes.horizontal_axis.is_visible = False
presentation.save("HiddenHorizontalAxis.pptx", slides.export.SaveFormat.PPTX)
Change a Category Axis
Set category_axis_type to choose a date or text category axis. This example requires ExistingChart.pptx, with a chart as the first shape on the first slide and category cells containing numeric Excel date values. It changes the horizontal axis to a date axis. Setting is_automatic_major_unit to False, major_unit to 1, and major_unit_scale to months places major ticks at one-month intervals.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation("ExistingChart.pptx") as presentation:
slide = presentation.slides[0]
chart = slide.shapes[0]
chart.axes.horizontal_axis.category_axis_type = charts.CategoryAxisType.DATE
chart.axes.horizontal_axis.is_automatic_major_unit = False
chart.axes.horizontal_axis.major_unit = 1
chart.axes.horizontal_axis.major_unit_scale = charts.TimeUnitType.MONTHS
presentation.save("ChangeChartCategoryAxis_out.pptx", slides.export.SaveFormat.PPTX)
Control Category Axis Label Intervals
When a chart has many categories, reduce the number of visible axis labels without removing categories or data points. Set is_automatic_tick_label_spacing to False, then set tick_label_spacing to the desired category interval. For text categories in their normal order, counting starts at the first category:
| Interval | Labels displayed in the example |
|---|---|
1 |
Category 1, Category 2, Category 3, … Category 24 |
2 |
Category 1, Category 3, Category 5, … Category 23 |
3 |
Category 1, Category 4, Category 7, … Category 22 |
An interval of 3 displays every third label, leaving two labels hidden between displayed labels. It does not remove the corresponding columns. Automatic spacing chooses an interval based on the available space; it does not necessarily display every label.
Tick marks have separate controls. Set is_automatic_tick_marks_spacing to False and use tick_marks_spacing to set their interval. For example, 1 keeps a tick mark at every category interval while labels appear only every third category. Set major_tick_mark to a visible style so you can see the result. Setting either automatic-spacing property back to True lets the chart choose that interval again.
The following self-contained example creates 24 categories and one series, then saves three slides in CategoryAxisIntervals.pptx: automatic spacing, manual label spacing with independent tick marks, and restored automatic spacing. The two copies retain the original chart data. No input presentation is required. Horizontal label text makes the difference in density easy to see.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 30, 40, 660, 320)
chart.has_legend = False
chart.chart_data.categories.clear()
chart.chart_data.series.clear()
workbook = chart.chart_data.chart_data_workbook
workbook.clear(0)
series = chart.chart_data.series.add(charts.ChartType.CLUSTERED_COLUMN)
for i in range(24):
category_cell = workbook.get_cell(0, i + 1, 0, f"Category {i + 1}")
chart.chart_data.categories.add(category_cell)
value_cell = workbook.get_cell(0, i + 1, 1, 10 + i % 6 * 5)
series.data_points.add_data_point_for_bar_series(value_cell)
axis = chart.axes.horizontal_axis
axis.category_axis_type = charts.CategoryAxisType.TEXT
axis.text_format.text_block_format.rotation_angle = 0
axis.text_format.portion_format.font_height = 12
axis.major_tick_mark = charts.TickMarkType.OUTSIDE
axis.is_automatic_tick_label_spacing = True
axis.is_automatic_tick_marks_spacing = True
# Slide 2: show every third label, but keep a tick mark for every category.
manual_slide = presentation.slides.add_clone(slide)
manual_chart = manual_slide.shapes[0]
manual_axis = manual_chart.axes.horizontal_axis
manual_axis.is_automatic_tick_label_spacing = False
manual_axis.tick_label_spacing = 3
manual_axis.is_automatic_tick_marks_spacing = False
manual_axis.tick_marks_spacing = 1
# Slide 3: let the chart choose both intervals again.
restored_slide = presentation.slides.add_clone(manual_slide)
restored_chart = restored_slide.shapes[0]
restored_chart.axes.horizontal_axis.is_automatic_tick_label_spacing = True
restored_chart.axes.horizontal_axis.is_automatic_tick_marks_spacing = True
presentation.save("CategoryAxisIntervals.pptx", slides.export.SaveFormat.PPTX)

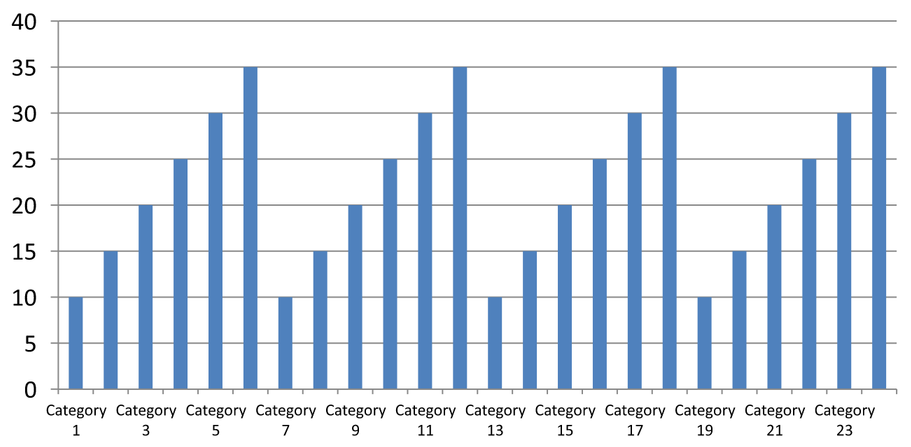

Automatic spacing (slide 1): In this rendering, every second category label is displayed and wraps onto two lines. The automatic result can vary with chart size, fonts, and the renderer.

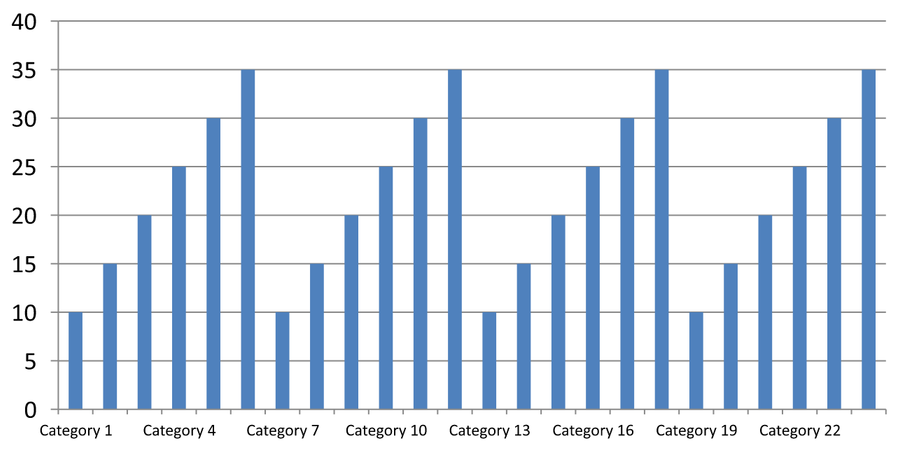

Manual spacing (slide 2): Every third label is displayed on one line, while tick marks remain at every category interval. All 24 columns, including those without labels, remain visible with the same values. Slide 3 restores the automatic appearance shown above.
Choose the Correct Axis and Interval
Use this category-count interval for a text category axis, such as the category axis of a column, line, area, or bar chart. In a column chart, it is the horizontal axis. In a horizontal bar chart, the category axis is vertical, so apply these settings to vertical_axis. Tick-mark spacing also applies to a series axis in charts that have one.
Do not use category label spacing to set the numeric scale of a value axis. On a value axis, major_unit specifies a difference in values: for example, a major unit of 10 produces ticks at 0, 10, 20, and so on when the axis starts at zero. A category label interval of 3 instead counts category positions, regardless of their data values. Scatter and bubble charts use value axes rather than a text category axis. For a date axis, use time-based major units and scales as described in Change a Category Axis.
Set the Date Format for Category Axis Values
The example replaces the default chart data with four annual values. Dates are stored as OLE Automation serial numbers in the first worksheet (index 0). Set category_axis_type to a date axis, disable is_number_format_linked_to_source, and assign yyyy to number_format so the category labels display four-digit years independently of the cell formatting.
from datetime import date
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.LINE, 50, 50, 450, 300)
chart.chart_data.categories.clear()
chart.chart_data.series.clear()
workbook = chart.chart_data.chart_data_workbook
workbook.clear(0)
series = chart.chart_data.series.add(charts.ChartType.LINE)
for i in range(4):
category_date = date(2015 + i, 1, 1)
serial_date = (category_date - date(1899, 12, 30)).days
category_cell = workbook.get_cell(0, i + 1, 0, serial_date)
chart.chart_data.categories.add(category_cell)
value_cell = workbook.get_cell(0, i + 1, 1, i + 1)
series.data_points.add_data_point_for_line_series(value_cell)
chart.axes.horizontal_axis.category_axis_type = charts.CategoryAxisType.DATE
chart.axes.horizontal_axis.is_number_format_linked_to_source = False
chart.axes.horizontal_axis.number_format = "yyyy"
presentation.save("DateAxisFormat.pptx", slides.export.SaveFormat.PPTX)
Set a Rotation Angle for a Chart Axis Title
Enable has_title on the vertical axis, provide title text, and set rotation_angle to rotate the title. The angle is measured in degrees; this example saves a column chart with its value-axis title rotated by 90 degrees.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 50, 50, 450, 300)
chart.axes.vertical_axis.has_title = True
chart.axes.vertical_axis.title.add_text_frame_for_overriding("Value")
chart.axes.vertical_axis.title.text_format.text_block_format.rotation_angle = 90
presentation.save("RotatedAxisTitle.pptx", slides.export.SaveFormat.PPTX)
Set the Axis Position on a Category or Value Axis
Use axis_between_categories to control whether the value axis crosses the category axis between categories or at category tick marks. This property applies to category axes. The example sets it to True on the horizontal category axis of a column chart and saves the result.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 50, 50, 450, 300)
chart.axes.horizontal_axis.axis_between_categories = True
presentation.save("AxisBetweenCategories.pptx", slides.export.SaveFormat.PPTX)
Set the Display Unit on a Chart Value Axis
Set display_unit to scale the labels on a value axis without changing the underlying data. With DisplayUnitType set to MILLIONS, a value of 60,000,000 is displayed as 60. The example creates a column chart and applies the millions display unit to its vertical axis.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 50, 50, 450, 300)
chart.axes.vertical_axis.display_unit = charts.DisplayUnitType.MILLIONS
presentation.save("Result.pptx", slides.export.SaveFormat.PPTX)
Configure a Logarithmic Value Axis
A logarithmic value axis is useful when positive values span several orders of magnitude. For example, a service might receive 10, 100, 1,000, 10,000, and 100,000 requests over five periods. On a linear scale, the smaller values appear close together near zero. A logarithmic scale makes their relative growth easier to compare: equal distances represent equal ratios rather than equal differences.
Set is_logarithmic to True on the value axis and use log_base to choose the base. This changes how the existing values are displayed; it does not change the data or add a logarithmic trend line. A trend line represents a fitted relationship in the data and is a separate feature.
Choose the Value Axis and Base
For a line or column chart, the value axis is vertical_axis. For a horizontal bar chart, it is horizontal_axis. Scatter and bubble charts have two value axes, so choose the horizontal axis for X values, the vertical axis for Y values, or both. Do not apply logarithmic scaling to a category axis.
The default logarithmic base is 10. For PPTX charts, use a base from 2 through 1000, inclusive; fractional bases such as 2.5 are also supported. With base 10, successive powers such as 10, 100, 1,000, and 10,000 are equally spaced.

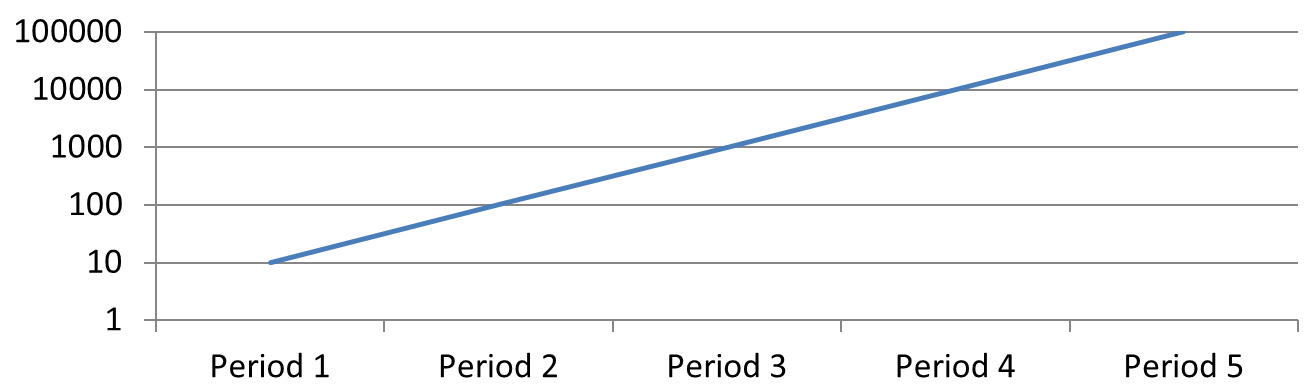

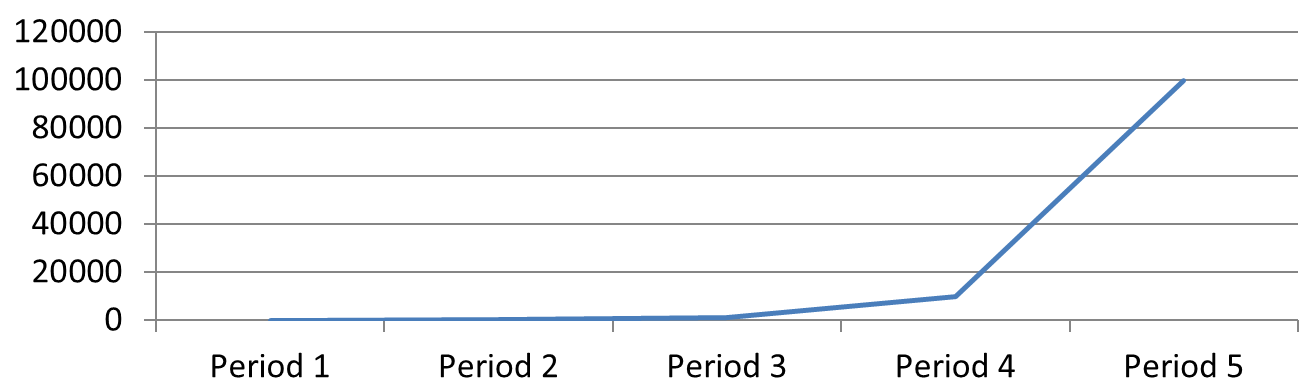

Compare Linear and Logarithmic Scaling
The following self-contained example creates a line chart with the five request counts on the first slide, then clones that slide and enables a base-10 logarithmic value axis on the second. Both slides retain the same data.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.LINE, 30, 40, 660, 200)
chart.has_legend = False
chart.chart_data.categories.clear()
chart.chart_data.series.clear()
workbook = chart.chart_data.chart_data_workbook
workbook.clear(0)
series = chart.chart_data.series.add(charts.ChartType.LINE)
values = [10, 100, 1000, 10000, 100000]
for i, value in enumerate(values):
category_cell = workbook.get_cell(0, i + 1, 0, f"Period {i + 1}")
chart.chart_data.categories.add(category_cell)
value_cell = workbook.get_cell(0, i + 1, 1, value)
series.data_points.add_data_point_for_line_series(value_cell)
# Keep the first slide linear and change only the copy's value-axis scale.
logarithmic_slide = presentation.slides.add_clone(slide)
logarithmic_chart = logarithmic_slide.shapes[0]
value_axis = logarithmic_chart.axes.vertical_axis
value_axis.is_logarithmic = True
value_axis.log_base = 10
presentation.save("LogarithmicAxis.pptx", slides.export.SaveFormat.PPTX)
Linear scale (slide 1): Equal vertical distances represent equal differences in request counts. The largest value dominates the chart, making the smaller values difficult to distinguish.
Logarithmic scale (slide 2): Equal vertical distances represent equal ratios. Each period has ten times as many requests as the previous one, so the points form a straight rising line on the base-10 scale. The axis labels still show the original request counts.
Handle Zero and Negative Values
A logarithmic scale can display only strictly positive values. Check the data before enabling it. If zero or negative values are meaningful, keep a linear scale or show them separately. If excluding those values is appropriate for the analysis, explain the omission. Do not silently replace them with small positive numbers, as this changes the meaning of the data. Any manually configured minimum or maximum for a logarithmic axis must also be positive.
FAQ
How do I set the value at which one axis crosses the other (axis crossing)?
Use cross_type to select the crossing behavior. To specify a numeric crossing value, set cross_at. These settings let you move the axis crossing to a suitable baseline.
How can I position tick labels relative to the axis?
Set tick_label_position using TickLabelPositionType: LOW, HIGH, NEXT_TO, or NONE. To control the tick marks themselves, use major_tick_mark or minor_tick_mark; these are separate from label positioning.
