Customize Chart Legends in Presentations with Python
Overview
Aspose.Slides for Python via .NET provides options for customizing chart legends in PowerPoint presentations. This article shows how to position and size a legend, set the font size for the whole legend, format an individual legend entry, and hide or restore selected entries.
The FAQ covers related behaviors, including reserving space for the legend, displaying multiline labels, and inheriting formatting from the presentation theme.
Legend Positioning
Use the legend’s x, y, width, and height properties to specify its position and size as fractions of the chart’s dimensions.
This example creates a presentation and adds a clustered column chart with default data to the first slide. Dividing the desired legend offsets and dimensions by the chart’s width and height converts them to relative values: the legend is offset by 50 points from the chart’s top-left corner and sized to 100 by 100 points.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 50, 50, 500, 500)
# Express the legend's position and size relative to the chart.
chart.legend.x = 50 / chart.width
chart.legend.y = 50 / chart.height
chart.legend.width = 100 / chart.width
chart.legend.height = 100 / chart.height
presentation.save("legend_position.pptx", slides.export.SaveFormat.PPTX)
Set the Font Size of a Legend
Use the legend’s text_format to access its text formatting and set font_height in points.
This example creates a chart with default data and sets the legend text to 20 points. It also disables automatic bounds for the vertical axis and sets its range to -5 through 10.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 50, 50, 600, 400)
chart.legend.text_format.portion_format.font_height = 20
chart.axes.vertical_axis.is_automatic_min_value = False
chart.axes.vertical_axis.min_value = -5
chart.axes.vertical_axis.is_automatic_max_value = False
chart.axes.vertical_axis.max_value = 10
presentation.save("legend_font_size.pptx", slides.export.SaveFormat.PPTX)
Set the Font Size of an Individual Legend Entry
Use the legend’s entries collection to access formatting for a specific entry. Entry indices are zero-based, so index 1 refers to the second entry.
This example creates a clustered column chart whose default data includes at least two series. It formats the second legend entry with bold, italic, and 20-point blue text.
import aspose.slides as slides
import aspose.slides.charts as charts
import aspose.pydrawing as draw
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 50, 50, 600, 400)
text_format = chart.legend.entries[1].text_format
text_format.portion_format.font_bold = slides.NullableBool.TRUE
text_format.portion_format.font_height = 20
text_format.portion_format.font_italic = slides.NullableBool.TRUE
text_format.portion_format.fill_format.fill_type = slides.FillType.SOLID
text_format.portion_format.fill_format.solid_fill_color.color = draw.Color.blue
presentation.save("legend_entry_format.pptx", slides.export.SaveFormat.PPTX)
Hide Individual Legend Entries
To exclude an auxiliary series from the legend while keeping its data visible, set ILegendEntryProperties.hide to True through IChartSeries.related_legend_entry. This hides only the selected legend entry; it does not remove the series or its data points. Setting IChart.has_legend to False, in contrast, hides the entire legend.
The example below creates a clustered column chart with multiple series using default data. It hides the second series' legend entry (index 1) and saves the presentation. It then restores the entry by setting hide to False and saves a second copy. The columns remain visible in both files.
import aspose.slides as slides
import aspose.slides.charts as charts
with slides.Presentation() as presentation:
slide = presentation.slides[0]
chart = slide.shapes.add_chart(charts.ChartType.CLUSTERED_COLUMN, 50, 50, 600, 400)
chart.has_legend = True
legend_entry = chart.chart_data.series[1].related_legend_entry
legend_entry.hide = True
presentation.save("hidden_legend_entry.pptx", slides.export.SaveFormat.PPTX)
# Restore the same entry without changing the chart data.
legend_entry.hide = False
presentation.save("restored_legend_entry.pptx", slides.export.SaveFormat.PPTX)

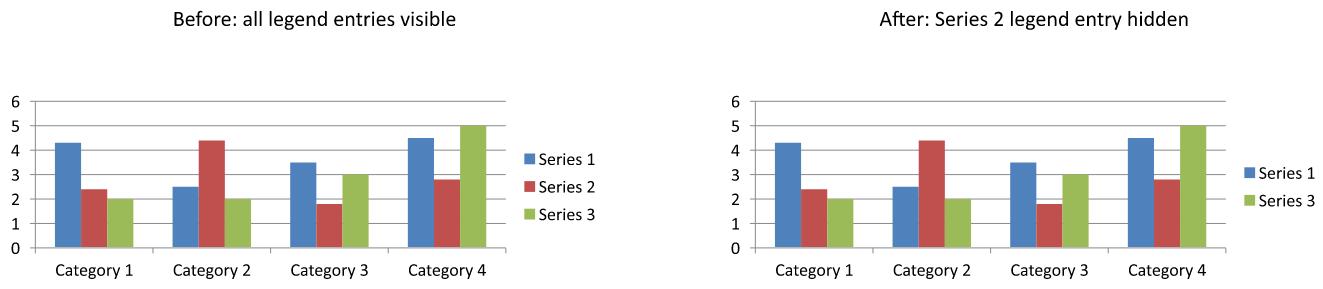

The comparison below shows the same chart with all entries visible and with the second entry hidden. The second series' columns remain unchanged.
In column, bar, and line charts, legend entries identify series. For pie charts, they identify individual data points (slices), so use IChartDataPoint.related_legend_entry on the selected slice instead. The API documents this data-point property for the PIE, PIE3D, EXPLODED_PIE, EXPLODED_PIE3D, PIE_OF_PIE, and BAR_OF_PIE chart types. Do not assume it applies to doughnut charts, which are not included in that list.
FAQ
Can I make the chart allocate space for the legend instead of overlaying it?
Yes. Set overlay to False to reserve space for the legend instead of allowing it to overlap the plot area.
Can I make multiline legend labels?
Yes. Long labels can wrap when the available width is insufficient. You can also use newline characters in series names to request line breaks.
How do I make the legend follow the presentation theme’s color scheme?
Leave the legend’s colors, fills, and fonts unset so that it can inherit theme formatting. Explicit formatting overrides the corresponding theme settings.
