在 C++ 中管理演示文稿的图表数据系列

概述

图表可以将绘制的值存储在工作簿单元格中或直接作为数值文字。一个IChartSeries表示一组相关值,每个IChartDataPoint表示该系列中的一个点。IChartCategory对象提供系列共享的标签或分组值。在使用默认数据创建的图表中,系列名称、类别和点值使用来自图表工作簿的IChartDataCell对象。

对于典型的类别图,默认工作簿使用第 0 行存放系列名称,第 0 列存放类别名称,其余单元格存放系列值。传递给IChartDataWorkbook::GetCell的工作表、行和列索引为零基。这种布局在创建带默认数据的图表时很有用,但不要假设每个现有图表都使用它。对于已加载的演示文稿,在更改工作簿值之前,请检查系列、类别和数据点引用的单元格。

图表设置具有三种不同的作用域:

当未设置显式的点或系列填充时,图表样式和主题决定自动外观。当同时存在系列和点的格式设置时,点的格式设置优先于该点。

chart-series-powerpoint

对于聚类圆柱图,请查看更改 3D 系列类型或条形形状如何影响第一系列。

使用数值文字设置系列值

当系列值来自应用程序数据或计算且不需要工作表单元格引用时,使用数值文字。在将每个点的get_Value返回值通过set_AsLiteralDouble分配之前,先调用set_DataSourceTypeForValues并使用DataSourceType::DoubleLiterals。

集合设置控制该系列中所有点值的源类型。每个点的IBaseChartValue::get_DataSourceType报告所选类型;通过集合设置进行更改。使用Worksheet时,使用get_AsCell访问引用的单元格。使用DoubleLiterals时,使用get_AsLiteralDouble或set_AsLiteralDouble直接读取或写入数字。

以下示例创建一个具有默认系列和类别的柱形图,然后为其第一系列的现有点分配 10、20 等计算值。它保存演示文稿,重新打开并打印存储的值。

#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/DataSourceType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IDoubleChartValue.h>
#include <DOM/IChart.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/console.h>
#include <system/object_ext.h>
#include <system/shared_ptr.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20, 20, 500, 300);
auto series = chart->get_ChartData()->get_Series()->idx_get(0);

series->get_DataPoints()->set_DataSourceTypeForValues(DataSourceType::DoubleLiterals);
for (auto i = 0; i < series->get_DataPoints()->get_Count(); i++)
{
    series->get_DataPoints()->idx_get(i)->get_Value()->set_AsLiteralDouble((i + 1) * 10);
}

presentation->Save(u"numeric_literals.pptx", SaveFormat::Pptx);
presentation->Dispose();

auto reopenedPresentation = MakeObject<Presentation>(u"numeric_literals.pptx");
auto reopenedSlide = reopenedPresentation->get_Slide(0);
auto reopenedChart = ExplicitCast<IChart>(reopenedSlide->get_Shape(0));
auto reopenedSeries = reopenedChart->get_ChartData()->get_Series()->idx_get(0);
for (auto i = 0; i < reopenedSeries->get_DataPoints()->get_Count(); i++)
{
    auto point = reopenedSeries->get_DataPoints()->idx_get(i);
    Console::WriteLine(point->get_Value()->get_AsLiteralDouble());
}
reopenedPresentation->Dispose();

点值源类型与IChartData::get_DataSourceType分离,后者标识图表的内部或外部工作簿配置。使用数值文字本身并不会删除嵌入的工作簿。在本例中,工作簿仍用于类别标签、系列名称以及其他系列。有关工作簿管理,请参阅Chart Workbook。

对于散点图和气泡图,调用set_DataSourceTypeForXValues和set_DataSourceTypeForYValues以选择get_XValue和get_YValue的来源。气泡图还使用set_DataSourceTypeForBubbleSizes来设置get_BubbleSize。在通过该值的set_AsLiteralDouble方法分配数字之前,将每个适用的来源设置为DoubleLiterals。

设置图表系列重叠

IChartSeries::get_Overlap报告 2D 图表中条形或柱形的重叠程度,范围为 -100 到 100%。它是父系列组设置的只读投影。调用IChartSeriesGroup::set_Overlap可更新该组中所有兼容系列。此选项适用于显示分组条形或柱形的图表类型;对组合图中不相关的系列组没有影响。

以下示例为包含第一系列的组设置重叠:

#include <cstdint>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeriesGroup.h>
#include <DOM/IChart.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/shared_ptr.h>

using Aspose::Slides::Charts::ChartType;
using Aspose::Slides::Export::SaveFormat;
using Aspose::Slides::Presentation;

const int firstSlideIndex = 0;
const int firstSeriesIndex = 0;
const int8_t overlapPercent = 30;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(firstSlideIndex);

// 新的图表包含示例系列、类别和数值。
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20.0f, 20.0f, 500.0f, 200.0f);

auto seriesCollection = chart->get_ChartData()->get_Series();
auto series = seriesCollection->idx_get(firstSeriesIndex);
series->get_ParentSeriesGroup()->set_Overlap(overlapPercent);

presentation->Save(u"series_overlap.pptx", SaveFormat::Pptx);
presentation->Dispose();

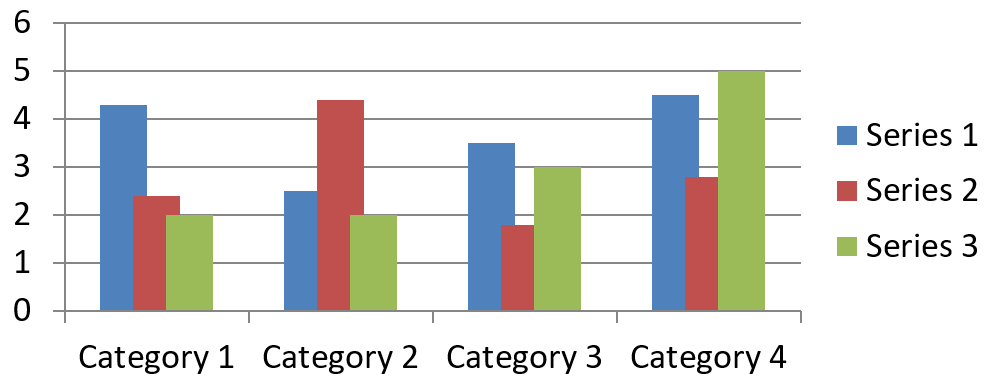

结果:

The series overlap

更改系列填充颜色

使用IChartSeries::get_Format为整个系列设置默认填充。如果点已经具有显式填充,其IChartDataPoint::get_Format设置会覆盖该点的系列填充。

以下示例为第一系列应用纯蓝色填充:

#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IFormat.h>
#include <DOM/FillType.h>
#include <DOM/IChart.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/shared_ptr.h>

using Aspose::Slides::Charts::ChartType;
using Aspose::Slides::Export::SaveFormat;
using Aspose::Slides::FillType;
using Aspose::Slides::Presentation;
using System::Drawing::Color;

const int firstSlideIndex = 0;
const int firstSeriesIndex = 0;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(firstSlideIndex);

auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20.0f, 20.0f, 500.0f, 200.0f);

auto seriesCollection = chart->get_ChartData()->get_Series();
auto series = seriesCollection->idx_get(firstSeriesIndex);
auto seriesColor = Color::get_Blue();
series->get_Format()->get_Fill()->set_FillType(FillType::Solid);
series->get_Format()->get_Fill()->get_SolidFillColor()->set_Color(seriesColor);

presentation->Save(u"series_color.pptx", SaveFormat::Pptx);
presentation->Dispose();

结果:

The color of the series

更改系列名称

系列名称存储在图表数据工作簿中,通常显示在图例中。在为聚类柱形图创建的默认工作簿中,单元格 B1 位于第 0 行第 1 列,包含第一系列的名称。以下示例中的具名常量明确了该结构:

#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/IChart.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/object_ext.h>
#include <system/shared_ptr.h>
#include <system/string.h>

using Aspose::Slides::Charts::ChartType;
using Aspose::Slides::Export::SaveFormat;
using Aspose::Slides::Presentation;
using System::ObjectExt;
using System::String;

const int firstSlideIndex = 0;
const int worksheetIndex = 0;
const int seriesNameRowIndex = 0;
const int firstSeriesColumnIndex = 1;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(firstSlideIndex);

auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20.0f, 20.0f, 500.0f, 200.0f);

auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto seriesNameCell = workbook->GetCell(worksheetIndex, seriesNameRowIndex, firstSeriesColumnIndex);
auto seriesName = ObjectExt::Box<String>(u"Revenue");
seriesNameCell->set_Value(seriesName);

presentation->Save(u"series_name.pptx", SaveFormat::Pptx);
presentation->Dispose();

您也可以更新IChartSeries::get_Name已经引用的单元格。此方法避免在现有图表中假设特定的行和列:

#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartCellCollection.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IStringChartValue.h>
#include <DOM/IChart.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/object_ext.h>
#include <system/shared_ptr.h>
#include <system/string.h>

using Aspose::Slides::Charts::ChartType;
using Aspose::Slides::Export::SaveFormat;
using Aspose::Slides::Presentation;
using System::ObjectExt;
using System::String;

const int firstSlideIndex = 0;
const int firstSeriesIndex = 0;
const int firstNameCellIndex = 0;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(firstSlideIndex);

auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20.0f, 20.0f, 500.0f, 200.0f);

auto seriesCollection = chart->get_ChartData()->get_Series();
auto series = seriesCollection->idx_get(firstSeriesIndex);
auto seriesNameCells = series->get_Name()->get_AsCells();
auto seriesNameCell = seriesNameCells->idx_get(firstNameCellIndex);
auto seriesName = ObjectExt::Box<String>(u"Revenue");
seriesNameCell->set_Value(seriesName);

presentation->Save(u"series_name.pptx", SaveFormat::Pptx);
presentation->Dispose();

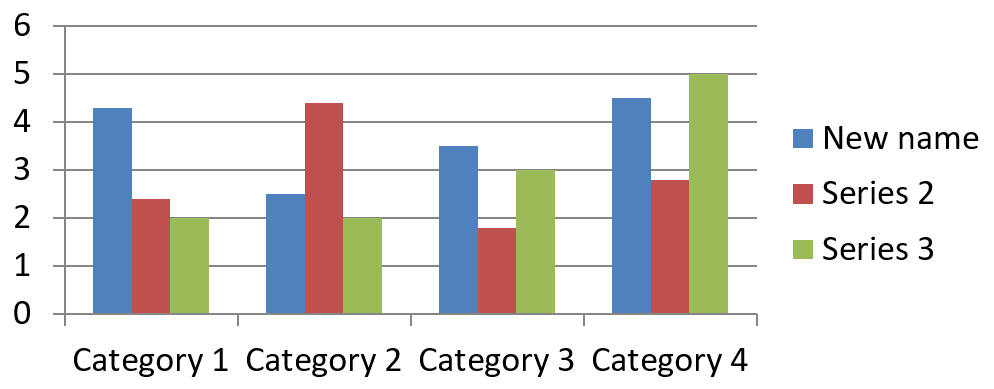

结果:

The series name

从多个单元格创建带名称的系列

当产品名称和报告期间存储在不同工作簿单元格中时,复合系列名称很有用。例如,您可以将 B1 中的Product A与 C1 中的2026合并为单个系列名称,同时保持两部分链接到其源单元格。

使用IChartDataWorkbook::GetCellCollection检索名称范围,然后将该集合传递给IChartSeriesCollection::Add。skipHiddenCells 参数控制是否包含隐藏单元格:true 排除,false 包含。此示例使用false以包含名称范围中的每个单元格。

以下示例创建一个包含一个系列和两个数据点的演示文稿。单元格 B1:C1 仅提供系列名称;A2:A3 提供类别标签,B2:B3 提供数值。

#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartCellCollection.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/IChart.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/object_ext.h>
#include <system/shared_ptr.h>
#include <system/string.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using System::ObjectExt;
using System::String;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 50.0f, 50.0f, 620.0f, 180.0f);
auto chartData = chart->get_ChartData();

chartData->get_Series()->Clear();
chartData->get_Categories()->Clear();
chart->set_HasLegend(true);

auto workbook = chartData->get_ChartDataWorkbook();
workbook->Clear(0);

// 这两个单元格提供系列名称。
auto productName = ObjectExt::Box<String>(u"Product A");
auto reportingPeriod = ObjectExt::Box<String>(u"2026");
workbook->GetCell(0, 0, 1, productName);
workbook->GetCell(0, 0, 2, reportingPeriod);
auto nameCells = workbook->GetCellCollection(u"Sheet1!$B$1:$C$1", false);
auto series = chartData->get_Series()->Add(nameCells, ChartType::ClusteredColumn);

// 单独的单元格提供类别和数值数据点。
auto northLabel = ObjectExt::Box<String>(u"North");
auto southLabel = ObjectExt::Box<String>(u"South");
auto northCategory = workbook->GetCell(0, 1, 0, northLabel);
auto southCategory = workbook->GetCell(0, 2, 0, southLabel);
chartData->get_Categories()->Add(northCategory);
chartData->get_Categories()->Add(southCategory);
auto northAmount = ObjectExt::Box<int>(120);
auto southAmount = ObjectExt::Box<int>(150);
auto northValue = workbook->GetCell(0, 1, 1, northAmount);
auto southValue = workbook->GetCell(0, 2, 1, southAmount);
series->get_DataPoints()->AddDataPointForBarSeries(northValue);
series->get_DataPoints()->AddDataPointForBarSeries(southValue);

presentation->Save(u"composite_series_name.pptx", SaveFormat::Pptx);
presentation->Dispose();

生成的系列名称为Product A 2026,两个单元格值之间有空格。图例将其显示为两列的单个条目。下图展示了结果:

Column chart with North and South values and the composite series name Product A 2026 in the legend

获取自动系列填充颜色

IChartSeries::GetAutomaticSeriesColor返回根据系列索引和图表样式计算的颜色。这是未显式定义系列填充时使用的颜色。调用该方法仅读取计算出的颜色,不会分配新的填充。

以下示例打印每个默认系列的自动颜色:

#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/IChart.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <drawing/color.h>
#include <system/console.h>
#include <system/shared_ptr.h>
#include <system/string.h>

using Aspose::Slides::Charts::ChartType;
using Aspose::Slides::Presentation;
using System::Console;
using System::String;

const int firstSlideIndex = 0;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(firstSlideIndex);

auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20.0f, 20.0f, 500.0f, 200.0f);

auto seriesCollection = chart->get_ChartData()->get_Series();
const int seriesCount = seriesCollection->get_Count();
for (int seriesIndex = 0; seriesIndex < seriesCount; seriesIndex++)
{
    auto series = seriesCollection->idx_get(seriesIndex);
    auto automaticColor = series->GetAutomaticSeriesColor();
    auto colorName = automaticColor.get_Name();
    auto outputLine = String::Format(u"Series {0}: {1}", seriesIndex, colorName);
    Console::WriteLine(outputLine);
}

presentation->Dispose();

默认图表样式的示例输出:

Series 0: ff4f81bd
Series 1: ffc0504d
Series 2: ff9bbb59

确切颜色取决于图表样式和主题。

为图表系列设置反转填充颜色

对于条形、柱形和气泡系列,[IChartSeries::set_InvertIfNegative](https://reference.aspose.com/slides/cpp/aspose.slides.charts/ichartseries/set_invertifnegative/)可以用不同的填充显示负值。将常规系列填充设为实体色,启用反转,并通过IChartSeries::get_InvertedSolidFillColor分配负值颜色。负数在工作簿中保持不变,仅改变显示颜色。

以下示例用一个系列替换默认图表数据。工作表第 0 行包含系列名称,第 0 列包含类别名称,第 1 列包含值:

#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IFormat.h>
#include <DOM/FillType.h>
#include <DOM/IChart.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/object_ext.h>
#include <system/shared_ptr.h>
#include <system/string.h>

using Aspose::Slides::Charts::ChartType;
using Aspose::Slides::Export::SaveFormat;
using Aspose::Slides::FillType;
using Aspose::Slides::Presentation;
using System::Drawing::Color;
using System::ObjectExt;
using System::String;

const int firstSlideIndex = 0;
const int worksheetIndex = 0;
const int headerRowIndex = 0;
const int categoryColumnIndex = 0;
const int firstSeriesColumnIndex = 1;
const int firstDataRowIndex = 1;
const int categoryCount = 3;

const String categoryNames[] = {u"Category 1", u"Category 2", u"Category 3"};
const int seriesValues[] = {-20, 50, -30};

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(firstSlideIndex);

auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20.0f, 20.0f, 500.0f, 200.0f);
auto chartData = chart->get_ChartData();
auto workbook = chartData->get_ChartDataWorkbook();

auto seriesCollection = chartData->get_Series();
seriesCollection->Clear();
chartData->get_Categories()->Clear();

auto seriesName = ObjectExt::Box<String>(u"Series 1");
auto seriesNameCell = workbook->GetCell(worksheetIndex, headerRowIndex, firstSeriesColumnIndex, seriesName);
auto chartType = chart->get_Type();
auto series = seriesCollection->Add(seriesNameCell, chartType);

for (int categoryIndex = 0; categoryIndex < categoryCount; categoryIndex++)
{
    const int dataRowIndex = firstDataRowIndex + categoryIndex;
    auto categoryName = categoryNames[categoryIndex];
    const int seriesValue = seriesValues[categoryIndex];

    auto boxedCategoryName = ObjectExt::Box<String>(categoryName);
    auto categoryCell = workbook->GetCell(worksheetIndex, dataRowIndex, categoryColumnIndex, boxedCategoryName);
    chartData->get_Categories()->Add(categoryCell);

    auto boxedSeriesValue = ObjectExt::Box<int>(seriesValue);
    auto valueCell = workbook->GetCell(worksheetIndex, dataRowIndex, firstSeriesColumnIndex, boxedSeriesValue);
    series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}

auto automaticSeriesColor = series->GetAutomaticSeriesColor();
auto invertedSeriesColor = Color::get_Red();
series->get_Format()->get_Fill()->set_FillType(FillType::Solid);
series->get_Format()->get_Fill()->get_SolidFillColor()->set_Color(automaticSeriesColor);
series->set_InvertIfNegative(true);
series->get_InvertedSolidFillColor()->set_Color(invertedSeriesColor);

presentation->Save(u"inverted_solid_fill_color.pptx", SaveFormat::Pptx);
presentation->Dispose();

结果:

The inverted solid fill color

您也可以通过IChartDataPoint::set_InvertIfNegative为单个点启用反转。在以下示例中,系列的反转被禁用,仅为选中的点启用,并为该点分配负值以显示效果:

#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IDoubleChartValue.h>
#include <DOM/Chart/IFormat.h>
#include <DOM/FillType.h>
#include <DOM/IChart.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/object_ext.h>
#include <system/shared_ptr.h>

using Aspose::Slides::Charts::ChartType;
using Aspose::Slides::Export::SaveFormat;
using Aspose::Slides::FillType;
using Aspose::Slides::Presentation;
using System::Drawing::Color;
using System::ObjectExt;

const int firstSlideIndex = 0;
const int firstSeriesIndex = 0;
const int targetDataPointIndex = 2;
const int negativeValue = -30;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(firstSlideIndex);

auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20.0f, 20.0f, 500.0f, 200.0f);

auto seriesCollection = chart->get_ChartData()->get_Series();
auto series = seriesCollection->idx_get(firstSeriesIndex);
auto automaticSeriesColor = series->GetAutomaticSeriesColor();
auto invertedSeriesColor = Color::get_Red();
series->get_Format()->get_Fill()->set_FillType(FillType::Solid);
series->get_Format()->get_Fill()->get_SolidFillColor()->set_Color(automaticSeriesColor);
series->get_InvertedSolidFillColor()->set_Color(invertedSeriesColor);
series->set_InvertIfNegative(false);

auto dataPoint = series->get_DataPoint(targetDataPointIndex);
auto boxedNegativeValue = ObjectExt::Box<int>(negativeValue);
dataPoint->get_YValue()->get_AsCell()->set_Value(boxedNegativeValue);
dataPoint->set_InvertIfNegative(true);

presentation->Save(u"data_point_invert_color_if_negative.pptx", SaveFormat::Pptx);
presentation->Dispose();

清除特定数据点的值

要使某一点为空而不删除其他点,请将其对应的工作簿单元格设置为nullptr。对于柱形图,绘制的值可通过IChartDataPoint::get_YValue获取。数据点仍保持在相同的类别位置,但图表会根据其空白值设置将其视为空白。

以下示例仅清除第一系列的第二个点:

#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IDoubleChartValue.h>
#include <DOM/IChart.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/shared_ptr.h>

using Aspose::Slides::Charts::ChartType;
using Aspose::Slides::Export::SaveFormat;
using Aspose::Slides::Presentation;

const int firstSlideIndex = 0;
const int firstSeriesIndex = 0;
const int targetDataPointIndex = 1;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(firstSlideIndex);

auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20.0f, 20.0f, 500.0f, 200.0f);

auto seriesCollection = chart->get_ChartData()->get_Series();
auto series = seriesCollection->idx_get(firstSeriesIndex);
auto dataPoint = series->get_DataPoint(targetDataPointIndex);
dataPoint->get_YValue()->get_AsCell()->set_Value(nullptr);

presentation->Save(u"clear_data_point_value.pptx", SaveFormat::Pptx);
presentation->Dispose();

散点图使用独立的 X 和 Y 单元格,气泡图还使用大小单元格。仅清除代表您想删除的值的单元格。仅在需要删除该系列的所有点时才调用IChartDataPointCollection::Clear;该方法会移除集合中的所有数据点。

控制空单元格的显示

包含值的隐藏单元格与空单元格是不同的情况。要包含或排除来自隐藏工作表行和列的数据,请参阅Include Data from Hidden Rows and Columns。

空工作簿单元格表示缺失数据;包含0的单元格表示已知的数值。调用IChartDataCell::set_Value并传入nullptr可使单元格为空。数值零始终保持为零,无论空单元格设置如何。

使用IChart::set_DisplayBlanksAs选择图表如何显示空单元格。此设置适用于整个图表。它改变空白的绘制方式,而不会将空工作簿单元格填充为零或插值值。

以下独立示例创建一个具有一个系列的折线图,清除第 3 天的值,并使用每种模式分别保存同一图表。无需输入文件。IChartDataWorkbook使用工作表 0,第 0 列存放类别标签,第 1 列存放数值;第 0 行保存系列名称。最终数据为10, 20, empty, 30, 40。

#include <array>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/DisplayBlanksAsType.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/IChart.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/object_ext.h>
#include <system/shared_ptr.h>
#include <system/string.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using System::ObjectExt;
using System::String;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto chart = slide->get_Shapes()->AddChart(ChartType::LineWithMarkers, 40.0f, 40.0f, 640.0f, 400.0f);
auto chartData = chart->get_ChartData();
auto workbook = chartData->get_ChartDataWorkbook();

chartData->get_Series()->Clear();
chartData->get_Categories()->Clear();

auto seriesName = ObjectExt::Box<String>(u"Measurements");
auto seriesNameCell = workbook->GetCell(0, 0, 1, seriesName);
auto series = chartData->get_Series()->Add(seriesNameCell, chart->get_Type());
auto values = std::array<int, 5>{10, 20, 25, 30, 40};

for (auto i = 0; i < values.size(); i++)
{
    auto categoryName = String::Format(u"Day {0}", i + 1);
    auto boxedCategoryName = ObjectExt::Box<String>(categoryName);
    auto categoryCell = workbook->GetCell(0, i + 1, 0, boxedCategoryName);
    chartData->get_Categories()->Add(categoryCell);
    auto boxedValue = ObjectExt::Box<int>(values[i]);
    auto valueCell = workbook->GetCell(0, i + 1, 1, boxedValue);
    series->get_DataPoints()->AddDataPointForLineSeries(valueCell);
}

// 将第3天真正留空,同时保留其类别和数据点。
workbook->GetCell(0, 3, 1)->set_Value(nullptr);

auto modes = std::array<DisplayBlanksAsType, 3>{DisplayBlanksAsType::Gap, DisplayBlanksAsType::Zero, DisplayBlanksAsType::Span};
for (auto mode : modes)
{
    chart->set_DisplayBlanksAs(mode);
    auto outputPath = String::Format(u"empty_cells_{0}.pptx", mode);
    presentation->Save(outputPath, SaveFormat::Pptx);
}

presentation->Dispose();

每个输出文件在保存之前存储相应的模式:empty_cells_Gap.pptx、empty_cells_Zero.pptx和empty_cells_Span.pptx。如果只想生成一个版本,只需在保存演示文稿前设置所需模式,而不是遍历所有模式。

下面的比较显示了三个文件中相同的数据。第 3 天在工作簿中始终为空:

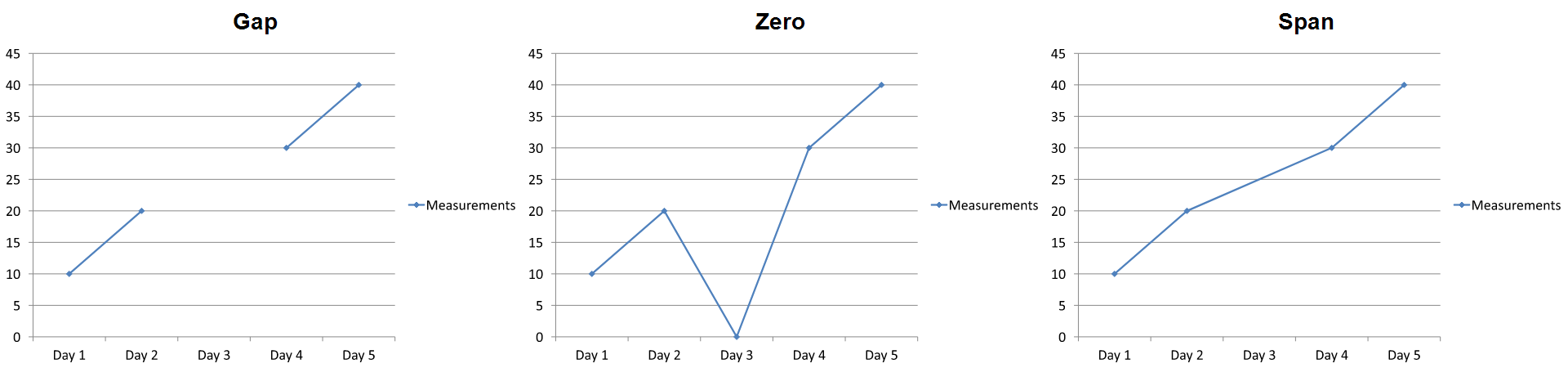

Line charts with identical data: Gap breaks the line at Day 3, Zero drops the line to zero, and Span connects Day 2 to Day 4.

可见效果取决于图表类型。折线图使三种模式的比较最为直观。条形图和柱形图没有连线跨越缺失的类别,因此Span无法产生上图所示的连接段;缺失的柱形和零高度的柱形也可能看起来相似。同样,仅有标记的散点图没有连接线。不要指望每种图表类型都有三种截然不同的结果;请检查您使用的图表类型的输出。

设置系列间隙宽度

间隙宽度是相邻条形或柱形簇之间的空间,以条形或柱形宽度的百分比表示。与重叠类似,它属于父系列组,而不是单个系列。对组调用一次IChartSeriesGroup::set_GapWidth即可。较大的值会在簇之间创建更大的空间,较小的值则使其更紧密。

以下示例更改间隙宽度并仅保存最终演示文稿:

#include <cstdint>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeriesGroup.h>
#include <DOM/IChart.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/shared_ptr.h>

using Aspose::Slides::Charts::ChartType;
using Aspose::Slides::Export::SaveFormat;
using Aspose::Slides::Presentation;

const int firstSlideIndex = 0;
const int firstSeriesIndex = 0;
const uint16_t gapWidthPercent = 30;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(firstSlideIndex);

auto chart = slide->get_Shapes()->AddChart(ChartType::StackedColumn, 20.0f, 20.0f, 500.0f, 200.0f);

auto seriesCollection = chart->get_ChartData()->get_Series();
auto series = seriesCollection->idx_get(firstSeriesIndex);
series->get_ParentSeriesGroup()->set_GapWidth(gapWidthPercent);

presentation->Save(u"gap_width_30.pptx", SaveFormat::Pptx);
presentation->Dispose();

结果:

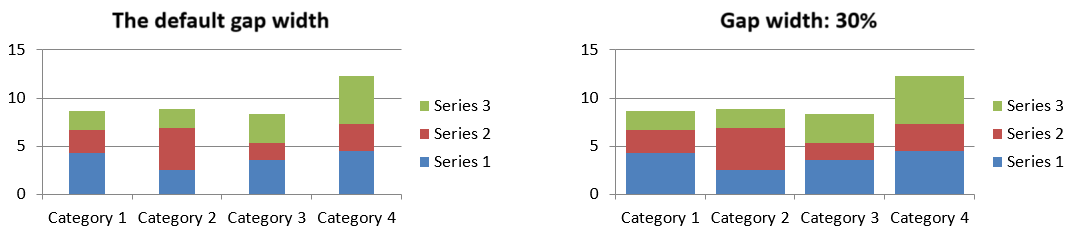

The gap width

显示或隐藏系列连线

系列连线在图表的相关部分之间提供视觉连接。使用IChartSeriesGroup::set_HasSeriesLines可以在受支持的堆叠条形图和堆叠饼图中显示或隐藏它们。在二维堆叠条形图和柱形图中,它们连接跨类别的对应堆叠边界。在 Pie of Pie 和 Bar of Pie 图表中,它们连接主图与次要图。此设置并非针对其他图表类型的通用连接器。

通过IChartSeries::get_ParentSeriesGroup访问该组。设置适用于该组中的每个系列。IChartSeries::get_HasSeriesLines仅读取值并反映父组的设置;请调用组的 setter 进行更新。

以下示例创建一个带默认数据的ChartType::PieOfPie图表。它分别保存启用和禁用系列连线的同一图表,生成两个演示文稿以供比较。

#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeriesGroup.h>
#include <DOM/IChart.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/shared_ptr.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto chart = slide->get_Shapes()->AddChart(ChartType::PieOfPie, 50, 50, 600, 400);
auto series = chart->get_ChartData()->get_Series()->idx_get(0);
auto seriesGroup = series->get_ParentSeriesGroup();

seriesGroup->set_HasSeriesLines(true);
presentation->Save(u"series_lines_enabled.pptx", SaveFormat::Pptx);

seriesGroup->set_HasSeriesLines(false);
presentation->Save(u"series_lines_disabled.pptx", SaveFormat::Pptx);
presentation->Dispose();
启用系列连线 禁用系列连线
Pie of Pie chart with series lines enabled Pie of Pie chart with series lines disabled
两条线将主饼图连接到次要饼图。 两个饼图仍然可见,但连接线被隐藏。

系列连线不同于数据标签指示线(将标签连接到数据点)、网格线(标记坐标轴间隔)以及折线图中的线(表示数据值)。此设置不控制上述元素。

常见问题

哪些图表类型支持数据系列?

所有由ChartType枚举表示的图表类型都使用图表数据,但它们的系列并不具有相同的值结构或设置。例如,类别图使用类别和数值,散点图使用 X 和 Y 值,气泡图还添加气泡大小。使用与系列类型匹配的数据点创建方法。重叠和间隙宽度等选项仅适用于兼容的条形或柱形组。

什么是图表系列组?

IChartSeriesGroup包含共享组级绘图设置的兼容系列。组合图可以包含多个组,因此通过某个系列访问的组的更改不一定会影响图表中的所有系列。

新创建的图表是否包含默认数据?

是的。默认情况下,IShapeCollection::AddChart会创建示例系列、类别和数值。您可以编辑这些单元格,或在添加完全自定义的数据集合之前清除系列和类别集合。也可以使用重载创建没有默认数据的图表。

图表对象如何与工作簿单元格关联?

系列名称、类别标签和数据点值引用IChartDataWorkbook中的单元格。更改引用的单元格会更新相应的图表元素。构建自定义数据时,请保持类别行和系列值行对齐,以便每个点在预期的类别下绘制。

如何只清除一个点而不是整个系列?

将相关值单元格设为nullptr,以保留该点的类别位置为空点。仅在希望删除该系列所有点时调用IChartDataPointCollection::Clear,因为该方法会移除集合中的所有数据点。

空点如何显示?

结果取决于图表类型和IChart::get_DisplayBlanksAs。受支持的图表可以将空白显示为间隙、零值或连接相邻点。选择与演示文稿中缺失数据含义相匹配的设置。请参阅控制空单元格的显示获取完整示例和视觉比较。

负值如何格式化?

对于受支持的条形、柱形和气泡系列,调用IChartSeries::set_InvertIfNegative并通过IChartSeries::get_InvertedSolidFillColor设置颜色。您也可以使用IChartDataPoint::set_InvertIfNegative对单个点覆盖此行为。这些方法影响格式,而不影响存储的数值。

当系列和点都进行格式化时,哪种格式优先?

显式的数据点格式在该点上优先。其他点继续使用显式的系列格式,或者在未定义系列格式时使用自动的图表样式和主题。重叠和间隙宽度等组设置控制布局,不属于点级格式覆盖。

图表的系列数量是否有限制?

Aspose.Slides 并未设置单独的固定系列计数限制。实际限制取决于演示文稿文件约束、可用内存、渲染时间以及图表可读性。

当列之间太近或太远时应如何调整?

对相应的父系列组调用IChartSeriesGroup::set_GapWidth。增大数值可扩大簇之间的间距,减小数值则使簇更紧凑。
