使用 C++ 在演示文稿中创建 3D 效果

概述

Aspose.Slides for C++ 可以创建、编辑、保留并渲染类似 PowerPoint 的形状和文本的 3D 格式。本篇文章覆盖旋转、挤压、倒角、灯光、材质、渐变或图片填充以及 3D 文本等 3D 效果。

3D 格式化概念

使用 IShape::get_ThreeDFormat 方法对形状应用 3D 格式化。该方法返回 IThreeDFormat,用于控制该形状的 3D 场景。

对于文本,使用 ITextFrameFormat::get_ThreeDFormat 方法。该方法对文本框而不是形状本体应用 3D 格式化。

最重要的方法包括:

方法 控制内容 使用时机
get_Camera 视点、预设相机类型、旋转、缩放和透视。 在 3D 空间中旋转对象或匹配 PowerPoint 的 3D 旋转预设。
get_LightRig 灯光预设、方向和灯光旋转。 改变 3D 表面上高光和阴影的显示方式。
set_Material 表面材质,如平面、哑光、塑料或金属。 使相同几何形状看起来更平坦、柔和、光亮或金属感。
set_ExtrusionHeight 形状从前表面向后延伸的距离。 将平面形状转换为可见厚度的 3D 对象。
get_ExtrusionColor 挤压侧面的颜色。 显示深度或将侧面颜色与前填充协调。
set_Depth PowerPoint 3D 格式化使用的额外深度。 对形状或文本进行细微的深度调节,尤其配合倒角和材质设置使用。
get_BevelTop 和 get_BevelBottom 前后表面的凸起或圆角边缘。 为平面表面添加柔化或模塑的边缘。
get_ContourColor 和 set_ContourWidth 3D 对象的轮廓线。 在渲染输出中强调对象边界。

创建 3D 形状

一个形状在看起来具有说服力的 3D 效果前,通常需要四类设置:

  • 相机设置,因为默认的正视图可能会隐藏挤压效果。
  • 灯光设置,因为光照使各面和侧面可辨识。
  • 材质设置,因为表面影响光线的渲染方式。
  • 挤压或深度设置,因为平面形状需要厚度。

以下示例创建一个矩形,在其前表面添加文字,并应用 3D 格式化。相机旋转值以度为单位,挤压高度为 100 点。示例将幻灯片渲染为 PNG 图像(尺寸为默认的两倍),并将演示文稿保存为 PPTX。

#include <DOM/CameraPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILightRig.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <IImage.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

const auto imageScale = 2.0f;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 200.0f, 200.0f);

shape->get_TextFrame()->set_Text(u"3D");
shape->get_TextFrame()->get_Paragraph(0)->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(64.0f);

auto frontColor = Color::get_CornflowerBlue();
shape->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_FillFormat()->get_SolidFillColor()->set_Color(frontColor);

auto extrusionColor = Color::get_Blue();
shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(20.0f, 30.0f, 40.0f);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Flat);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
shape->get_ThreeDFormat()->set_Material(MaterialPresetType::Flat);
shape->get_ThreeDFormat()->set_ExtrusionHeight(100.0);
shape->get_ThreeDFormat()->get_ExtrusionColor()->set_Color(extrusionColor);

auto thumbnail = slide->GetImage(imageScale, imageScale);
thumbnail->Save(u"shape_3d.png");
thumbnail->Dispose();

presentation->Save(u"shape_3d.pptx", SaveFormat::Pptx);
presentation->Dispose();

渲染后的幻灯片图像显示矩形为一个厚实的 3D 块:

Rendered blue 3D rectangle with white 3D text on the front face

使用相机旋转形状

在 PowerPoint 中,3D 旋转通过“3‑D 旋转”窗格配置。X、Y、Z 旋转值对应通过相机 API 设置的旋转。

PowerPoint 3-D Rotation pane with X, Y, and Z rotation values highlighted

在 Aspose.Slides 中,通过 IThreeDFormat::get_Camera 访问相机。以下示例创建一个矩形,选择正交前视图,并将其 X、Y、Z 旋转分别设为 20、30、40 度。示例在内存中配置形状,未保存文件:

#include <DOM/CameraPresetType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>

using namespace Aspose::Slides;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 200.0f, 200.0f);

shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(20.0f, 30.0f, 40.0f);

presentation->Dispose();

当需要改变观看者看到对象的方式时使用相机。它不会改变幻灯片上 2D 形状的几何形状,只会改变 PowerPoint 与 Aspose.Slides 渲染时使用的 3D 视点。

从模板形状复制相机方向

要匹配模板形状的相机方向,可通过 get_CameraType 读取其预设并使用 set_CameraType 应用。示例打开 template.pptx,将第一张幻灯片中第一个形状的相机方向复制到第二个形状。两个形状均已拥有 3D 灯光,第二个形状没有显式的相机旋转。

GetRotation 返回度数。索引 0 为纬度,1 为经度,2 为旋转。按该顺序将角度传递给 SetRotation。如果源没有显式旋转,GetRotation 返回空指针,此时保持第二个形状的角度未设置。显式的 (0, 0, 0) 旋转会返回三个零的数组,应当复制。

#include <DOM/ICamera.h>
#include <DOM/IShape.h>
#include <DOM/ISlide.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/array.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"template.pptx");
auto slide = presentation->get_Slide(0);

auto sourceCamera = slide->get_Shape(0)->get_ThreeDFormat()->get_Camera();
auto destinationCamera = slide->get_Shape(1)->get_ThreeDFormat()->get_Camera();

destinationCamera->set_CameraType(sourceCamera->get_CameraType());
auto angles = sourceCamera->GetRotation();
if (angles != nullptr)
{
    destinationCamera->SetRotation(angles[0], angles[1], angles[2]);
}

presentation->Save(u"camera-copy.pptx", SaveFormat::Pptx);
presentation->Dispose();

在 PowerPoint 中重新打开 camera-copy.pptx,右侧的箭头与左侧的矩形拥有相同的相机预设和旋转。两者使用相同的灯光和挤压深度。

A blue 3D rectangle and a right arrow with matching camera orientation, viewed from above and to the right

添加挤压和深度

挤压通过在前表面后方延伸形状,使其看起来更厚。PowerPoint 中的深度控制决定可见的厚度,颜色控制决定侧面的颜色。

PowerPoint depth controls mapped to extrusion color and extrusion height properties

使用 IThreeDFormat::set_ExtrusionHeight 设置厚度,使用 IThreeDFormat::get_ExtrusionColor 设置侧面颜色。以下示例为矩形设置 100 点的挤压高度,侧面为紫色,并旋转相机以显示其厚度。示例在内存中配置形状,未保存文件:

#include <DOM/CameraPresetType.h>
#include <DOM/ILightRig.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace System::Drawing;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 200.0f, 200.0f);

shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(20.0f, 30.0f, 40.0f);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Flat);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
shape->get_ThreeDFormat()->set_Material(MaterialPresetType::Flat);
shape->get_ThreeDFormat()->set_ExtrusionHeight(100.0);

auto extrusionColor = Color::get_Purple();
shape->get_ThreeDFormat()->get_ExtrusionColor()->set_Color(extrusionColor);

presentation->Dispose();

IThreeDFormat::set_Depth 方法设置 3D 形状的深度。set_ExtrusionHeight 方法控制挤压效果的高度,如本示例所示。

在 3D 效果中使用渐变或图片填充

3D 格式化与形状填充独立。可以对前表面使用纯色、渐变、图案或图片填充,同时保持相同的相机、灯光、材质和挤压设置。

本示例对前表面应用蓝到橙的渐变,对 150 点的挤压侧面使用深橙色。渐变在 0% 和 100% 处分别为开始和结束颜色。相机旋转值以度为单位。幻灯片渲染为 PNG 图像(尺寸为默认的两倍):

#include <DOM/CameraPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IGradientFormat.h>
#include <DOM/IGradientStopCollection.h>
#include <DOM/ILightRig.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <IImage.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace System::Drawing;

const auto imageScale = 2.0f;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 250.0f, 250.0f);
shape->get_TextFrame()->set_Text(u"3D Gradient");
shape->get_TextFrame()->get_Paragraph(0)->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(64.0f);

auto firstGradientColor = Color::get_Blue();
auto secondGradientColor = Color::get_Orange();
shape->get_FillFormat()->set_FillType(FillType::Gradient);
shape->get_FillFormat()->get_GradientFormat()->get_GradientStops()->Add(0.0f, firstGradientColor);
shape->get_FillFormat()->get_GradientFormat()->get_GradientStops()->Add(100.0f, secondGradientColor);

auto extrusionColor = Color::get_DarkOrange();
shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(10.0f, 20.0f, 30.0f);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Flat);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
shape->get_ThreeDFormat()->set_Material(MaterialPresetType::Flat);
shape->get_ThreeDFormat()->set_ExtrusionHeight(150.0);
shape->get_ThreeDFormat()->get_ExtrusionColor()->set_Color(extrusionColor);

auto thumbnail = slide->GetImage(imageScale, imageScale);
thumbnail->Save(u"gradient_3d.png");
thumbnail->Dispose();

presentation->Dispose();

渲染输出保留前表面的渐变,并单独渲染挤压侧面:

Rendered 3D rectangle with a blue-to-orange gradient fill and orange extrusion

若要使用图片填充,先将图像添加到演示文稿并分配给形状填充。此示例需要工作目录中已有名为 “image.jpg” 的文件。它将图片拉伸填充矩形,应用 150 点的挤压,并以度为单位设置相机旋转。示例在内存中配置形状,未保存或渲染文件:

#include <DOM/CameraPresetType.h>
#include <DOM/ILightRig.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IImageCollection.h>
#include <DOM/IPictureFillFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ISlidesPicture.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/PictureFillMode.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <drawing/color.h>
#include <system/io/file.h>

using namespace Aspose::Slides;
using namespace System::Drawing;
using namespace System::IO;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 250.0f, 250.0f);

auto imageData = File::ReadAllBytes(u"image.jpg");
auto image = presentation->get_Images()->AddImage(imageData);

shape->get_FillFormat()->set_FillType(FillType::Picture);
shape->get_FillFormat()->get_PictureFillFormat()->get_Picture()->set_Image(image);
shape->get_FillFormat()->get_PictureFillFormat()->set_PictureFillMode(PictureFillMode::Stretch);

auto extrusionColor = Color::get_DarkOrange();
shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(10.0f, 20.0f, 30.0f);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Flat);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
shape->get_ThreeDFormat()->set_Material(MaterialPresetType::Flat);
shape->get_ThreeDFormat()->set_ExtrusionHeight(150.0);
shape->get_ThreeDFormat()->get_ExtrusionColor()->set_Color(extrusionColor);

presentation->Dispose();

图片在前表面渲染,挤压作为 3D 侧面渲染:

Rendered 3D rectangle with a photo fill on the front face and orange extrusion

对文本应用 3D 格式化

形状的 3D 格式化影响形状本体,文本的 3D 格式化影响文本框。这对于需要对文字本身进行挤压、材质、灯光和相机设置的 WordArt 类效果非常有用。

以下示例创建带有橙白网格图案的文本,应用向上拱形,并通过 ITextFrameFormat::get_ThreeDFormat 配置 3D 设置。挤压高度和深度以点为单位,灯光旋转以度为单位。形状填充和轮廓被隐藏,仅保留文字可见。示例将 PNG 图像渲染为默认幻灯片尺寸的两倍,并保存演示文稿为 PPTX:

#include <DOM/CameraPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILightRig.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPatternFormat.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/PatternStyle.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextShapeType.h>
#include <Export/SaveFormat.h>
#include <IImage.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

const auto imageScale = 2.0f;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 250.0f, 250.0f);

shape->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_TextFrame()->set_Text(u"3D Text");

auto portion = shape->get_TextFrame()->get_Paragraph(0)->get_Portion(0);
portion->get_PortionFormat()->get_FillFormat()->set_FillType(FillType::Pattern);

auto foregroundColor = Color::get_DarkOrange();
auto backgroundColor = Color::get_White();
portion->get_PortionFormat()->get_FillFormat()->get_PatternFormat()->get_ForeColor()->set_Color(foregroundColor);
portion->get_PortionFormat()->get_FillFormat()->get_PatternFormat()->get_BackColor()->set_Color(backgroundColor);
portion->get_PortionFormat()->get_FillFormat()->get_PatternFormat()->set_PatternStyle(PatternStyle::LargeGrid);

shape->get_TextFrame()->get_Paragraph(0)->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(128.0f);

auto textFrameFormat = shape->get_TextFrame()->get_TextFrameFormat();
textFrameFormat->set_Transform(TextShapeType::ArchUp);
textFrameFormat->get_ThreeDFormat()->set_ExtrusionHeight(3.5);
textFrameFormat->get_ThreeDFormat()->set_Depth(3.0);
textFrameFormat->get_ThreeDFormat()->set_Material(MaterialPresetType::Plastic);
textFrameFormat->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
textFrameFormat->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Balanced);
textFrameFormat->get_ThreeDFormat()->get_LightRig()->SetRotation(0.0f, 0.0f, 40.0f);
textFrameFormat->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::PerspectiveContrastingRightFacing);

auto thumbnail = slide->GetImage(imageScale, imageScale);
thumbnail->Save(u"text_3d.png");
thumbnail->Dispose();

presentation->Save(u"text_3d.pptx", SaveFormat::Pptx);
presentation->Dispose();

文本被渲染为弧形、挤压的 3D 字体:

Rendered 3D text with an arched WordArt transform, orange pattern fill, and dark extrusion

在 3D 形状上保持文字平面

要在保持形状 3D 外观的同时让文字保持可读,请通过 ITextFrame::get_TextFrameFormat 调用 ITextFrameFormat::set_KeepTextFlat。当该值为 true 时,文字不参与 3D 场景;为 false 时,文字会随 3D 场景一起倾斜。

此设置不会移除形状的 3D 格式化:相机、灯光、材质和挤压仍通过 IShape::get_ThreeDFormat 配置。它也不同于普通旋转。IShape::set_Rotation 旋转的是幻灯片平面的形状,而 ITextFrameFormat::set_RotationAngle 控制文本在其边框内的自定义旋转。将文字排除在 3D 场景外不会重置这两个角度。

以下独立示例创建一个带文字的蓝色矩形,并在原始矩形旁边克隆一份。两个形状拥有相同的 3D 格式化,仅文字设置不同:左侧为 false,右侧为 true。相机角度以度为单位,挤压高度为 40 点。示例保存演示文稿为 PPTX,并将对比幻灯片渲染为 PNG(尺寸为默认的两倍)。

#include <DOM/ITextFrameFormat.h>
#include <DOM/TextAlignment.h>
#include <DOM/TextAnchorType.h>
#include <DOM/CameraPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILightRig.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <IImage.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 70.0f, 160.0f, 240.0f, 140.0f);

shape->get_TextFrame()->set_Text(u"Readable text");
shape->get_TextFrame()->get_Paragraph(0)->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(28.0f);
shape->get_TextFrame()->get_Paragraph(0)->get_ParagraphFormat()->set_Alignment(TextAlignment::Center);
shape->get_TextFrame()->get_TextFrameFormat()->set_AnchoringType(TextAnchorType::Center);
shape->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_CornflowerBlue());

shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(30.0f, 30.0f, 0.0f);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Flat);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
shape->get_ThreeDFormat()->set_Material(MaterialPresetType::Flat);
shape->get_ThreeDFormat()->set_ExtrusionHeight(40.0);
shape->get_ThreeDFormat()->get_ExtrusionColor()->set_Color(Color::get_RoyalBlue());
shape->get_TextFrame()->get_TextFrameFormat()->set_KeepTextFlat(false);

auto clonedShape = slide->get_Shapes()->AddClone(shape, 400.0f, 160.0f);
auto flatTextShape = System::ExplicitCast<IAutoShape>(clonedShape);
flatTextShape->get_TextFrame()->get_TextFrameFormat()->set_KeepTextFlat(true);

presentation->Save(u"keep_text_flat.pptx", SaveFormat::Pptx);
auto image = slide->GetImage(2.0f, 2.0f);
image->Save(u"keep_text_flat.png");
image->Dispose();
presentation->Dispose();

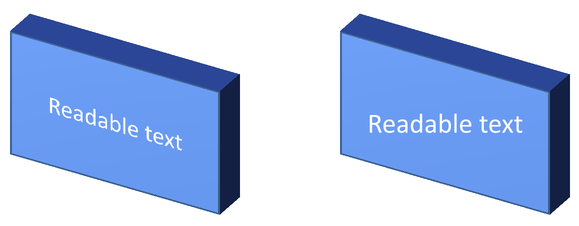

左侧文字随 3D 方向倾斜,右侧文字保持平面且更易阅读。两个矩形保留相同的可见挤压和 3D 方向。

Side-by-side 3D rectangles: KeepTextFlat is false on the left and true on the right

导出和渲染行为

Aspose.Slides 在保存为 PPTX 等 PowerPoint 格式时会保留 3D 格式化。渲染或导出为固定布局格式时,3D 场景会被光栅化或绘制为 2D 结果。此行为在以下场景均适用:将幻灯片渲染为 PNG、导出为 PDF、导出为 HTML,或为 视频转换 生成帧。

请注意以下要点:

  • 导出的图像和 PDF 不是交互式的,导出后对象无法被观看者旋转。
  • 最终外观取决于相机、灯光装置、材质、挤压、填充以及幻灯片缩放的组合。
  • 若需检查继承或基于主题的格式化值,请读取 effective shape properties。
  • 某些输出格式无法存储可编辑的 PowerPoint 3D 格式化。在这些格式中,视觉结果会被渲染,而不是以可编辑的 3D 设置保存。

常见问题解答

Aspose.Slides 能创建交互式 3D 演示文稿吗?

Aspose.Slides 创建并渲染 PowerPoint 形状和文本的 3D 效果。它不会使导出的图像、PDF 或 HTML 页面成为可交互的 3D 场景供观看者旋转。 在 PPTX 中,只要格式支持,3D 格式化仍保持可编辑。

3D 模型与 3D 效果有什么区别?

3D 模型是插入演示文稿的独立 3D 对象。3D 效果是对普通 PowerPoint 形状或文本应用的格式化,如旋转、挤压、倒角、灯光和材质。本文只讨论 3D 效果。

要让 3D 形状可见,必须设置哪些参数?

至少需要设置相机旋转以及挤压或深度。实际使用中,还应设置灯光装置和材质,以便渲染出的面拥有清晰的高光和阴影。

我可以同时对形状和文本应用 3D 效果吗?

可以。对形状本体使用 IShape::get_ThreeDFormat,对文本使用 ITextFrameFormat::get_ThreeDFormat。

导出为图像、PDF、HTML 或视频帧时,3D 效果会出现吗?

会。Aspose.Slides 在生成幻灯片图像、PDF、HTML 和用于视频转换的帧时会渲染 3D 效果。导出的输出包含渲染后的外观,而不是可编辑的 3D 对象。

我能读取在继承和主题设置之后的最终 3D 值吗?

可以。使用在 Shape Effective Properties 中描述的有效格式化 API,读取最终的相机、灯光装置、倒角及相关 3D 值。
