使用 C++ 在簡報中建立 3D 效果
概觀
Aspose.Slides for C++ 能夠建立、編輯、保存並呈現 PowerPoint 風格的 3D 格式設定,適用於圖形和文字。本文介紹 3D 效果,例如旋轉、擠出、斜面、光照、材質、漸層或圖片填充,以及 3D 文字。
Note
本文說明的是 PowerPoint 圖形與文字的 3D 格式設定效果,並非插入或編輯獨立的 3D 模型檔案。當您將投影片匯出為圖片、PDF 或 HTML 時,Aspose.Slides 會將這些 3D 效果渲染成匯出的 2D 輸出。3D 格式設定概念
使用 IShape::get_ThreeDFormat 方法為圖形套用 3D 格式設定。此方法會傳回 IThreeDFormat,用以控制該圖形的 3D 場景。
對於文字,請使用 ITextFrameFormat::get_ThreeDFormat 方法。此方法會將 3D 格式設定套用到文字框,而非圖形本體。
最重要的方法包括:
| 方法 | 控制項目 | 使用時機 |
|---|---|---|
| get_Camera | 視點、預設相機類型、旋轉、縮放與透視。 | 在 3D 空間中旋轉物件或匹配 PowerPoint 的 3D 旋轉預設。 |
| get_LightRig | 光源預設、方向與光線旋轉。 | 更改 3D 表面的高光與陰影呈現方式。 |
| set_Material | 表面材質,例如平面、霧面、塑膠或金屬。 | 讓相同的幾何形狀看起來更平坦、柔和、有光澤或金屬感。 |
| set_ExtrusionHeight | 圖形從正面向後延伸的距離。 | 將平面圖形變成可見的厚實 3D 物件。 |
| get_ExtrusionColor | 擠出側面的顏色。 | 使深度可見,或讓側面顏色與正面填充協調。 |
| set_Depth | PowerPoint 3D 格式設定使用的額外 3D 深度。 | 微調圖形或文字的深度,特別是與斜角與材質設定一起使用時。 |
| get_BevelTop and get_BevelBottom | 正面與背面之提升或圓角邊緣。 | 加入柔和或成型的邊緣,取代銳利平面的外觀。 |
| get_ContourColor and set_ContourWidth | 3D 物件的輪廓線。 | 在渲染輸出中強調物件邊界。 |
建立 3D 圖形
圖形通常需要四種設定,才能呈現出逼真的 3D 效果:
- 相機設定,因為預設的正面視圖可能會隱藏擠出效果。
- 光源設定,因為光線讓各面與側面更易辨識。
- 材質設定,因為表面會影響光線的呈現方式。
- 擠出或深度設定,因為平面圖形需要具備厚度。
下列範例建立一個矩形、在其正面加入文字,並套用 3D 格式設定。相機旋轉值以度數表示,擠出高度為 100 點。此範例會將投影片渲染為兩倍預設尺寸的 PNG 圖片,並將簡報另存為 PPTX。
#include <DOM/CameraPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILightRig.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <IImage.h>
#include <drawing/color.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;
const auto imageScale = 2.0f;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 200.0f, 200.0f);
shape->get_TextFrame()->set_Text(u"3D");
shape->get_TextFrame()->get_Paragraph(0)->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(64.0f);
auto frontColor = Color::get_CornflowerBlue();
shape->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_FillFormat()->get_SolidFillColor()->set_Color(frontColor);
auto extrusionColor = Color::get_Blue();
shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(20.0f, 30.0f, 40.0f);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Flat);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
shape->get_ThreeDFormat()->set_Material(MaterialPresetType::Flat);
shape->get_ThreeDFormat()->set_ExtrusionHeight(100.0);
shape->get_ThreeDFormat()->get_ExtrusionColor()->set_Color(extrusionColor);
auto thumbnail = slide->GetImage(imageScale, imageScale);
thumbnail->Save(u"shape_3d.png");
thumbnail->Dispose();
presentation->Save(u"shape_3d.pptx", SaveFormat::Pptx);
presentation->Dispose();

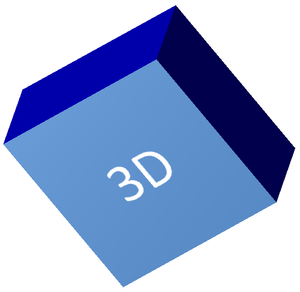

渲染出的投影片圖像顯示此矩形為一個厚實的 3D 方塊:

使用相機旋轉圖形

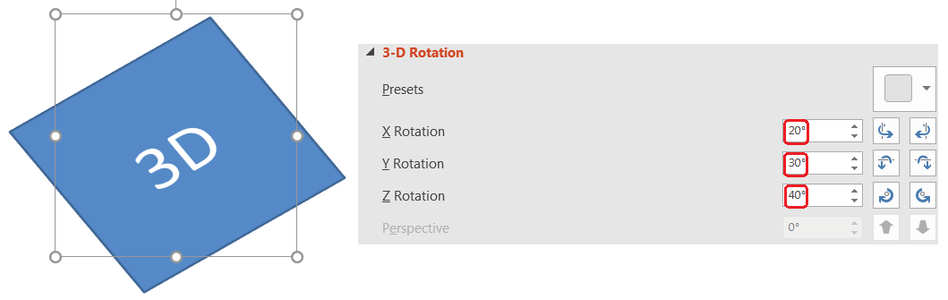

在 PowerPoint 中,3D 旋轉是透過「3-D Rotation」面板設定。X、Y、Z 旋轉值對應於您透過相機 API 設定的旋轉。

在 Aspose.Slides 中,可透過 IThreeDFormat::get_Camera 取得相機。此範例建立一個矩形、選取正交前視圖,並分別將其 X、Y、Z 旋轉設定為 20、30、40 度。它在記憶體中配置圖形,未寫入檔案:
#include <DOM/CameraPresetType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
using namespace Aspose::Slides;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 200.0f, 200.0f);
shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(20.0f, 30.0f, 40.0f);
presentation->Dispose();
當您需要變更觀眾觀看物件的角度時,請使用相機。它不會改變投影片上 2D 圖形的幾何形狀,只會改變 PowerPoint 以及 Aspose.Slides 渲染時使用的 3D 觀點。
從範本圖形複製相機方向
若要匹配範本圖形的相機方向,先使用 get_CameraType 讀取其預設,再以 set_CameraType 套用。此範例開啟 template.pptx,將第一張投影片第一個圖形的相機方向複製到第二個圖形。兩個圖形皆已有 3D 燈光,而第二個圖形則未設定明確的相機旋轉。
GetRotation 以度數回傳角度。索引 0 為緯度,1 為經度,2 為旋轉。請依此順序將角度傳入 SetRotation。如果來源未設定明確的旋轉,GetRotation 會回傳 null 指標,則保持第二個圖形的角度未設定。明確的 (0, 0, 0) 旋轉會回傳三個零的陣列,應予以複製。
#include <DOM/ICamera.h>
#include <DOM/IShape.h>
#include <DOM/ISlide.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <system/array.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
auto presentation = System::MakeObject<Presentation>(u"template.pptx");
auto slide = presentation->get_Slide(0);
auto sourceCamera = slide->get_Shape(0)->get_ThreeDFormat()->get_Camera();
auto destinationCamera = slide->get_Shape(1)->get_ThreeDFormat()->get_Camera();
destinationCamera->set_CameraType(sourceCamera->get_CameraType());
auto angles = sourceCamera->GetRotation();
if (angles != nullptr)
{
destinationCamera->SetRotation(angles[0], angles[1], angles[2]);
}
presentation->Save(u"camera-copy.pptx", SaveFormat::Pptx);
presentation->Dispose();
當您在 PowerPoint 中重新開啟 camera-copy.pptx 時,右側的箭頭與左側的矩形具有相同的相機預設與旋轉。兩個圖形使用相同的光源與擠出深度。

加入擠出與深度

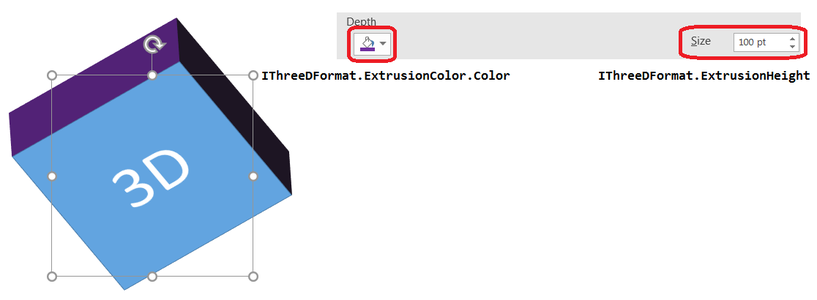

擠出透過將圖形延伸至正面後方,使其看起來更厚。於 PowerPoint 中,深度控制決定此可見的厚度,而顏色控制則設定側面的顏色。

使用 IThreeDFormat::set_ExtrusionHeight 設定厚度,並使用 IThreeDFormat::get_ExtrusionColor 設定側面顏色。此範例為矩形設定 100 點的擠出高度,側面為紫色,並旋轉相機以顯示其厚度。它在記憶體中配置圖形,未寫入檔案:
#include <DOM/CameraPresetType.h>
#include <DOM/ILightRig.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <drawing/color.h>
using namespace Aspose::Slides;
using namespace System::Drawing;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 200.0f, 200.0f);
shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(20.0f, 30.0f, 40.0f);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Flat);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
shape->get_ThreeDFormat()->set_Material(MaterialPresetType::Flat);
shape->get_ThreeDFormat()->set_ExtrusionHeight(100.0);
auto extrusionColor = Color::get_Purple();
shape->get_ThreeDFormat()->get_ExtrusionColor()->set_Color(extrusionColor);
presentation->Dispose();
IThreeDFormat::set_Depth 方法設定 3D 圖形的深度。而 set_ExtrusionHeight 方法控制擠出效果的高度,如本範例所示。
在 3D 效果中使用漸層或圖片填充
3D 格式設定與圖形填充互不影響。您可以對正面套用純色、漸層、圖樣或圖片填充,同時保持相同的相機、光源、材質與擠出設定。
此範例將藍色至橙色的漸層套用於正面,側面的 150 點擠出則使用深橙色。漸層的 0 與 100 位置分別標示起始與結束。相機旋轉值以度數表示。投影片渲染為兩倍預設尺寸的 PNG 圖片:
#include <DOM/CameraPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IGradientFormat.h>
#include <DOM/IGradientStopCollection.h>
#include <DOM/ILightRig.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <IImage.h>
#include <drawing/color.h>
using namespace Aspose::Slides;
using namespace System::Drawing;
const auto imageScale = 2.0f;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 250.0f, 250.0f);
shape->get_TextFrame()->set_Text(u"3D Gradient");
shape->get_TextFrame()->get_Paragraph(0)->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(64.0f);
auto firstGradientColor = Color::get_Blue();
auto secondGradientColor = Color::get_Orange();
shape->get_FillFormat()->set_FillType(FillType::Gradient);
shape->get_FillFormat()->get_GradientFormat()->get_GradientStops()->Add(0.0f, firstGradientColor);
shape->get_FillFormat()->get_GradientFormat()->get_GradientStops()->Add(100.0f, secondGradientColor);
auto extrusionColor = Color::get_DarkOrange();
shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(10.0f, 20.0f, 30.0f);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Flat);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
shape->get_ThreeDFormat()->set_Material(MaterialPresetType::Flat);
shape->get_ThreeDFormat()->set_ExtrusionHeight(150.0);
shape->get_ThreeDFormat()->get_ExtrusionColor()->set_Color(extrusionColor);
auto thumbnail = slide->GetImage(imageScale, imageScale);
thumbnail->Save(u"gradient_3d.png");
thumbnail->Dispose();
presentation->Dispose();

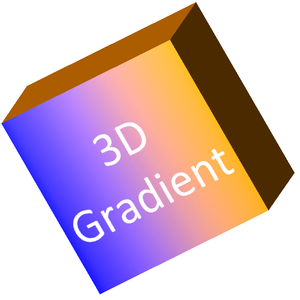

渲染結果保留正面的漸層,並分別渲染擠出側面:

若改用圖片填充,請先將圖片加入簡報,並指派給圖形填充。此範例需要工作目錄中已有名為 “image.jpg” 的檔案。它會將圖片拉伸以填滿矩形,套用 150 點的擠出,並以度數設定相機旋轉。圖形於記憶體中配置,未寫入或渲染檔案:
#include <DOM/CameraPresetType.h>
#include <DOM/ILightRig.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IImageCollection.h>
#include <DOM/IPictureFillFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ISlidesPicture.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/PictureFillMode.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <drawing/color.h>
#include <system/io/file.h>
using namespace Aspose::Slides;
using namespace System::Drawing;
using namespace System::IO;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 250.0f, 250.0f);
auto imageData = File::ReadAllBytes(u"image.jpg");
auto image = presentation->get_Images()->AddImage(imageData);
shape->get_FillFormat()->set_FillType(FillType::Picture);
shape->get_FillFormat()->get_PictureFillFormat()->get_Picture()->set_Image(image);
shape->get_FillFormat()->get_PictureFillFormat()->set_PictureFillMode(PictureFillMode::Stretch);
auto extrusionColor = Color::get_DarkOrange();
shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(10.0f, 20.0f, 30.0f);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Flat);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
shape->get_ThreeDFormat()->set_Material(MaterialPresetType::Flat);
shape->get_ThreeDFormat()->set_ExtrusionHeight(150.0);
shape->get_ThreeDFormat()->get_ExtrusionColor()->set_Color(extrusionColor);
presentation->Dispose();

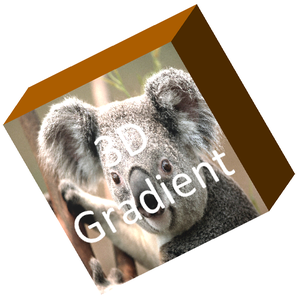

圖片會渲染於正面,而擠出則以 3D 側面表面呈現:

將 3D 格式設定套用於文字
圖形的 3D 格式設定會影響圖形本體;文字的 3D 格式設定則影響文字框。這對於類似 WordArt 的效果很有用,因為字母本身需要擠出、材質、光照與相機設定。

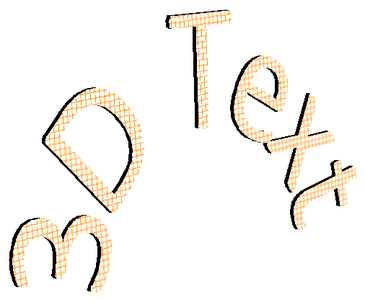

以下範例建立帶有橙白格線圖樣的文字,套用向上拱形,並透過 ITextFrameFormat::get_ThreeDFormat 設定 3D 參數。擠出高度與深度以點為單位,光源旋轉以度數表示。圖形的填充與輪廓被隱藏,僅顯示文字本身。此範例會以兩倍預設投影片尺寸渲染 PNG 圖片,並將簡報儲存為 PPTX:
#include <DOM/CameraPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILightRig.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPatternFormat.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/PatternStyle.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextShapeType.h>
#include <Export/SaveFormat.h>
#include <IImage.h>
#include <drawing/color.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;
const auto imageScale = 2.0f;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200.0f, 150.0f, 250.0f, 250.0f);
shape->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_TextFrame()->set_Text(u"3D Text");
auto portion = shape->get_TextFrame()->get_Paragraph(0)->get_Portion(0);
portion->get_PortionFormat()->get_FillFormat()->set_FillType(FillType::Pattern);
auto foregroundColor = Color::get_DarkOrange();
auto backgroundColor = Color::get_White();
portion->get_PortionFormat()->get_FillFormat()->get_PatternFormat()->get_ForeColor()->set_Color(foregroundColor);
portion->get_PortionFormat()->get_FillFormat()->get_PatternFormat()->get_BackColor()->set_Color(backgroundColor);
portion->get_PortionFormat()->get_FillFormat()->get_PatternFormat()->set_PatternStyle(PatternStyle::LargeGrid);
shape->get_TextFrame()->get_Paragraph(0)->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(128.0f);
auto textFrameFormat = shape->get_TextFrame()->get_TextFrameFormat();
textFrameFormat->set_Transform(TextShapeType::ArchUp);
textFrameFormat->get_ThreeDFormat()->set_ExtrusionHeight(3.5);
textFrameFormat->get_ThreeDFormat()->set_Depth(3.0);
textFrameFormat->get_ThreeDFormat()->set_Material(MaterialPresetType::Plastic);
textFrameFormat->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
textFrameFormat->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Balanced);
textFrameFormat->get_ThreeDFormat()->get_LightRig()->SetRotation(0.0f, 0.0f, 40.0f);
textFrameFormat->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::PerspectiveContrastingRightFacing);
auto thumbnail = slide->GetImage(imageScale, imageScale);
thumbnail->Save(u"text_3d.png");
thumbnail->Dispose();
presentation->Save(u"text_3d.pptx", SaveFormat::Pptx);
presentation->Dispose();
文字呈現為彎曲、擠出的 3D 字體:

在 3D 圖形上保持文字平面
若要在保持圖形 3D 外觀的同時使文字可讀,請透過 ITextFrame::get_TextFrameFormat 呼叫 ITextFrameFormat::set_KeepTextFlat。當值為 true 時,文字會保持在 3D 場景之外;為 false 時,文字會參與 3D 場景,並跟隨其 3D 方向。
此設定不會移除圖形的 3D 格式設定:其相機、光照、材質與擠出仍透過 IShape::get_ThreeDFormat 進行配置。它也不同於普通的旋轉。IShape::set_Rotation 會在投影片平面上旋轉圖形,而 ITextFrameFormat::set_RotationAngle 控制文字在其邊界盒內的自訂旋轉。將文字保持在 3D 場景之外不會重設上述任何角度。
以下獨立範例建立一個藍色矩形與文字,並在旁邊複製一個相同的圖形。兩個圖形具有相同的 3D 格式設定,唯有文字設定不同:左側為 false,右側為 true。相機角度以度數表示,擠出高度為 40 點。此範例將簡報儲存為 PPTX,並以兩倍預設尺寸渲染比較投影片為 PNG 圖片。
#include <DOM/ITextFrameFormat.h>
#include <DOM/TextAlignment.h>
#include <DOM/TextAnchorType.h>
#include <DOM/CameraPresetType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ICamera.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILightRig.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/IThreeDFormat.h>
#include <DOM/LightRigPresetType.h>
#include <DOM/LightingDirection.h>
#include <DOM/MaterialPresetType.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <IImage.h>
#include <drawing/color.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System::Drawing;
auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 70.0f, 160.0f, 240.0f, 140.0f);
shape->get_TextFrame()->set_Text(u"Readable text");
shape->get_TextFrame()->get_Paragraph(0)->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(28.0f);
shape->get_TextFrame()->get_Paragraph(0)->get_ParagraphFormat()->set_Alignment(TextAlignment::Center);
shape->get_TextFrame()->get_TextFrameFormat()->set_AnchoringType(TextAnchorType::Center);
shape->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_CornflowerBlue());
shape->get_ThreeDFormat()->get_Camera()->set_CameraType(CameraPresetType::OrthographicFront);
shape->get_ThreeDFormat()->get_Camera()->SetRotation(30.0f, 30.0f, 0.0f);
shape->get_ThreeDFormat()->get_LightRig()->set_LightType(LightRigPresetType::Flat);
shape->get_ThreeDFormat()->get_LightRig()->set_Direction(LightingDirection::Top);
shape->get_ThreeDFormat()->set_Material(MaterialPresetType::Flat);
shape->get_ThreeDFormat()->set_ExtrusionHeight(40.0);
shape->get_ThreeDFormat()->get_ExtrusionColor()->set_Color(Color::get_RoyalBlue());
shape->get_TextFrame()->get_TextFrameFormat()->set_KeepTextFlat(false);
auto clonedShape = slide->get_Shapes()->AddClone(shape, 400.0f, 160.0f);
auto flatTextShape = System::ExplicitCast<IAutoShape>(clonedShape);
flatTextShape->get_TextFrame()->get_TextFrameFormat()->set_KeepTextFlat(true);
presentation->Save(u"keep_text_flat.pptx", SaveFormat::Pptx);
auto image = slide->GetImage(2.0f, 2.0f);
image->Save(u"keep_text_flat.png");
image->Dispose();
presentation->Dispose();

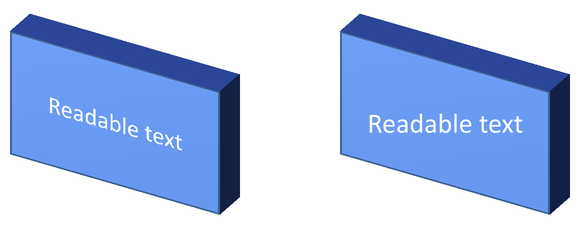

左側的文字遵循 3D 方向;右側的文字保持平面且較易閱讀。兩個矩形皆保留相同的可見擠出與 3D 方向。

匯出與渲染行為
Aspose.Slides 在儲存為 PowerPoint 格式(如 PPTX)時會保留 3D 格式設定。當渲染或匯出為固定版面格式時,3D 場景會被光柵化或繪製為 2D 結果。這在將投影片渲染為 PNG、匯出為 PDF、匯出為 HTML,或產生用於 影片轉換 的畫格時皆適用。
請注意以下要點:
- 匯出的圖片與 PDF 不是互動式的,匯出後使用者無法旋轉物件。
- 最終外觀取決於相機、光源、材質、擠出、填充與投影片縮放的組合。
- 若需檢視繼承或佈景主題設定下的格式值,請參考 有效圖形屬性。
- 某些輸出格式無法保存可編輯的 PowerPoint 3D 格式設定。在這些格式中,視覺結果會被渲染,而非保留為可編輯的 3D 設定。
常見問題
Aspose.Slides 能夠建立互動式 3D 簡報嗎?
Aspose.Slides 會建立並渲染 PowerPoint 圖形與文字的 3D 效果。但它不會將匯出的圖片、PDF 或 HTML 頁面製作成可讓觀眾旋轉的互動式 3D 場景。在 PPTX 中,只要格式支援,3D 格式設定仍可在 PowerPoint 中編輯。
3D 模型與 3D 效果有何差異?
3D 模型是插入到簡報中的獨立 3D 物件。3D 效果則是套用於一般 PowerPoint 圖形或文字的格式設定,如旋轉、擠出、斜角、光照與材質。本文僅討論 3D 效果。
需要哪些設定才能看到可見的 3D 圖形?
至少需要設定相機旋轉,並設定擠出或深度。實務上,通常也會設定光源與材質,以確保渲染的面具有明顯的高光與陰影。
我可以將 3D 效果套用於圖形與文字嗎?
可以。對圖形本體使用 IShape::get_ThreeDFormat,對文字使用 ITextFrameFormat::get_ThreeDFormat。
匯出為圖片、PDF、HTML 或影片畫格時會顯示 3D 效果嗎?
會。Aspose.Slides 在產生投影片圖像、PDF、HTML 以及用於影片轉換的畫格時,會渲染 3D 效果。匯出的結果僅包含已渲染的外觀,而非可編輯的 3D 物件。
我可以在套用繼承與佈景主題設定後讀取最終的 3D 值嗎?
可以。請使用在 圖形有效屬性 中描述的有效格式化 API,讀取最終的相機、光源、斜角及相關 3D 值。
