Android에서 프레젠테이션의 글머리표 및 번호 매기기 목록 관리

개요

Aspose.Slides for Android via Java를 사용하면 PowerPoint 및 OpenDocument 프레젠테이션에서 글머리표 및 번호 매기기 목록을 만들고 서식 지정할 수 있습니다. 목록 항목은 글머리표 설정이 단락 서식을 통해 제어되는 단락입니다.

단락 수준 목록 설정에 접근하려면 IParagraph.getParagraphFormat 메서드를 사용하십시오. 주요 진입점은 IParagraphFormat.getBullet이며, 이는 IBulletFormat 객체를 반환합니다. 이 객체를 사용하여 글머리표 유형, 기호, 그림, 색상, 크기, 번호 매기기 스타일 및 시작 번호를 설정할 수 있습니다.

이 문서에서는 다음과 같은 방법을 보여줍니다:

  • 사용자 지정 기호로 글머리표 목록 만들기
  • 그림 글머리표 만들기
  • 단락 깊이를 설정하여 다중 수준 목록 만들기
  • 번호 매기기 목록 만들기
  • 기존 프레젠테이션에서 목록 서식을 검사하고 변경하기
  • 단락 텍스트와 함께 실제 목록 마커 및 번호 읽기

글머리표 목록 만들기

글머리표 목록을 만들려면 ITextFrame에 단락을 추가하고 IBulletFormat.setType을 BulletType.Symbol으로 설정합니다. 그런 다음 IBulletFormat.setChar, IBulletFormat.getColor, 및 IBulletFormat.setHeight을 설정하여 글머리표 모양을 제어할 수 있습니다.

다음 Java 코드는 슬라이드에서 글머리표 목록을 만드는 방법을 보여줍니다:

import com.aspose.slides.*;
import android.graphics.Color;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape autoShape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 20, 20, 200, 50);

    ITextFrame textFrame = autoShape.getTextFrame();
    textFrame.getParagraphs().clear();

    int bulletColor = Color.rgb(205, 92, 92);

    Paragraph paragraph1 = new Paragraph();
    paragraph1.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    paragraph1.getParagraphFormat().getBullet().setChar('*');
    paragraph1.getParagraphFormat().setIndent(15);
    paragraph1.getParagraphFormat().getBullet().setBulletHardColor(NullableBool.True);
    paragraph1.getParagraphFormat().getBullet().getColor().setColor(bulletColor);
    paragraph1.getParagraphFormat().getBullet().setHeight(100);
    paragraph1.setText("The first paragraph");
    textFrame.getParagraphs().add(paragraph1);

    Paragraph paragraph2 = new Paragraph();
    paragraph2.getParagraphFormat().getBullet().setType(BulletType.Symbol);
    paragraph2.getParagraphFormat().getBullet().setChar('*');
    paragraph2.getParagraphFormat().setIndent(15);
    paragraph2.getParagraphFormat().getBullet().setBulletHardColor(NullableBool.True);
    paragraph2.getParagraphFormat().getBullet().getColor().setColor(bulletColor);
    paragraph2.getParagraphFormat().getBullet().setHeight(100);
    paragraph2.setText("The second paragraph");
    textFrame.getParagraphs().add(paragraph2);

    presentation.save("symbol_bullets.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

결과:

기호 글머리표

번호 매기기 목록 만들기

항목의 순서가 중요할 때 번호 매기기 목록을 사용합니다. IBulletFormat.setType을 BulletType.Numbered으로 설정하십시오. 또한 IBulletFormat.setNumberedBulletStyle을 사용하여 번호 매기기 형식을 선택하거나, 목록을 1이 아닌 다른 값에서 시작하도록 할 경우 IBulletFormat.setNumberedBulletStartWith을 설정할 수 있습니다.

다음 Java 코드는 슬라이드에서 번호 매기기 목록을 만드는 방법을 보여줍니다:

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape autoShape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 20, 20, 90, 80);

    ITextFrame textFrame = autoShape.getTextFrame();
    textFrame.getParagraphs().clear();

    Paragraph paragraph1 = new Paragraph();
    paragraph1.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    paragraph1.setText("Apple");
    textFrame.getParagraphs().add(paragraph1);

    Paragraph paragraph2 = new Paragraph();
    paragraph2.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    paragraph2.setText("Orange");
    textFrame.getParagraphs().add(paragraph2);

    Paragraph paragraph3 = new Paragraph();
    paragraph3.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    paragraph3.setText("Banana");
    textFrame.getParagraphs().add(paragraph3);

    presentation.save("numbered_bullets.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

결과:

번호 매기기 글머리표

그림 글머리표 만들기

Aspose.Slides를 사용하면 일반 글머리표 기호를 이미지로 바꿀 수 있습니다. 그림 글머리표는 아이콘이나 작은 투명 PNG 파일처럼 작은 크기에서도 읽기 쉬운 간단한 이미지와 가장 잘 어울립니다.

그림 글머리표를 만들려면 Presentation.getImages에 이미지를 추가하고 반환된 IPPImage 객체를 IBulletFormat.getPicture에 할당합니다. 이미지를 할당하기 전에 IBulletFormat.setType을 BulletType.Picture으로 설정하십시오.

예를 들어 “image.png"가 있다고 가정해 보겠습니다:

글머리표용 이미지

다음 Java 코드는 슬라이드에서 그림 글머리표를 만드는 방법을 보여줍니다:

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape autoShape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 20, 20, 200, 50);

    ITextFrame textFrame = autoShape.getTextFrame();
    textFrame.getParagraphs().clear();

    IPPImage bulletImage = presentation.getImages().addImage(Images.fromFile("image.png"));

    Paragraph paragraph1 = new Paragraph();
    paragraph1.getParagraphFormat().getBullet().setType(BulletType.Picture);
    paragraph1.getParagraphFormat().getBullet().getPicture().setImage(bulletImage);
    paragraph1.getParagraphFormat().setIndent(15);
    paragraph1.getParagraphFormat().getBullet().setHeight(100);
    paragraph1.setText("The first paragraph");
    textFrame.getParagraphs().add(paragraph1);

    Paragraph paragraph2 = new Paragraph();
    paragraph2.getParagraphFormat().getBullet().setType(BulletType.Picture);
    paragraph2.getParagraphFormat().getBullet().getPicture().setImage(bulletImage);
    paragraph2.getParagraphFormat().setIndent(15);
    paragraph2.getParagraphFormat().getBullet().setHeight(100);
    paragraph2.setText("The second paragraph");
    textFrame.getParagraphs().add(paragraph2);

    presentation.save("picture_bullets.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

결과:

그림 글머리표

다중 수준 목록 만들기

IParagraphFormat.setDepth을 사용하여 목록 항목을 서로 다른 수준에 배치합니다. 레벨 0은 최상위 수준이며, 레벨 1은 그 아래에 중첩됩니다.

다음 Java 코드는 다중 수준 목록을 만드는 방법을 보여줍니다:

import com.aspose.slides.*;

Presentation presentation = new Presentation();
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape autoShape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 20, 20, 260, 110);

    ITextFrame textFrame = autoShape.getTextFrame();
    textFrame.getParagraphs().clear();

    Paragraph paragraph1 = new Paragraph();
    paragraph1.getParagraphFormat().setDepth((short) 0);
    paragraph1.setText("My text - Depth 0");
    textFrame.getParagraphs().add(paragraph1);

    Paragraph paragraph2 = new Paragraph();
    paragraph2.getParagraphFormat().setDepth((short) 1);
    paragraph2.setText("My text - Depth 1");
    textFrame.getParagraphs().add(paragraph2);

    Paragraph paragraph3 = new Paragraph();
    paragraph3.getParagraphFormat().setDepth((short) 2);
    paragraph3.setText("My text - Depth 2");
    textFrame.getParagraphs().add(paragraph3);

    Paragraph paragraph4 = new Paragraph();
    paragraph4.getParagraphFormat().setDepth((short) 3);
    paragraph4.setText("My text - Depth 3");
    textFrame.getParagraphs().add(paragraph4);

    presentation.save("multilevel_bullets.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

결과:

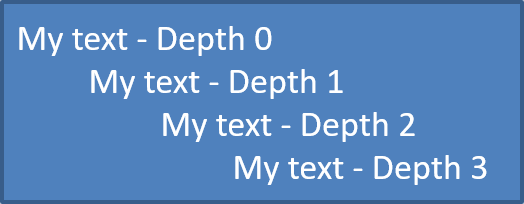

다중 수준 목록

기존 목록 변경

기존 프레젠테이션에서 목록 서식을 변경하려면 대상 단락에 접근한 후 IParagraphFormat.getBullet 설정을 업데이트합니다. 목록을 만들 때 사용한 동일한 메서드를 사용하여 PPT, PPTX 또는 ODP 파일에서 로드한 목록을 검사하거나 수정할 수 있습니다.

import com.aspose.slides.*;

Presentation presentation = new Presentation("input.pptx");
try {
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape autoShape = (IAutoShape) slide.getShapes().get_Item(0);

    IParagraph paragraph = autoShape.getTextFrame().getParagraphs().get_Item(0);
    paragraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
    paragraph.getParagraphFormat().getBullet().setNumberedBulletStyle(NumberedBulletStyle.BulletRomanUCPeriod);
    paragraph.getParagraphFormat().getBullet().setNumberedBulletStartWith((short) 1);
    paragraph.getParagraphFormat().setMarginLeft(30);
    paragraph.getParagraphFormat().setIndent(-20);

    presentation.save("updated_list.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

실제 글머리표 값 읽기

프레젠테이션 콘텐츠를 추출할 때 목록 마커를 단락 텍스트와 함께 유지합니다. IParagraphFormat.getEffective을 호출하고 IParagraphFormatEffectiveData.getBullet에 접근하여 실제 적용된 글머리표 형식을 가져옵니다. getActualBulletValue을 읽기 전에 getType을 확인하십시오.

번호 매기기 목록의 경우 다음 세 값을 구분합니다:

  • getNumberedBulletStyle은 형식을 결정합니다(예: 마침표가 뒤따르는 아라비아 숫자 또는 소문자 알파벳).
  • getNumberedBulletStartWith은 번호 매기기 단락 그룹의 시작 번호를 지정합니다.
  • getActualBulletValue은 특정 단락에 대한 서식이 적용된 마커를 반환합니다. 예를 들어 5부터 시작하는 목록의 두 번째 항목은 6.을 반환합니다.

각 단락에 대해 getDepth를 보존하여 중첩 수준을 유지하십시오. 실제 마커는 전체 계층 구조를 인코딩하지 않으며, 중첩된 항목은 6.c.와 같은 결합 레이블 대신 c.를 반환할 수 있습니다.

다음 자체 포함 예제는 목록을 만들고 프레젠테이션에 저장한 후 프레젠테이션을 다시 로드하여 각 단락의 텍스트, 깊이, 글머리표 유형 및 실제 값을 보고합니다. 작은 파란색 그림 마커는 인라인 SVG에서 생성됩니다.

import com.aspose.slides.*;
import android.graphics.Color;

Presentation presentation = new Presentation();
try {
    presentation.getSlideSize().setSize(720, 440, SlideSizeScaleType.DoNotScale);
    ISlide slide = presentation.getSlides().get_Item(0);

    IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 30, 20, 660, 400);
    shape.getFillFormat().setFillType(FillType.NoFill);
    shape.getLineFormat().getFillFormat().setFillType(FillType.NoFill);

    ITextFrame textFrame = shape.getTextFrame();
    textFrame.getParagraphs().clear();

    // 외부 이미지 파일 없이 그림 마커를 생성합니다.
    SvgImage svg = new SvgImage("<svg xmlns='http://www.w3.org/2000/svg' width='16' height='16'><rect width='16' height='16' rx='4' fill='#0078D4'/></svg>");
    IPPImage bulletImage = presentation.getImages().addImage(svg);

    class ListBuilder {
        void addParagraph(String text, short depth, byte type, short start, byte style) {
            Paragraph paragraph = new Paragraph();
            paragraph.setText(text);

            IParagraphFormat format = paragraph.getParagraphFormat();
            format.setDepth(depth);
            format.setMarginLeft(30 + depth * 40);
            format.setIndent(-28);
            format.setSpaceAfter(8);
            format.getDefaultPortionFormat().setFontHeight(22);
            format.getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
            format.getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
            format.getBullet().setType(type);
            format.getBullet().setBulletHardColor(NullableBool.True);
            format.getBullet().getColor().setColor(Color.BLACK);
            if (type == BulletType.Numbered) {
                format.getBullet().setNumberedBulletStyle(style);
                format.getBullet().setNumberedBulletStartWith(start);
            } else if (type == BulletType.Symbol) {
                format.getBullet().setChar('\u2022');
            } else if (type == BulletType.Picture) {
                format.getBullet().getPicture().setImage(bulletImage);
            }

            textFrame.getParagraphs().add(paragraph);
        }
    }

    ListBuilder list = new ListBuilder();
    list.addParagraph("First item", (short) 0, BulletType.Numbered, (short) 5, NumberedBulletStyle.BulletArabicPeriod);
    list.addParagraph("Second item", (short) 0, BulletType.Numbered, (short) 5, NumberedBulletStyle.BulletArabicPeriod);
    list.addParagraph("Nested item", (short) 1, BulletType.Numbered, (short) 3, NumberedBulletStyle.BulletAlphaLCPeriod);
    list.addParagraph("Next nested item", (short) 1, BulletType.Numbered, (short) 3, NumberedBulletStyle.BulletAlphaLCPeriod);
    list.addParagraph("Deep item", (short) 2, BulletType.Numbered, (short) 4, NumberedBulletStyle.BulletRomanLCPeriod);
    list.addParagraph("Back to top level", (short) 0, BulletType.Numbered, (short) 5, NumberedBulletStyle.BulletArabicPeriod);
    list.addParagraph("Symbol marker", (short) 0, BulletType.Symbol, (short) 1, NumberedBulletStyle.BulletArabicPeriod);
    list.addParagraph("No bullet", (short) 0, BulletType.None, (short) 1, NumberedBulletStyle.BulletArabicPeriod);
    list.addParagraph("Picture marker", (short) 0, BulletType.Picture, (short) 1, NumberedBulletStyle.BulletArabicPeriod);
    presentation.save("actual_bullet_values.pptx", SaveFormat.Pptx);
} finally {
    presentation.dispose();
}

Presentation loadedPresentation = new Presentation("actual_bullet_values.pptx");
try {
    IAutoShape loadedShape = (IAutoShape) loadedPresentation.getSlides().get_Item(0).getShapes().get_Item(0);
    System.out.println("Text | Depth | Type | Actual value");
    for (IParagraph paragraph : loadedShape.getTextFrame().getParagraphs()) {
        IBulletFormatEffectiveData bullet = paragraph.getParagraphFormat().getEffective().getBullet();
        String marker;
        switch (bullet.getType()) {
            case BulletType.Numbered:
            case BulletType.Symbol:
                marker = bullet.getActualBulletValue();
                break;
            case BulletType.None:
                marker = bullet.getActualBulletValue() + " (no bullet)";
                break;
            case BulletType.Picture:
                marker = bullet.getActualBulletValue() + " (image required)";
                break;
            default:
                marker = "unsupported bullet type";
                break;
        }
        String typeName = BulletType.getName(BulletType.class, bullet.getType());
        System.out.println(paragraph.getText() + " | " + paragraph.getParagraphFormat().getDepth() + " | " + typeName + " | " + marker);
    }
} finally {
    loadedPresentation.dispose();
}

소스 목록은 아래에 표시됩니다.

5부터 시작하고, 중첩된 문자 및 로마 숫자 항목, 기호 마커, 글머리표 없는 단락, 파란색 그림 마커

보고서는 PowerPoint에 표시된 마커와 일치합니다:

Text | Depth | Type | Actual value
First item | 0 | Numbered | 5.
Second item | 0 | Numbered | 6.
Nested item | 1 | Numbered | c.
Next nested item | 1 | Numbered | d.
Deep item | 2 | Numbered | iv.
Back to top level | 0 | Numbered | 7.
Symbol marker | 0 | Symbol | •
No bullet | 0 | None | null (no bullet)
Picture marker | 0 | Picture | null (image required)

BulletType.None and BulletType.Picture의 경우, getActualBulletValue은 빈 문자열이 아니라 null을 반환합니다. 이러한 유형을 별도로 처리하십시오: 전자는 마커가 없으며, 후자는 글머리표 이미지를 별도로 추출해야 합니다. 그림 글머리표는 텍스트 마커만 추출해서는 재현할 수 없습니다.

FAQ

글머리표 및 번호 매기기 목록을 PDF 또는 이미지로 내보낼 수 있나요?

예. Aspose.Slides는 대상 형식이 해당 텍스트 레이아웃 및 글머리표 기능을 지원하는 경우 목록 서식을 보존합니다.

기존 프레젠테이션에서 목록을 편집할 수 있나요?

예. 프레젠테이션을 로드하고 대상 단락에 접근한 다음 IParagraphFormat.getBullet 설정을 검사하거나 업데이트하고 프레젠테이션을 저장하십시오.

목록에 비라틴 문자 텍스트를 포함할 수 있나요?

예. 목록 항목 텍스트는 Unicode 문자를 포함할 수 있으므로 다국어 프레젠테이션에서 목록을 만들 수 있습니다. 프레젠테이션에 사용되는 글꼴이 필요한 문자를 지원하는지 확인하십시오.
