Plot Area Parameters in Aspose.Cells Charts

Introduction

When a chart is generated, Aspose.Cells automatically computes a plot area that accommodates axis titles, legends, data labels, etc. In many scenarios you may want to override this behaviour—for example, to align multiple charts on a single worksheet, reserve a fixed empty margin, or embed a chart inside a pre‐designed template. The PlotArea class provides two switches and a set of ratio properties to achieve that.

Property Category Default
IsAutomaticSize Layout mode switch true
IsInnerMode Ratio source switch false
XRatioToChart, YRatioToChart, WidthRatioToChart, HeightRatioToChart Outer ratios (used when IsInnerMode = false)
InnerXRatioToChart, InnerYRatioToChart, InnerWidthRatioToChart, InnerHeightRatioToChart Inner ratios (used when IsInnerMode = true)

The sections below explain each flag, their impact, and demonstrate how to use them in code.

IsAutomaticSize

What it does

  • true (default) – Aspose.Cells calculates the plot area automatically based on the chart’s internal elements (legend, title, data labels, etc.).
  • false – The plot area size and position are taken from the ratio properties you set. The library does not adjust the area for axis titles or legends, so you must ensure enough space manually.

Impact of changing the flag

Setting Behaviour
IsAutomaticSize = true The chart adapts to content changes (e.g., longer axis titles) without extra code.
IsAutomaticSize = false The chart keeps the exact dimensions you defined, even if the content overflows. Useful for consistent layout across multiple sheets.

IsInnerMode

What it does

  • Only for Xlsx file.
  • false (default) – The chart uses the outer ratio properties: XRatioToChart, YRatioToChart, WidthRatioToChart, HeightRatioToChart.
  • true – The chart uses the inner ratio properties: InnerXRatioToChart, InnerYRatioToChart, InnerWidthRatioToChart, InnerHeightRatioToChart.

Difference between outer and inner ratios

  • Outer ratios measure the plot area from the outer border of the chart (including the legend area). They are useful when you want to keep a fixed distance from the chart’s edge.
  • Inner ratios measure the plot area from the inner border, i.e., after the legend (if placed inside) and after any chart‐level padding. This mode is handy when you need the plot area to occupy a specific percentage of the available drawing space inside the chart.

When to choose each mode

Mode Typical use case
IsInnerMode = false Align multiple charts to share the same outer margins, regardless of legend placement.
IsInnerMode = true Keep the plot area proportional to the actual drawing canvas (e.g., when legends are inside the chart).

Code example:

            path = "";
            string filePath = path + "XRatioToChartDemo.xlsx";
            // Create workbook and populate data
            var workbook = new Workbook();
            var worksheet = workbook.Worksheets[0];
            worksheet.Cells["A1"].PutValue("Category");
            worksheet.Cells["A2"].PutValue("A");
            worksheet.Cells["A3"].PutValue("B");
            worksheet.Cells["A4"].PutValue("C");
            worksheet.Cells["B1"].PutValue("Value");
            worksheet.Cells["B2"].PutValue(10);
            worksheet.Cells["B3"].PutValue(20);
            worksheet.Cells["B4"].PutValue(30);
            // Add chart
            int chartIndex = worksheet.Charts.Add(ChartType.Column, 5, 1, 15, 10);
            var chart = worksheet.Charts[chartIndex];
            chart.SetChartDataRange("A1:B4", true);
            chart.Title.Text = "Test Chart";
            // Verify default XRatioToChart
            var chartArea = chart.ChartArea;
            var plotArea = chart.PlotArea;
            plotArea.XRatioToChart = 0.1;
            plotArea.YRatioToChart = 0.05;
            plotArea.WidthRatioToChart = 0.8;
            plotArea.HeightRatioToChart = 0.9;

            // Save workbook
            workbook.Save(filePath);
            // Reload and verify persisted value
            var loadedWorkbook = new Workbook(filePath);
            var loadedChart = loadedWorkbook.Worksheets[0].Charts[0];
            plotArea = loadedChart.PlotArea;
            plotArea.IsInnerMode = true;
            plotArea.InnerXRatioToChart = 0.1;
            plotArea.InnerYRatioToChart = 0.05;
            plotArea.InnerWidthRatioToChart = 0.8;
            plotArea.InnerHeightRatioToChart = 0.9;

            loadedWorkbook.Save(path + "XRatioToChartDemo_inner.xlsx");

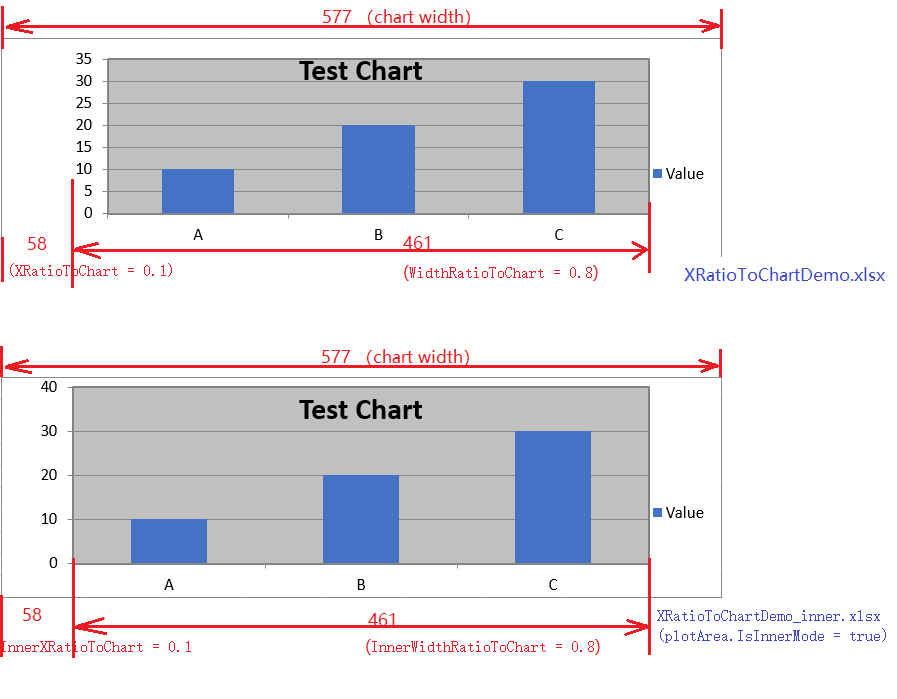

Output comparison

todo:image_alt_text

Ratio Parameters Explained

All eight ratio properties are relative values ranging from 0.0 to 1.0 (0 % – 100 %). They represent a percentage of the total chart size.

Property Meaning
XRatioToChart Horizontal offset of the left edge of the plot area from the chart’s left border (outer mode).
YRatioToChart Vertical offset of the top edge of the plot area from the chart’s top border (outer mode).
WidthRatioToChart Width of the plot area as a fraction of the chart’s total width (outer mode).
HeightRatioToChart Height of the plot area as a fraction of the chart’s total height (outer mode).
InnerXRatioToChart Horizontal offset from the inner left border (inner mode).
InnerYRatioToChart Vertical offset from the inner top border (inner mode).
InnerWidthRatioToChart Width of the plot area relative to the inner width (inner mode).
InnerHeightRatioToChart Height of the plot area relative to the inner height (inner mode).

Practical Example – Controlling PlotArea with All Parameters

The following fully runnable example demonstrates:

  1. Creating a simple column chart.
  2. Switching IsAutomaticSize to false.
  3. Using outer ratios (default IsInnerMode = false).
  4. Switching to inner mode and applying inner ratios.
  5. Saving two workbooks for side‐by‐side comparison.
// For complete examples and data files, please go to https://github.com/aspose-cells/Aspose.Cells-for-.NET
using System;
using Aspose.Cells;
using Aspose.Cells.Charts;

namespace PlotAreaDemo
{
    class Program
    {
        static void Main()
        {
            // -----------------------------------------------------------------
            // 1. Prepare sample data (A1:B5)
            // -----------------------------------------------------------------
            string dataDir = "./";
            Workbook wb = new Workbook();
            Worksheet ws = wb.Worksheets[0];
            Cells cells = ws.Cells;

            // Header
            cells["A1"].PutValue("Month");
            cells["B1"].PutValue("Sales");

            // Sample data
            string[] months = { "Jan", "Feb", "Mar", "Apr", "May" };
            double[] sales = { 1200, 1500, 1800, 1300, 1700 };
            for (int i = 0; i < months.Length; i++)
            {
                cells[i + 1, 0].PutValue(months[i]);   // Column A
                cells[i + 1, 1].PutValue(sales[i]);   // Column B
            }

            // -----------------------------------------------------------------
            // 2. Add a column chart.
            // -----------------------------------------------------------------
            int chartIndex = ws.Charts.Add(ChartType.Column, 5, 1, 15, 10);
            Chart chart = ws.Charts[chartIndex];
            chart.Title.Text = "Monthly Sales";
            chart.SetChartDataRange("A2:B6", true);

            // -----------------------------------------------------------------
            // 3. Disable automatic sizing – we will set ratios ourselves.
            // -----------------------------------------------------------------
            chart.PlotArea.IsAutomaticSize = false;

            // -----------------------------------------------------------------
            // 4. Use outer ratios (IsInnerMode = false – default)
            // -----------------------------------------------------------------
            chart.PlotArea.XRatioToChart = 0.12;          // 12 % from left border
            chart.PlotArea.YRatioToChart = 0.15;          // 15 % from top border
            chart.PlotArea.WidthRatioToChart = 0.75;      // 75 % of chart width
            chart.PlotArea.HeightRatioToChart = 0.65;     // 65 % of chart height

            // Save the first workbook – outer mode
            wb.Save(dataDir + "Chart_OuterPlotArea.xlsx");

            // -----------------------------------------------------------------
            // 5. Create a second workbook to demonstrate inner mode.
            // -----------------------------------------------------------------
            Workbook wbInner = new Workbook(dataDir + "Chart_OuterPlotArea.xlsx");
            Chart chartInner = wbInner.Worksheets[0].Charts[chartIndex];

            // Switch to inner mode and supply inner ratios
            chartInner.PlotArea.IsInnerMode = true;
            chartInner.PlotArea.InnerXRatioToChart = 0.05;      // 5 % from inner left border
            chartInner.PlotArea.InnerYRatioToChart = 0.05;      // 5 % from inner top border
            chartInner.PlotArea.InnerWidthRatioToChart = 0.9;   // 90 % of inner width
            chartInner.PlotArea.InnerHeightRatioToChart = 0.9;  // 90 % of inner height

            // The outer ratios are ignored when IsInnerMode = true.
            // Save the second workbook – inner mode
            wbInner.Save(dataDir + "Chart_InnerPlotArea.xlsx");

            Console.WriteLine("Charts created successfully.");
        }
    }
}

Explanation of the code

Step What the code does
Data preparation Inserts a small data table that the chart will consume.
Add chart Creates a column chart and links it to the data range.
IsAutomaticSize = false Turns off the automatic calculation so that the plot area respects the ratios we set.
Outer ratios (default mode) XRatioToChart = 0.12 ⇒ 12 % margin on the left side of the whole chart.
WidthRatioToChart = 0.75 ⇒ Plot area fills 75 % of the chart’s width, etc.
Save first file Chart_OuterPlotArea.xlsx shows a chart with an outer‐ratio‐driven plot area.
Clone workbook Re‐uses the same data & chart to illustrate inner mode without rebuilding the sheet.
IsInnerMode = true + inner ratios Offsets and sizes are now measured from the inner border (i.e., after the legend if it resides inside the chart).
Save second file Chart_InnerPlotArea.xlsx demonstrates the inner‐mode layout.

Open the two generated workbooks side‐by‐side to see how the plot area changes:

  • Outer mode – the plot area respects the outer margins (including the space occupied by the legend that sits outside the plot area).
  • Inner mode – the plot area is calculated after the legend is placed inside the chart, giving a slightly different visual balance.

Best‐Practice Recommendations

  1. Start with automatic size – most cases are covered by the default layout.
  2. Disable automatic size only when you need a fixed layout (e.g., report templates, dashboards).
  3. Prefer inner mode if your legend or data labels are set to appear inside the chart area; otherwise, stick with outer mode.
  4. Validate ratios – ensure Offset + Size ≤ 1.0 for both horizontal and vertical dimensions; otherwise the plot area may be truncated.
  5. Test with different data volumes – when IsAutomaticSize = false, long axis titles or many data points may overflow the plot area.
  6. Combine with chart customizations (e.g., chart.Legend.Position = LegendPositionType.Bottom) to achieve the exact layout you need.
